After metric data is collected, Metric Intelligence identifies the CIs and the
resources to bind the data to.
The data that is collected on the MID Server is raw and does not relate to any specific CI or
resource in the CMDB. To be useful, the data goes through a normalization
process that uses CMDB identification rules and event rules to uniquely identify CIs, and to map
and bind them to the raw data. Raw data can also be mapped and
bound to resources, if binding to a CI is successful and if resource binding is
configured.
Records for mapping raw data to CIs are automatically generated and remain in effect for a
specified length of time determined by the properties:
sa.metric.map.with.ci.expiration.sec:
If the mapping to the CI was found. Set by default to be
valid for five days.
sa.metric.map.without.ci.expiration.sec: If mapping to the CI was not
found. Set by default to be valid for 24 hours.
When similar metric data arrives within that time period, the existing mapping is used to
match the data to CIs. At the end of the time period, metric-to-CI records expire. Also, a change
in the event rules triggers an immediate expiration of the respective metric-to-CI records. Next
time that raw metric data arrives, it will be normalized again. When Discovery adds or removes
CIs, mappings are adjusted to reflect these changes at the next cycle.
All the information about the recent existing mapping is saved under metric-to-CI records in the
sa_metric_map table, as shown below. You can access the Metric to CI table by navigating to

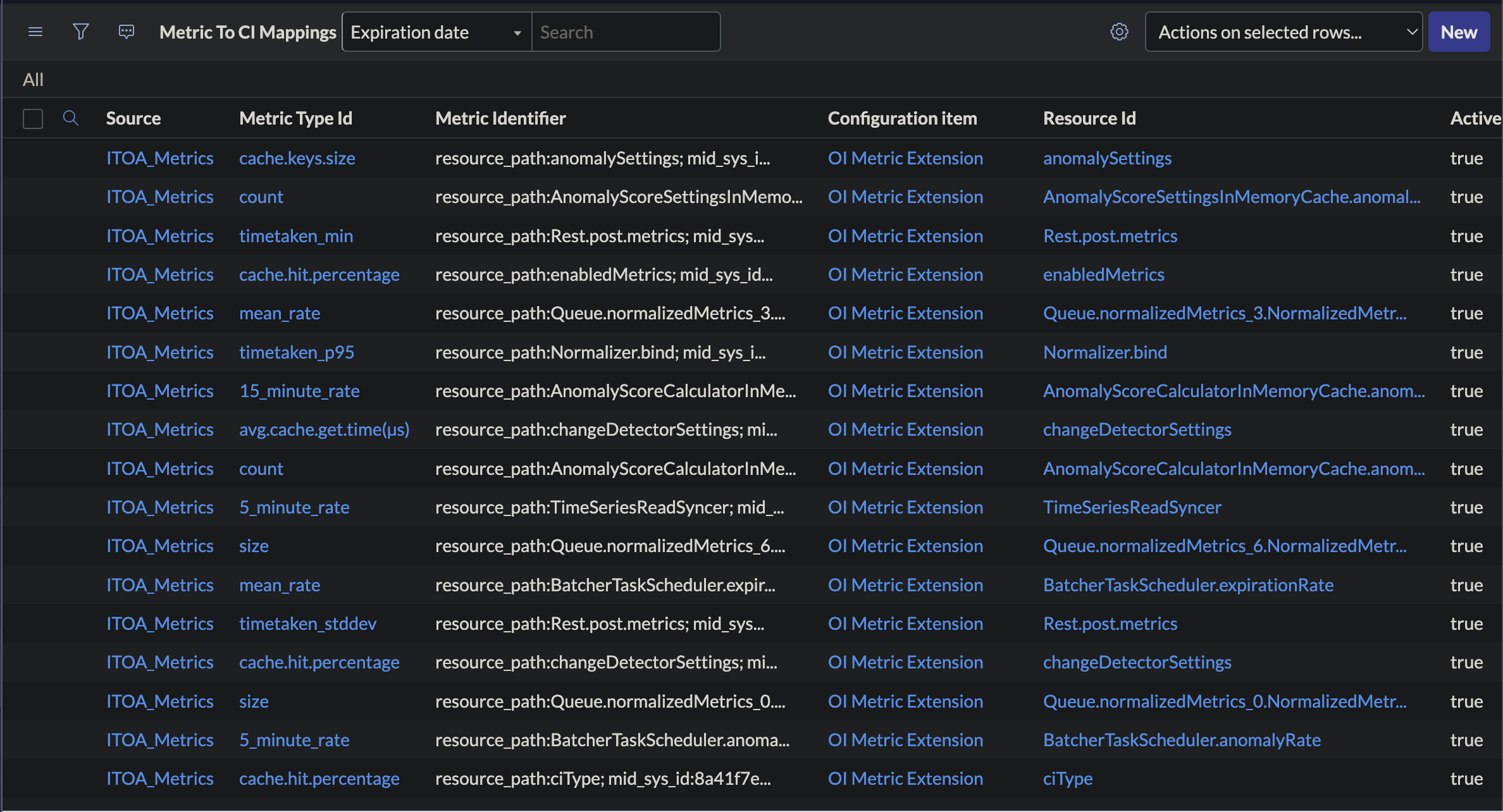

All > Event Management > Metrics > Metric to CI.Figure 1. Metric to CI table
