Implement custom actions for pipelines using a generic Docker container image
Summarize
Summarized using AI
This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.
Summary of Implement Custom Actions for Pipelines Using a Generic Docker Container Image
This guide enables ServiceNow customers to implement custom actions within their CI/CD pipelines using a generic Docker container image. These actions facilitate the integration of various ServiceNow functionalities, such as change request creation and artifact registration, into existing workflows via platforms like GitLab, GitHub Actions, and Harness.
Show less
Key Features
- Docker Container Usage: Utilize the ServiceNow Docker Image (servicenowdocker/sndevops:6.2.0) to run applications within your pipeline.
- Environmental Variables Configuration: Set up essential variables like SNOWTOKEN, SNOWURL, and SNOWTOOLID in GitLab, GitHub Actions, or Harness to connect to your ServiceNow instance.
- Custom Actions: Execute various commands such as creating change requests, registering artifacts, and retrieving security scan results, all of which are essential for maintaining a smooth DevOps workflow.
- Proxy Configuration: Support for proxy settings to manage network requests effectively.
Key Outcomes
Upon implementing the outlined processes, customers can expect to:
- Seamlessly integrate ServiceNow capabilities into CI/CD pipelines, enhancing automation and efficiency.
- Manage change requests and artifacts directly from their development environments, improving traceability and governance.
- Utilize environmental variables for dynamic configuration, ensuring secure and efficient pipeline operations.
- Retrieve and manage security and Sonar scan results effectively, contributing to overall software quality and compliance.
Use the ServiceNow custom actions to collect data related to change request creation, Sonar scan, artifact registration, and package registration in your pipeline with the help of the generic Docker Container Image.
Docker Image is a software package that can be used to run an application. This image informs how a container should instantiate, and which software components must be run. Docker Container is a virtual environment that combines application code and all the dependencies required to run the application. For more information on Docker, see Docker documentation.

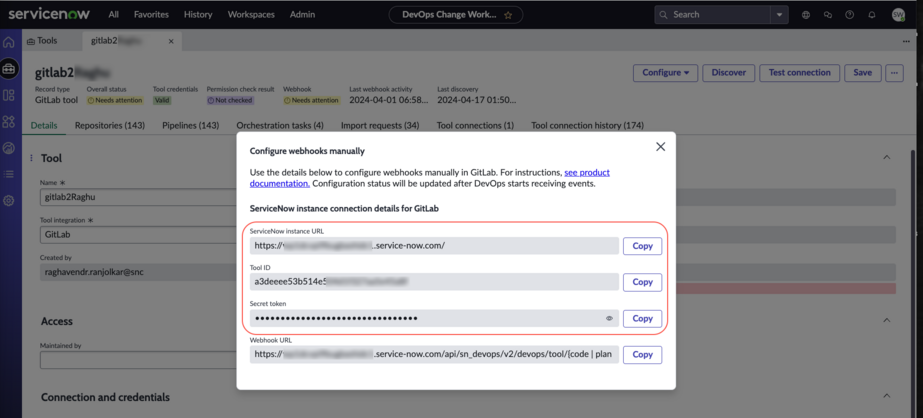

Environmental variables for GitLab
To configure Docker Images, the following environmental variables must be available in your GitLab instance for your project.
- SNOW_TOKEN: ServiceNow token number. It’s a masked variable and wont be displayed in the jobs.
- SNOW_TOOLID: ServiceNow tool ID.
- SNOW_URL: ServiceNow instance URL.
When adding the SNOW_TOKEN variable, you can acquire the token by selecting the Copy token button on the tool record, located in the Tool [sn_devops_tool] table.
The environmental variables must be updated with the values available in the Configure webhooks manually pop-up in the tool record page. For details on how to view the connection details, see Configure webhooks from the tool record and Configure webhooks in GitLab manually.

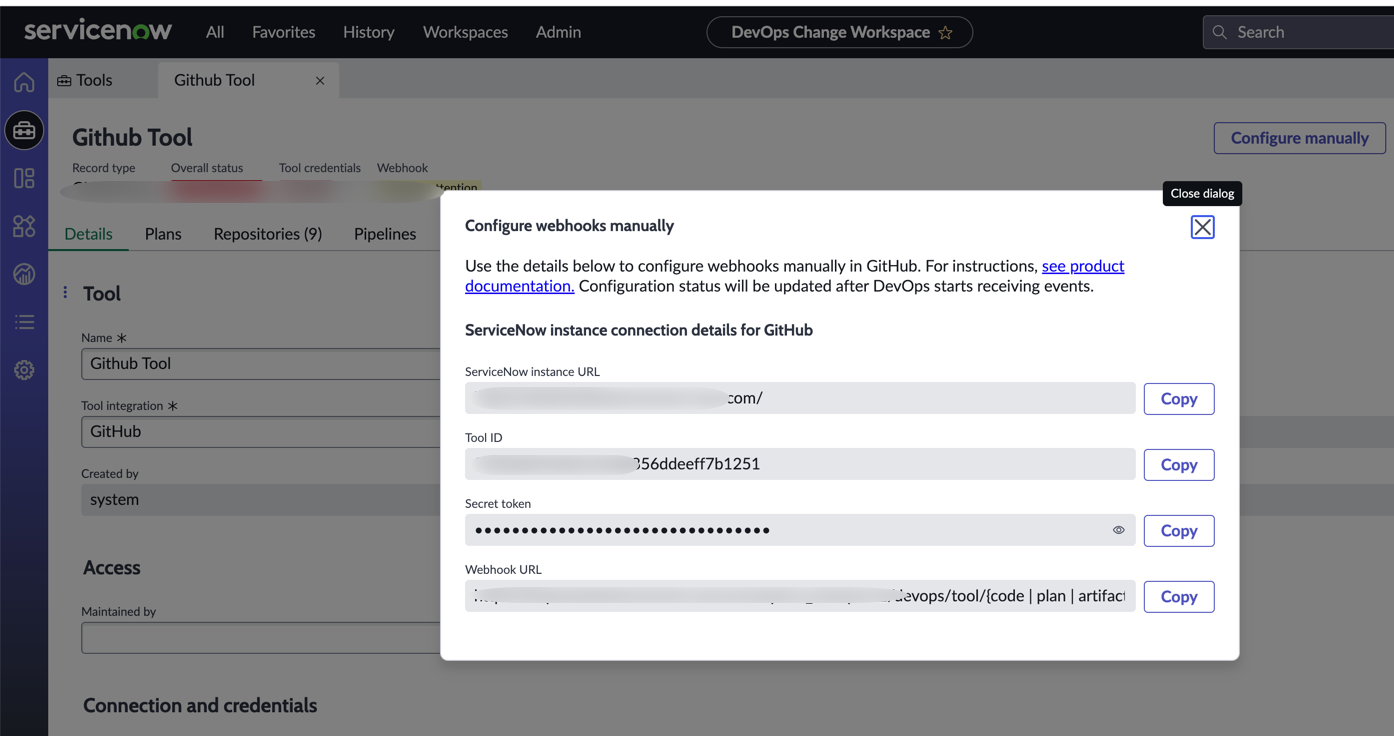

Environmental variables for GitHub Actions
To configure Docker Images, certain environmental variables must be available in your GitHub Actions instance.
The following environmental variables must be configured in your GitHub Actions instance.
Note:
The variables must be updated with the values available in the Configure webhooks manually pop-up in the tool record page.
- SNOW_TOKEN: ServiceNow token number. It’s a masked variable and wont be displayed in the jobs.
- SNOW_TOOLID: ServiceNow tool ID.
- SNOW_URL: ServiceNow instance URL.
Note:
For information on adding variables in GitHub Actions, see GitHub documentation.
The following environment variables must be passed in your GitHub Actions pipeline:
Note:
The values for these variables are dynamically retrieved from GitHub, and you don’t have to configure them separately.
- PIPELINE_ID: Workflow run ID of a repository. Usage - PIPELINE_ID: ${{github.run_id }}
- API_V4_URL: URL of the GitHub server. Usage - API_V4_URL: ${{ github.server_url }}
- JOB_ID: Workflow run ID of a repository. Usage - PIPELINE_ID: ${{ github.run_id }}
- PROJECT_PATH: Name of the workflow. Usage - PROJECT_PATH: ${{ github.repository }}/${{github.workflow}}
- REPOSITORY_NAME: Name of the repository. Usage - REPOSITORY_NAME: ${{ github.repository }}
- RUN_ATTEMPT: Number of workflow attempts. Usage - RUN_ATTEMPT: ${{ github.run_attempt }}
- PROJECT_TITLE: Name of the workflow. Usage - PROJECT_TITLE: ${{ github.repository }}/${{github.workflow}}
- COMMIT_BRANCH: Name of the branch on which the workflow is running. Usage - COMMIT_BRANCH: ${{ github.ref_name }}
- WORKFLOW_NAME: Name of the workflow. Usage - WORKFLOW_NAME: ${{ github.workflow }}
Environmental variables for Harness
To configure Docker Images, certain environmental variables must be available in your Harness instance.
The following environmental variables must be configured in your Harness instance.
Note:
The variables must be updated with the values available in the Configure webhooks manually pop-up in the tool record page.
- SNOW_TOKEN: ServiceNow token number. It’s a masked variable and wont be displayed in the jobs.
- SNOW_TOOLID: ServiceNow tool ID.
- SNOW_URL: ServiceNow instance URL.
The following environment variables must be passed in your Harness pipeline:
-
HARNESS_STAGE_NAME: "<+stage.identifier>"
-
HARNESS_PIPELINE_NAME: "<+org.identifier>/<+project.identifier>/<+pipeline.name>"
ServiceNow Docker Image
You must pass the ServiceNow Docker Image (servicenowdocker/sndevops:6.2.0) in your pipeline before adding custom actions in your pipeline. You can clone the app-devops-gitlab public repository located at https://github.com/ServiceNow/app-devops-gitlab, and create the Docker Image by running the following commands:
docker build -t servicenowdocker/sndevops:6.2.0docker push servicenowdocker/sndevops:6.2.0You can add the Docker Image at the starting of the .yml file. You don’t have to add it for each job separately.
Note:
If you want to use multiple images, then add them at the job levels.
You can also customize the app-devops-gitlab public repository and create your own Docker Image to pass in the pipeline.
Proxy configuration
If your GitLab instance runs behind a proxy server or you want to route requests through a proxy, you must configure proxy settings using environment variables in your Docker deployment.
Configure the following environment variables for proxy support:
- PROXY_ENDPOINT: # for example, http://localhost:7080 or https://proxy.example.com:8080
- PROXY_USERNAME: # Optional: for proxy authentication
- PROXY_PASSWORD: # Optional: for proxy authentication
- PROXY_AUTH: # Optional: alternative authentication using API key
PROXY_ENDPOINT can be either HTTP or HTTPS. For backward compatibility, HTTP_PROXY and HTTPS_PROXY are also supported. If you’re using self-signed certificates with HTTPS proxy, set NODE_TLS_REJECT_UNAUTHORIZED=0 (for testing
only). Authentication can be provided through the following ways:
- Username/Password: Use PROXY_USERNAME and PROXY_PASSWORD
- API Key: Use PROXY_AUTH
- No authentication: Leave authentication variables unset
For example:
stages:
- package
package:
stage: package
image: servicenowdocker/sndevops:6.2.0
variables:
PROXY_ENDPOINT: "https://proxy.example.com:8080"
PROXY_USERNAME: "proxy_user"
PROXY_PASSWORD: "proxy_pass"
script:
- sndevopscli create package -n "package-name" -a '[{"name":"artifact-name","repositoryName":"artifact-repo-name","version":"1.3.0"}]'ServiceNow DevOps Change Step
Add the ServiceNow DevOps Change custom step at the job level to create a change in your ServiceNow instance. For example:
stages:
- DevOpsChangeApproval
ServiceNow DevOps Change:
stage: DevOpsChangeApproval
image: servicenowdocker/sndevops:6.2.0
script:
- sndevopscli create change -p "{\"changeStepDetails\":{\"timeout\":3600,\"interval\":100},\"attributes\":{\"short_description\":\"Software Deployment\",\"description\":\"Software Deployment.\",\"assignment_group\":\"xxxxxxxxx\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}}"
Note:
If you’re using both the Docker change step and the when: manual instruction change step, confirm that you add them at different job levels.
You must enter the input values for this custom action as a JSON-formatted string.
- changeStepDetails: [optional] It holds the timeout and interval details.
- interval: [optional] The time in seconds to wait between trying the API. The default value is 100 seconds.
- timeout: [optional] The maximum time in seconds to wait until the action should fails. The default value is 3600 seconds.Note:When the timeout value is available here as well in your tool, the timeout value that is earlier is considered.
- attributes: [optional] The change request attribute details are to be used while creating a change in a ServiceNow instance. The change request is a JSON object surrounded by curly braces {} containing key-value pairs separated by a comma(,). A key-value pair consists of a key and a value separated by a colon(:). The keys supported in key-value pair are short_description, description, assignment_group, implementation_plan, backout_plan, test_plan, and so on.
- -ctx: [optional] Additional context parameters in JSON format. Environmental variable details from GitHub that will be used to build the request for the DevOps Change API. For example,
sndevopscli create change -ctx "{\"projectId\": \"123456\", \"attemptNumber\": \"${{ github.run_attempt }}\"}" -p "{\"changeStepDetails\": {\"timeout\":3600,\"interval\":100},\"autoCloseChange\":true,\"attributes\":{\"short_description\":\"G Venkata Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"a715cd759f2002002920bde8132e7018\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}}" - -w: [optional] Specify whether the pipeline should wait for change creation and approval. By default, the pipeline will be waiting until the change creation and it's approval.
Note:
The name of the change step must contain the ServiceNow DevOps Change keyword, which is the job name.
- Deployment gate
- This attribute enables the passing of data during change request creation using the
sndevopscli, and at the same time uses the manual job functionality provided by tools like GitLab. For example:stages: - DevOpsChangeApproval - deploy ServiceNow DevOps Change: stage: DevOpsChangeApproval image: servicenowdocker/sndevops:6.2.0 script: - sndevopscli create change -p '{"changeStepDetails":{"timeout":3600,"interval":100},"deploymentGateDetails":{"jobName":"sn-change-job"},"attributes":{"short_description":"Automated Software Deployment","description":"Automated Software Deployment.","implementation_plan":"Software update is tested and results can be found in Test Summaries Tab.","backout_plan":"When software fails in production, the previous software release will be re-deployed.","test_plan":"Testing if the software was successfully deployed or not"}}' sn-change-job: stage: deploy needs: job: ServiceNow DevOps Change when: manual allow_failure: false script: | echo sn-change-jobThe optional deploymentGateDetails attribute must contain a jobName attribute, which holds the name of the downstream manual job in the pipeline.
ServiceNow DevOps SonarScan Results
Add the ServiceNow DevOps SonarScan Results custom step at the job level to create a Sonar summary in your ServiceNow instance. For example:
stages:
- DevOpsSonarStage
ServiceNow DevOps SonarScan Results:
stage: DevOpsSonarStage
image: servicenowdocker/sndevops:6.2.0
script:
- sndevopscli create sonar -url 'https://sonarcloud.io' -projectKey 'devsystem2019_TestImportTest'
- url: [Required] This specifies the Sonar URL.
- projectKey: [Required] This specifies the Sonar project key.
Note:
The name of the Sonar step must be same as the job name, which is ServiceNow DevOps SonarScan Results.
- Limitation
- While creating software quality summary results, the MERGE_REQUEST_SOURCE_BRANCH_NAME environment variable will be used for merge pipelines, and DEFAULT_BRANCH will be used for tag pipelines because the COMMIT_BRANCH variable isn’t available for merge or tag pipelines. For more information, see GitLab documentation.
Register Artifact
Add the artifact custom step at the job level to register an artifact in your ServiceNow instance. For example:
stages:
- artifact
artifact:
stage: artifact
image: servicenowdocker/sndevops:6.2.0
script:
- sndevopscli create artifact -a "[{\"name\":\"Artifact-${JOB_NAME}\",\"repositoryName\":\"Repo\",\"version\":\"1.${JOB_ID}.0\"}]"
You must enter the input values for this custom action as a JSON-formatted string.
-a: [Required] This value specifies the artifact details.
Register Package
Add the package custom step at the job level to register a package in your ServiceNow instance. For example:
stages:
- package
package:
stage: package
image: servicenowdocker/sndevops:6.2.0
script:
- sndevopscli create package -n "Package2" -a "[{\"name\":\"Artifact-${JOB_NAME}\",\"repositoryName\":\"Repo\" ,\"version\":\"1.${JOB_ID}.0\"}]"You must enter the input values for this custom action as a JSON-formatted string.
-n: [Required] This specifies the package name.
Get change
Add at job level to get changeRequestNumber from ServiceNow instance with the given changeDetails to identify the change request.
For example:
stages:
- DevOpsGetChange
ServiceNow DevOps Get Change:
stage: DevOpsGetChange
image: servicenowdocker/sndevops:6.2.0
script:
- sndevopscli get change -p "{\"buildNumber\":${CHG_JOB_ID},\"stageName\":\"ServiceNow DevOps Change Step\",\"pipelineName\":\"GitlabDockerGetAndUpdateChange\"}"
-p: It stands for changeDetails. The change details to be used for identifying change request in ServiceNow instance. The change details is a JSON object surrounded by curly braces {} containing key-value pair separated by a comma ,. A key-value pair consists of a key and a value separated by a colon :. The keys supported in key-value pair are buildNumber, pipelineName, stageName
buildNumber: [mandatory]
This specifies ID of the Job where we have created change request.
stageName: [mandatory]
This specifies the Job name where we have created change request..
pipelineName: [mandatory]
This specifies the pipeline name.
Outputs:
sndevopschg.json file created with content: {
"status": "SUCCESS",
"changeRequestNumber": "CHGXXXXX"
}
changeRequestNumber: Change Request Number found for the given change details
status: To know the status of the Change Request GET.
Update change
Add at job level to update change in ServiceNow instance for the changeRequestNumber provided as input along with changeRequestDetails.
For example:
stages:
- DevOpsUpdateChangeStage
ServiceNow DevOps Update Change:
stage: DevOpsUpdateChangeStage
image: servicenowdocker/sndevops:6.2.0
script:
- sndevopscli update change -n 'CHGXXXXXX' -p "{\"short_description\":\"G Venkata12345 Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"XXXXX\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}"
-n [Not mandatory if we have sndevopschg.json in our pipeline yml]: It stands for changeRequestNumber. The change request number to identify a unique change request.
Precedence of choosing changeRequestNumber:
- changeRequestNumber mentioned in the pipeline yml
- changeRequestNumber stored in sndevopschg.json.
-p : It stands for changeDetails. The change details to be used for Updating the change request information identified by the specified change request number with the key-value pairs. The change details is a JSON object surrounded by curly braces {} containing key-value pair separated by a comma ,. A key-value pair consists of a key and a value separated by a colon :. The keys supported in key-value pair are short_description, state, description, work_notes ..so on
OR
- sndevopscli update change -p "{\"short_description\":\"Updated Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"XXXXXXXXXX\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}"
NOTE: State should be specified at last in case if you are update the state of change request.
- sndevopscli update change -p "{\"short_description\":\"Updated Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"XXXXXXXXXX\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\","state":"3"}'
Auto close change
Incorporate auto close change in ServiceNow instance. For detailed information about auto close, see Configuring DevOps change request details within the pipeline.
For example:
stages:
- changeapproval
ServiceNow DevOps Change Step:
stage: changeapproval
image: servicenowdocker/sndevops:6.2.0
script:
- sndevopscli create change -p "{\"changeStepDetails\":{\"timeout\":3600,\"interval\":100},\"autoCloseChange\":true,\"attributes\":{\"short_description\":\"G Venkata Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"xxxxxxxx\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}}"
autoCloseChange: [optional] : Boolean value
Security scan results
Add the ServiceNow DevOps Security Scan Results custom step at the job level to retrieve security scan results. For example:
stages:
- DevOpsSecurityScanStageServiceNow
ServiceNow DevOps Security Scan Results:
stage: DevOpsSecurityScanStageimage
image: servicenowdocker/sndevops:6.2.0
script:
- sndevopscli create securityScan -p "{\"pipelineInfo\":{\"buildNumber\":\"${PIPELINE_ID}\",\"pipelineExecutionUrl\":\"${PIPELINE_URL}\" },\"securityResultAttributes\":{ \"scanner\":\"Veracode\",\"applicationName\":\"PetStoreAPI-Github\",\"buildVersion\":\"\",\"securityToolId\":\"\"}}"
-p: [mandatory]It the payload of security result attributes. The payload will have attributes as follows:
buildNumber: PIPELINE_ID (mandatory)pipelineExecutionUrl: PIPELINE_URL (mandatory)scanner: Scanning tool and is required e.g. Checkmarx One.projectName/projectId: Name/Id of your Checkmarx One project and is required. This attribute is applicable only for Checkmarx One.applicationName: Name of your Veracode application and is required. This attribute is applicable only for Veracode.buildVersion": Veracode Scan name / build version and is optional. This attribute is applicable only for Veracode.scanId: Checkmarx One scan id and is optional. This attribute is applicable only for Checkmarx One.securityToolId: Security tool onboarded in ServiceNow (sys_id of the onboarded security tool) and is optional.
Sample pipelines
Sample GitLab pipeline
image: servicenowdocker/sndevops:6.2.0
stages:
- pre-build
- build
- sonar
- securityscan
- changeapproval
- getchange
- updatechange
- deploy
Pre-Build:
stage: pre-build
script:
- echo $JOB_NAME
Artifact and Package:
stage: build
script:
- sndevopscli create artifact -a "[{\"name\":\"Artifact-${JOB_NAME}\",\"repositoryName\":\"TestRepo\",\"version\":\"1.${RUNNER_ID}.0\"}]"
- sndevopscli create package -n "Test_Package" -a "[{\"name\":\"Artifact-${JOB_NAME}\",\"repositoryName\":\"TestRepo\",\"version\":\"1.${RUNNER_ID}.0\"}]"
ServiceNow DevOps SonarScan Results:
stage: sonar
script:
- sndevopscli create sonar -url 'https://sonarcloud.io' -projectKey 'xxxxxxx'
ServiceNow DevOps Security Scan Results:
stage: securityscan
script:
- sndevopscli create securityScan -p "{\"pipelineInfo\":{\"buildNumber\":\"${JOB_ID}\", \"stageName\":\"ServiceNow DevOps Security Scan Results\",\"taskExecutionUrl\":\"${JOB_URL}\" },\"securityResultAttributes\":{ \"scanner\":\"Veracode\",\"applicationName\":\"PetStoreAPI-Github\",\"buildVersion\":\"\",\"securityToolId\":\"\"}}"
ServiceNow DevOps Change Step:
stage: changeapproval
variables:
CHG_JOB_ID: $JOB_ID
script:
- echo "CHG_JOB_ID=$CHG_JOB_ID" >> generated_job_id.env
- sndevopscli create change -p "{\"changeStepDetails\":{\"timeout\":3600,\"interval\":100},\"autoCloseChange\":true,\"attributes\":{\"short_description\":\"G Venkata Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"a715cd759f2002002920bde8132e7018\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}}"
- sndevopscli get change #If we are placing get change cli command in the same job where we are creating change then no need to mention the changeDetails.
artifacts:
paths:
- generated_job_id.env
DevOps Get Change:
stage: getchange
script:
- source generated_job_id.env
- sndevopscli get change -p "{\"buildNumber\":${CHG_JOB_ID},\"stageName\":\"ServiceNow DevOps Change Step\",\"pipelineName\":\"SmrutiTestDemoProject\"}"
artifacts:
paths:
- sndevopschg.json
dependencies:
- ServiceNow DevOps Change Step
DevOps Update Change:
stage: updatechange
script:
#- sndevopscli update change -n 'CHGXXXX' -p "{\"short_description\":\"Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"xxxxxxx\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}"
- sndevopscli update change -p "{\"short_description\":\"Updated Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"xxxxxxx\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}"
dependencies:
- DevOps Get Change
Deploy Job:
stage: deploy
script:
- echo $JOB_NAMESample GitHub Actions pipeline
name: GithubAction
on:
push:
branches: ["main"]
pull_request:
branches: ["main"]
permissions:
contents: read
env:
SNOW_URL: ${{ secrets.SNOW_URL }}
SNOW_TOKEN: ${{ secrets.SNOW_TOKEN }}
SNOW_TOOLID: ${{ secrets.SNOW_TOOLID }}
# These are the optional env variables
#PIPELINE_ID: ${{ github.run_id }}
#API_V4_URL: ${{ github.server_url }}
#JOB_ID: ${{ github.run_id }}
#PROJECT_PATH: ${{ github.job }}
#REPOSITORY_NAME: ${{ github.repository }}
#RUN_ATTEMPT: ${{ github.run_attempt }}
#PROJECT_TITLE: ${{ github.repository }}/${{github.workflow}}
#COMMIT_BRANCH: ${{ github.ref_name }}
#WORKFLOW_NAME: ${{ github.workflow }}
jobs:
build:
runs-on: ubuntu-latest
steps:
- name: Set up JDK 17
run: |
echo 'hello'
ServiceNowDevOpsChange:
runs-on: ubuntu-latest
needs: build
container:
image: servicenowdocker/sndevops:6.2.0
env:
JOB_NAME: "ServiceNowDevOpsChange"
steps:
- name: create change
run: |
sndevopscli create change -p "{\"changeStepDetails\":{\"timeout\":3600,\"interval\":10},\"autoCloseChange\":true,\"attributes\":{\"short_description\":\"G Venkata Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"a715cd759f2002002920bde8132e7018\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}}"
ServiceNowUpdateDevOpsChange:
runs-on: ubuntu-latest
needs: ServiceNowDevOpsChange
container:
image: servicenowdocker/sndevops:6.2.0
env:
JOB_NAME: "ServiceNowDevOpsChange"
steps:
- name: update change
run: |
sndevopscli update change -p "{\"short_description\":\"Updated Automated Software Deployment\",\"description\":\"Automated Software Deployment.\",\"assignment_group\":\"a715cd759f2002002920bde8132e7018\",\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",\"test_plan\":\"Testing if the software was successfully deployed or not\"}"
ArtifactAndPackage:
runs-on: ubuntu-latest
needs: build
container:
image: servicenowdocker/sndevops:6.2.0
env:
JOB_NAME: "ArtifactAndPackage"
steps:
- name: create artifact
run: |
sndevopscli create artifact -a "[{\"name\": \"com:customactiondemo\",\"version\": \"1.${{ github.run_number }}\",\"semanticVersion\": \"1.${{ github.run_number }}.0\",\"repositoryName\": \"${{ github.repository }}\"}]"
sndevopscli create package -n "Test_Package" -a "[{\"name\": \"com:customactiondemo\",\"version\": \"1.${{ github.run_number }}\",\"semanticVersion\": \"1.${{ github.run_number }}.0\",\"repositoryName\": \"${{ github.repository }}\"}]"
ServiceNowDevOpsSonarScanResults:
name: ServiceNowDevOpsSonarScanResults
needs: ArtifactAndPackage
runs-on: ubuntu-latest
container:
image: servicenowdocker/sndevops:6.2.0
env:
JOB_NAME: "ServiceNowDevOpsSonarScanResults"
steps:
- name: devops soanr results
run: |
sndevopscli create sonar -url 'https://sonarcloud.io' -projectKey 'xxxxxxx'
ServiceNowDevOpsSecurityScan:
name: ServiceNowDevOpsSecurityScan
runs-on: ubuntu-latest
needs: build
container:
image: servicenowdocker/sndevops:6.2.0
steps:
- name: security scan
run: |
sndevopscli create securityScan -p "{ \"pipelineInfo\": { \"runId\": \"${{ github.run_id }}\", \"runNumber\": \"${{ github.run_number }}\", \"runAttempt\": \"${{ github.run_attempt }}\", \"job\": \"ServiceNowDevOpsSecurityScan\", \"workflow\": \"${{ github.workflow }}\", \"repository\": \"${{github.repository}}\" }, \"securityResultAttributes\": { \"scanner\": \"Veracode\", \"applicationName\": \"PetStoreAPI-Github\",\"buildVersion\": \"\", \"securityToolId\": \"\"}}"
Sample Harness pipeline
# This is an example pipeline, and your pipeline and container configurations may vary from the setup shown here.
# Refer to the pipeline stages for Security, Software, and Change configurations.
# Using this YAML file directly will not work as it contains several Harness-specific configurations; check the Command section present for container steps.
pipeline:
name: Example pipeline
identifier: Example_pipeline
projectIdentifier: Example_project
orgIdentifier: ExampleOrg
tags: {}
stages:
- stage:
name: Build
identifier: Build
description: ""
type: Custom
spec:
execution:
steps:
- step:
type: ShellScript
name: ShellScript_1
identifier: ShellScript_1
spec:
shell: Bash
executionTarget: {}
source:
type: Inline
spec:
script: echo "Building.."
environmentVariables: []
outputVariables: []
timeout: 10m
tags: {}
- stage:
name: ServiceNow DevOps Sonar Scan Results
identifier: ServiceNow_DevOps_Sonar_Scan_Results
description: ""
type: Custom
spec:
execution:
steps:
- step:
type: Container
name: Sonar container
identifier: Sonar_container
spec:
connectorRef: docker_connector # harness docker connector
image: servicenowdocker/sndevops:6.2.0
command: |-
export SNOW_URL="<+variable.SNOW_URL>"
export SNOW_TOOLID="<+variable.SNOW_TOOLID>"
export SNOW_TOKEN="<+variable.SNOW_TOKEN>"
export HARNESS_STAGE_NAME="<+stage.identifier>"
export HARNESS_PIPELINE_NAME="<+org.identifier>/<+project.identifier>/<+pipeline.name>"
export COMMIT_BRANCH="main"
sndevopscli create sonar -url 'https://sonarcloud.io' -projectKey 'SONAR_PROJECT_KEY' -branch "main"
shell: Sh
infrastructure:
type: KubernetesDirect
spec:
connectorRef: KUBE_CONNECTOR # harness kubernates connector
namespace: harness-delegate-ng
resources:
limits:
cpu: "0.5"
memory: 500Mi
annotations: {}
labels: {}
containerSecurityContext:
capabilities:
drop: []
add: []
nodeSelector: {}
reports:
type: JUnit
spec:
paths: []
outputVariables: []
envVariables: {}
timeout: 1h
tags: {}
- stage:
name: ServiceNow DevOps Security Scan Results
identifier: ServiceNow_DevOps_Security_Scan_Results
description: ""
type: Custom
spec:
execution:
steps:
- step:
type: Container
name: security
identifier: security
spec:
connectorRef: docker_connector # harness docker connector
image: servicenowdocker/sndevops:6.2.0
command: |-
export SNOW_URL="<+variable.SNOW_URL>"
export SNOW_TOOLID="<+variable.SNOW_TOOLID>"
export SNOW_TOKEN="<+variable.SNOW_TOKEN>"
sndevopscli create securityScan -p \
"{\"pipelineInfo\":{
\"buildNumber\":\"<+stage.nodeExecutionId>\",
\"taskExecutionUrl\":\"<+pipeline.executionUrl>?stage=<+stage.nodeExecutionId>\",
\"orchestrationPipeline\":\"<+org.identifier>/<+project.identifier>/<+pipeline.name>\"
},
\"securityResultAttributes\":{
\"scanner\":\"Veracode\",
\"applicationName\":\"VeraDemo-10\"
}
}"
shell: Sh
infrastructure:
type: KubernetesDirect
spec:
connectorRef: KUBE_CONNECTOR # harness kubernates connector
namespace: harness-delegate-ng
resources:
limits:
cpu: "0.5"
memory: 500Mi
annotations: {}
labels: {}
containerSecurityContext:
capabilities:
drop: []
add: []
nodeSelector: {}
reports:
type: JUnit
spec:
paths: []
outputVariables: []
envVariables: {}
timeout: 1h
tags: {}
- stage:
name: Deploy
identifier: Deploy
description: ""
type: Deployment
spec:
deploymentType: Kubernetes
service:
serviceRef: service
environment:
environmentRef: Dev
deployToAll: false
infrastructureDefinitions:
- identifier: Infra
execution:
steps:
- step:
type: Container
name: ServiceNow change
identifier: ServiceNow_change
spec:
connectorRef: docker_connector # harness docker connector
image: servicenowdocker/sndevops:6.2.0
command: |-
# set mandetory variables. These can be set from Environment variable section of Optional configuration as well.
export HARNESS_STAGE_NAME="<+stage.identifier>"
export SNOW_URL="<+variable.SNOW_URL>"
export SNOW_TOOLID="<+variable.SNOW_TOOLID>"
export SNOW_TOKEN="<+variable.SNOW_TOKEN>"
# "sndevopscli create change" command notifies ServiceNow DevOps to create a change.
# Ensure to update "upstreamStage" accordingly. Example, if you have 3 stages Test, Change and Deploy in your pipeline, then you must update as "upstreamStage": "<+pipeline.stages.Test.nodeExecutionId>". Note that if your change stage is the first stage, you can remove this line.
sndevopscli create change -ctx \
"{
\"pipelineExecutionUrl\":\"<+pipeline.executionUrl>\",
\"stageIdentifier\": \"<+stage.identifier>\",
\"stageNodeExecutionId\": \"<+stage.nodeExecutionId>\",
\"pipelineName\": \"<+pipeline.name>\",
\"upstreamStage\": \"<+pipeline.stages.ServiceNow_DevOps_Security_Scan_Results.nodeExecutionId>\"
}" -p \
"{
\"changeStepDetails\":
{
\"timeout\":3600,
\"interval\":100
},
\"autoCloseChange\":true,
\"attributes\":{
\"chg_model\":\"adffaa9e4370211072b7f6be5bb8f2ed\",
\"short_description\":\"Software Deployment\",
\"description\":\"Automated Software Deployment.\",
\"implementation_plan\":\"Software update is tested and results can be found in Test Summaries Tab.\",
\"backout_plan\":\"When software fails in production, the previous software release will be re-deployed.\",
\"test_plan\":\"Testing if the software was successfully deployed or not\"
}
}"
shell: Sh
infrastructure:
type: KubernetesDirect
spec:
connectorRef: KUBE_CONNECTOR # harness kubernates connector
namespace: harness-delegate-ng
resources:
limits:
cpu: "0.5"
memory: 500Mi
annotations: {}
labels: {}
containerSecurityContext:
capabilities:
drop: []
add: []
nodeSelector: {}
reports:
type: JUnit
spec:
paths: []
outputVariables: []
envVariables: {}
timeout: 1h
- step:
type: ShellScript
name: ShellScript_1
identifier: ShellScript_1
spec:
shell: Bash
executionTarget: {}
source:
type: Inline
spec:
script: echo "Deploying.."
environmentVariables: []
outputVariables: []
timeout: 10m
rollbackSteps: []
tags: {}
failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: StageRollback
properties:
ci:
codebase:
connectorRef: CONNECTOR
repoName: REPO_NAME
build: <+input>
sparseCheckout: []
notificationRules:
- name: devopsbugbashwp5
identifier: devopsbugbashwp5
pipelineEvents:
- type: AllEvents
notificationMethod:
type: Webhook
spec:
webhookUrl: https://{instance_url}/api/sn_devops/v2/devops/tool/orchestration?toolId={tool sys id}&projectId={project sys id}&ni.nolog.token={token}
enabled: trueNote:
If you want to add the Sonar Scan Results and Security Scan Results on the same stage, you can use different step names for both the custom actions by updating their default value in the
sonar_step_names and security_step_names fields in the sn_devops_tool_integration_configuration table.
