Run an incident communication plan report to view the status of communication plans. You can track the progress of the plan and intervene to improve the overall efficiency and effectiveness of the communication
process.
Before you begin
Role required: ia_admin or admin
Procedure

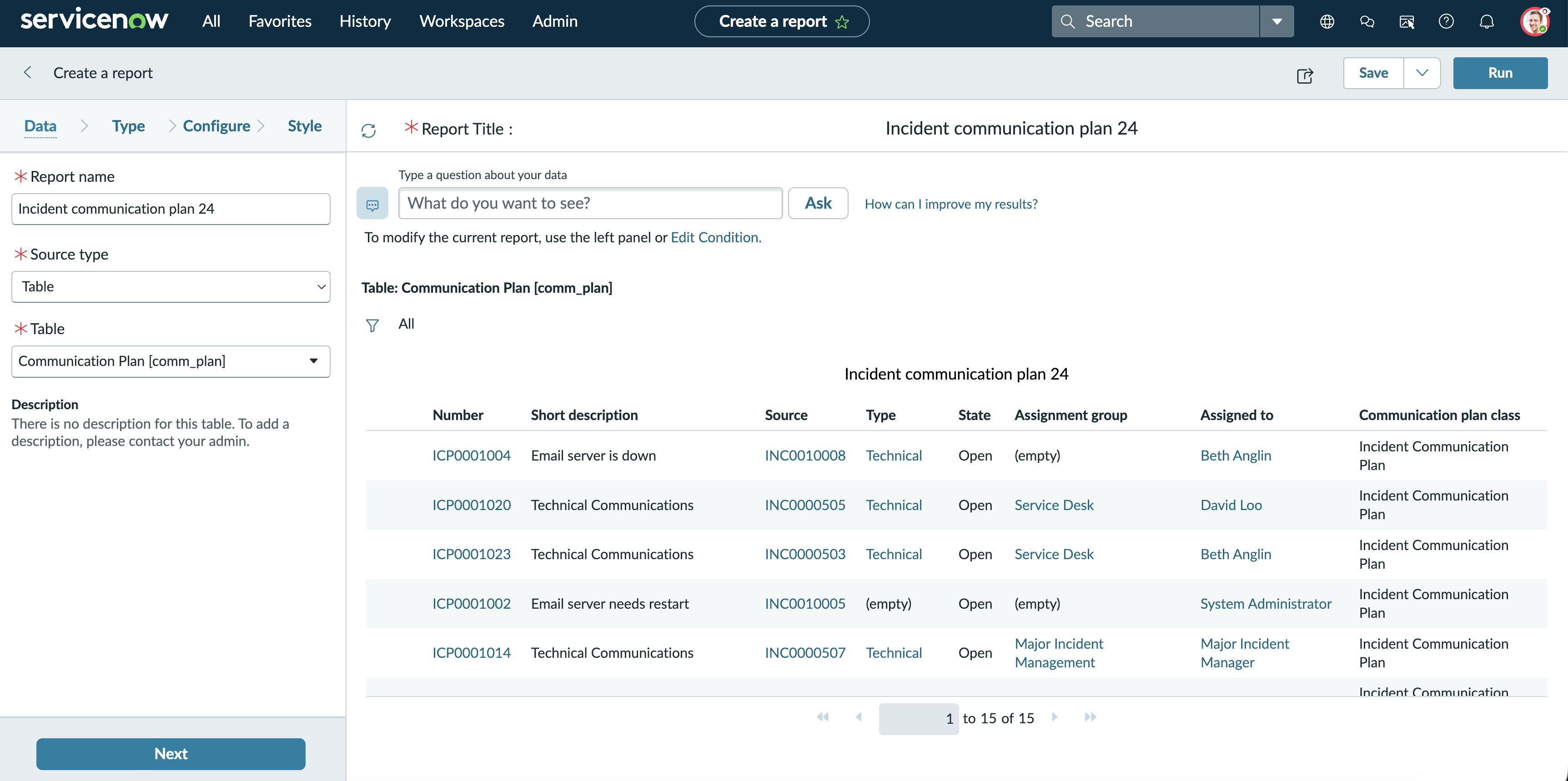

Navigate to All > Core UI artifacts > Reports.
Select New.
In the Data section, fill in the fields.
Fields
Description
Report name
Unique name for the report.
Source type
Source from which the data is populated. The default value is Table.
Table
Table from which the data is retrieved.
Optional: In the Type section, select the required visualization from the following sections:
Bars
Pies and Donuts
Time series
Multidimensional reports
Scores
Others
Optional: In the Configure section, select the values for the following options:
Column: Select the column that must be displayed in the report.
Group By: Select the field based on which the data in the report is grouped.
Configure the function field: Select to configure the function field for the report.
Optional: In the Style section, select the title related values for the following options:
Show chart title: Select to add a custom report name. Possible values:
Never
Report only
Always
Chart title: Custom title for the report.
Note:
This field is available only if the Show chart title field is set to Always or Report
only.
Size of the chart title: Font size of the report title.
Note:
This field is available only if the Show chart title field is set to Always or Report
only.
Chart title color: Color of the report title.
Note:
This field is available only if the Show chart title field is set to Always or Report
only.
Title horizontal alignment: Alignment of the report title. Possible values:
Left
Center
Right
Note:
This field is available only if the Show chart title field is set to Always or Report only.
Select Run.
Note:
You can also choose a graphical representation for the report or narrow down the result using the Type and Configure options.
