Editing block attributes

  • リリースバージョン: Australia
  • 更新日 2026年03月12日
  • 所要時間：1分

    • Edit block attributes in CAD Editor.

    始める前に

    注:
    Blocks can’t be edited. Only attributes within a block can be edited. Polylines linked to a block can’t be edited.

    Role required: admin

    手順

    1. Select the CAD Editor tab.
    2. On the preview layout, select a block reference.
    3. The editing panel appears.

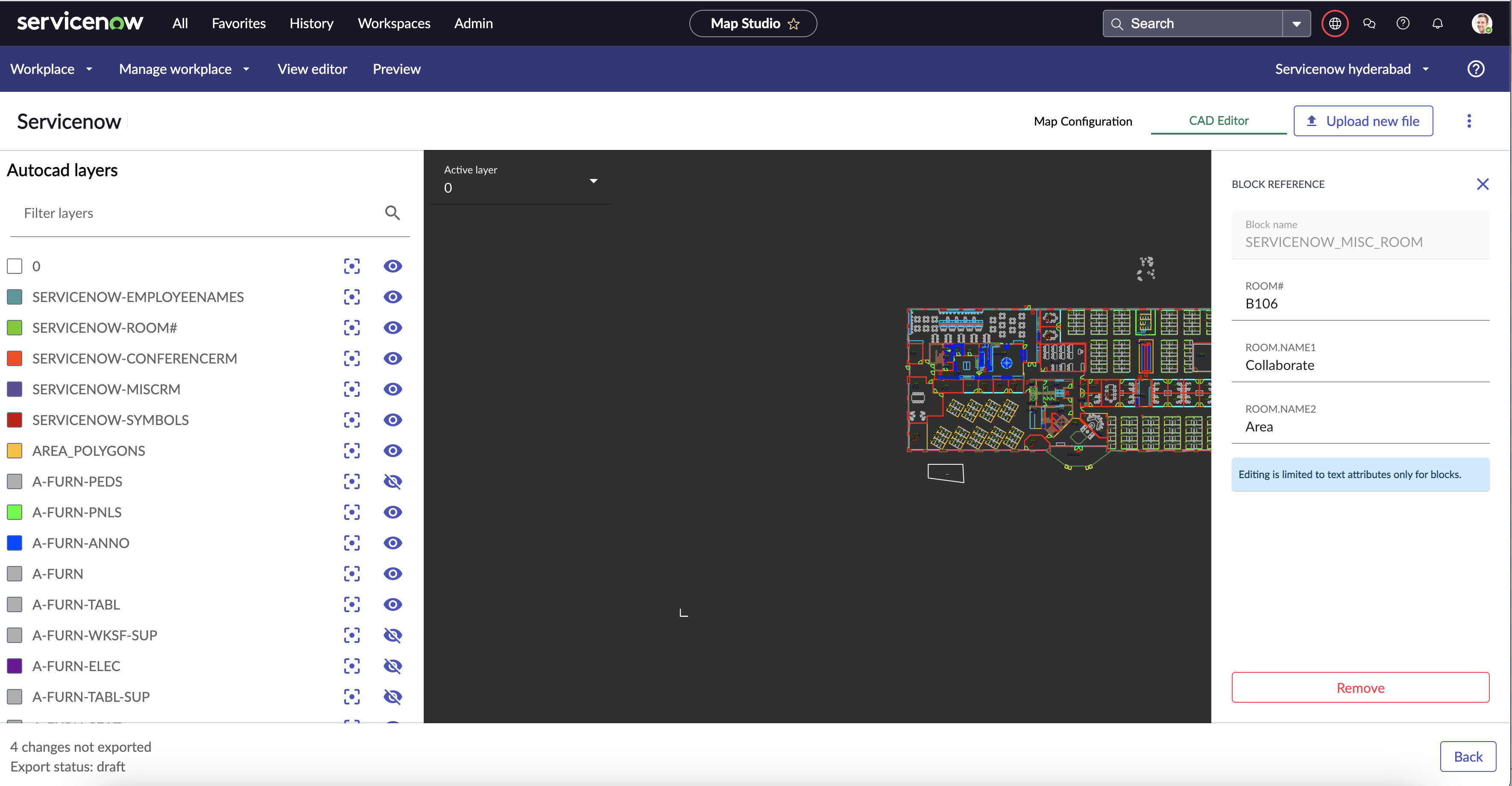

      Edit block attributes.

    4. Edit the attributes as required.
      For example, edit the text attributes in a block.
    5. Select Remove to remove the element from the CAD drawing.
