Use the Terminate component

Abort an automation by using the Terminate component in RPA Desktop Design Studio.

始める前に

Role required: none

このタスクについて

You can configure the properties for the Terminate component. For more information about these properties, see Properties of the General components.

Use the Terminate component in attended automations to complete the automation execution. For more information about the embedded task automation, Embedded Task Automation (ETA) in RPA Hub.

手順

1. In the Toolbox pane, navigate to General > Terminate.
2. Drag the Terminate component to the Design surface.
3. To configure the input field, see Configure port properties.
4. オプション: Connect the data and control ports of the Terminate component to the corresponding ports of the other components as described in the following table.

   Port name	Purpose of connection	Port type	Data type	Mandatory?	Notes
   Message	Takes the message when an automation is terminated. This message is also shown in the process job.	Data In	String	No. Connecting the port is optional.	If the Boolean input in the Mark As Error port is True, then you must provide a message.
   Mark As Error	Takes the Boolean value that indicates the status of the process job. If True, the state of the process job is Failed. If False, the status of the process job is a success.	Data In	Boolean	No. Connecting the port is optional.	You can view the status of the process job under the Process Jobs tab of the respective process in the instance.
   Capture Screen	Takes the Boolean value that indicates whether the component captures the screenshot when an automation fails to execute. If True, the screen is captured at that point in time. If False, the screen is not captured. 注: Ensure that the Track Execution Logs setting is enabled in your bot process record in RPA Hub. If Flat file is selected as an output type, then the screenshots are not captured.	Data In	Boolean	No. Connecting the port is optional.	To view the screenshot, do the following actions: On the Design tab, click Attach > Remote log. Select the required process job and click Fetch Logs. Click Play log. The Execution log window shows the screenshot.

5. オプション: To test the component, right-click the component bar and then click Run From Here.

例

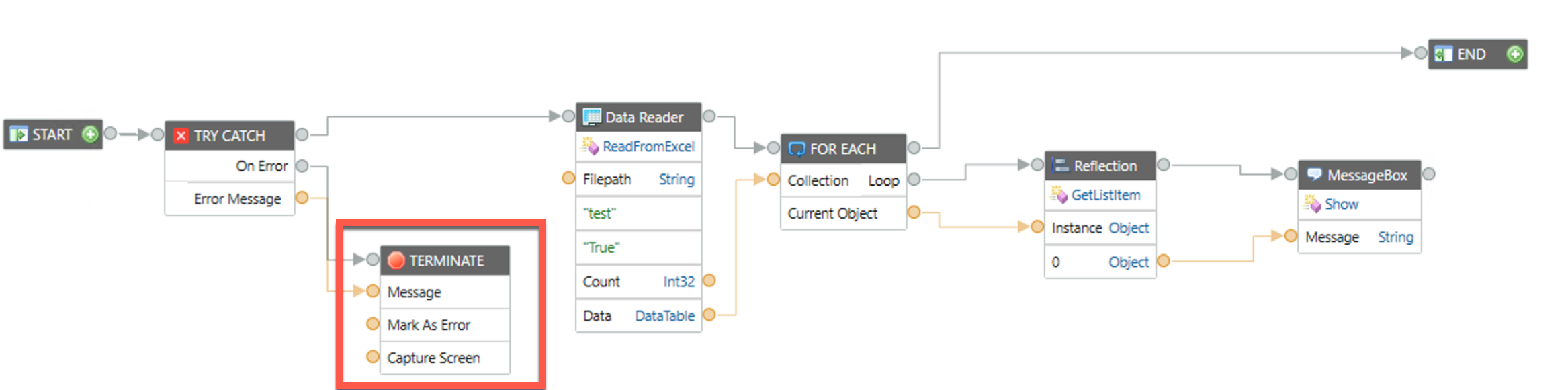

For example, in the automation workflow that requires to read data from an Excel, For Each loop and GetListItem components are used to extract data from the DataTable and display in a message box. If any error occurs while reading the data from the Excel, you can use the Try Catch component to handle the exception and the Terminate component to end the automation. The error message is also shown in process job.
