Microsoft cost-based licensing optimization example

  • リリースバージョン: Australia
  • 更新日 2026年03月12日
  • 所要時間：4分

    • This example demonstrates how a software asset manager can optimize Microsoft SQL Server licensing in a cluster deployment.

    In this example, a software asset manager is managing the following Microsoft SQL Server entitlements:
    表 : 1. Microsoft SQL Server entitlements
    Entitlement Name License Type Number of Purchased Rights Cost Per Core
    SQL Server Enterprise Licenses SQL Server 2019 Enterprise Core with Software Assurance 1800 $5000
    SQL Server Standard Licenses SQL Server 2019 Standard Core with Software Assurance 600 $1300

    The following infrastructure is a VMware cluster that consists of three physical hosts. Each physical host contains virtual machines (VMs) that are running various versions and editions of Microsoft SQL Server. These VMs may potentially be moving across all physical hosts within the cluster.

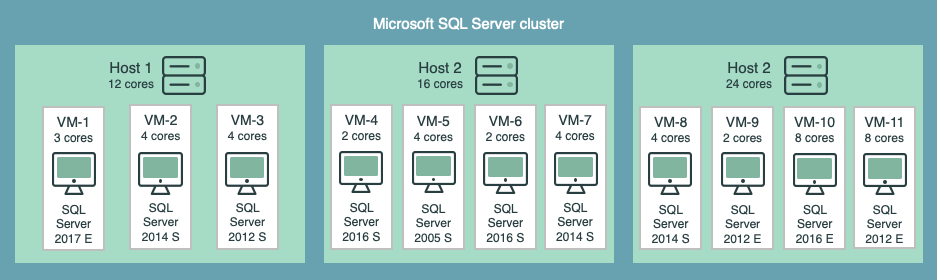

    Microsoft SQL Server cluster infrastructure.
    Based on the available entitlements and the cluster infrastructure, the software asset manager can license the cluster using one of the following options:
    表 : 2. Licensing options
    Option Number License Type Licensing Layer Number of Rights Required on Each Host or VM Total Number of Required Rights Total Approximated Cost
    1 SQL Server 2019 Enterprise Core with Software Assurance Physical host layer
    • Host 1: 12 rights
    • Host 2: 16 rights
    • Host 3: 24 rights
    		 12 rights (Host 1) + 16 rights (Host 2) + 24 rights (Host 3) = 52 rights total 52 rights X $5000 = $260,000
    2 SQL Server 2019 Enterprise Core with Software Assurance Virtual layer
    • VM-1: 4 rights
    • VM-2: 4 rights
    • VM-3: 4 rights
    • VM-4: 4 rights
    • VM-5: 4 rights
    • VM-6: 4 rights
    • VM-7: 4 rights
    • VM-8: 4 rights
    • VM-9: 4 rights
    • VM-10: 8 rights
    • VM-11: 8 rights
    		 4 rights (VM-1) + 4 rights (VM-2) + 4 rights (VM-3) + 4 rights (VM-4) + 4 rights (VM-5) + 4 rights (VM-6) + 4 rights (VM-7) + 4 rights (VM-8) + 4 rights (VM-9) + 8 rights (VM-10) + 8 rights (VM-11) = 52 rights total 52 rights X $5000 = $260,000
    3 Both SQL Server 2019 Enterprise Core with Software Assurance and SQL Server 2019 Standard Core with Software Assurance Virtual layer
    • SQL Server 2019 Enterprise Core with Software Assurance:
      • VM-1: 4 rights
      • VM-9: 4 rights
      • VM-10: 8 rights
      • VM-11: 8 rights
    • SQL Server 2019 Standard Core with Software Assurance:
      • VM-2: 4 rights
      • VM-3: 4 rights
      • VM-4: 4 rights
      • VM-5: 4 rights
      • VM-6: 4 rights
      • VM-7: 4 rights
      • VM-8: 4 rights

    • SQL Server 2019 Enterprise Core with Software Assurance:

      4 rights (VM-1) + 4 rights (VM-9) + 8 rights (VM-10) + 8 rights (VM-11) = 24 rights total

    • SQL Server 2019 Standard Core with Software Assurance:

      4 rights (VM-2) + 4 rights (VM-3) + 4 rights (VM-4) + 4 rights (VM-5) + 4 rights (VM-6) + 4 rights (VM-7) + 4 rights (VM-8) = 28 rights total

    		 (24 rights X $5000) + (28 rights X $1300) = $156,400
    The software asset manager determines that option number 3 is the most cost-effective licensing solution for the cluster. By using this licensing option, the software asset manager can achieve a total cost savings of approximately $103,600.
