Create an anomaly test rule

To use the anomaly model testing, create an anomaly test rule in which you specify up to 20 metric series to test anomaly detection for. Run the anomaly test, and after it completes, use the provided URL to open the Insights Explorer which is pre-loaded with the model testing results.

始める前に

Role required: evt_mgmt_user

手順

1. Navigate to All > Event Management > Anomaly Detection > Anomaly Model Testing.
2. Select an existing anomaly test rule to edit and run again, or click New and fill out the Anomaly Test Rules form.

   Field	Description
   Name	Name for the model test rule.
   Applies to	The table from which to select CI/metric pairs for the model test rule. The table used is Metric To CI Mapping [sa_metric_map].
   Rule	Filter conditions to specify pairs of CIs/metrics for the anomaly model testing. If the rule yields more than 20 pairs of CIs/metrics, then the list is truncated to 20.
   Start date/End data	The time period for which to apply the anomaly detection testing. The time period must be within the past 7 days.
   Status	Status of the test, automatically updated by the system during a test run. Status is initially Scheduled and eventually changes to Complete.
   URL	URL to the Insights Explorer in which the anomaly model test results are pre-loaded.
   Notes	Logging summary, automatically updated by the system with details of each test run of the anomaly test rule.

3. Click Run Anomaly Test.
   During the test run, the Status, URL, and Notes fields are automatically updated to reflect the progression of the job.
4. After Status changes to Complete, click the URL link to open the Insights Explorer to see the results of the test.

タスクの結果

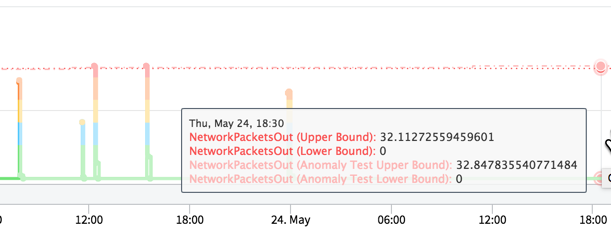

The bounds and the chart for the anomaly model test, appear in faint colors in Insights Explorer. Also, the upper and lower bounds that are calculated by the test, use a line pattern that is different than line pattern used for actual anomaly detection results. These differences let you distinguish between actual anomaly detection and anomaly model test results, if both are selected in the chart settings.

次のタスク

• Modify the date range for the test or choose different time series, and click Run Anomaly Test again to continue and fine-tune the model.
• Click the Chart Settings icon for a chart to toggle the display of statistics and aggregations on the chart. Select Show Bounds and Show Anomaly Scores in the Anomaly Test Statistics and in the Anomaly Statistics sections, to display test results next to actual anomaly detection results.
  注:

  Anomaly Model Testing results might be very similar to actual anomaly detection results. If you configure the chart to display both at the same time, as you move the mouse over the chart, it might be difficult to identify points of differences.
• When you are satisfied with the anomaly test results, enable anomaly detection in the production environment, for the metrics and CIs specified in the test. See Choose and configure metrics to monitor for more details.

関連タスク

• View metric values in the Insights Explorer
