Configure a test tool in DevOps

Configure a test tool in DevOps to view unit, functional, and performance test results.

始める前に

Role required: sn_devops.admin

手順

1. Navigate to All > DevOps > Integrations > Test Type Mappings and create a record to map the test type to the integration tool.
2. In the Test Type Mapping record, use the search icon () to select Test type and Tool integration field values.

   図 : 1. DevOps test type mapping



3. Click the search icon () in the DevOps Entity Id field, and fill in the test details.

   Table name	DevOps table name that contains the entity linked to the test results.
   Document	Name of the entity specified in the selected table.

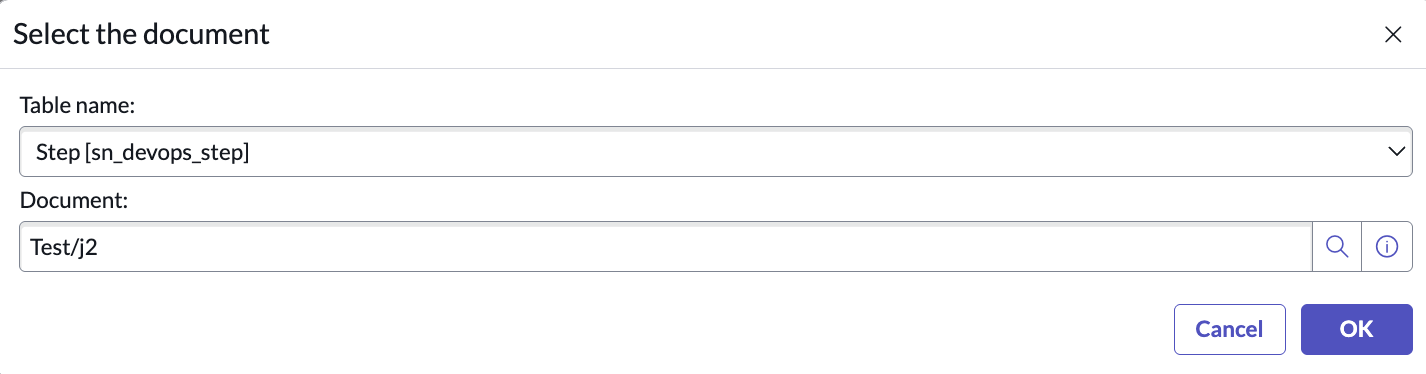

   図 : 2. DevOps test mapping entity ID



   See the Test type mapping section for more details.

4. オプション: To capture the raw test payload of non-JUnit or -TestNG tests, enter an .xml filename and path (comma separate multiple files).

   You can transform a raw payload using decision tables and a custom Workflow Studio subflow.

   注:

   You must create the custom subflow that transforms the raw payload.

   See the Transforming a raw test payload section for more details on configuring decision tables.

5. Run the test and view test results by navigating to DevOps > Test Results (Test Summaries and Performance Test Summaries).

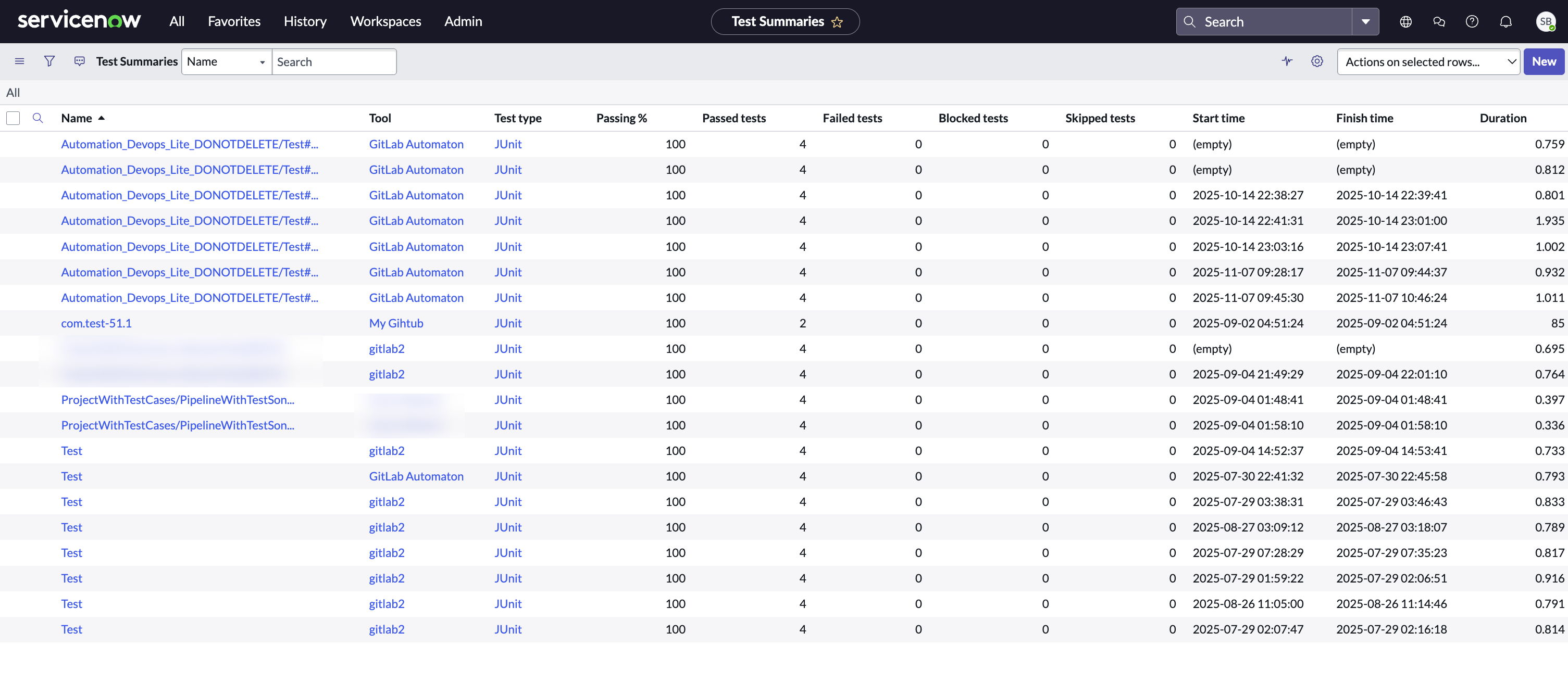

   図 : 3. DevOps Test Summaries example



例

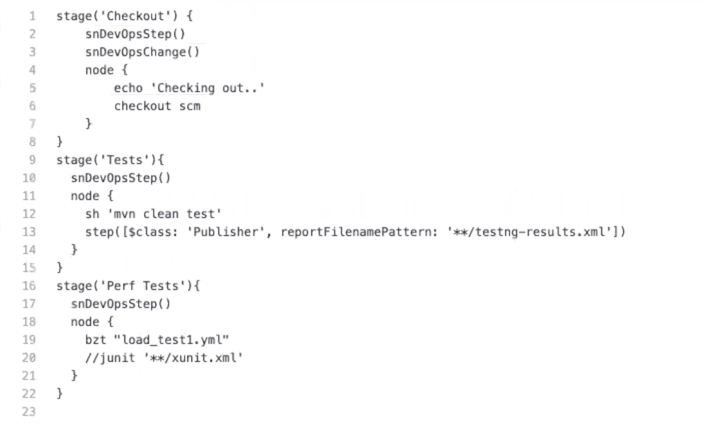

図 : 4. Scripted pipeline example with test configuration
