Add test results to change requests using test API
Add test results to DevOps change requests using the test capability of the DevOps - POST /devops/tool/{capability} API. The API is available for all test types for various tools connected to DevOps Change Velocity.
For more information about the API, see DevOps - POST /devops/tool/{capability}. To use the API in Azure DevOps, GitHub, and Jenkins, you must use the format mentioned in the respective sections below.
Prerequisites
Role required: sn_devops.admin
You must make sure that the test type you want to use in the API is available as a test type in DevOps Change Velocity and that it is mapped with the respective orchestration tool.
- Navigate to .
You can also use the classic UI navigation .

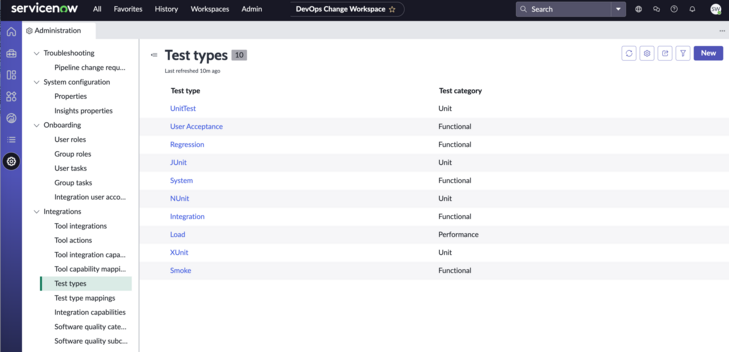

- Verify if the test type is available in the Test types table.
- For custom test types, select New and add the test type to the list.
- In the Test type field, enter a name for your test type.
- From the Test category list, select the category of your test type.
- Select Save.
- Navigate to .
You can also use the classic UI navigation .

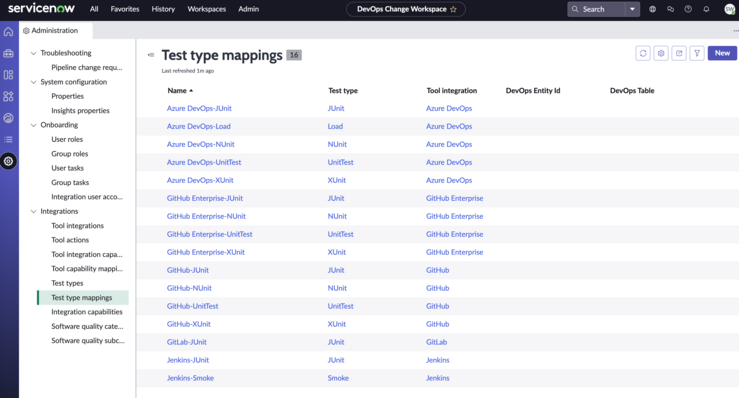

- Verify if the test type is mapped to your orchestration tool.
- If the mapping is not available, then select New and create the mapping.
- From the Test type list, select the test type that you want to map.
- From the Tool integration list, select your orchestration tool.
- Select Save.
Azure DevOps
For Azure DevOps pipelines, use the format given here to add test results to change requests for various test types.
Format for URL suffix and parameters:
/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>- The parameter toolId must be a valid Tool Id from a connected and configured tool in DevOps Change Velocity.
- The parameter testType should have a test type mapping in DevOps Change Velocity.
Within the Body, you must pass the parameters based on the test type.
注:
For the generic connection, use the following:
- username: devops.integration.user
- password: <devops.integration.user password>

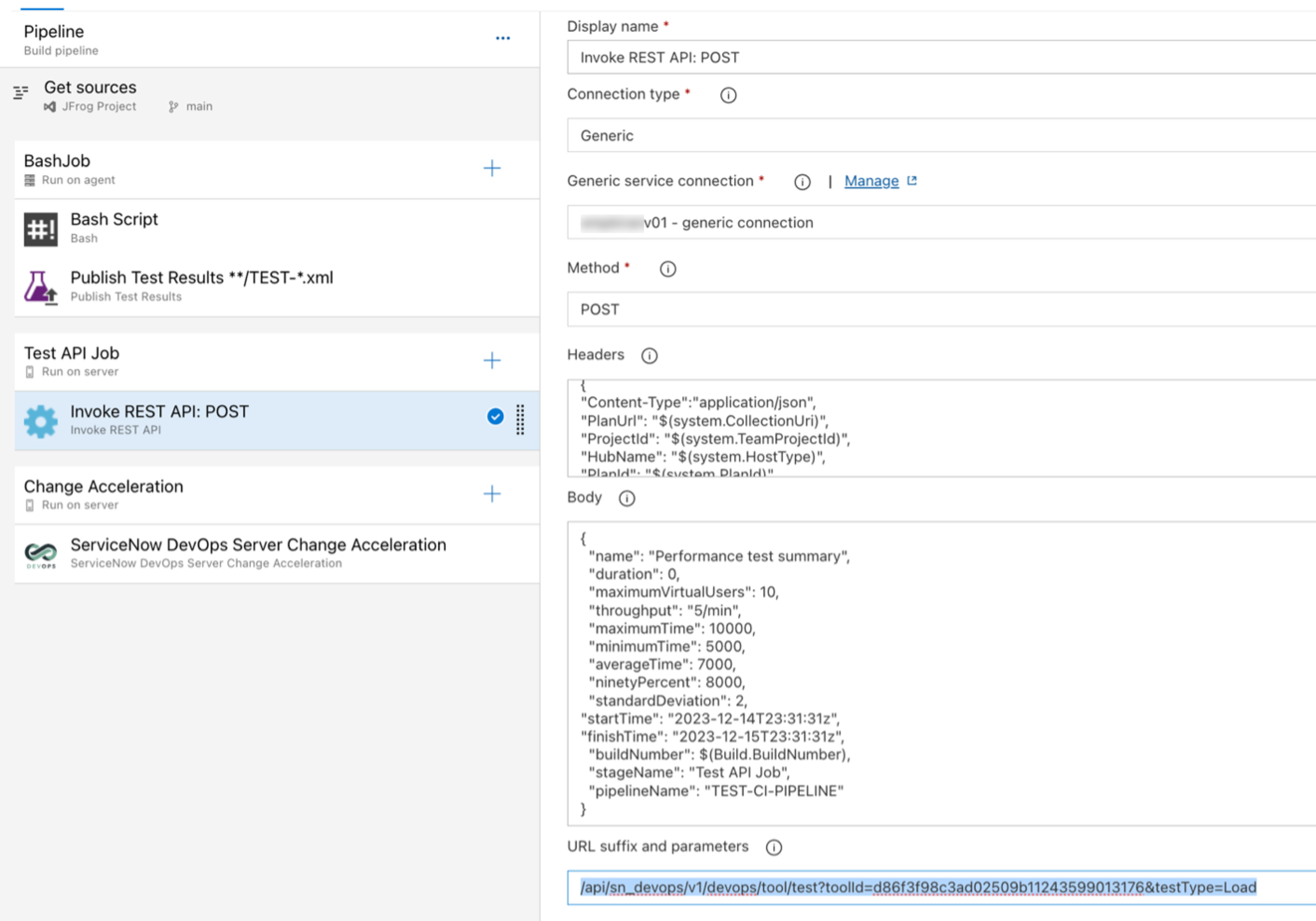

Pipeline configuration for performance tests
Sample parameters for the body:
{
"name": "Perf. tests DEMO5",
"duration": 0,
"maximumVirtualUsers": 10,
"throughput": "5/min",
"maximumTime": 10000,
"minimumTime": 5000,
"averageTime": 7000,
"ninetyPercent": 8000,
"standardDeviation": 2,
"startTime": "2023-12-14T23:31:31z",
"finishTime": "2023-12-14T23:40:32z",
"buildNumber": $(Build.BuildNumber),
"stageName": "Test API Job",
"pipelineName": "TEST-CI-PIPELINE"

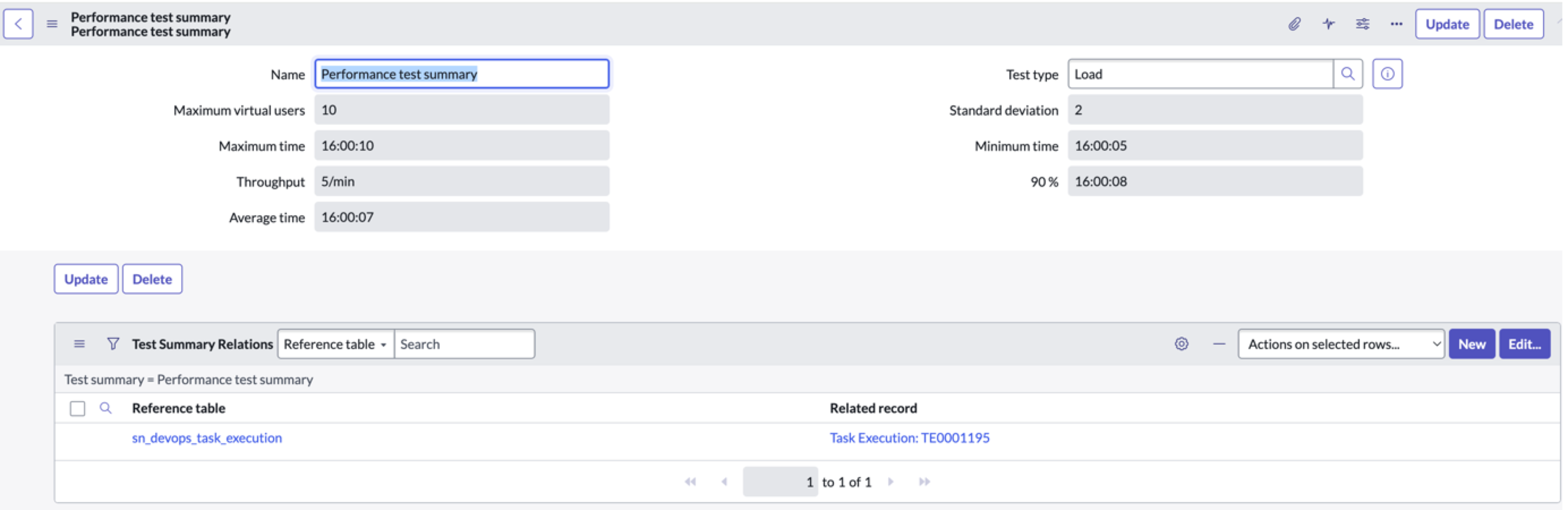

}Performance test summary in your Now instance:

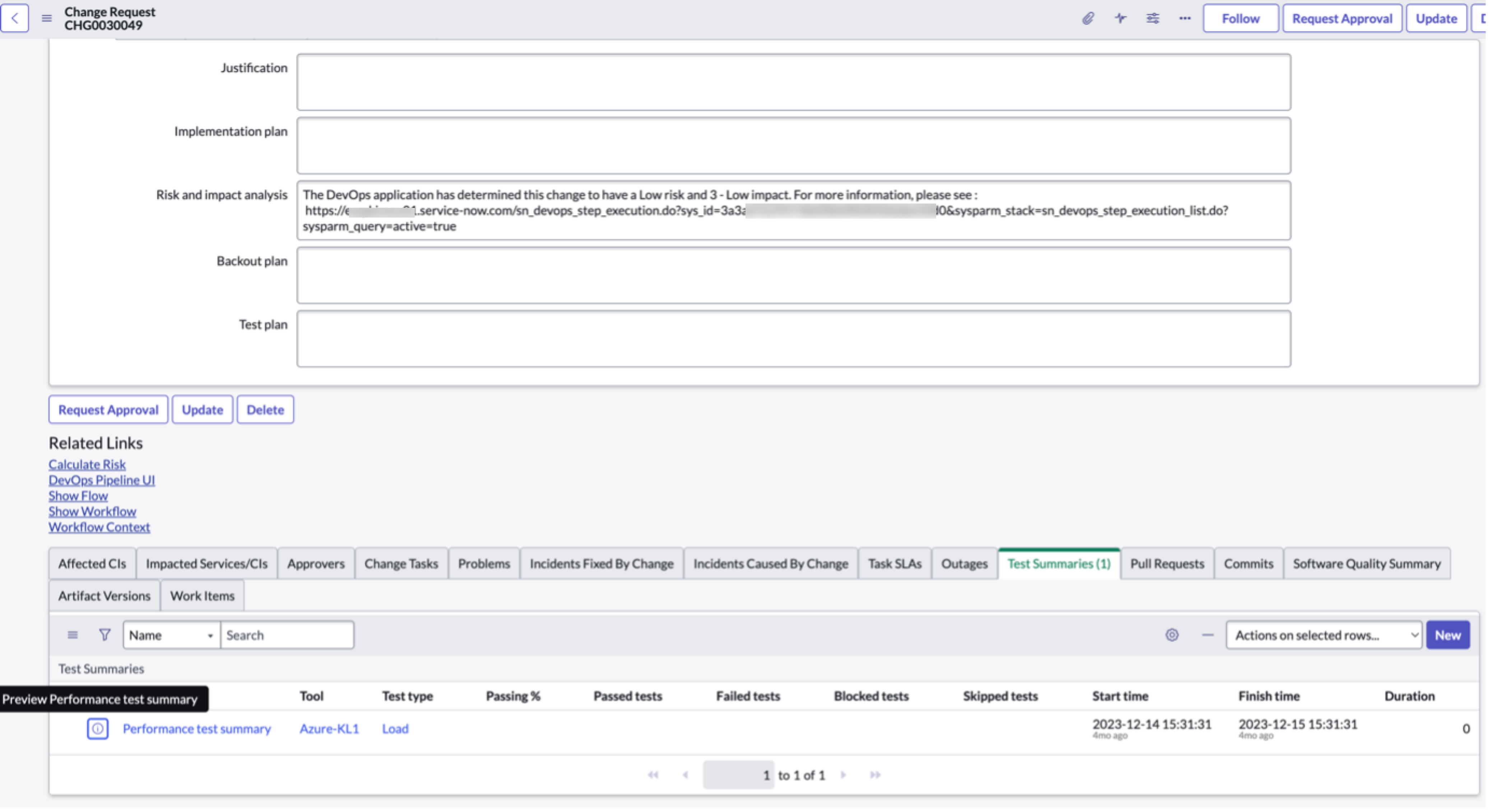

Test summary attached to your DevOps change request:

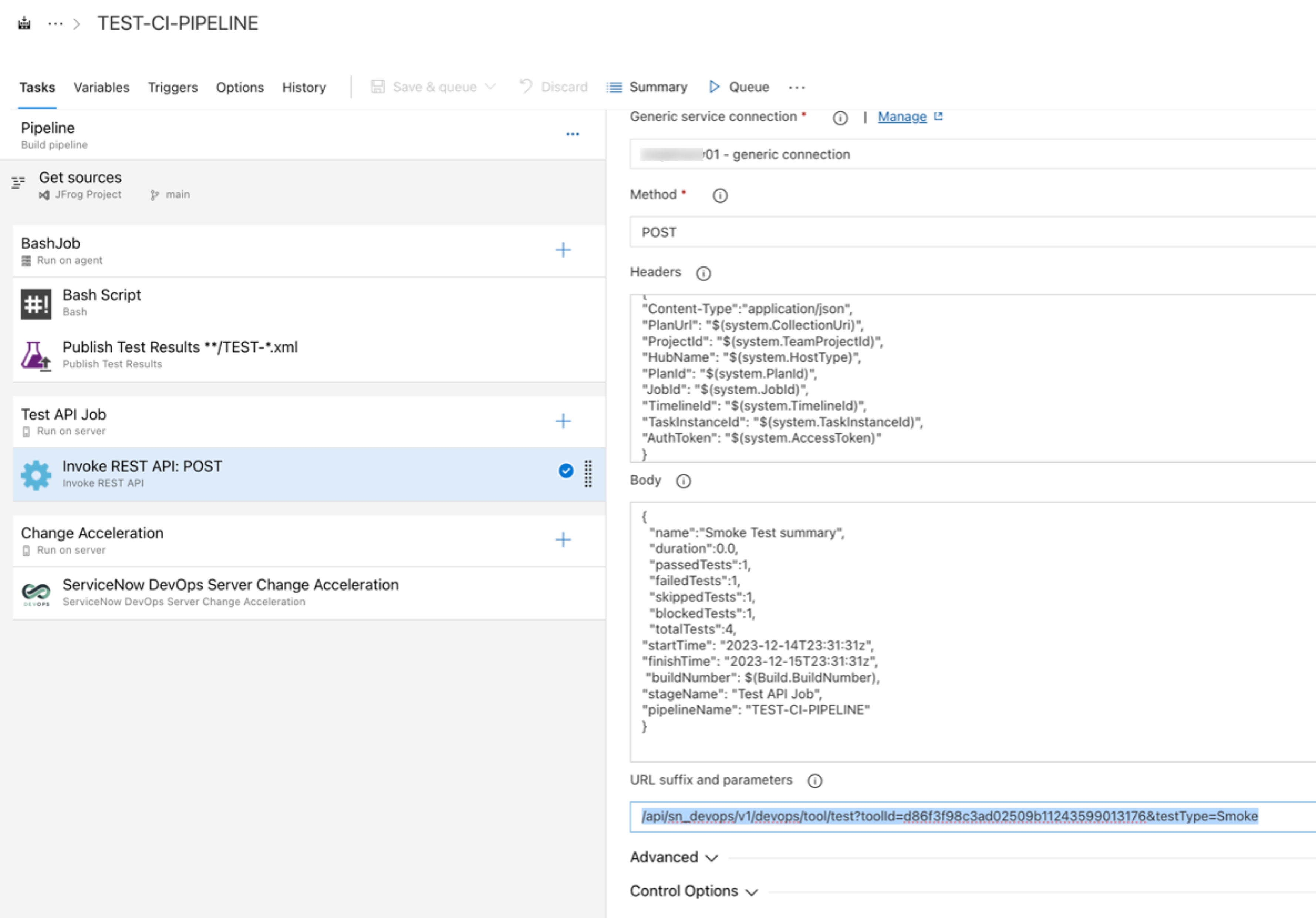

Pipeline configuration for other functional and unit tests
Sample parameters for the body:
{
"name":" Smoke Test summary",
"duration":0.0,
"passedTests":1,
"failedTests":1,
"skippedTests":1,
"blockedTests":1,
"totalTests":4,
"startTime": "2023-12-14T23:31:31z",
"finishTime": "2023-12-15T23:31:31z",
"buildNumber": $(Build. BuildNumber),
"stageName": "Test API Job",
"pipelineName": "TEST-CI-PIPELINE"

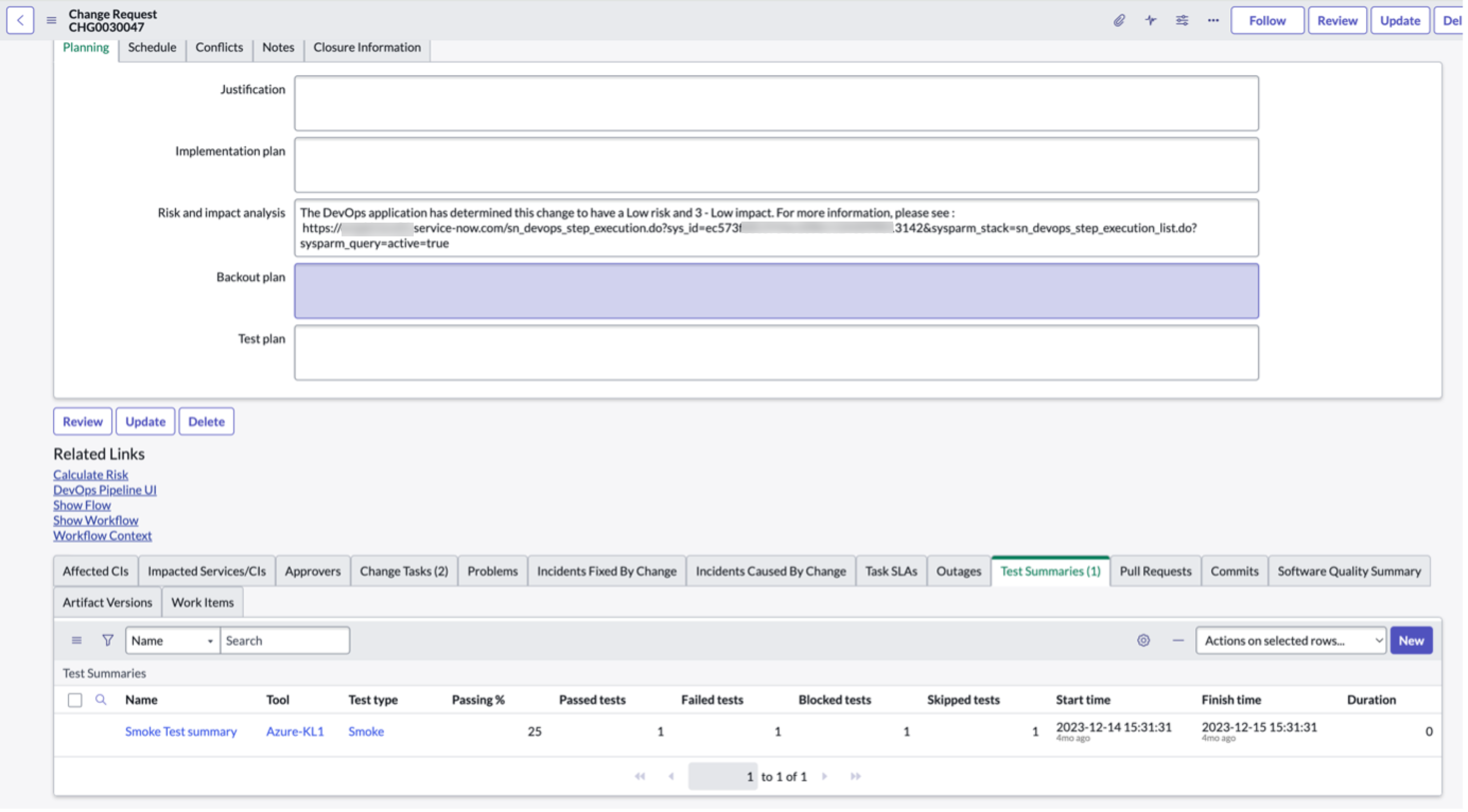

}Test summary attached to your DevOps change request:

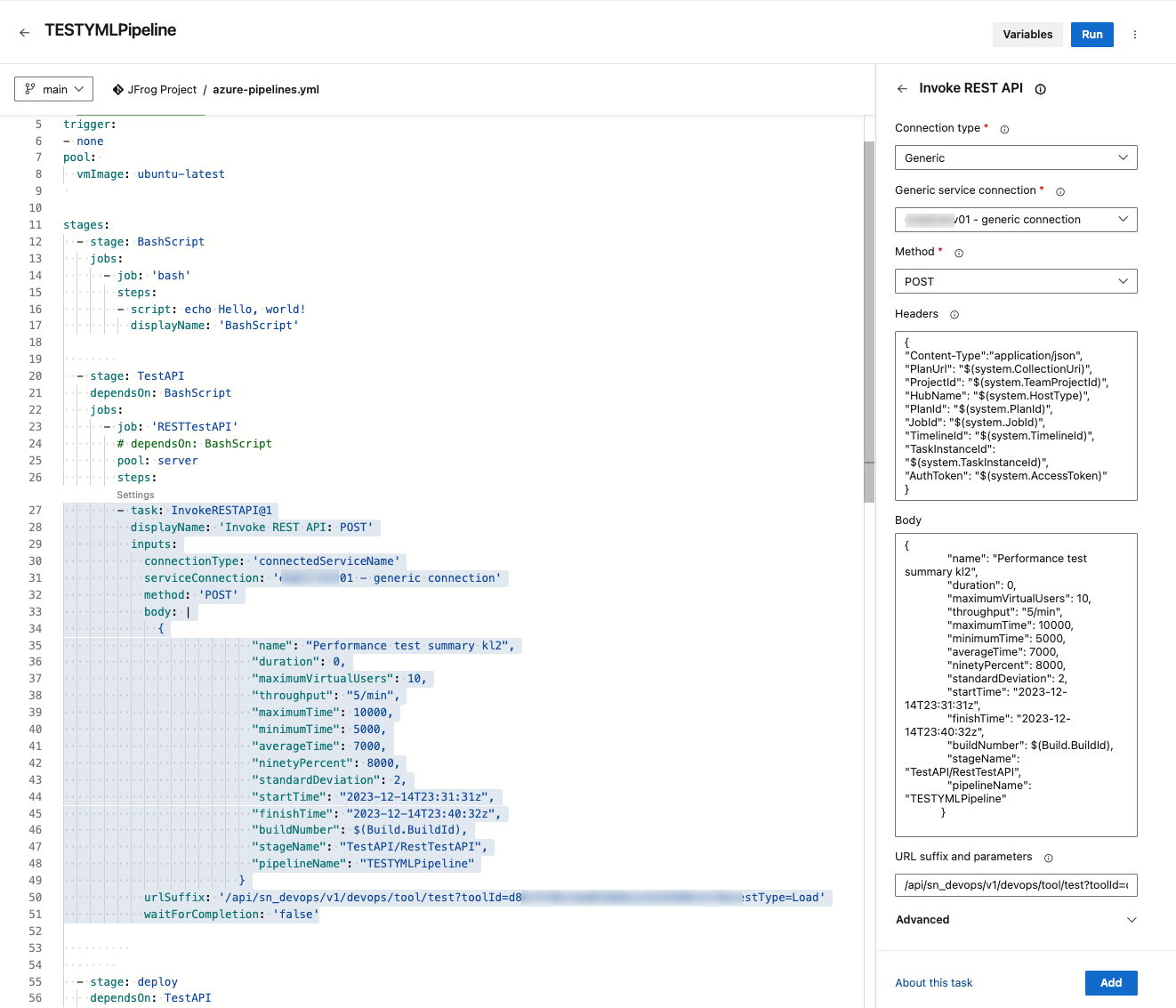

Azure DevOps YAML pipeline
Sample pipeline:
stages:
- stage: BashScript
jobs:
- job: 'bash'
steps:
- script: echo Hello, world!
displayName: 'BashScript'
- stage: TestAPI
dependsOn: BashScript
jobs:
- job: 'RESTTestAPI'
# dependsOn: BashScript
pool: server
steps:
- task: InvokeRESTAPI@1
displayName: 'Invoke REST API: POST'
inputs:
connectionType: 'connectedServiceName'
serviceConnection: 'v01 - generic connection'
method: 'POST'
body: |
{
"name": "Performance test summary kl2",
"duration": 0,
"maximumVirtualUsers": 10,
"throughput": "5/min",
"maximumTime": 10000,
"minimumTime": 5000,
"averageTime": 7000,
"ninetyPercent": 8000,
"standardDeviation": 2,
"startTime": "2023-12-14T23:31:31z",
"finishTime": "2023-12-14T23:40:32z",
"buildNumber": $(Build.BuildId),
"stageName": "TestAPI/RestTestAPI",
"pipelineName": "TESTYMLPipeline"
}
urlSuffix: '/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>'
waitForCompletion: 'false'

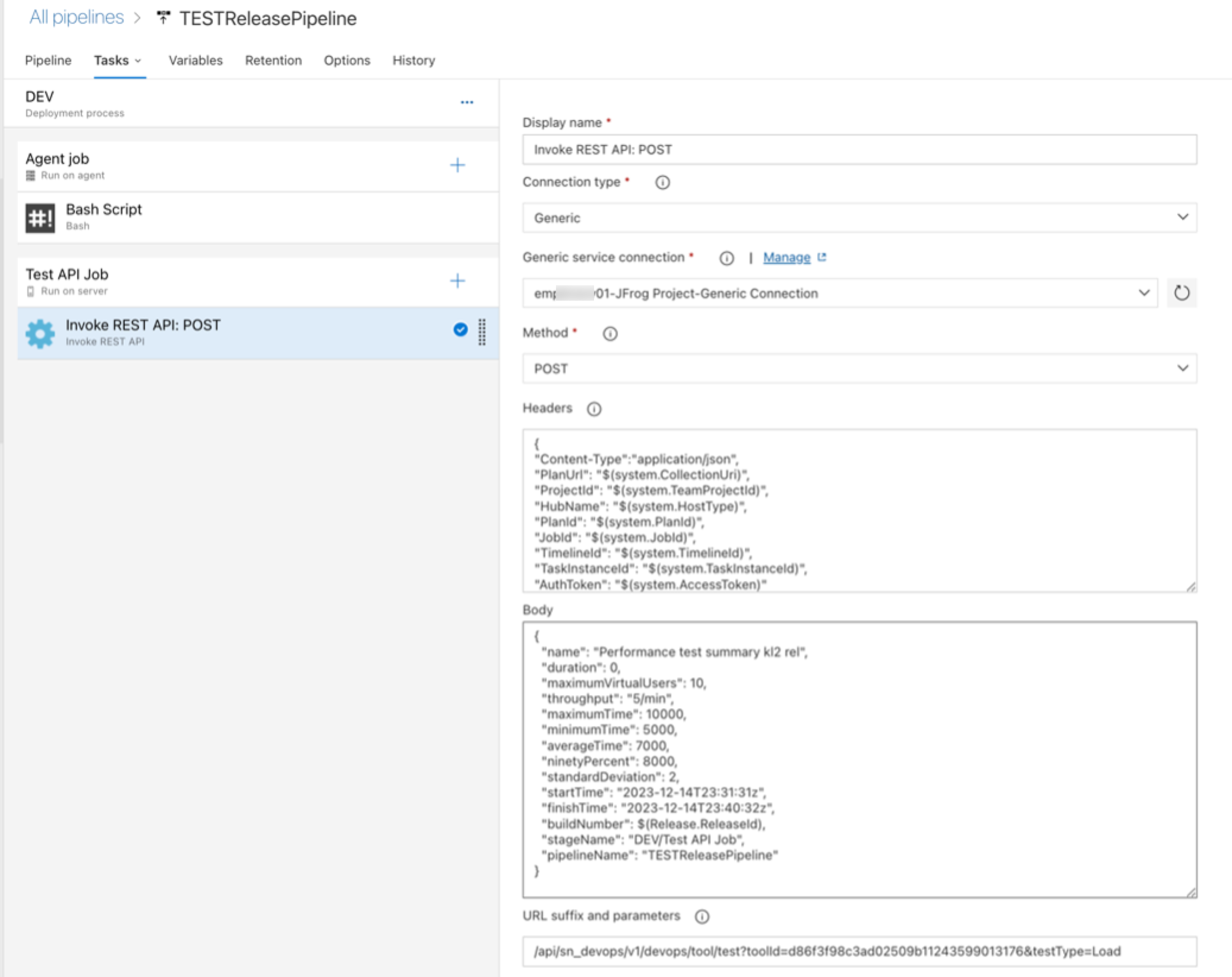

Release pipeline
GitHub
For GitHub pipelines, use the format given here to add test results to change requests for various test types.

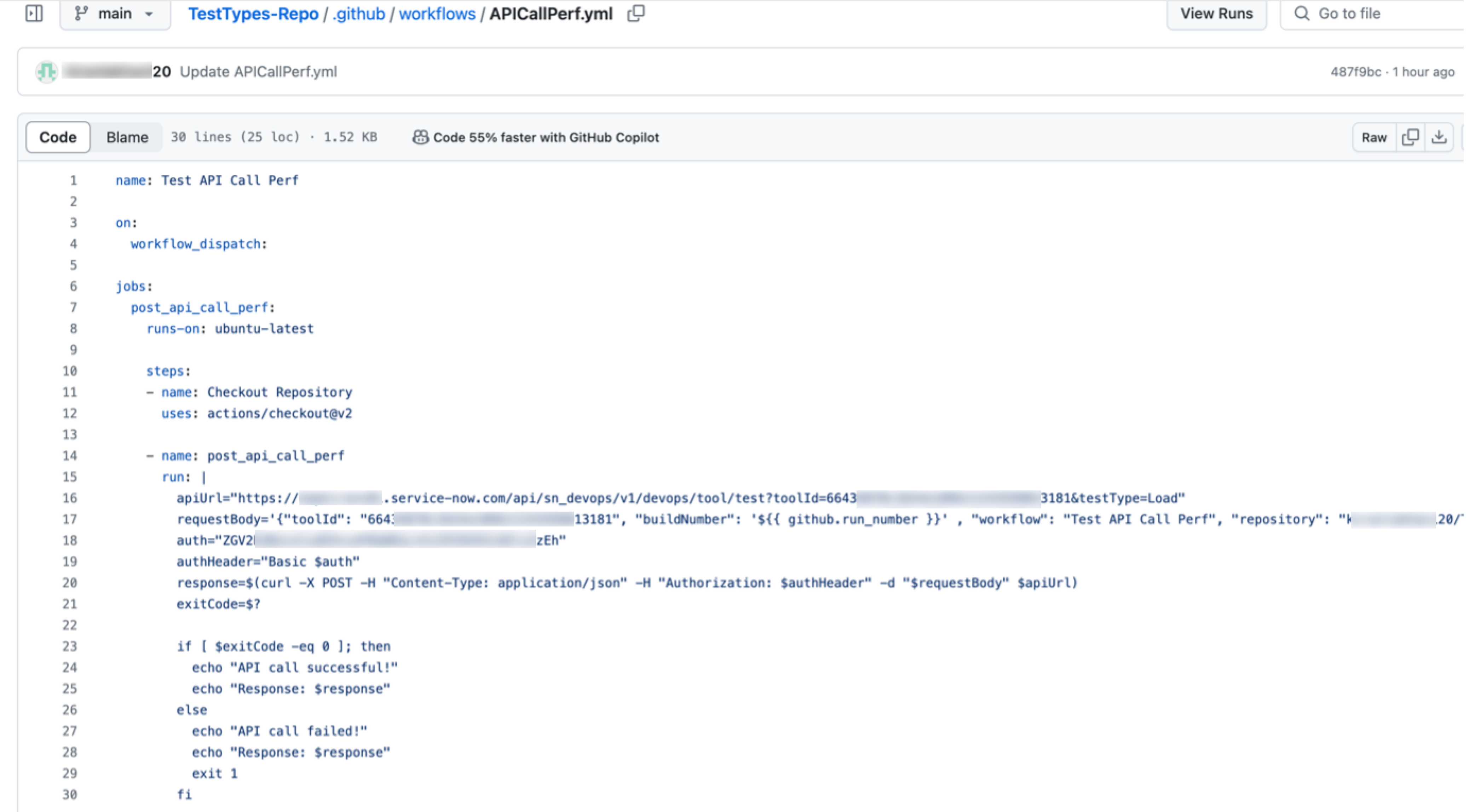

Pipeline configuration for performance tests
Sample pipeline:
name: Test API Call Perf
on:
workflow_dispatch:
jobs:
post_api_call_perf:
runs-on: ubuntu-latest
steps:
- name: Checkout Repository
uses: actions/checkout@v2
- name: post_api_call_perf
run: |
apiUrl="https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolId>&testType=<performance_test_type>"
requestBody='{"toolId": "<devops_ToolId>", "buildNumber": '${{ github.run_number }}' , "workflow": "Test API Call Perf", "repository": "<your_GitHub_repository>", "stageName":"post_api_call_perf","pipelineName":"Test API Call Perf", "testType": "Load", "buildNumber": '${{ github.run_number }}', "buildId": '${{ github.run_id }}' , "attemptNumber" : '${{ github.run_attempt }}', "name": "GitHub Test Summary - Performance 1.0","duration": 0.0,"maximumVirtualUsers": 10,"throughput": "5/min","maximumTime": 1000,"minimumTime": 5000,"averageTime": 7000,"startTime": "2023-12-14T23:31:31z","finishTime": "2023-12-14T23:31:31z","ninetyPercent": 8000, "standardDeviation": 2.0 }'
auth="devops.integration.user:<password> in base64 encoded"
authHeader="Basic $auth"
response=$(curl -X POST -H "Content-Type: application/json" -H "Authorization: $authHeader" -d "$requestBody" $apiUrl)
exitCode=$?
if [ $exitCode -eq 0 ]; then
echo "API call successful!"
echo "Response: $response"
else
echo "API call failed!"
echo "Response: $response"
exit 1
fi

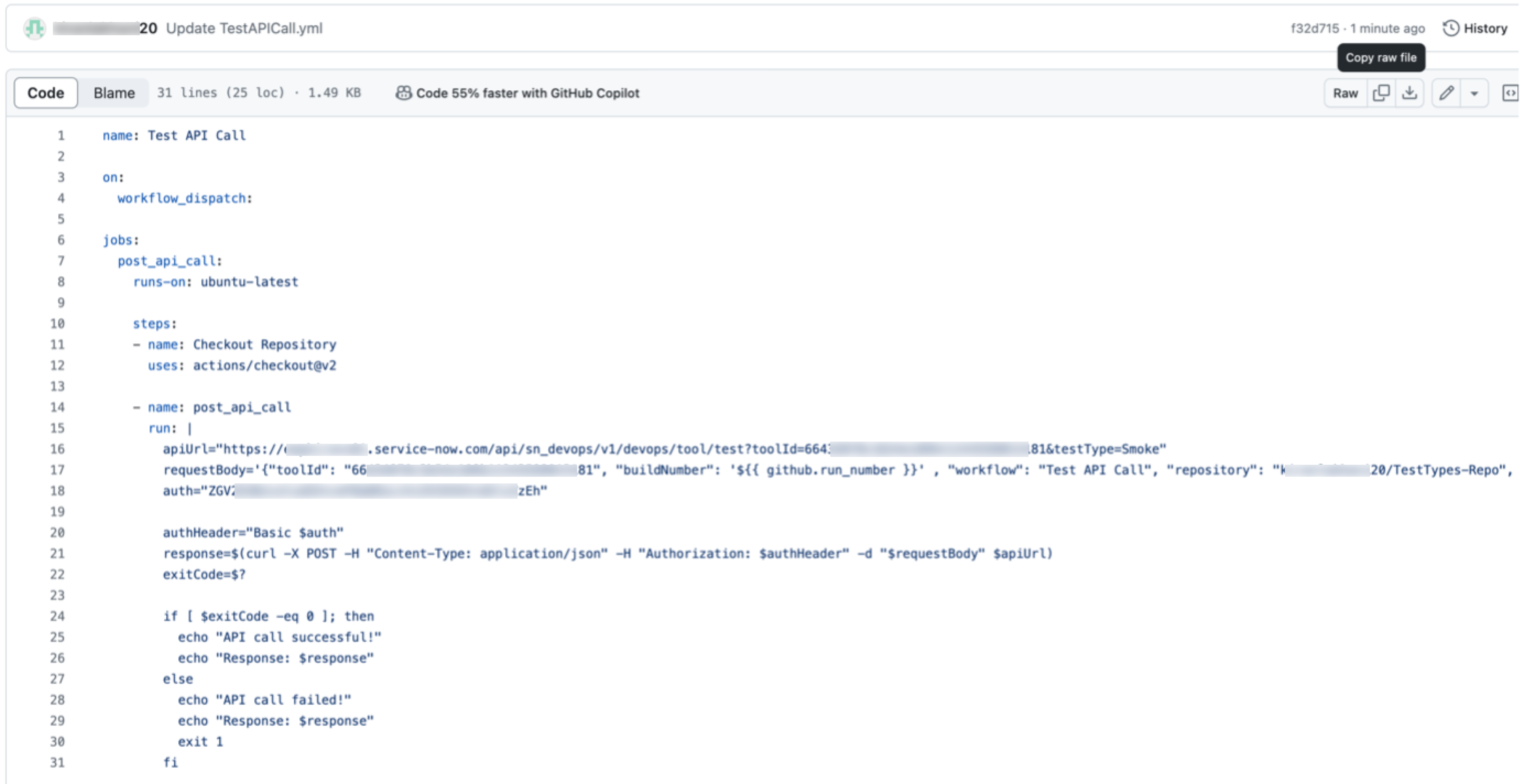

Pipeline configuration for other functional and unit tests
Sample pipeline:
name: Test API Call
on:
workflow_dispatch:
jobs:
post_api_call:
runs-on: ubuntu-latest
steps:
- name: Checkout Repository
uses: actions/checkout@v2
- name: post_api_call
run: |
apiUrl="https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>"
requestBody='{"toolId": "<devops_ToolID>", "buildNumber": '${{ github.run_number }}' , "workflow": "Test API Call", "repository": "<your_GitHub_repository>", "stageName":"post_api_call","pipelineName":"TestAPICall", "testType": "Smoke", "buildNumber": '${{ github.run_number }}', "buildId": '${{ github.run_id }}' , "attemptNumber" : '${{ github.run_attempt }}', "testSummaries": [{"name": "GitHub Test Summary - smoke","passedTests": 1,"failedTests": 1,"skippedTests": 1,"ignoredTests": 0,"blockedTests": 1,"totalTests": 4,"startTime": "2023-12-14T23:31:31z","endTime": "2023-12-14T23:31:31z","duration": 0.0,"testType": "Smoke", "suites": []}] }'
auth="devops.integration.user:<password> in base64 encoded"
authHeader="Basic $auth"
response=$(curl -X POST -H "Content-Type: application/json" -H "Authorization: $authHeader" -d "$requestBody" $apiUrl)
exitCode=$?
if [ $exitCode -eq 0 ]; then
echo "API call successful!"
echo "Response: $response"
else
echo "API call failed!"
echo "Response: $response"
exit 1
fi
Jenkins
For Jenkins pipelines, use the format given here to add test results to change requests for various test types.

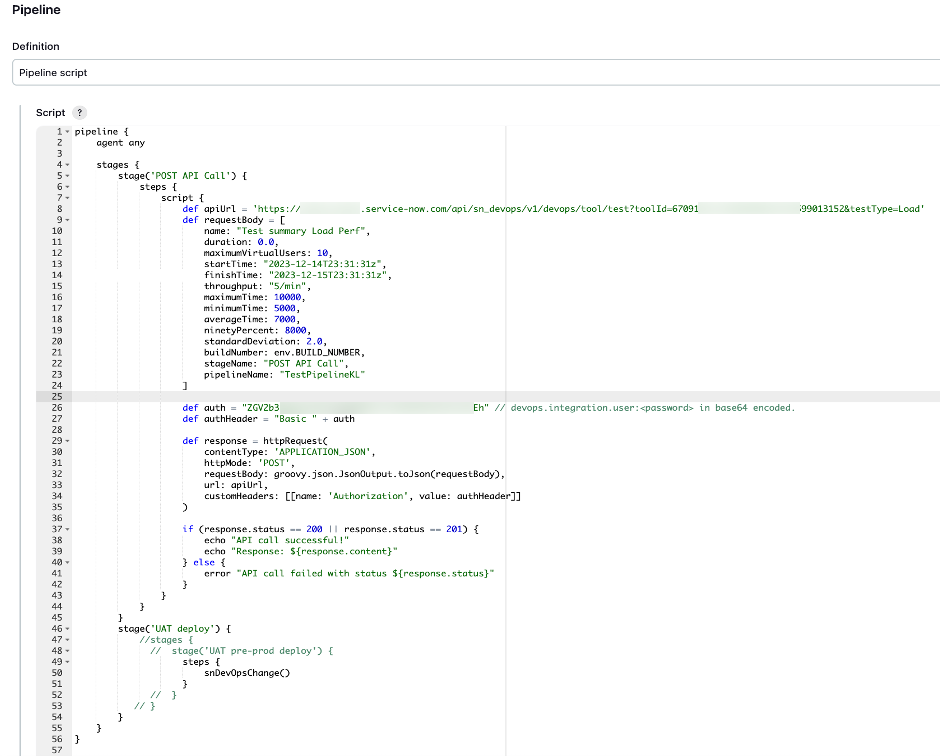

Pipeline configuration for performance tests
Sample pipeline:
pipeline {
agent any
stages {
stage('POST API Call') {
steps {
script {
def apiUrl = 'https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<performance_test_type>'
def requestBody = [
name: "Performance Load tests jenkins",
duration: 0.0,
maximumVirtualUsers: 10,
throughput: "6/min",
maximumTime: 1000,
minimumTime: 300,
averageTime: 700,
ninetyPercent: 600,
standardDeviation: 2.0,
startTime: "2023-12-14T23:31:31z",
finishTime: "2023-12-14T23:40:32z",
buildNumber: env.BUILD_NUMBER,
stageName: "POST API Call",
pipelineName: "KLPerformanceTestPipeline"
]
def auth = "<password>" // devops.integration.user:<password> in base64 encoded.
def authHeader = "Basic " + auth
def response = httpRequest(
contentType: 'APPLICATION_JSON',
httpMode: 'POST',
requestBody: groovy.json.JsonOutput.toJson(requestBody),
url: apiUrl,
customHeaders: [[name: 'Authorization', value: authHeader]]
)
if (response.status == 200 || response.status == 201) {
echo "API call successful!"
echo "Response: ${response.content}"
} else {
error "API call failed with status ${response.status}"
}
}
}
}
}

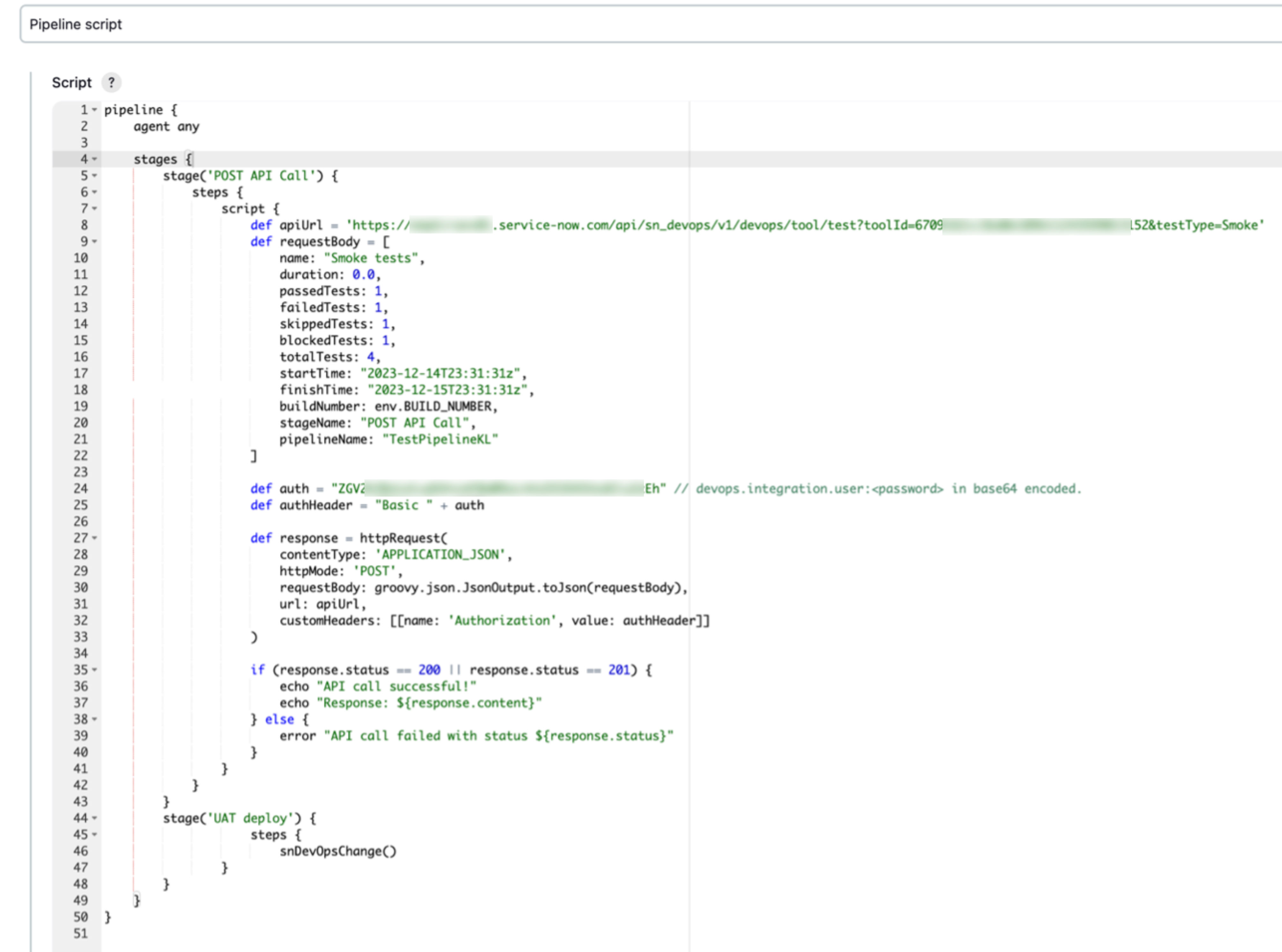

}Pipeline configuration for other functional and unit tests
Sample pipeline:
pipeline {
agent any
stages {
stage('POST API Call') {
steps {
script {
def apiUrl = 'https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>'
def requestBody = [
name: "Smoke tests",
duration: 0.0,
passedTests: 1,
failedTests: 1,
skippedTests: 1,
blockedTests: 1,
totalTests: 4,
startTime: "2023-12-14T23:31:31z",
finishTime: "2023-12-15T23:31:31z",
buildNumber: env.BUILD_NUMBER,
stageName: "POST API Call",
pipelineName: "TestPipelineKL"
]
def auth = "<password>" // devops.integration.user:<password> in base64 encoded.
def authHeader = "Basic " + auth
def response = httpRequest(
contentType: 'APPLICATION_JSON',
httpMode: 'POST',
requestBody: groovy.json.JsonOutput.toJson(requestBody),
url: apiUrl,
customHeaders: [[name: 'Authorization', value: authHeader]]
)
if (response.status == 200 || response.status == 201) {
echo "API call successful!"
echo "Response: ${response.content}"
} else {
error "API call failed with status ${response.status}"
}
}
}
}
}
}Limitations of the test API
- Waiting logic will not be taken care of.
- Re-run scenarios cannot be handled.
