Parent breadcrumbs formatter

The parent breadcrumbs formatter on the Task table provides breadcrumbs that show the parent or parents of the current task. This formatter can be used also on any table that extends Task.

始める前に

Role required: personalize_form

このタスクについて

To add the parent breadcrumbs formatter to a form, configure the form and add Parent Breadcrumbs to the desired location. The breadcrumbs show only six levels of parents. If more levels exist, the breadcrumbs display an ellipsis ('''...''').

The Parent reference field also has to contain a value for the breadcrumbs to appear. You may need to configure the form to contain the Parent field as well.

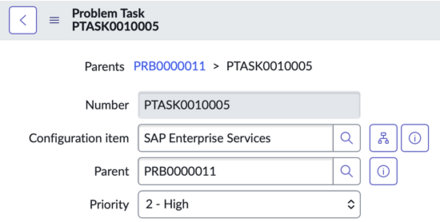

図 : 1. Breadcrumbs

Customize the parent breadcrumbs formatter

You can customize the parent breadcrumbs formatter to control what breadcrumbs appear.

始める前に

Role required: ui_macro_admin

手順

1. Navigate to All > System UI > Formatters.
2. Select Parent Breadcrumbs.
3. Click View UI Macro for this Formatter to view or modify the underlying formatter.
   By default, the breadcrumb uses the default display field, gr.getDisplayValue(), as the link in the breadcrumb. To customize this, add the following line, replacing the fieldName parameter with the desired field name (not the field label):

   pc.setLabelField("fieldName")

   If a user points to a breadcrumb, the short description for that record appears as a hint by default. To display alternate hints for the breadcrumb, add the following line, replacing the fieldName parameter with the desired field name (not the field label):

   pc.setTitleField("fieldName")

   Be sure to add these lines in the proper location, as shown in the following example:

   //parent crumb functions - script include
   var pc = new ParentCrumbs(now_GR);
   pc.setLabelField("short_description");

   //override the default display field to be used for label
   pc.setTitleField("number");

   //override default short_description hover text
   var crumbs = pc.getCrumbs();



Use the parent breadcrumbs formatter on non-Task tables

The parent breadcrumbs formatter can be used on non-Task tables as long as the table has a reference to itself through a field called parent.

始める前に

Role required: ui_macro_admin

このタスクについて

To make the formatter available for a different table, duplicate the formatter used by the Task table:

手順

1. Navigate to All > System UI > Formatters.
2. Select Parent Breadcrumbs.
3. Set the Table field to the appropriate table.
4. Right-click the form header and choose Insert.
5. Add the new formatter to the appropriate form.
