Logout (LogoutRequest) process flow
During logout, the instance issues the SAML 2.0 LogoutRequest service call to the IdP.

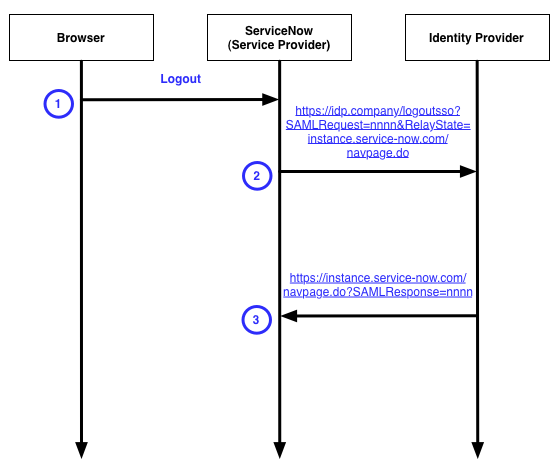

This service logs the user out and then redirects back to the specified logout URL.図 : 1. SAML 2 Logout
User Clicks the Logout Button
The user clicks the Logout button and the instance executes the logout script.
LogoutRequest issued
The logout script constructs a SAML 2.0
LogoutRequest and posts it to the
preconfigured SingleLogoutRequest SAML 2.0 service at the IdP. The IdP deflates the request and
then base64 encodes it. An example LogoutRequest looks like this:
<saml2p:LogoutRequestxmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol" ID="21B78E9C6C8ECF16F01E4A0F15AB2D46" IssueInstant="2010-04-28T21:36:11.230Z" Version="2.0"><saml2:Issuer xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">https://dloomac.service-now.com
</saml2:Issuer><saml2:NameID xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion" Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress" NameQualifier="http://idp.ssocircle.com" SPNameQualifier="https://dloomac.service-now.com/navpage.do">david.loo@service-now.com</saml2:NameID><saml2p:SessionIndex>s211b2f811485b2a1d2cc4db2b271933c286771104
</saml2p:SessionIndex></saml2p:LogoutRequest>User Logs Out
The user logs out of the IdP. The IdP redirects back to the instance, which in turns redirects back to the IdP since the user is not logged in.
