    • The attribute mappings enables you to use the attributes as a single source of resource to the ServiceNow table fields.

    Attribute

    The attribute for which mapping needs to be defined. For example, userName.

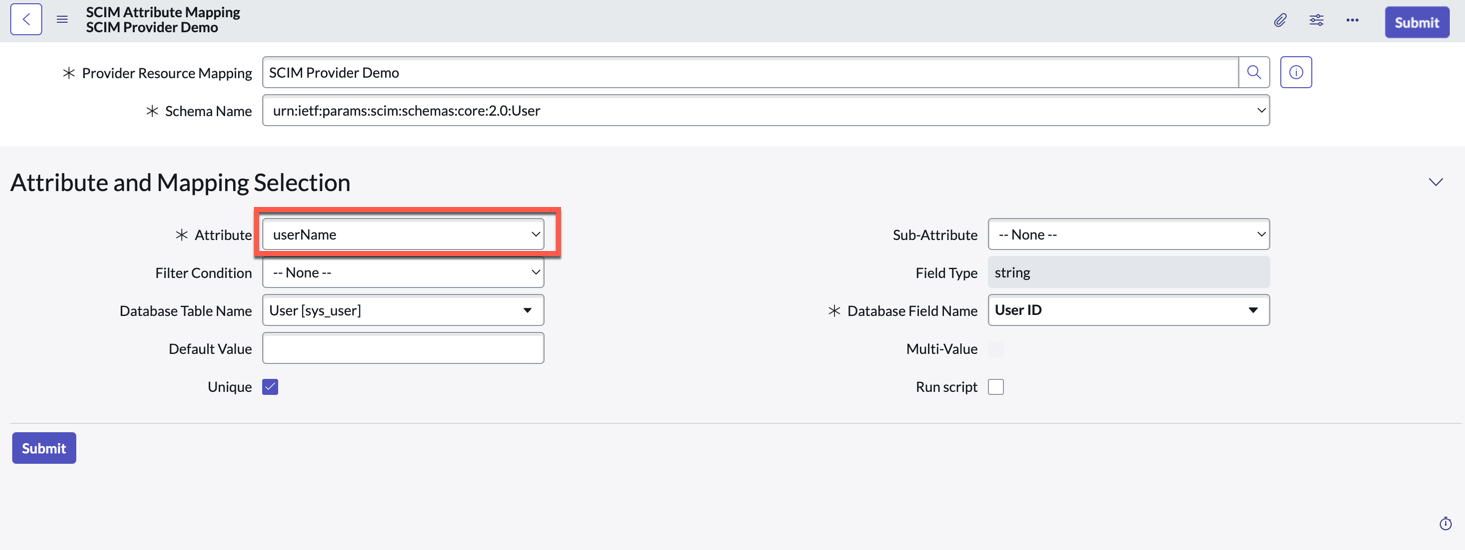

    Attribute - userName

    Sub-Attribute

    Select the sub-attribute, if any, for which a mapping needs to be defined.

    For example, if there is a complex type attribute like name.familyName, then the attribute is name and the sub-attribute is familyName.

    For simple attributes like user name, the Sub-Attribute value would be None.

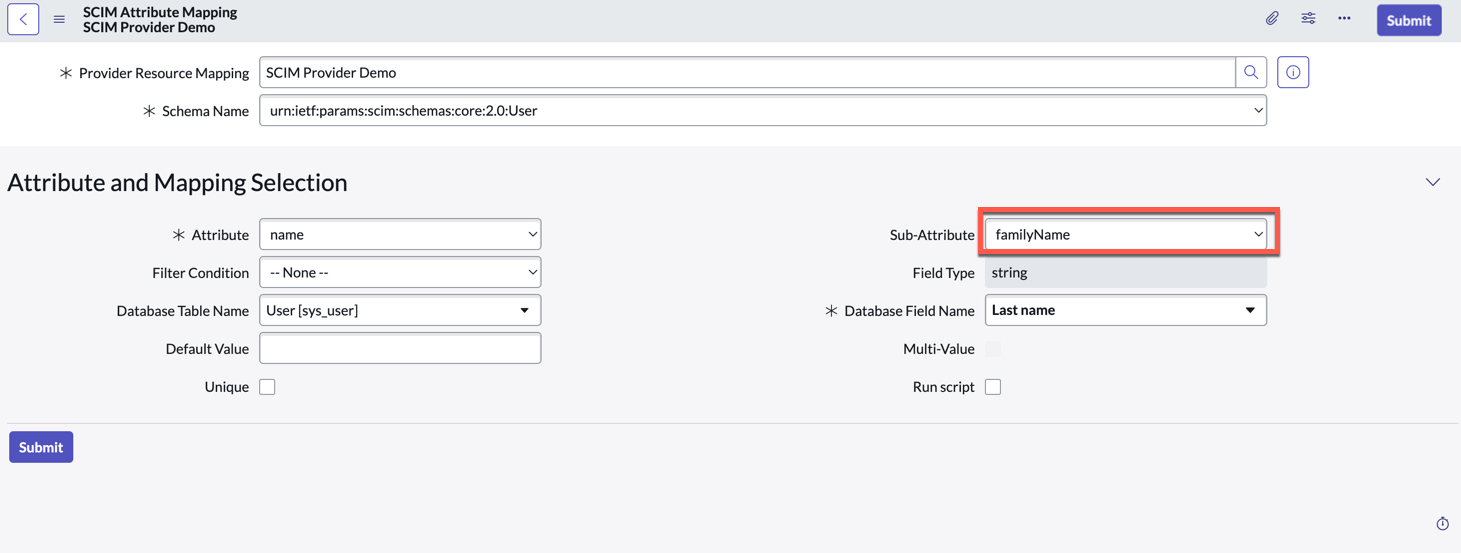

    Attribute Name and Sub-Attribute Family Name

    Filter Condition

    A multi-valued attribute can have additional information that can be specified by using a Filter Condition. The choices for the filter condition are populated using the schemas defined by the SCIM Provider.

    For example, the phoneNumbers attribute has multiple types like work, mobile, home, and so on.

    You can specify a Filter Condition from a set of possible values. For example, the phoneNumber attribute can have the Filter Condition as type eq "mobile".

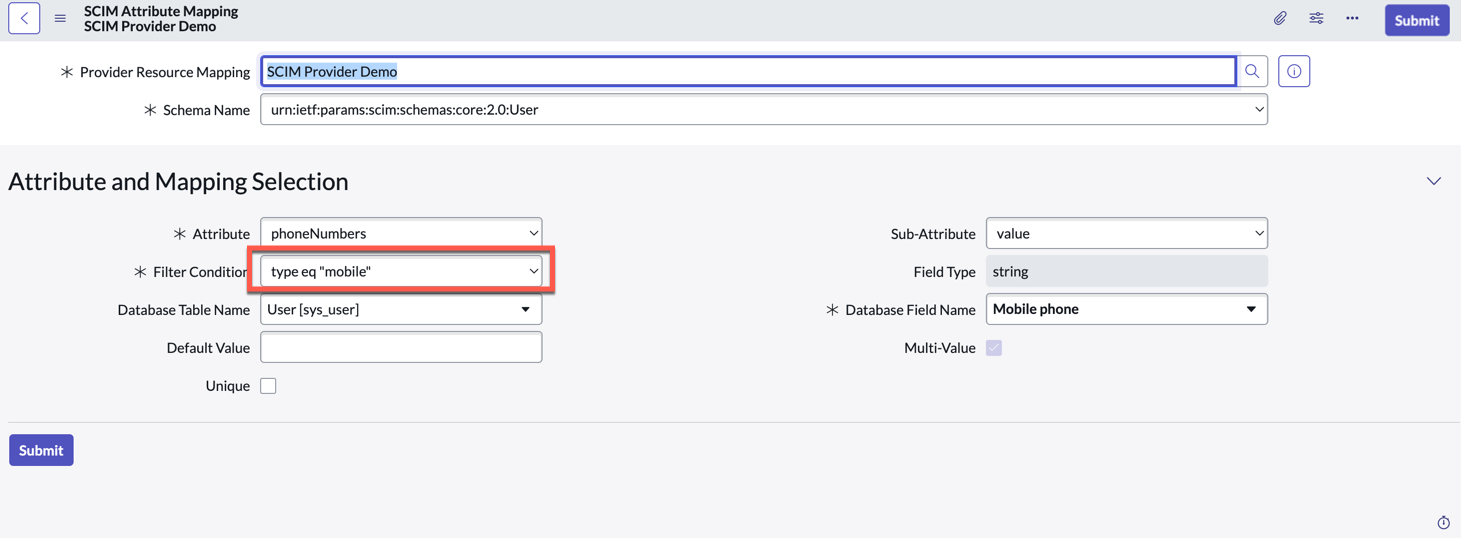

    Attribute Phone Number with Filter Condition Mobile

    The phoneNumber attribute can instead have a Filter Condition as type eq "work".

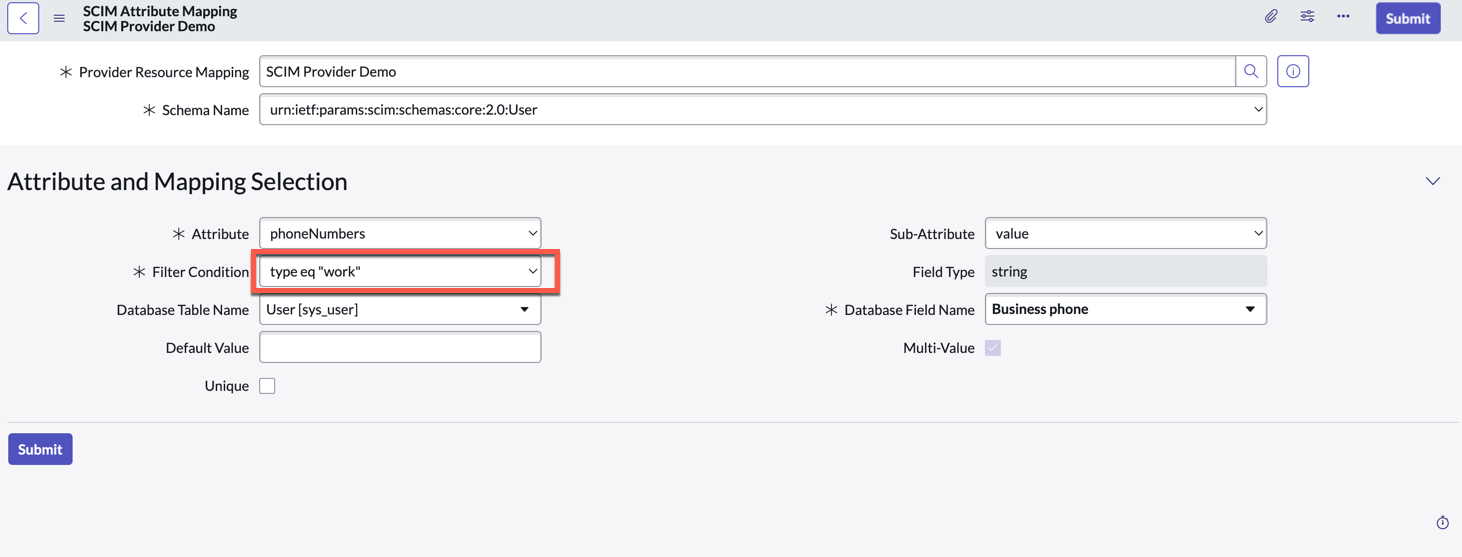

    Attribute Phone Number with Filter Condition Work

    Database Field Name

    If the direct attribute mapping option is chosen, then this attribute needs to be defined. The Database Field Name field represents the ServiceNow field name that is mapped with the SCIM Attribute.

    For example, the username SCIM Attribute can be mapped to a user as the Database Table Name field, and to the user ID field as the Database Field Name field.

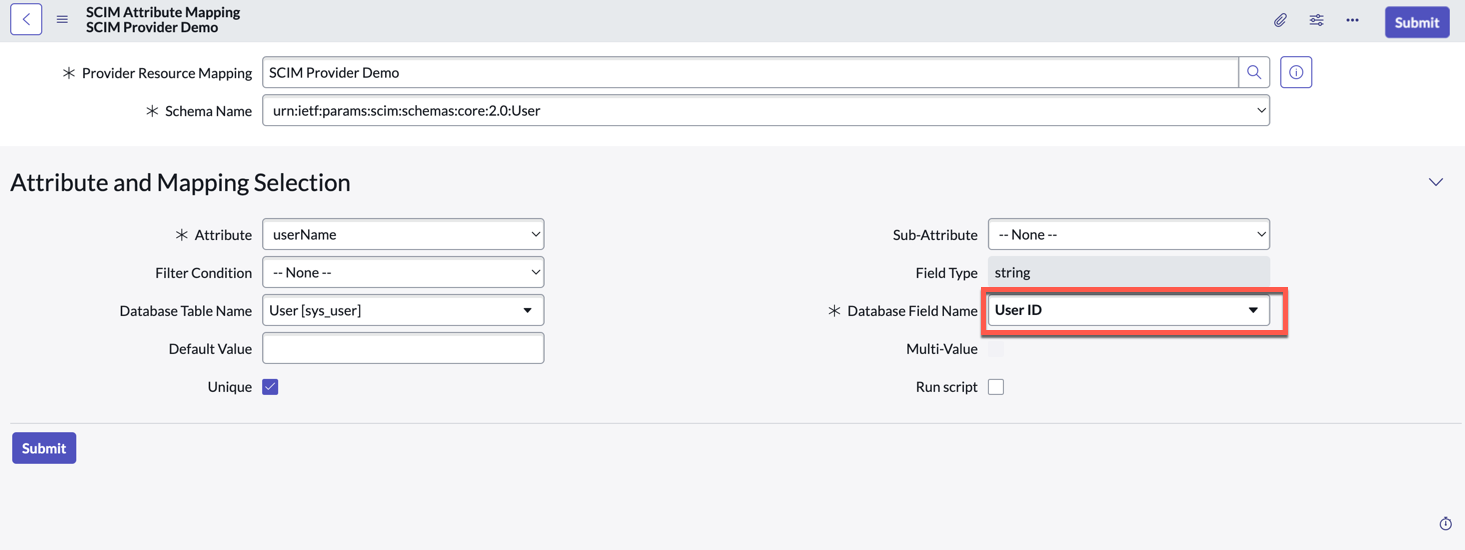

    Database Field Name

    You can also dot-walk using the Database Field Name. For example, the department SCIM Attribute can be mapped to the Department Name field.

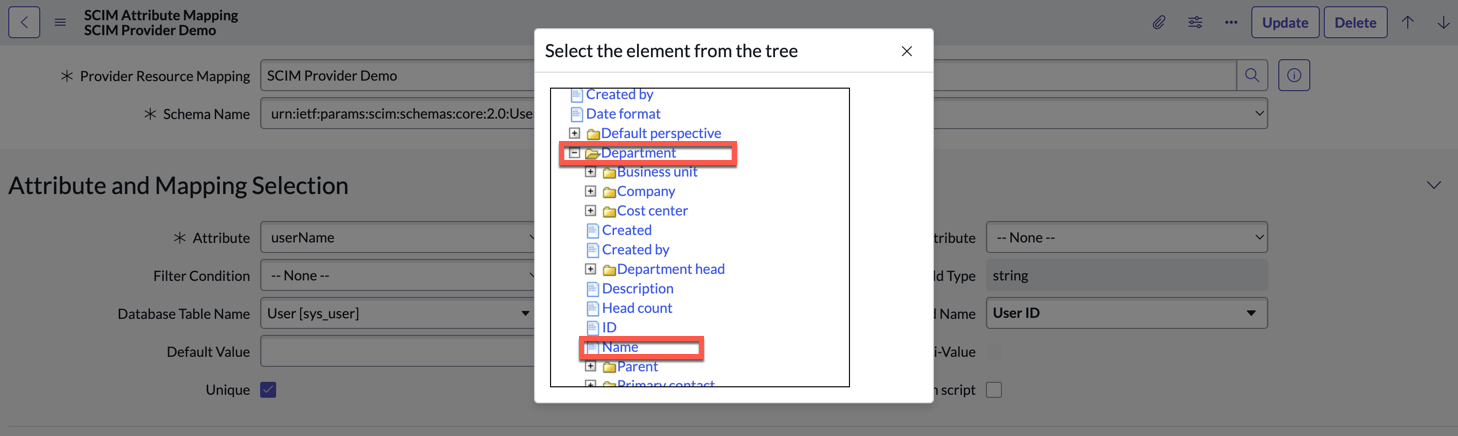

    Attribute - Dot walk

    Here the Database Table is User and the Database field Name is Department Name.

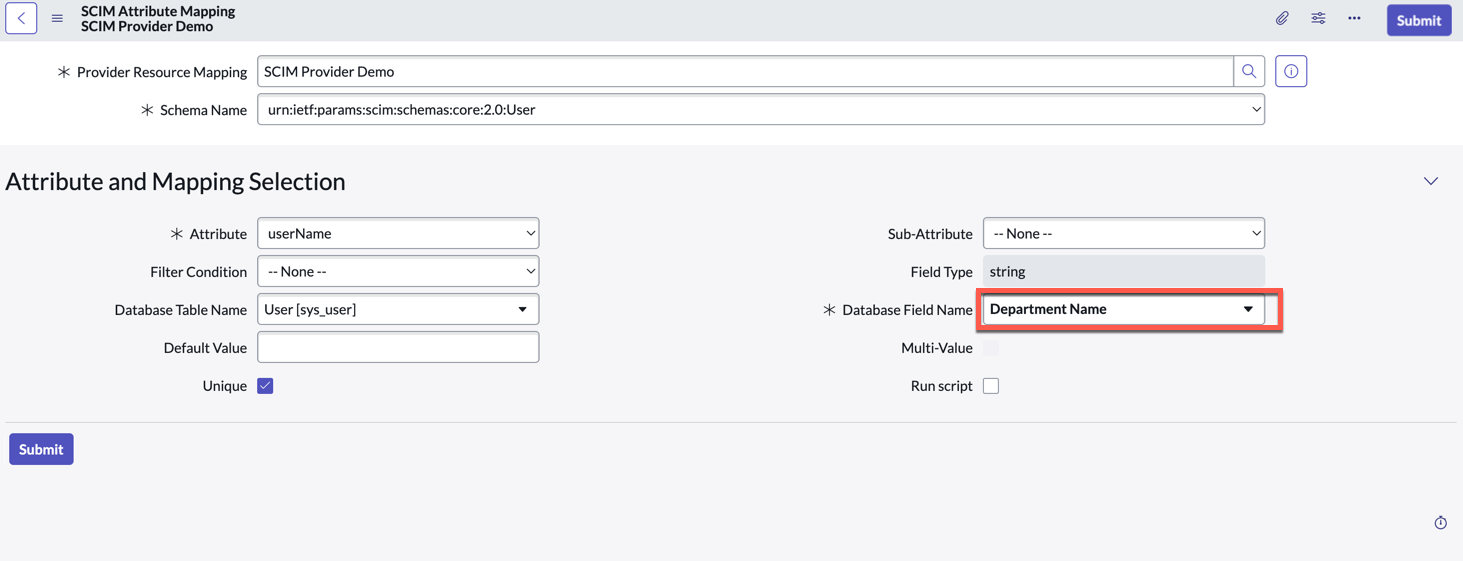

    Attribute - Department Name

    Default Value

    The default value is passed to the SCIM Provider if direct attribute mapping of that field returns null. The default value can also be used to return a hard-coded value.

    In the case of a hard-coded value, the database table name and field name should be None.

    For example, the primary sub-attribute value of work email can be hard coded as true.

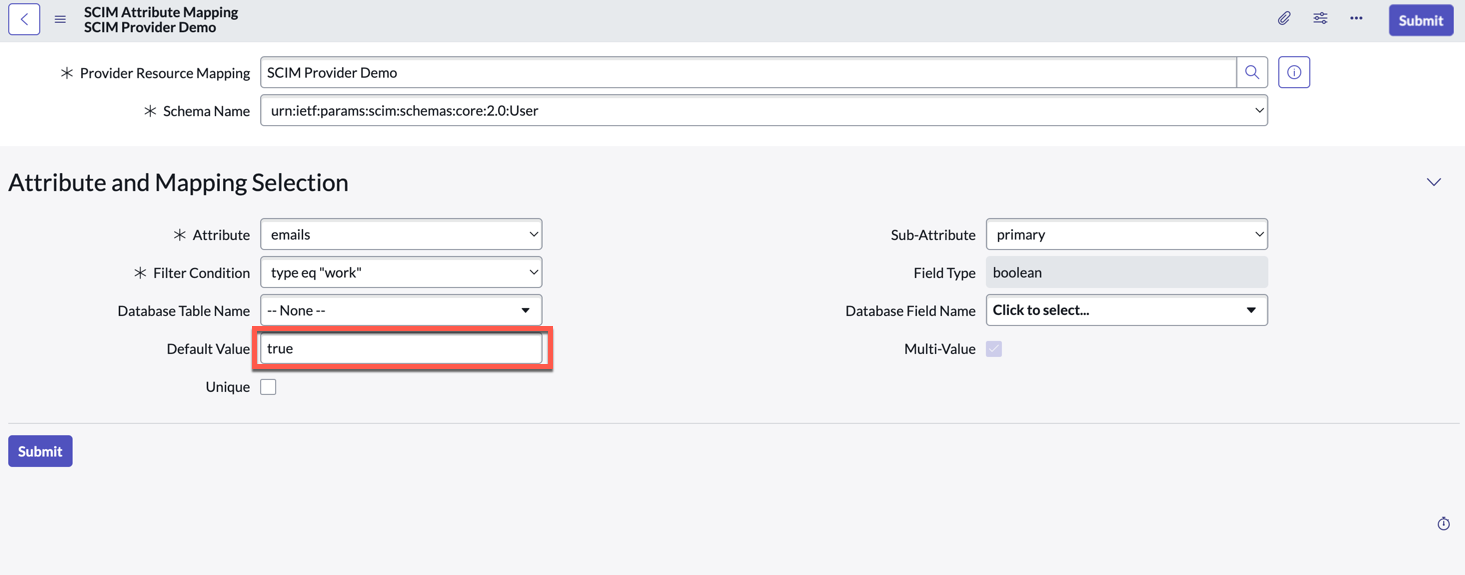

    Attribute Default Value

    Script

    The script is used to fetch the attribute value. The return type of the script should be always a string, or a JSON converted as a string. The output of the script should be in the proper format as expected by the provider for that attribute.

    The following is a sample script for a multi-valued attribute.

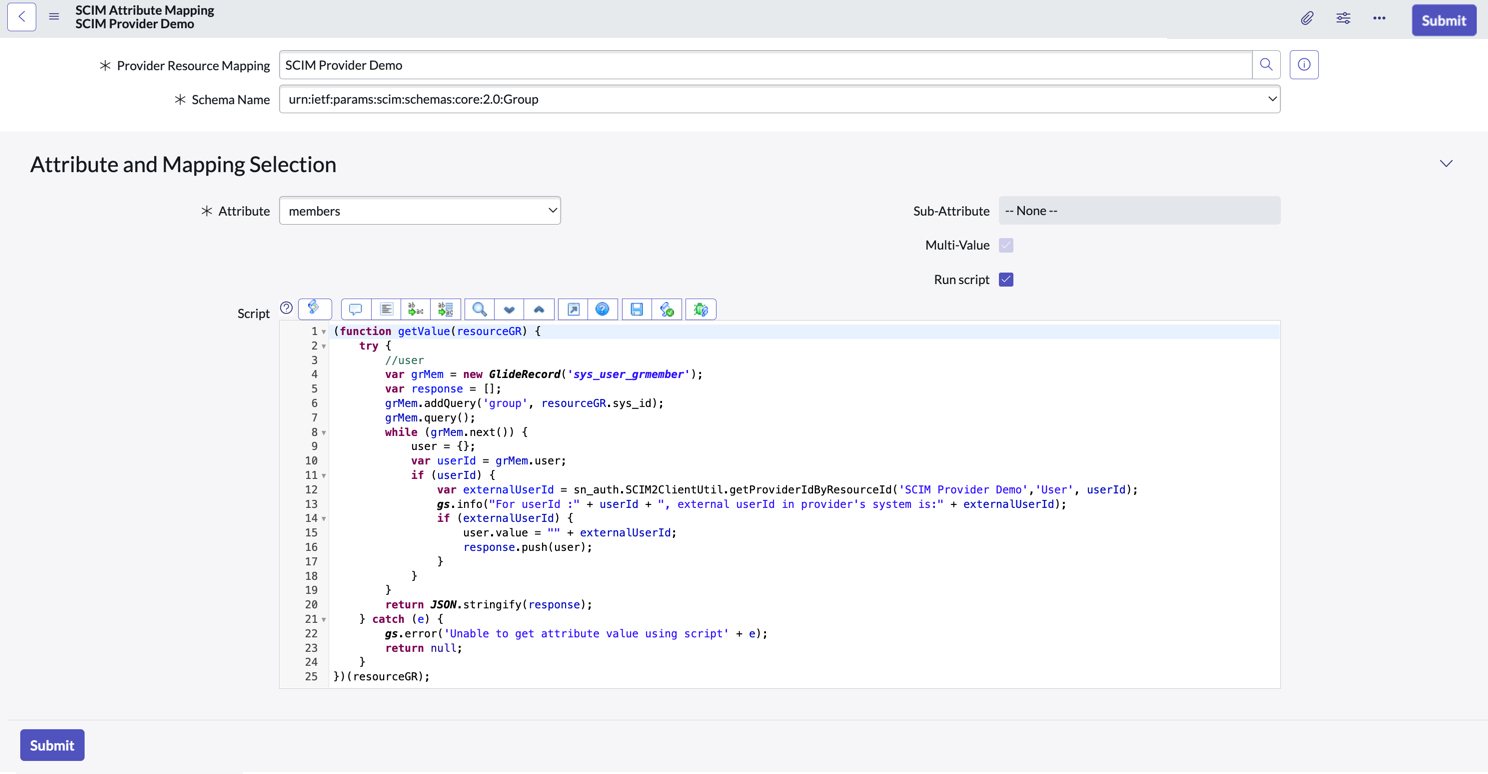

    Attribute Script

    The output of the script should have a stringified JSON Array.

    The following is a sample Script of a simple-valued Attribute.

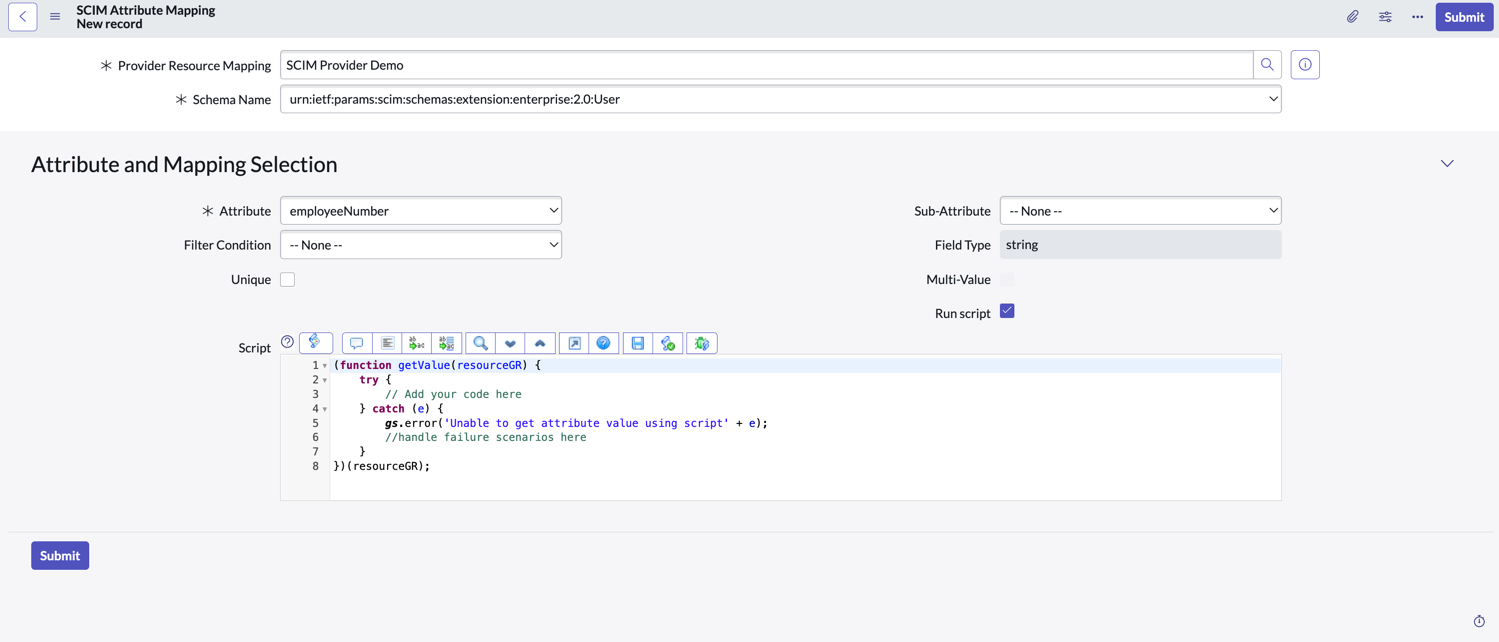

    Attribute Employee Number - Run script

    The output of the script should be a string.
