Using Log Export Service (LES)
Use LES to review the log report dashboard.
Review log report
Analyze the size of each data log by reviewing the log report dashboard.
始める前に
Role required: admin or sn_logstoanalytics.admin
手順
-
Review log data in the following widgets.

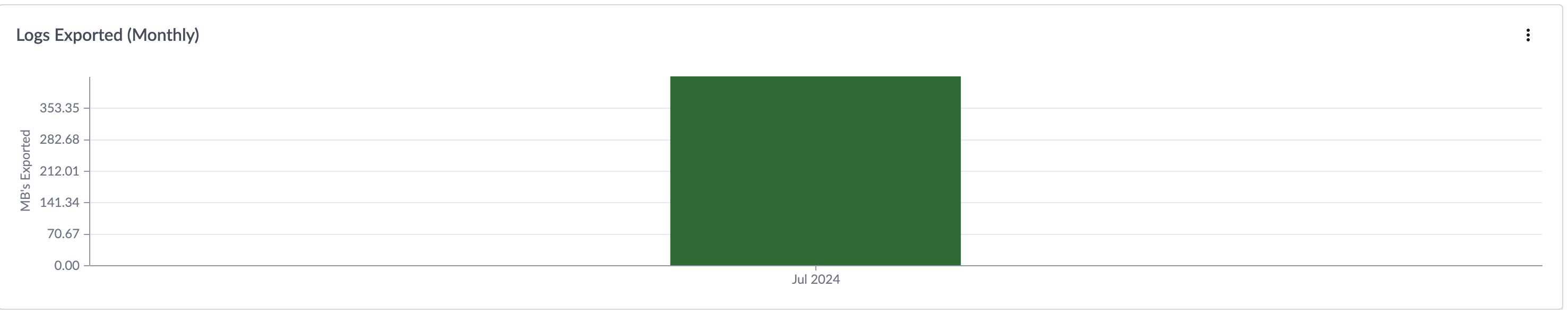

- Logs Exported (Monthly): It shows the megabytes exported per month in the initial view. You can drilldown the graph to view the data for each week or daily data. You can view data from last 395 days.注:Click on the arrows on the up right corner of the widget to drill down the data. You can also move back up to the parent data.

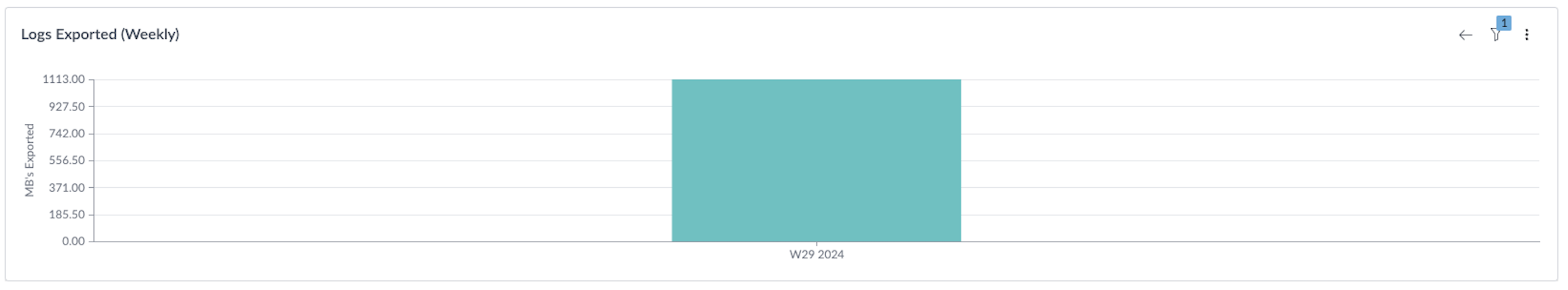

Weekly:

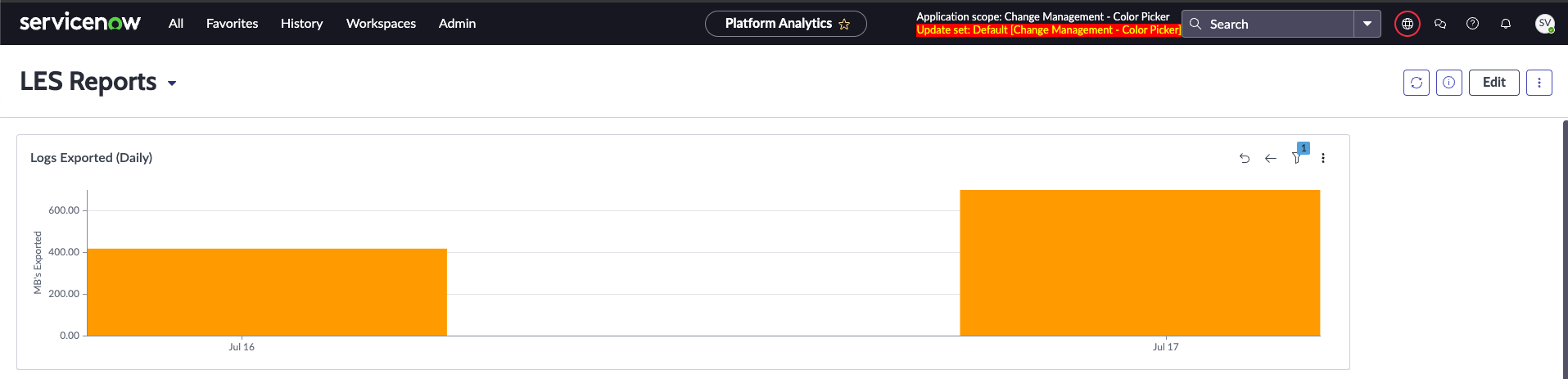

Daily:
The data in this report reflects collection taken 4 hours prior.
- Logs exported per source (Monthly): This widget shows the kind of logs were exported on a monthly basis. You can also drilldown to see weekly and daily log data. You can view data from last
395 days. 注:You can select or de-select the source you want to view the data from. The sources from which you can view the logs are: node_log, syslog, syslog_transaction, and sys_outbound_http_log.

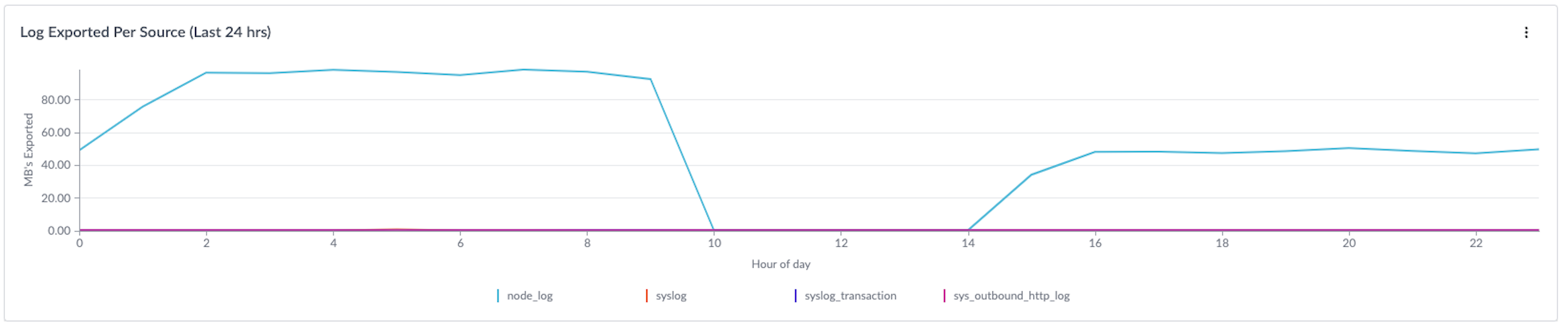

- Log Exported Per Source (Last 24 hrs): It shows the data from last 24 hrs. The graph progresses chronologically from left to right on a 24 hr scale, with the oldest data (24th hour) positioned on the right and the
latest data on the left side of the report. You can select or de-select the source you want to view the data from. The sources from which you can view the logs are: node_log, syslog, syslog_transaction, and sys_outbound_http_log.注:Depending on the hour of the day you check this data, the widget dynamically updates to reflect exactly the past 24 hours.

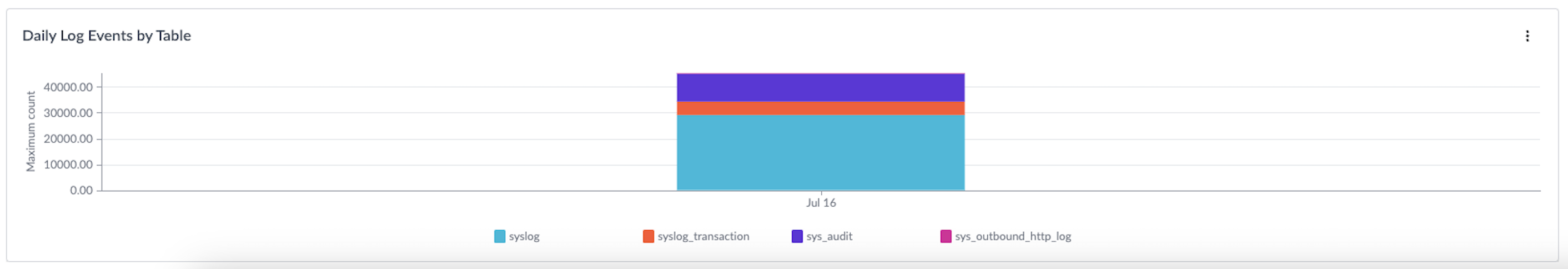

- Daily Log Events by Table: It shows the log events generated by each log tables per day. You can select or de-select the tables you want to view the data from.注:The tables from which you can view the log events are: syslog, syslog_transaction, sys_audit, and sys_outbound_http_log.
- Logs Exported (Monthly): It shows the megabytes exported per month in the initial view. You can drilldown the graph to view the data for each week or daily data. You can view data from last 395 days.
