Establish a connection using certificates

  • リリースバージョン: Australia
  • 更新日 2026年03月12日
  • 所要時間：3分

    • Establish a connection between newly created Microsoft Teams graph application using certificates.

    始める前に

    Role required: admin

    手順

    1. Navigate to Connections & Credentials > Connections & Credentials Aliases.
    2. Open Microsoft Teams Spoke.
    3. Modify the field value Configuration Template: MSIM Microsoft Teams ConnectorAuthorization Code Template and save the form.
      注:
      This template contains the delegated API permission required for the MSTeams integration.
    4. From the Related Links section, click Create New Connection & Credential.
      Name Any unique Name.
      Connection URL Connection URL. For example, https://graph.microsoft.com
      API Version Version of the API. For example, v1.0
      Authorization URL https://login.microsoftonline.com/<<tenant ID>/oauth2/v2.0/authorize
      Token URL https://login.microsoftonline.com/<<tenant ID>/oauth2/v2.0/token
      Token Revocation URL https://login.microsoftonline.com/<<tenant ID>/oauth2/v2.0/revoke
      OAuth Client ID Client ID.
      OAuth Client Secret You can enter any value.
      注:
      This is not important as you will be using the certificate-based authentication.
    5. Click Create and Get Oauth Token.
      An error message is displayed prompting 401- unauthorised.
    6. Reload the form and open the record in the Connections related list.
    7. Enter the Base64 encoded Thumbprint value in the Encoded Certificate Thumbprint attribute in the Attributes section.
      注:
      The Thumbprint value is a hexadecimal value. You can use a Hexadecimal toBase64 (Hex to Base64) converter tool to encode the Thumbprint value to a Base64 value.
    8. Navigate to System OAuth > Application Registry
    9. Open MSIM Microsoft Teams Connector Authorization Code record.
    10. Modify the OAuth API Script: OAuthUtilJWTMSTeamsConnector.
    11. Navigate to Connections & Credentials > Credentials.
    12. Open the record MSIM Microsoft Teams Connector Credential.
    13. From Related Links, click Get OAuth Token.

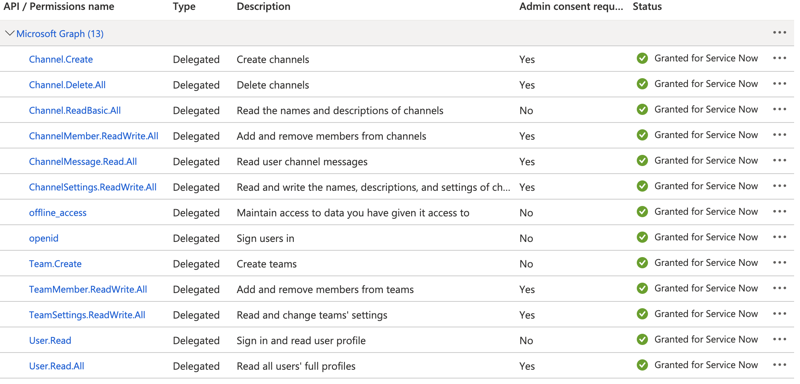

      On success, the following API permissions are added to the Azure application.
      API Permissions - MS Teams
