OpenStack extension classes

  • リリースバージョン: Australia
  • 更新日 2026年03月12日
  • 所要時間：6分

    • The CMDB CI Class Models app adds or updates classes for OpenStack.

    CMDB CI Class Models is a ServiceNow Store app that adds class models that extend the CMDB class hierarchy. The new or updated classes include class descriptions, identification rules, identifier entries, and, if applicable, dependent relationships. You can use the added classes just like any other CMDB class. Applications such as Discovery and Service Mapping Patterns can use the class extensions to populate CIs and discover technologies and software.

    See the full release notes for all CMDB CI Class Models.

    Request apps on the Store

    Visit the ServiceNow Store to view all the available apps, and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

    OpenStack

    OpenStack is a cloud operating system that controls large pools of compute, storage, and networking resources throughout a datacenter. All of these resources are managed and provisioned through APIs with common authentication mechanisms. Other components provide services such as orchestration, fault management, and service management to ensure high availability of user applications. OpenStack is broken up into services to enable you to plug and play components depending on your needs. These components are designed for horizontal scalability, so you can easily add new resources to grow your cloud over time.

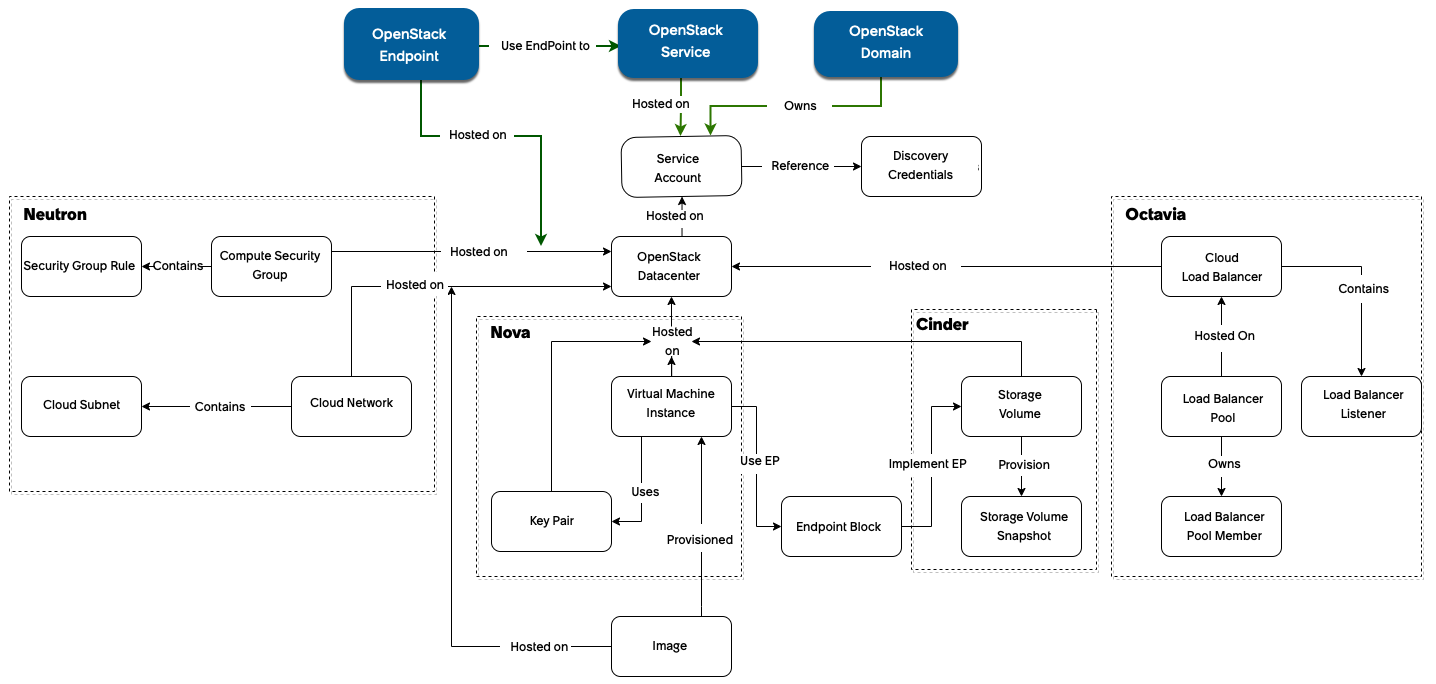

    図 : 1. OpenStack classes integrated with the CMDB class hierarchy

    OpenStack classes integrated with the CMDB class hierarchy.

    Classes

    This section lists the classes that the CMDB CI Class Models app adds or updates. See the class columns table for further details about the columns added for each class.

    CMDB CI Class Models: Release 1.8.0 adds the following classes for OpenStack. For the list of classes in the base system, including classes that this app might extend, see CMDB tables descriptions.
    Class Extends Description
    OpenStack Services [cmdb_ci_cloud_openstack_service] Virtual Machine Object [cmdb_ci_vm_object] An OpenStack web service that can be accessed via a URL.
    OpenStack Endpoint [cmdb_ci_cloud_openstack_endpoint] Virtual Machine Object [cmdb_ci_vm_object] The access point of a Service.
    OpenStack Domain [cmdb_ci_cloud_openstack_domain] Virtual Machine Object [cmdb_ci_vm_object] A collection of users, groups, and projects.

    Class columns

    CMDB CI Class Models: Release 1.8.0 adds the following columns to the respective classes.
    表 : 1. OpenStack Services [cmdb_ci_cloud_openstack_service] class
    Added columns Description
    type The Service type, which describes the API implemented by the Service. Possible values: Compute, ec2, identity, image, network, or volume.
    enabled Defines if the service and its endpoints appear in the Service catalog (true/false).
    表 : 2. OpenStack Endpoint [cmdb_ci_cloud_openstack_endpoint] class
    Added columns Description
    interface The interface type, which describes the visibility of the endpoint. Possible values:
    • public - Visible by end users on a publicly available network interface.
    • internal - Visible by end users on an unmetered internal network interface.
    • admin - Visible by administrative users on a secure network interface.
    enabled Defines if the Service and its endpoints appear in the Service catalog (true/false).
    表 : 3. OpenStack Domain [cmdb_ci_cloud_openstack_domain] class
    Added columns Description
    enabled Defines if the domain is enabled (true/false).
