Monitoring CMDB data quality using dashboard metrics in CMDB success advisor for Data Foundations

The CMDB success advisor for Data Foundations dashboard enables CMDB administrators to identify and address data quality issues specific to principal classes in the Configuration Management Database (CMDB).

重要:

When you select a segment or count on a chart from a CMDB success advisor dashboard, the KPI Details page opens. On the page, you can analyze how a specific metric trends over time. Additionally, the Remediation actions panel appears when remediation actions are available for that card. Use the panel to improve the quality of CMDB. To learn more, see KPI Details and Improving CMDB data quality for Data Foundations.

Access the dashboard

To open the dashboard, select View insights for Data Foundations on the CMDB success advisor landing page. See Access CMDB success advisor.

注:

The CMDB success advisor for Data Foundations dashboard is available only after the setup process is complete. For more information, see Set up CMDB success advisor for Data Foundations.

Required roles

表 : 1. Roles required for CMDB success advisor for Data Foundations dashboard

Role	Description
sn_cmdb_admin	Required to access the Data Foundations dashboard.
pa_viewer	Required to filter data by principal classes.
pa_data_collector	Required to view the last updated data timestamp on the dashboard.

Use cases

For examples of how different people in your organization would use this dashboard, see these use cases.

User	Dashboard use
CMDB administrator	Monitor CI attribute completeness across principal classes Identify classes at risk with low data quality scores Detect stale and duplicate CI records affecting CMDB data accuracy Evaluate integration coverage to ensure the right sources are populating the CMDB Prioritize remediation efforts based on incident, change, and problem impact Track progress toward CSDM alignment

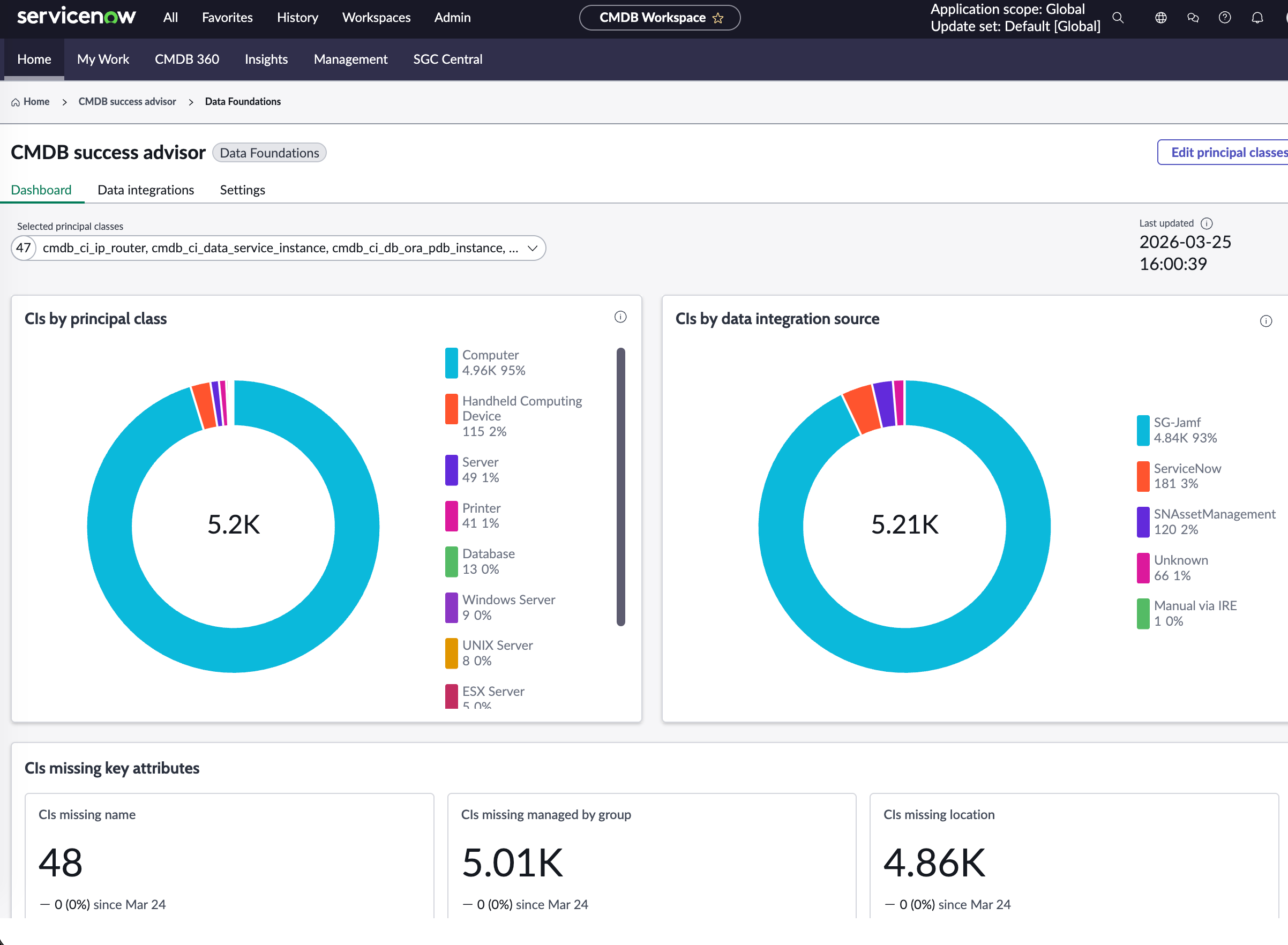

Dashboard features

The dashboard provides clear, consolidated insights into principal CI class data quality and completeness. Use the dashboard to identify and resolve data quality issues within the CMDB through dedicated sections, filters, indicators, and visual reports. Gain valuable insights into CMDB performance related to Data Foundations. Targeted CMDB metrics focus remediation efforts. Regularly monitor these metrics and follow suggested remediation actions to systematically improve CMDB data quality over time.

重要:

The dashboard data is filtered based on the Selected principal classes and Date range filters. See Filters.

表 : 2. Feature description

Feature	Description
CIs by principal class	Displays the breakdown of operational CIs by principal CI class to highlight CI distribution in the CMDB.
CIs by data integration source	Displays the breakdown of operational CIs by data integration source to highlight their contribution to CMDB population.
CIs missing key attributes	Displays completeness metrics per principal CI class, identifying classes below the defined threshold.
CI data quality issues	Displays key metrics related to CIs that have not been updated or may have duplicate records, leading to outdated information and inconsistencies in the CMDB.

Filters

Enables narrowing the data shown in graphs and metrics based on principal class, date range, or stale CI threshold.

Name	Type	Description
Selected principal classes	List	Filters CIs based on the selected principal classes. 注: Requires the pa_viewer role.
Date range	Date	Filters the dashboard data based on the selected date range.
Stale CI	List	Filters stale CIs based on the number of days since their last update. Available values: 7, 14, 30, 60, and 90 days.

CIs missing key attributes

Key metrics for the completeness of CI attributes across principal classes, identifying gaps that affect data quality.

Card	Description	Indicators
CIs missing name	Total number of CI records from principal classes missing a name, measured daily, where the CI does not have a name specified.	DF CIs missing name
CIs missing managed by group	Total number of CI records from principal classes missing a managed by group, measured daily, where the CI does not have a managed by group assigned.	DF CIs missing managed by group
CIs missing location	Total number of CI records from principal classes missing a location, measured daily, where the CI does not have a location assigned.	DF CIs missing location

CI data quality issues

Key metrics for CIs that have not been updated or may have duplicate records, leading to outdated information and inconsistencies in the CMDB.

Card	Description	Indicators
Stale CIs	Principal class CIs not updated within the expected maintenance window, causing data gaps and inaccuracies that affect incident and change impact analysis. Additionally filtered by the Stale CI filter.	DF CIs not updated in last 7 days DF CIs not updated in last 14 days DF CIs not updated in last 30 days DF CIs not updated in last 60 days DF CIs not updated in last 90 days 注: The CIs not updated card data is additionally filtered based on the Stale CI filter. See Filters.
Duplicate CIs	Operational CIs identified as duplicates within principal classes, causing ambiguous CI selection in processes and data redundancy.	DF duplicate CIs
