Configure the default variable editor for a task-extended table

After you configure the default variable editor for a task-extended table, you can view and edit the values of questions specified by the requester in the record producer. Applicable only for records generated by a record producer.

始める前に

Role required: admin

手順

1. Create a formatter for the task-extended table.
   1. Navigate to System UI > Formatters.
   2. Click New.
   3. On the form, fill the fields.

      Field	Description
      Name	The name of the formatter that is displayed in the form of the task-extended table.
      Formatter	The file name of the formatter. In this case, specify com_glideapp_questionset_default_question_editor.
      Table	The table that uses the formatter.
      Active	Specifies if the formatter is active.
      Type	The type of the formatter. In this case, specify Formatter.

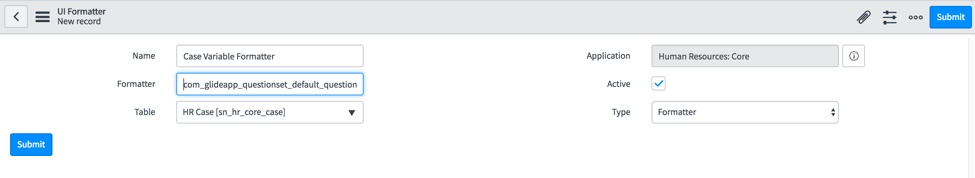

      図 : 1. UI formatter



   4. Click Submit.
2. Add the formatter to the form of the task-extended table.
   The formatter is displayed on the form according to your selections.
   1. From the Additional Actions menu on the form, select Configure > Form Layout.
   2. Use the list to select the display order for the formatter field.

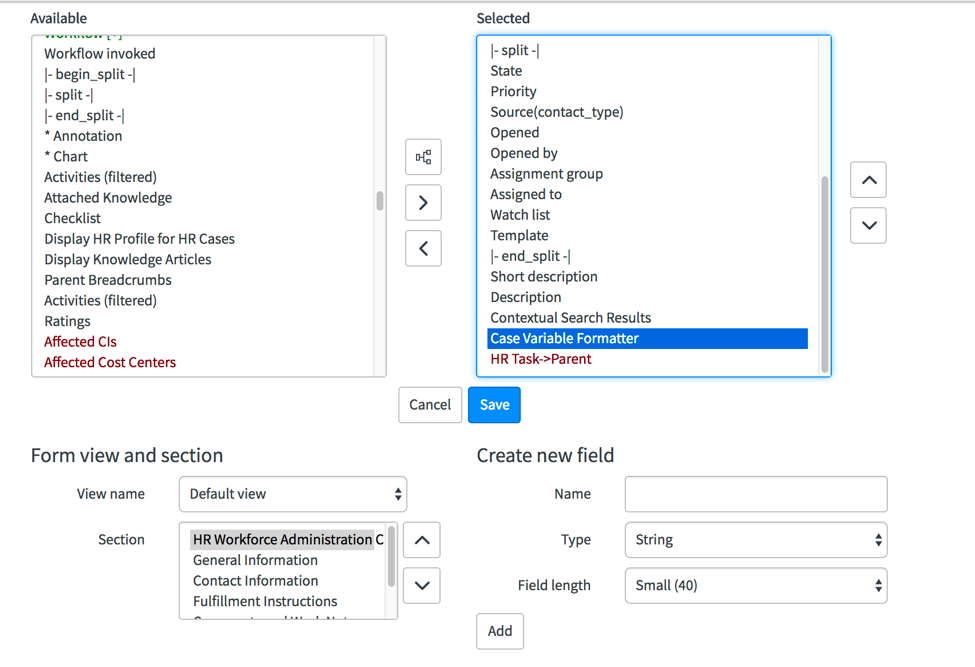

      図 : 2. Add a formatter to a form



   3. Click Save.
      The default variable editor is available on the form.

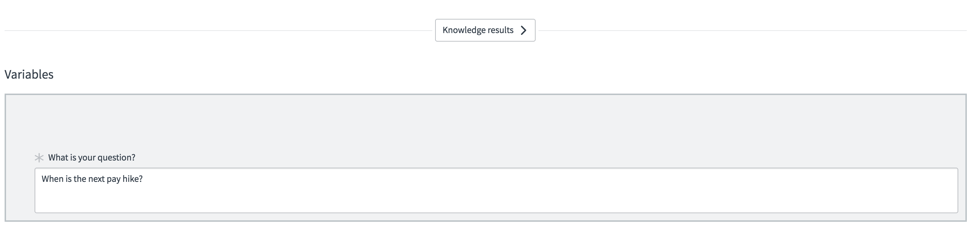

      図 : 3. Default variable editor
