Preview read table entities in Zero Copy Connector for ERP

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 4분

    • Preview read table entities in Zero Copy Connector for ERP to examine and verify the entity before adding it to a model.

    시작하기 전에

    Role required: sn_erp_integration.erp_admin

    프로시저

    1. Navigate to All > Zero Copy Connector for ERP > Zero Copy Connector for ERP Home.
    2. Open the ERP model page by selecting the models icon in the side panel.
    3. Select the model to which you want to add a read table entity.
    4. Select Manage model.
      If you have a read operation already, skip to step 8.
    5. Select Add model operation.
    6. In Select type, select Read.

      The drop-down list in the Select type field only displays the types supported by the ERP system's software version specified on the model record. For example, if SAP SuccessFactors Cloud is set in the ERP software field for the model, the only entity type available is OData.

    7. Select Save and continue.
    8. Select the Read operation tile.
    9. Select Select entity.
    10. In Select type, select Read table.
    11. Select Preview table data.

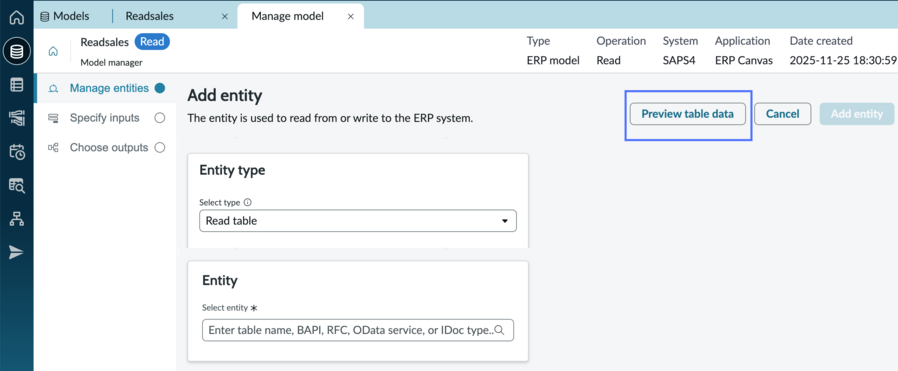

      Manage model page with preview table data button highlighted.

    12. In Search, start entering any part of a table name and make a selection from the list.
    13. In Recently viewed tables, select Get data on the table tile to obtain real-time data.

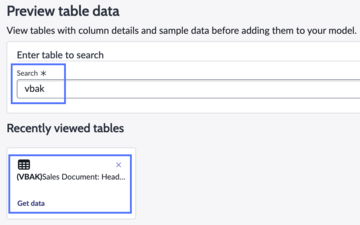

      Preview table data page with a tile highlighted to show get data option.

      After the data is retrieved and available to view, the icon on the table tile turns green.

      Preview table data page with a tile highlighted to show that the icon is now green.

    14. Select the tile.
    15. Explore the information available for the table.

      Ten rows of randomly selected records are displayed. Use the Query option to search for a specific record.

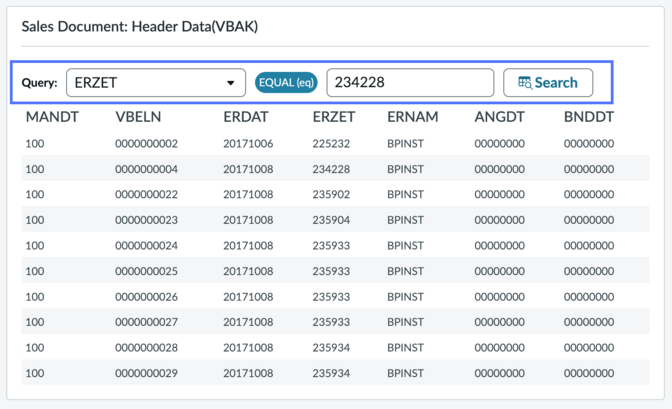

      List of records in tables with a query highlighted.
      주:
      If no records are found when querying, an error message is displayed. Select the View details link to open a new browser tab containing information about the error.

      Unable to display table data error message with view details link.

      To return to the unfiltered list, select the tile in Recently viewed tables.

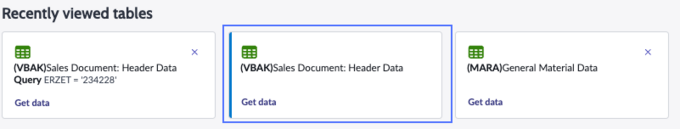

      Preview table data page with a tile highlighted in the recently viewed tables section.

      The Selected fields section contains the columns that are displayed in the records list.

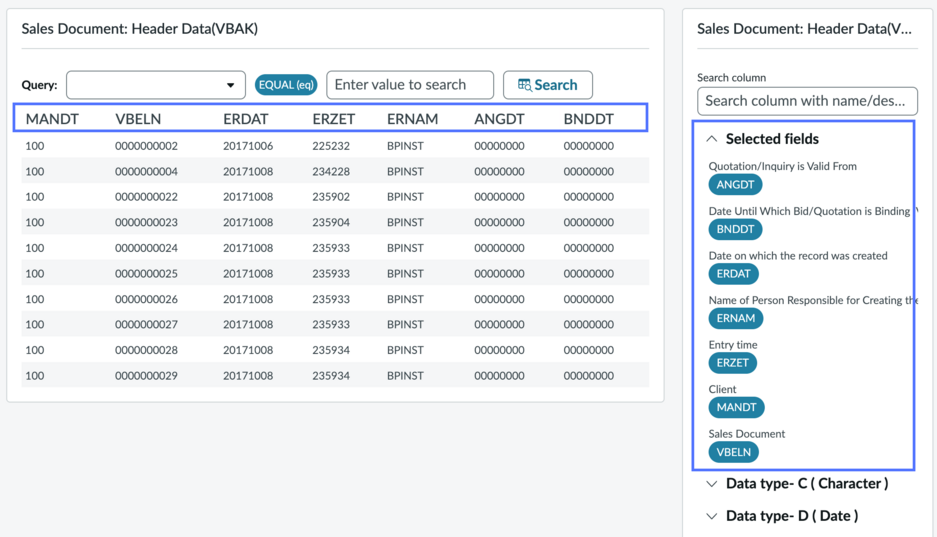

      List of fields associated with the specified table.

      All fields associated with the table are listed and are categorized based on data type, such as date or time. Edit the Selected fields section by selecting a pill to remove it from the list or expanding a category and selecting a pill to add it to the list.

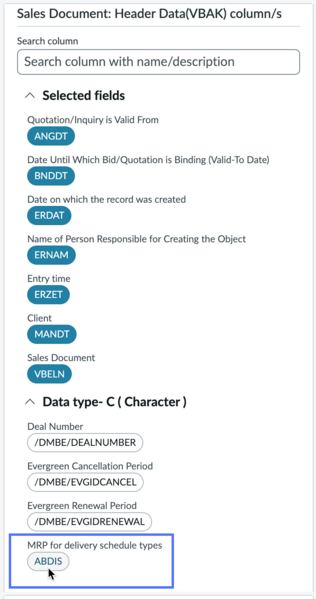

      Field list with data type-C section expanded and ABDIS field selected.
      주:
      Add no more than 7-8 fields to the Selected fields list so information is displayed clearly in the records list.

      To find a specific field, use the search. Keywords you enter are used to search the description, table type, and the table name.

      Field list with search option highlighted.

    16. Continue to search for tables or select table tiles in Recently viewed tables and explore the table contents.

    다음에 수행할 작업

    After viewing tables, select Manage entities, then Select entity. In Select type, select Read and in Select entity specify the table for the read operation to use.

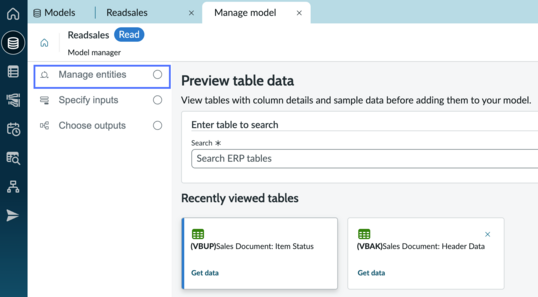

    Manage model page with manage entities option highlighted.

    For detailed information about adding entities, see Add an entity to a model.
