Set up Docusign eSignature spoke using authorization code grant

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 6분

    • Integrate the ServiceNow instance and Docusign eSignature spoke by using Authorization Code to authenticate ServiceNow requests.

    시작하기 전에

    • Request an Integration Hub subscription.
    • Activate the Docusign eSignature spoke.
    • Role required: admin
    중요사항:
    If you are setting up Docusign eSignature spoke using authorization code grant, you need not set up the spoke using JWT grant.

    Configure the Docusign account

    Configure a custom OAuth application from your Docusign account to enable authentication with the Docusign eSignature spoke.

    이 태스크 정보

    Complete these steps from your Docusign account. See the Docusign Developer Center documentation for instructions on creating and configuring custom applications. Docusign uses a scripted webhook to send signed document data to ServiceNow instance. This enables flow designers to pause a flow until a document is signed, and use document data in the flow.

    시작하기 전에

    Docusign requirements:
    • Docusign account
    • Docusign app configured to integrate with ServiceNow
    • Role required: Docusign administrator

    프로시저

    1. Log in to the Docusign account as an admin.
    2. From your Docusign account, register your application.
      주:
      Ensure that you select the Authorization Code Grant option for User Application.
    3. Generate an integrator key and secret key.
    4. Record the values of integrator key and secret key to register the app as a third-party OAuth provider on your ServiceNow instance.
      You need these values when you Configure the connection for Docusign eSignature spoke.
    5. Add the ServiceNow OAuth Redirect URL in your Docusign account.
      1. Navigate to Integrations > App and Keys.
      2. Under Apps and Integration Keys,find the required app.
      3. For the required app, click the Actions drop-down list and click Edit.
      4. Under Additional settings, click Add URI and add the OAuth callback endpoint in this format: https://<instance>.service-now.com/oauth_redirect.do.

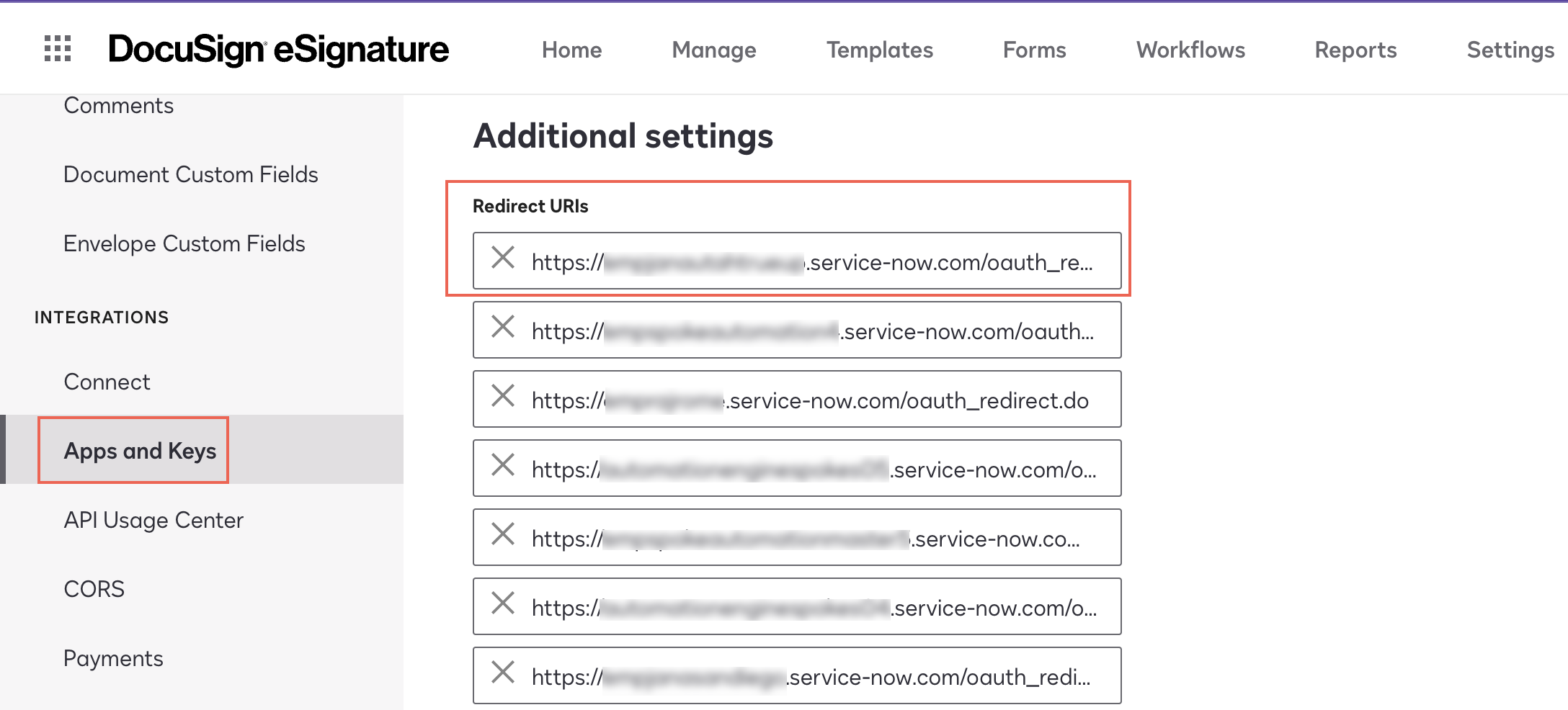

        Add Redirect URI in Docusign account.
    6. Obtain the value of Account Base URI from the Docusign account.
      1. Navigate to Integrations > App and Keys.
      2. Under My Account Information, you can find the value of the Account Base URI.

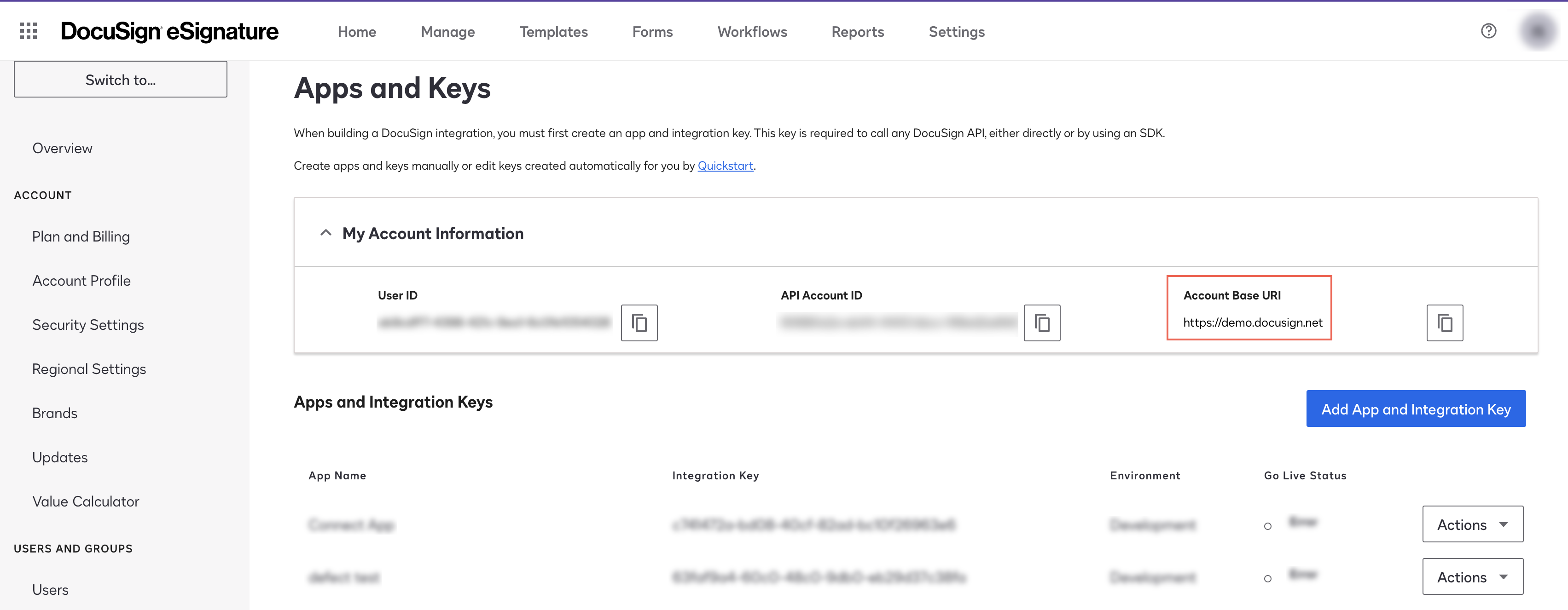

        Account Base URI.
      3. Copy and record this value for later use.

    Configure the connection for Docusign eSignature spoke

    Integrate the ServiceNow instance and Docusign account instance using authorization code grant to authenticate ServiceNow requests.

    시작하기 전에

    Role required: admin

    프로시저

    1. Navigate to All > Process Automation > Workflow Studio.
    2. Click the Integrations tab.
    3. Under Connections, toggle and enable the Outbound connections.
    4. Locate the alias for Docusign and click View Details.
      주:
      Don't click Add Connection.

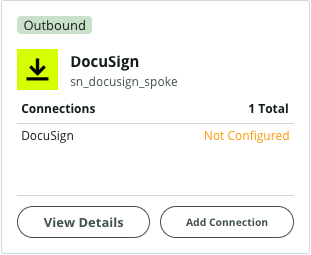

      Connection template for Docusign eSignature spoke
    5. If you are configuring the spoke for the first time, click Configure.
      Configure a connection for the first time for Docusign eSignature spoke
    6. On the Configure Connection form, fill in the fields.
      표 1. Configure Connection form
      Field Description
      Connection Name Unique name to identify the connection.
      Connection URL Account Base URI to connect to Docusign environment. This value can be obtained from your Docusign account. For more information see, Configure the Docusign account.
      API Version Docusign API version. The default value is v2.1.
      Authorization URL Docusign authorization URL.
      • For developer sandbox environment, enter https://account-d.docusign.com/oauth/auth.
      • For live production system, enter https://account.docusign.com/oauth/auth.
      Token URL URL from which the ServiceNow instance obtains the access token.
      OAuth Client ID Integrator key of your Docusign account.
      OAuth Client Secret Secret key (client secret) of your Docusign account.
      OAuth Redirect URL OAuth callback endpoint in this format: https://<instance>.service-now.com/oauth_redirect.do.
      주:
      Ensure that you add this URL in your Docusign account. For more information see, Configure the Docusign account.

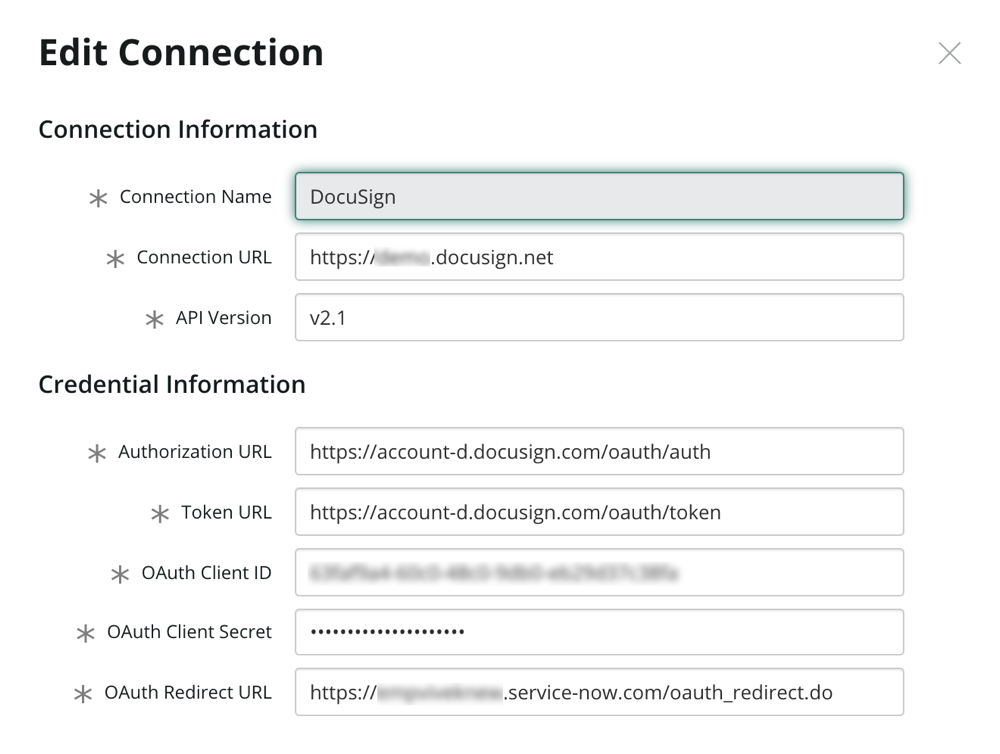

      Docusign connection.

    7. Click Configure and Get OAuth Token.
