Set up the Google Cloud SQL spoke

Integrate the ServiceNow instance and Google Cloud SQL spoke using Google Cloud Platform credentials to authenticate ServiceNow requests.

시작하기 전에

• Request an Integration Hub subscription.
• Activate the Google Cloud SQL spoke.
• Role required: admin.

Configure the Google Cloud SQL application

Create a custom OAuth application from your Google Cloud Platform account to enable OAuth 2.0 authentication with the Google Cloud SQL spoke.

시작하기 전에

Google Identity and Access integration requirements:

• Google Cloud SQL account.
• Role required: admin.

이 태스크 정보

Complete these steps from the Google Cloud Platform.

프로시저

1. Register a new custom application and open it.
   1. Navigate to https://console.developers.google.com.
   2. Create a project with your Google Cloud Platform administrator credentials.
   3. Open the project.
2. Provide the OAuth authorized domain name.
   1. From the APIs & Services menu, select OAuth consent screen.
   2. Enter the application name.
   3. Specify the Authorized domain service-now.com.
   4. Click Save.
3. Create the credentials.
   1. From the APIs & Services menu, select Credentials.
   2. Select Create OAuth client ID from the Create credentials list.
4. Select the application type Web application.
5. Enter the following Authorized redirect URI: https://<instance>.service-now.com/oauth_redirect.do and click Create.
6. Copy your client ID and client secret to a text file so that you can use them when you register Google Cloud SQL as an OAuth provider.
   팁:

   You can always access the client ID and secret in the Google APIs & Services interface by clicking Credentials and selecting the OAuth 2.0 client ID name.

Register Google Cloud SQL as an OAuth provider

Use the information generated during Google Cloud SQL account configuration to register the Google Cloud SQL application as an OAuth provider and allow the instance to request OAuth 2.0 tokens.

시작하기 전에

Role required: admin

프로시저

1. In ServiceNow instance, navigate to System OAuth > Application Registry.
2. Open the record, Google Cloud SQL.
3. On the form, fill these fields:

   Field	Description
   Client ID	Client ID of the Google Cloud SQL application.
   Client Secret	Client Secret you generated when you create the application.
   OAuth API Script	Script to customize the request and response. Select OAuthGCPSQLUtil.
   Default Grant type	Grant type used to establish the token. Select Authorization Code.
   Authorization URL	OAuth authorization code endpoint. Enter https://accounts.google.com/o/oauth2/v2/auth.
   Token URL	OAuth server token endpoint. Enter https://oauth2.googleapis.com/token.
   Redirect URL	URL of the ServiceNow instance in this format: https://<instance>.service-now.com/oauth_redirect.do.

4. Right-click the form header, and click Save.
   The system validates the OAuth credentials.

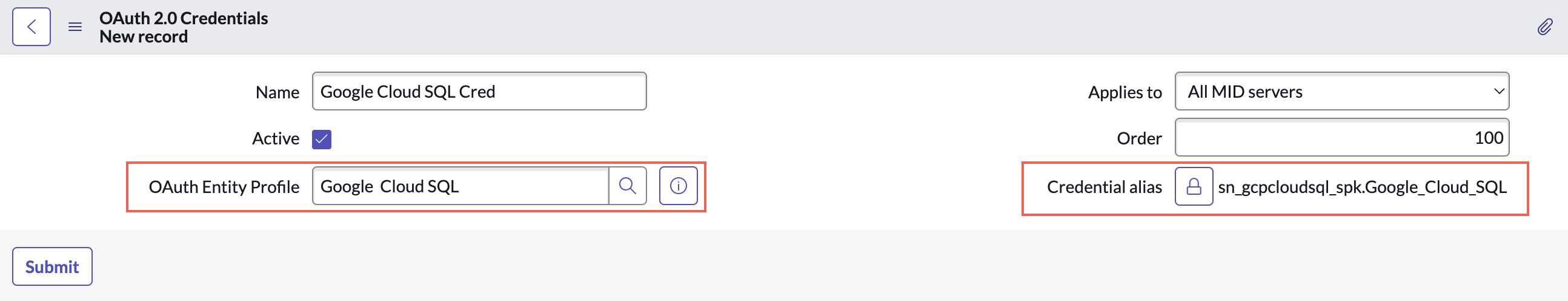

Create a credential record for the Google Cloud SQL spoke

Create a credential record to connect the Google Cloud custom application you created during account configuration. The Google Cloud SQL spoke connection and credential aliases use these credentials to authorize actions.

시작하기 전에

Role required: admin

프로시저

1. Navigate to All > Integration Hub > Connections & Credentials.
2. Open the record, Google_Cloud_SQL.
3. In the Credentials tab, click New.
   The system displays this message: What type of Credentials would you like to create?
4. Select OAuth 2.0 Credentials.
5. On the form, fill these values.

   표 1. OAuth 2.0 Credentials form

   Field	Description
   Name	Name to identify the credential record. For example, Google Cloud SQL Cred.
   OAuth Entity Profile	Select the default OAuth entity profile, Google Cloud SQL.
   Credential alias	Credential alias associated with this record. The default alias record, sn_gcpcloudsql_spk.Google_Cloud_SQL is selected.



6. Right-click the form header and click Save.
7. To generate the OAuth token, click the Get OAuth Token related link.
