Set up a bi-directional webhook for the Jira spoke

Configure a webhook to subscribe to Jira with a ServiceNow callback URL.

시작하기 전에

• Request an Integration Hub subscription
• Activate the Jira spoke
• Role required: admin

Create a token

Create a token to embed in the Jira webhook URL.

시작하기 전에

Role required: admin

프로시저

1. In the navigation filter, enter token_verification.list.
   The system displays records in the Token Verifications table.
2. Click New.
3. On the form, fill the fields.

   표 1. Token Verification form

   Field	Description
   Name	Unique name to identify the token. For example, Jira token.
   Description	Description of the token.
   Token	Authentication token. This token is used to authenticate incoming webhook requests.

결과

The token created is used to authenticate incoming webhook requests.

Register a Jira webhook in ServiceNow

Register a Jira webhook in ServiceNow to notify the ServiceNow app when certain events occur in Jira.

시작하기 전에

Role required: admin

프로시저

1. Navigate to All > Jira Webhooks > Jira Webhook Registries.
2. Click New.
3. On the form, fill in the fields.

   표 2. Jira Webhook Registry form

   Field	Description
   Name	Unique name to identify the record. For example, Jira webhook.
   Description	Description of the record.
   Token	Authentication token. This token is used to authenticate incoming webhook requests.
   Path	Jira webhook path. By default, this path is set to api/sn_jira_spoke/jira_webhook_callbacks/wh_entry.

4. Right-click the form header and click Save.
5. Choose how you want to authenticate callback requests and select one of the either options.

   Callback URL Type	Description
   Token-based Callback URL	Uses a static token in the URL for simple authentication.
   HMAC-based Callback URL	Uses Hash-based Message Authentication Code (HMAC) for enhanced security and tamper-proof authentication.

   The system displays either the token‑based callback URL or the HMAC‑based callback URL based on your selection.
6. Copy and record the webhook callback URL.

결과

The Jira webhook is registered in your ServiceNow instance.

Add a callback URL in Jira

Provide a webhook callback URL in yourJira Atlassian account to create a webhook.

시작하기 전에

Role required: admin

프로시저

1. Log in to your Jira Atlassian account.

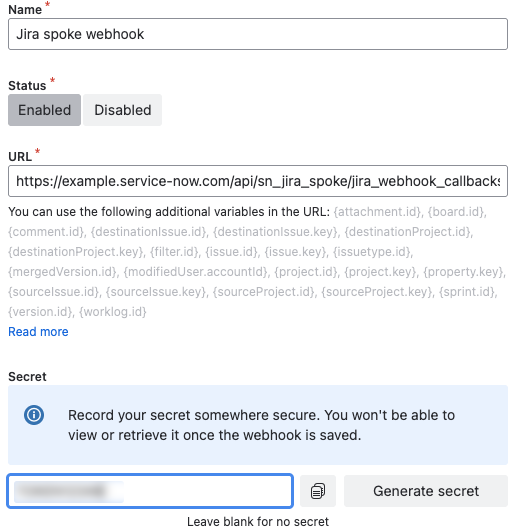

2. Create a webhook in your Atlassian account.
3. Enter the webhook callback URL in the URL field.
   See the Atlassian Developer portal documentation for instructions on creating a webhook.

   주:

   If you select an HMAC-based callback URL while registering a webhook, enter the secret token created from your ServiceNow instance in the webhook’s Secret field.


4. Select the related events that should trigger the webhook.

결과

The callback URL is added in your Jira Atlassian account. You can create routing policies and subflows as per your requirement. See Customize a bi-directional webhook for information regarding the creation of new routing policies and subflows.

Customize a bi-directional webhook

Create a webhook routing policy and subflow as per your requirement.

시작하기 전에

Role required: admin

이 태스크 정보

The default routing policy in the Jira WebHook Routing Policies module triggers the Process Jira Webhooks subflow and notifies the ServiceNow app when certain events occur in Jira. See Jira Spoke for information about the fields that the default routing policy and subflows support. To use any other fields in your custom subflow and customize conditions in the routing policy, perform these steps.

프로시저

1. Navigate to All > Flow Designer > Designer.
2. Click Subflows.
3. Create a copy of the default subflow, Process Jira Webhooks.
4. Customize the subflow as per your requirement and publish it. See Building subflows for more information about creating and using subflows and Jira Spoke for information about the fields that the default routing policy and subflows support.
5. Navigate to Jira Webhooks > Jira WebHook Routing Policies.
6. Click New.
7. On the form, fill in the fields.

   표 3. Decision form

   Field	Description
   Label	Unique label to identify the routing policy.
   Default answer	Option to specify if this is the default answer. The default answer is applicable when the conditions are not met. Click the lookup icon (). Select the required subflow from the Document list. 주: Ensure that the Table name is Flow [sys_hub_flow].
   Condition	Conditions to be met when the required events occur in Jira. See Jira webhooks for information about the supported fields.
   Answer	Subflow that must be triggered when the specified conditions are met.

8. Click Submit.
   주:

   These routing policies are saved in the Decision tables. Users are cautioned against directly updating or modifying data in these tables.

결과

The routing policy and subflow are created.
