Use the SerializeObject component

Convert a JSON object to a string by using the SerializeObject component in RPA Desktop Design Studio.

시작하기 전에

Role required: none

이 태스크 정보

To configure the properties for the SerializeObject component, see Properties of the JSON utilities.

프로시저

1. In the Toolbox pane, navigate to Utilities > JSON.
2. Drag the SerializeObject component to the Design surface.
3. To configure the input fields, see Configure port properties.
4. 옵션: Connect the data and control ports of the SerializeObject component to the corresponding ports of the other components as described in the following table.

   Port type	Port name	Data type	Description
   Data In	ObjData	Object	The JSON object to be converted to a string.
   Data Out	Return	String	Returns a JSON string which is representation of given object.

5. 옵션: To test the component, right-click the component bar and then click Run From Here.

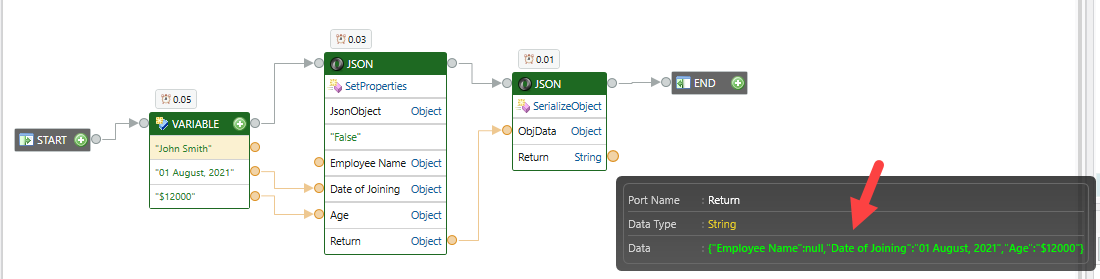

Convert employee data from JSON object format to string

In this example, a JSON object contains the name, date of joining, and the salary of an employee. The JSON object is created by using the SetProperties component. To convert the JSON object to string, we use the SerializeObject component. After you run the automation, point the mouse device over the Return Data Out port of the SerializeObject component. The component displays the data as a string.
