Show ACL execution plan

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 1분

    • Administrators can view how ACLs relate to each other by viewing an execution plan for any ACL in the instance.

    시작하기 전에

    Role required: security_admin

    프로시저

    1. Elevate to a privileged role.
    2. Navigate to System Security > Access Control (ACL).

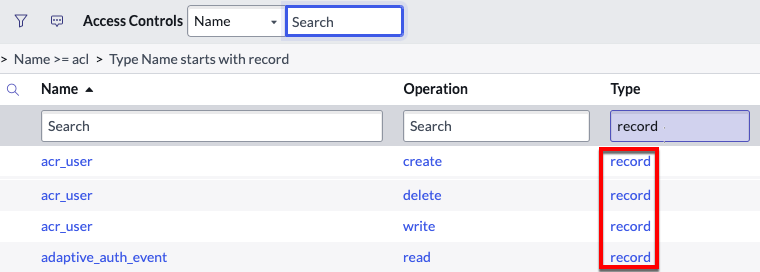

    3. Open an ACL with the type record.
      ACL type equals "record."
    4. Click Show ACL Execution Plan in the Related Links section.

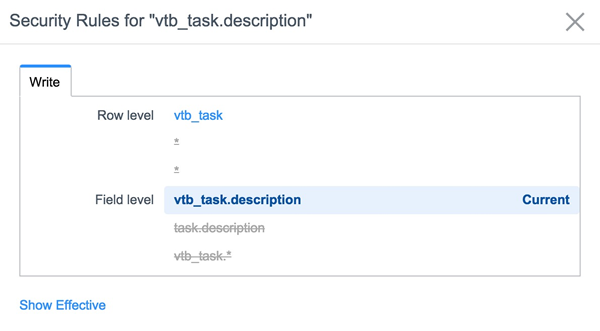

      The security rules window appears for the ACL. The example displays the execution plan for "vtb_task".

      An ACL execution plan
      표 1. ACL execution plan window
      UI item Description
      Title The name of the ACL.
      Tab name If the ACL is create, read, write, or delete.
      Row level Row-level ACLs that run on this table.
      Field level Field-level ACLs that run only on this field (or column in the table).
    5. Click Show all to show all related ACLs, including those ACLs that are overridden and generic ACLs that apply to all records.
      Overridden ACLs have a line through the name, and generic ACLs have the wildcard character asterisk (*) for the name.
    6. Show only the immediate ACLs related to the one you are viewing and hide the ACLs on tables from which the ACL table is extended and the generic wildcard (*) ACLs by clicking Show Effective.
