Get Log Data Flow

If Security Incident Response, Threat Intelligence, and Palo Alto Networks - Firewall are activated, the Security Operations Palo Alto Networks - Get Log Data flow automatically executes when the Source IP for observables in a security incident is changed.

시작하기 전에

Role required: sn_si.analyst

이 태스크 정보

During flow execution, firewall configuration information is retrieved from the database and the API Key is retrieved from the firewall. The Get Log action queues up a search query on the firewall. When the query runs, it returns a Job ID that is used to retrieve threat logs data from the firewall. It attaches the log data as an XML file to the security incident.

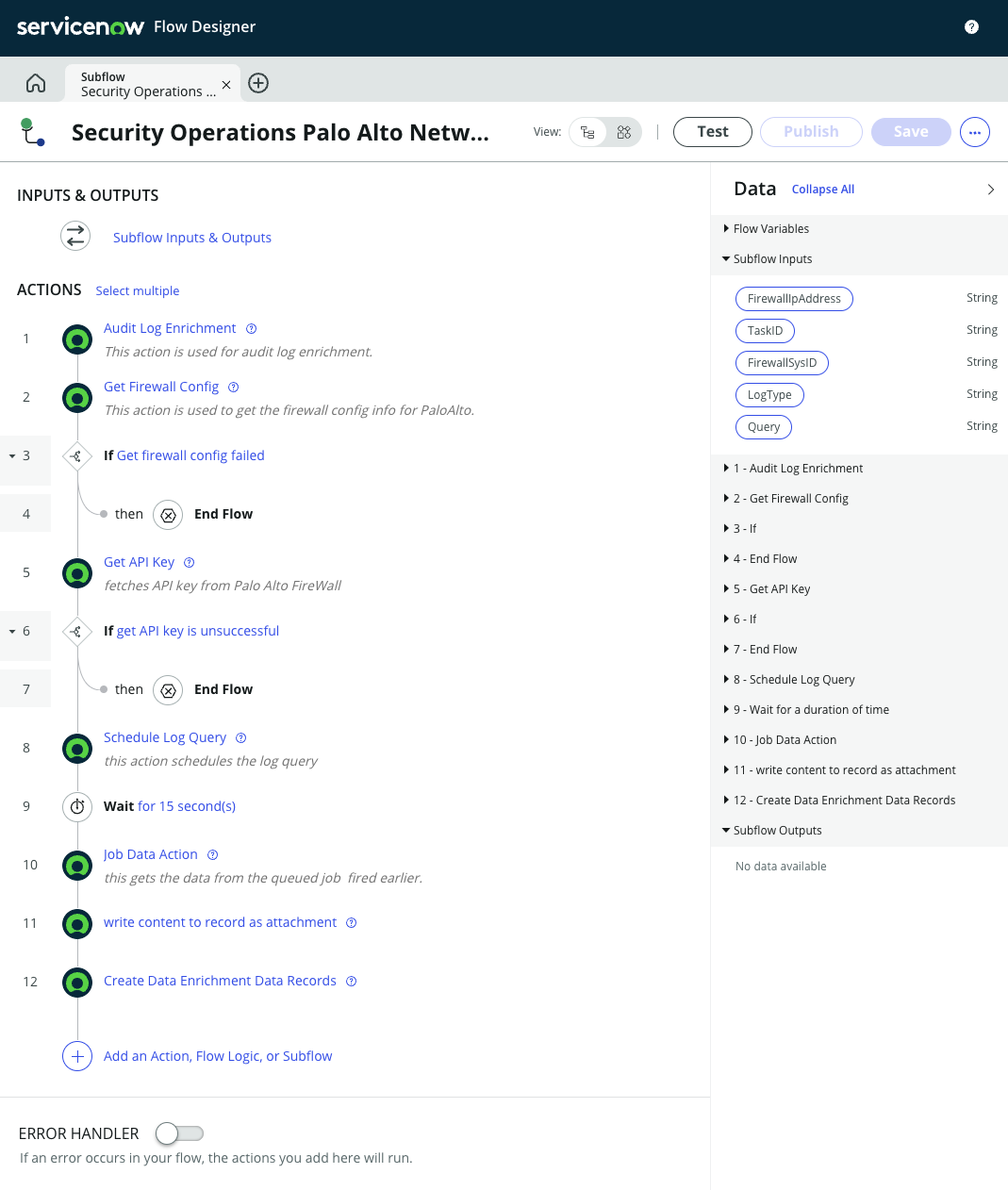

그림 1. Security Operations Palo Alto Networks - Get Log Data flow

프로시저

1. Navigate to a security incident that contains observables.
2. Click the Security Incident Observables tab.
3. In Source IP, add or modify the IP address.
4. Click Update.
   The Security Operations Palo Alto Networks - Get Log Data flow executes and enriched threat log data is attached to the security incident. The information is also parsed and displayed in the Firewall Logs section under the Enrichment Data tab.

Palo Alto Firewall: Get API Key Action

This action retrieves the API key from the firewall.

Input variables

Input variables determine the initial behavior of the action. All input variable entries listed are mandatory.

표 1. Input variables

Variable	Description
Username [string]	The user name of the firewall administrator.
Password [string]	The firewall administrator password.
FirewallIpAddress [string]	The IP address of the firewall.

Output variables

The output variables contain data that can be used in subsequent actions. The output consists of data from the firewall configuration, as well as dynamically generated data.

표 2. Output variables

Variable	Description
APIKey [string]	The firewall API key.

Palo Alto Firewall: Get Firewall Config Action

The Palo Alto Firewall: Get Firewall Config flow action gets all the related firewall configuration information from the database, and makes it available for use by the subsequent action.

Input variables

Input variables determine the initial behavior of the action.

표 3. Input variables

Variable	Description
firewallSysid [string]	The system id of the firewall. This input variable is mandatory.
typeOfValueToBeBlocked [string]	The type of value to be blocked on the firewall: IP, URL, or Domain.
firewallIPAddress [string]	The IP address of the firewall.

Output variables

The output variables contain data that can be used in subsequent actions. The output consists of data from the firewall configuration, as well as dynamically generated data.

표 4. Output variables

Variable	Description
ipEDLName [string]	The External Dynamic List name for IP addresses.
urlEDLName [string]	The External Dynamic List name for URLs.
domainEDLName [string]	The External Dynamic List name for domains.
firewallVersionSysId [string]	The system id for the firewall version.
refreshEDLCommand [string]	The command to be used to refresh the EDL from the source.
ShowEDLDetailsCommand [string]	The command to be used to get the EDL details.
status [Boolean]	True indicates success. False indicates failure.
error [string]	The error, if any, that occurred in the action.
endpoint [Encrypted]	The encrypted endpoint from the database.

Palo Alto Firewall- Get Log Action

The Palo Alto Firewall: Get Log flow action schedules a query on the firewall to retrieve logs and returns a JobID used to retrieve the log data.

Input variables

Input variables determine the initial behavior of the action.

표 5. Input variables

Variable	Description
FirewallIpAddress [string]	The IP address of the firewall. This input variable is mandatory.
FirewallApiKey [string]	The API access key of the firewall. This input variable is mandatory.
FirewallLogType [string]	The type of log data to be retrieved (set to threat). This input variable is mandatory.
FirewallLogFilterQuery [string]	The query to be executed to search for logs on the firewall. This input variable is mandatory.
LogDirection [string]	Specifies whether logs are shown oldest first (backward) or newest first (forward) order.
LogNumber [string]	Specifies the number of logs to retrieve.
LogSkipCount [string]	Specifies the number of logs to skip when doing a log retrieval.

Output variables

The output variables contain data that can be used in subsequent actions. The output consists of data from the firewall configuration, as well as dynamically generated data.

표 6. Output variables

Variable	Description
QueuedJobID [string]	The Job ID returned from the firewall.
JobScheduled [string]	Specifies (success or failure) whether the job was sent to the firewall.
error [string]	Any errors returned.

Palo Alto Firewall- Job Data Action

After the Palo Alto Firewall: Get Log action queues the search query to the firewall and the job runs, the Palo Alto Firewall: Job Data Action action retrieves the threat log data from the firewall.

Input variables

Input variables determine the initial behavior of the action. All input fields are mandatory.

표 7. Input variables

Variable	Description
FirewallIpAddress [string]	The IP address of the firewall.
FirewallApiKey [string]	The API access key of the firewall.
JobID [string]	The ID of the queued job.

Output variables

The output variables contain data that can be used in subsequent actions. The output consists of data from the firewall configuration, as well as dynamically generated data.

표 8. Output variables

Variable	Description
commandStatus [string]	Specifies (success or failure) whether data was retrieved from the firewall.
JobData [string]	The data collected from the firewall.
error [string]	Any errors returned.
