Computer [cmdb_ci_computer] class

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 14분

    • Attributes, identification rule, and other important schema structures for the CMDB Computer [cmdb_ci_computer] class.

    For descriptions of common CMDB tables in a base system, see CMDB tables descriptions.

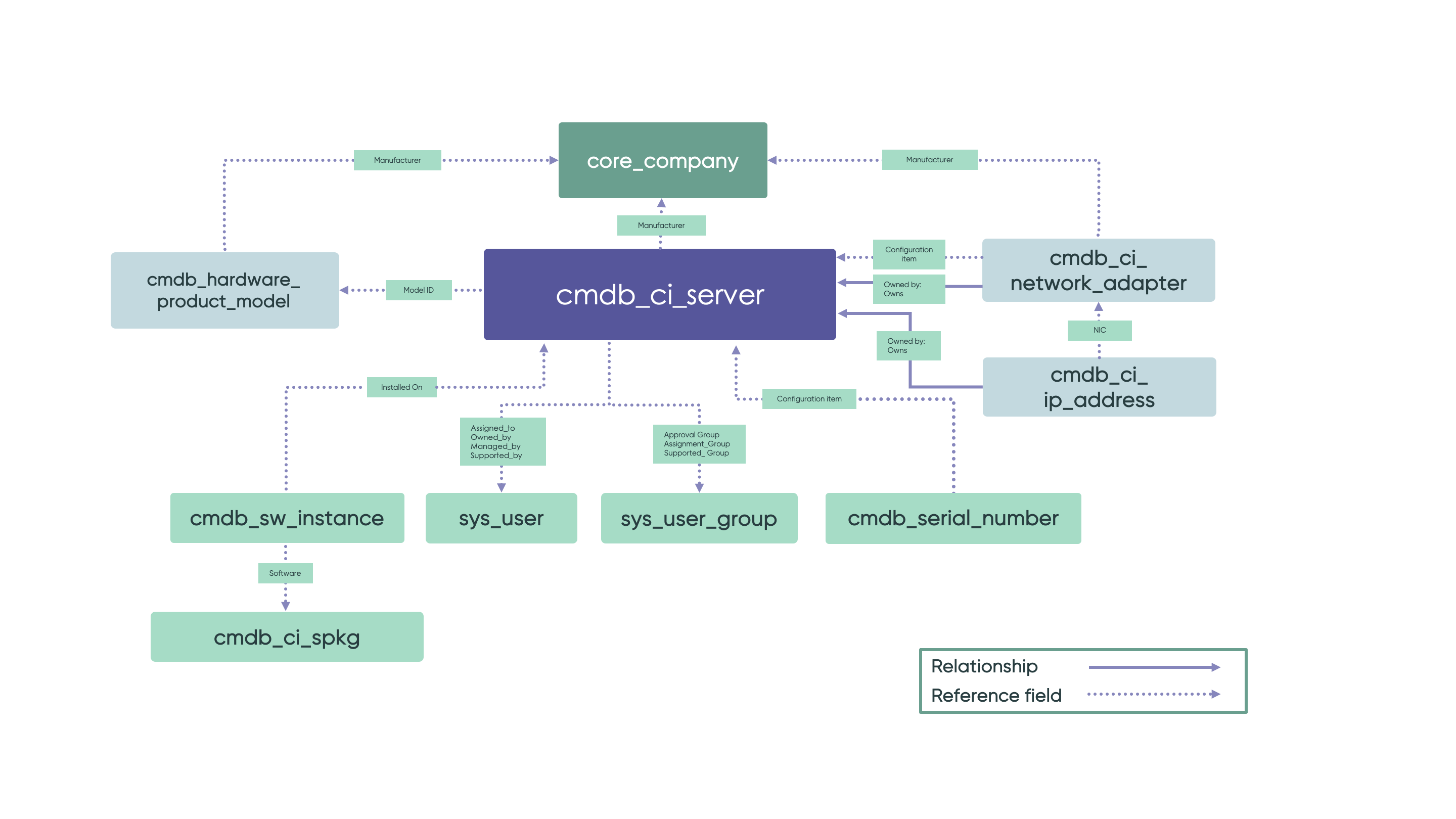

    그림 1. Hardware, Computer, Server Schema
    Relationships and references between the Hardware, Computer, and Server classes.
    주:
    cmdb_sw_instance noted in the diagram, is a reference to the cmdb_software_instance class, and Supported_Group is a reference to Support_Group.

    Attributes

    The Computer class adds the following unique attributes:
    Attribute Description
    CD_ROM​ Denotes whether a CD ROM exists.
    CD Speed​ Speed of CD_ROM​.
    Chassis type​ Type of computer chassis​.
    CPU core count​ Number of cores per CPU​.
    CPU core thread​ Number of threads per core​.
    CPU count​ Number of CPUs​.
    CPU name​ Name of CPU​.
    CPU speed (MHz)​ Speed of CPU​.
    CPU type​ CPU type​.
    Disk space (GB)​ Amount of disk space (in GB).
    Floppy​ Type of floppy drive.​
    Form factor​ Form factor of the computer​.
    Object ID​ Object ID of the computer (such as the virtual machine ID associated with the computer)​.
    Operating System​ Name of the operating system​.
    OS Address Width (bits)​ Operating system bit (such as 32, 64)​.
    OS Domain​ NA​
    OS Service Pack​ Service pack installed on the operating system​.
    OS Version​ Version of the operating system.
    RAM (MB)​ Amount of RAM on the computer​.
    IsVirtual​ True/False denoting whether the device is running on a virtual machine instance.​
    Reference attribute Reference to
    CPU manufacturer​ Company [core_company] table​

    Schema description

    The CMDB schema model does not separate between servers and computers that are physical and servers and computer that are virtual. Instead, ​the Computer and the Server classes have a field named IsVirtual. If a computer or server is a virtual instance, set this IsVirtual attribute to true.

    As described in the Virtual Machine schema section, to fully model a virtual machine, set the IsVirtual attribute in the Computer or Server CI to true. Create a Virtual Machine Instance [cmdb_ci_vm_instance] record using the BIOS UUID attribute as the key identifier. Then create a Hosted_On relationship between the Virtual Machine Instance record and the Computer or Server instance and set IsVirtual to true.

    Key relationship structures

    Use the following key relationships as important guidelines when creating Hardware, Computer, or Server CIs:

    • Serial number: During CI identification, Identification and Reconciliation Engine (IRE) processes search for a serial number in two locations. One is the CI serial number attribute, and the second one is the Serial Number [cmdb_serial_number] table, with reference back to the Hardware [cmdb_ci_hardware] table.

      • Store any serial number of any type other than System, only in the Serial Number table (and not in the server CI attribute).​
      • If the system serial number is available, store it in both the Serial Number attribute of the CI and in the Serial Number table.

      The Serial Number table is a many to one relationship linking back to the server CI. This table has a type field for specifying the type of the serial number (system, uuid, chassis, bios, or baseboard) and storing the actual value itself. Use the following Windows standards for serial number types in the Serial Number [cmdb_serial_number] table:

      • system: Product identification such as a serial number for software, a die number on a hardware chip, or a project number (for noncommercial products).
      • uuid: Universally unique identifier (UUID) for the product. A UUID is a 128-bit identifier that is guaranteed to be different from other generated UUIDs.
      • chassis: Manufacturer-allocated number that is used to identify a physical element. Value is the Serial Number member of the System Enclosure or Chassis structure in the SMBIOS information. This type represents the properties associated with a physical system enclosure.
      • bios: The assigned serial number of the BIOS. This type represents the attributes of the computer system basic input/output services (BIOS) that are installed on the computer.
      • baseboard: Manufacturer-allocated number that is used to identify the physical element. This property is inherited from CIM_PhysicalElement, and is sometimes referred to as the 'Motherboard Serial Number'.

    • Network adapter:

      • Use the Network Adapter [cmdb_ci_network_adapter] class to store network adapters.
      • Set the Name attribute in the Network Adapter class to be the name of the Network Adapter device (such as eth0, eth1).

      • Set the MAC Address attribute to be the MAC address value. Format the string with colon separators between octets and lower case hexadecimal characters with padded zeros.

        For example: 'f8:f2:1e:00:d4:66'

      • In the CI Relationship [cmdb_rel_ci] table, create an Owned By::Owns relationship to the associated Hardware CI. Specify a reference from the Network Adapter [cmdb_ci_network_adapter] table using the CI with a reference to the associated Hardware CI.

    • IP address:

      • Use the IP Address [cmdb_ci_ip_address] class to store IP addresses.
      • Store an IP address value in the IP Address attribute, and in the Name attribute (to avoid empty Name attributes).
      • Store an IPv4 IP address value using the format 'NNN.NNN.NNN.NNN', with decimal-based octets and period separators. Non-conforming values should be considered invalid and cleansed to null values.
      • Store an IPv6 IP address value using lower case hexadecimal with colon separators. Non-confirming values should be considered invalid and cleansed to null values.
      • Set the Netmask attribute to the IP address.
      • In the CI Relationship [cmdb_rel_ci] table, create an Owned By::Owns relationship to the associated Hardware CI.
      • Specify for the IP address a reference to the Network Adapter [cmdb_ci_network_adapter] table using the Configuration Item with a reference to the associated Hardware CI.
      • To ensure that base system identification rules work properly, also store the IP address in the associated Network Adapter class.

    • Network adapter and IP address:

      • Store the MAC address of the network adapter installed on a server, in the Network Adapter [cmdb_ci_network_adapter] class.
      • Store the IP address in the IP Address [cmdb_ci_ip_address] class.
      • Do not store the MAC address or the IP address in the Server [cmdb_ci_server] class.​

    Key reference structures

    Use the following key references as important guidelines when creating Hardware, Computer, or Server CIs:
    • Software and processes running on a server: The Software [cmdb_ci_spkg] class contains the generic software package that is related to the server CI. The cmdb_software_instance table instantiates each instance of the software package with:
      • One to one reference back to the Server [cmdb_ci_server] class
      • Many to one reference back to the Software class
      These references are stored in the Installed on and the Product Name reference attributes respectively.

      If either the Software Asset Management Foundation [com.snc.sams] or the Software Asset Management [com.snc.software_asset_management] plugin is installed, then store software details in the Software Installation [cmdb_sam_sw_install] table instead of the cmdb_software_instance table.

    • The Manufacturer and Model ID are reference attributes to the Company [core_company] and Product Model [cmdb_model] tables respectively.
    • The Owned By, Assigned To, Managed By, and Supported By are reference attributes to the User [sys_user] table. The Change Group and Support Group are reference attributes to the Group [sys_user_group] table.

    Identification rule

    The base system contains pre-defined identification rules for the Hardware, Computer, and Server classes, which are identical. That identification rule has the following key identifier entries, listed in priority order:
    1. Identifier entry which uses lookup-based identification specified with Serial Number [cmdb_serial_number] as the lookup table. The Serial Number table is a many to one reference from Serial Number back to the server CI​.
    2. Identifier entry specified with the Serial Number attribute in the CI.
    3. Identifier entry for the Name attribute. If Serial Number is not available, then the Name (which is the hostname) attribute is used. If both the Serial Number and the Name attributes are provided, then Identification and Reconciliation Engine (IRE) looks first for the Serial Number. Then, if a Serial Number is not found, IRE falls back to using Name.
    4. Identifier entry specified for the MAC Address/IP Address attributes in the Network Adapter table. However, do not rely only on the MAC Address/IP Address.

      If both Serial Number and Name are not available, and only MAC Address/IP Address are available, use MAC Address as the name of the CI. Using the MAC Address as the name of the CI ensures that you don't create an empty CI.

    For more information, see CMDB Identification and Reconciliation (IRE).
