Architecture Compliance Overview module

The Architecture Compliance Overview module displays various architecture compliance reports. The Overview module is a type of homepage.

Only compliance users with certain roles can access the Overview module. The different levels of access are:

표 1. Access levels per role

Role	Access
certification	View (view overview page and refresh reports)
certification_admin	View (view overview page and refresh reports) Customize (refresh, add, delete, and rearrange reports) View, customize
admin	View (view overview page and refresh reports) Customize (refresh, add, delete, and rearrange reports) Edit (can edit reports)

Using the Architecture Compliance Overview module

To use the Architecture Compliance Overview module, navigate to Compliance > Architecture Compliance > Overview and click elements within the gauges to obtain more information.

The available reports are:

표 2. Architecture Compliance Overview module gauges

Report	Description	Table
30/60/90 Day Task Aging	All outstanding follow-on tasks grouped by age in 30-day increments	Certification Task
Architecture Compliance Discrepancies	All audited attribute discrepancies	Audit Results
Hierarchical Task Roll Up	All follow-on tasks grouped by Assigned to user	Follow On Task
Outstanding Architecture Compliance Tasks	All follow-on tasks in the Pending, Open, or Work in Progress state	Follow On Task
Upcoming Architecture Compliance Audits	All scheduled audits	Audit

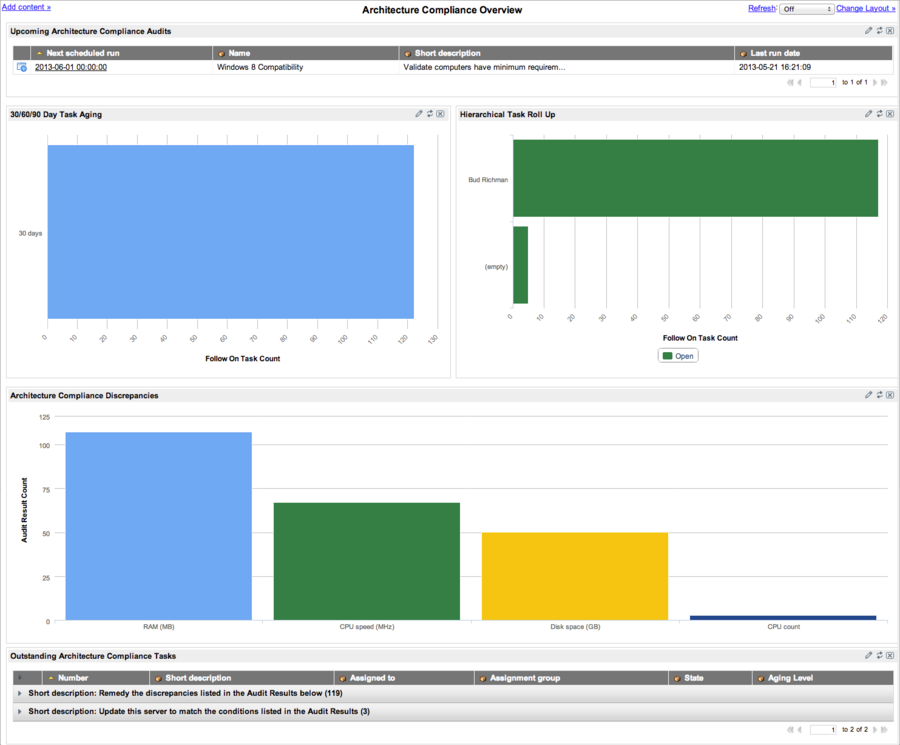

그림 1. Architecture Compliance module
