Using MID Server IP range auto-assignment

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 6분

    • Discovery Quick Start can automatically assign ranges of IP addresses, called subnets, to qualified MID Servers. This subnet auto-assignment requires SNMP credentials for read-only access to routers Discovery uses. The Automation Status Set form shows summary details of subnet Discoveries and the IP range assignments for associated MID Servers.

    Setup indicator for configuration phaseEnsure that the MID Server can connect to elements inside and outside your networkDownload and install the MID Server on a Linux or Windows hostConfigure your MID ServerConfigure MID Server securityEnsure that the MID Server can connect to elements inside and outside your networkDownload and install the MID Server on a Linux or Windows hostConfigure your MID ServerConfigure MID Server security
    To be automatically assigned to a subnet, a MID Server must be:
    • In a running (Up) state.
    • Successfully validated.
    • Able to access one or more subnets in your network.
    The subnet assignments that the instance makes for your MID Servers are stored in the Automation Status Set [automation_status_set] table. For details about MID Server auto-assignment, see Discovery Quick Start.
    중요사항:
    You must auto-assign at least one MID Server to create a schedule automatically.

    Required SNMP OIDs for MID Server IP range auto-assignment

    Customers who use network service providers must request specific SNMP access to use MID Server IP range auto-assignment.

    IP range auto-assignment requires SNMP credentials for read-only access to all routers that Discovery uses to identify subnets. In addition, your service provider must grant the following SNMPWALK access:

    • iso.org.dod.internet.mgmt.mib-2.ip.ipRouteTable (1.3.6.1.2.1.4.21)
      • ipRouteDest (1.3.6.1.2.1.4.21.1.1)
      • ipRouteNextHop (1.3.6.1.2.1.4.21.1.7)
      • ipRouteType (1.3.6.1.2.1.4.21.1.8)
      • ipRouteMask (1.3.6.1.2.1.4.21.1.11)
    • iso.org.dod.internet.mgmt.mib-2.ip.ipForward.ipCidrRouteTable (1.3.6.1.2.1.4.24.4)
      • ipCidrRouteDest (1.3.6.1.2.1.4.24.4.1.1)
      • ipCidrRouteMask (1.3.6.1.2.1.4.24.4.1.2)
      • ipCidrRouteNextHop (1.3.6.1.2.1.4.24.4.1.4)
      • ipCidrRouteType (1.3.6.1.2.1.4.24.4.1.6)

    View automation status sets and IP range assignments

    The Automation Status Set form shows summary details of a subnet Discovery and the subsequent IP range assignments for MID Servers selected for automatic subnet assignment.

    시작하기 전에

    Role required: admin

    프로시저

    1. Navigate to All > MID Server > Automation Status Sets.
    2. Select a status record for a subnet Discovery you want to view.
      The form contains read-only status information about the selected Discovery, the subnets found, and the range assignment process for the MID Servers you selected for auto assignment.
      중요사항:
      IP ranges assigned manually prior to using auto-assignment in the Discovery Quick Start are affected as follows:
      • Individual IP ranges are retained and appended to the ranges assigned automatically by the system for the designated MID Server.
      • If the MID Server was configured with the ALL ranges selection, the auto-assignment feature overwrites that designation with the ranges it finds.

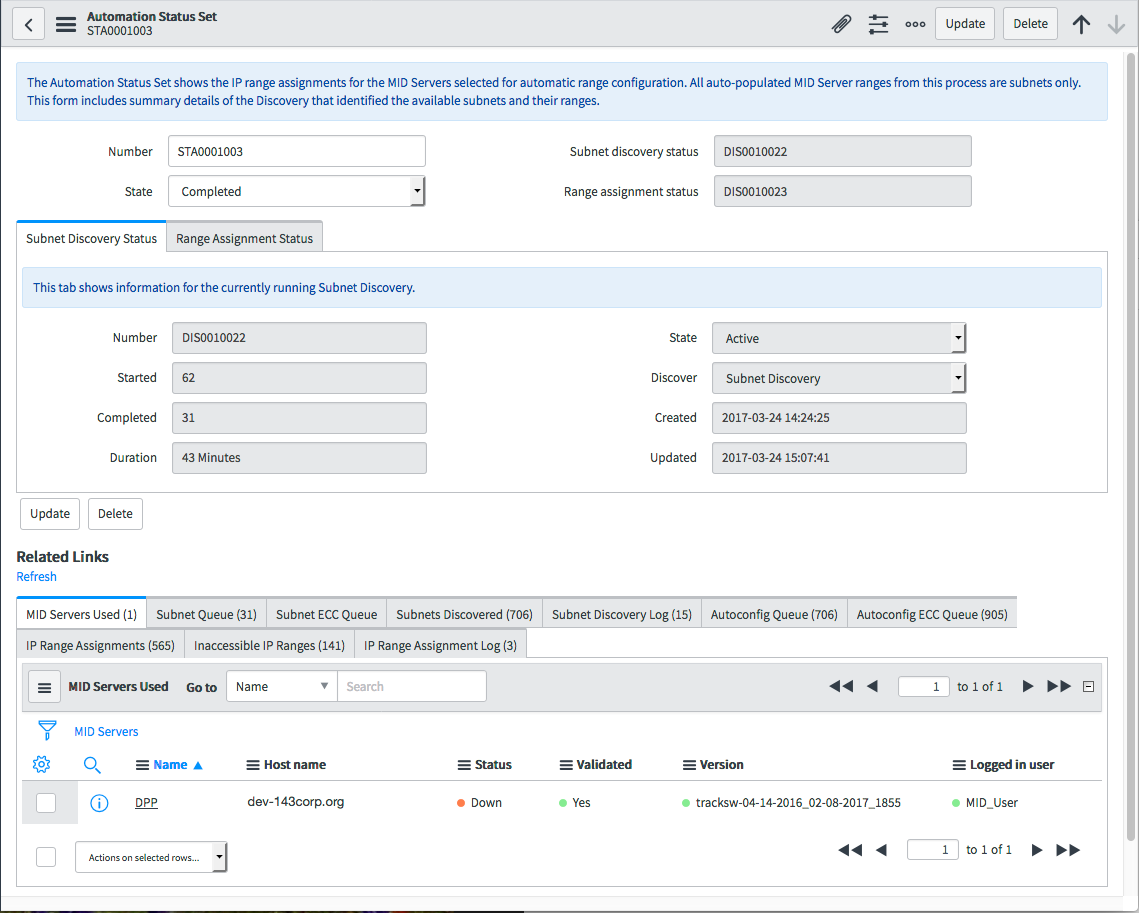

      그림 1. Automation Status Set form
      Automation Status Set form

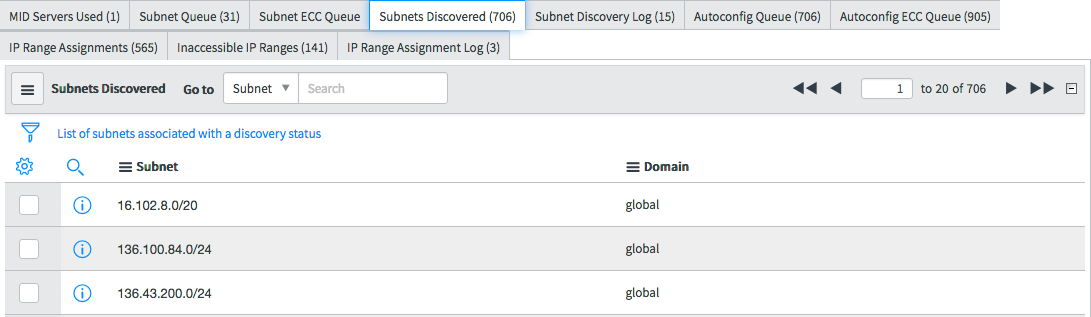

    3. Select the Subnets Discovered related list to view the list of subnets available for assignment.
      Subnets Discovered

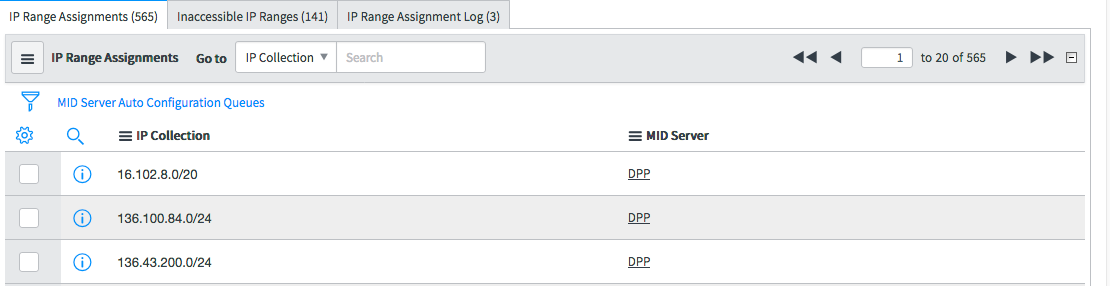

    4. Select the IP Range Assignments related list to view the IP ranges that were assigned to a MID Server.
      경고:
      IP ranges identified by Discovery are stored in the IP collection [ip_address_collection] table, which is only used for MID Server IP range auto-assignment in the Jakarta release. This table is intended for future development and should not be used in any customizations, including column additions, business rules, or scripting actions.
      IP range assignments
