Validate the MID Server

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 5분

    • You must manually validate the MID Server after it is installed to enable it to execute automation tasks. You can invalidate a MID Server you suspect has been compromised to prevent it from accessing automation credentials in the instance or executing outbound ECC probes.

    시작하기 전에

    Role required: agent_admin, admin
    Set up indicator for installation phaseEnsure that the MID Server can connect to elements inside and outside your networkDownload and install the MID Server on a Linux or Windows hostConfigure your MID ServerConfigure MID Server securityEnsure that the MID Server can connect to elements inside and outside your networkDownload and install the MID Server on a Linux or Windows hostConfigure your MID ServerConfigure MID Server security

    Make sure that the MID Server version is compatible with the instance.

    이 태스크 정보

    Validation restricts access to automation credentials to trusted MID servers only.
    When you validate a MID Server, you specify the capabilities it can use, the applications that use it, and the IP ranges it is allowed to explore. You will be prompted to set the initial selection criteria when you validate MID Servers that do not already have capabilities, applications, or IP ranges already configured. You do not have to set the initial selection criteria to actually validate the MID Server. See MID Server selection for more information on capabilities, applications, and IP ranges.
    주:
    When you upgrade, MID Servers that are already configured in your instance are automatically validated. This prevents the interruption of automation tasks that MID Servers might be performing. See MID Server upgrades for more information.

    프로시저

    1. Navigate to All > MID Server > Servers.
    2. Open the new MID Server you created from the list of MID Servers.
    3. Under Related Links click Validate.
      The Set Initial Selection Criteria window appears if there are no records in the Supported Applications, IP Ranges, or Capabilities related lists.
    4. On the Set Initial Selection Criteria window, use the switches to enable or disable selection criteria for this MID Server:
      • Allow ALL capabilities: Allow all capabilities for Orchestration and Event Management to use this MID Server.
        주:
        Service Mapping and Event Management alert aggregation and RCA, which used capabilities in previous releases, rely on the application for MID Server selection.
      • Allow ALL applications: Allow all applications that use MID Servers to use this MID Server.
      • Allow ALL IP ranges: Make all IP ranges valid for this MID Server, meaning that it can target any IP address.

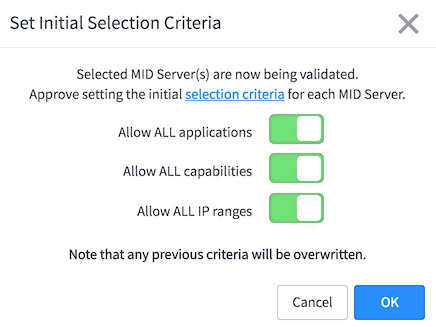

      그림 1. Setting initial selection criteria
      Set initial selection criteria

      If you click Cancel, the validation continues but none of the capabilities, applications, or IP ranges are added.

    5. Click OK.

      The Validated field on the dashboard is set to Validating, and then set to Yes after the validation completes.

    6. To invalidate a MID Server, open the record for the MID Server you suspect has a security issue.
    7. Under Related Links, click Invalidate.
      Invalidating a MID Server forces it to clear its memory and restart. The MID Server generates a new keypair on restart.

    다음에 수행할 작업

    Test network connectivity to ensure that the MID Server can upgrade automatically.
