Create a UI macro for a formatter

  • Release version: Australia
  • Updated March 12, 2026
  • 1 minute to read

    • Create a UI macro to define the content that the formatter displays.

    Before you begin

    This functionality requires knowledge of Jelly script.

    Role required: ui_macro_admin

    Procedure

    1. Navigate to All > System UI > UI Macros.
    2. Click New.
    3. Complete the form.
    4. In the XML script field, enter Jelly script to define the content to be displayed by the formatter.
      Note:
      The UI Macro for the formatter represents a row in the UI. It must begin and end with <TR></TR> tags.

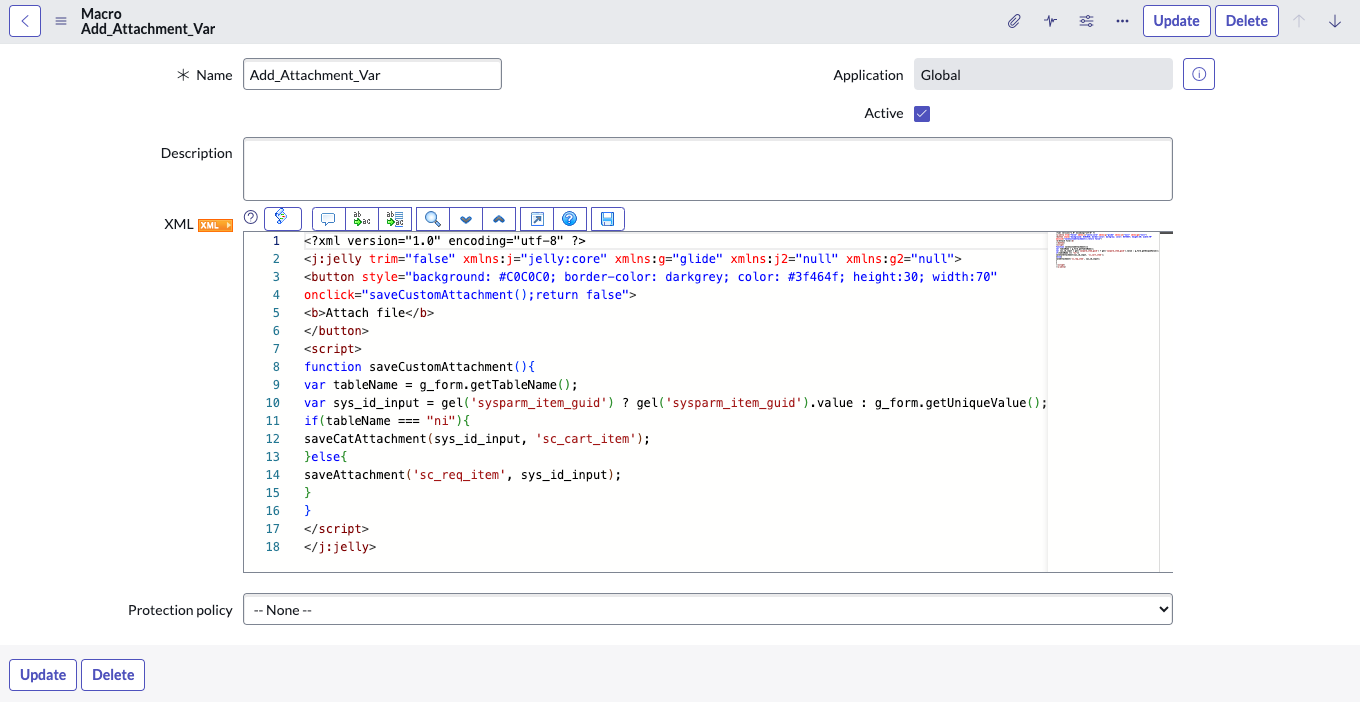

      Formatter UI macro

      This Jelly script is reproduced below in plain text that you can copy into the Macro form as a basis for your macro script.

      <?xml version="1.0" encoding="utf-8" ?>
<j:jelly trim="false" xmlns:j="jelly:core" xmlns:g="glide" xmlns:j2="null" xmlns:g2="null">
<button style="background: #C0C0C0; border-color: darkgrey; color: #3f464f; height:30; width:70"
onclick="saveCustomAttachment();return false">
<b>Attach file</b>
</button>
<script>
function saveCustomAttachment(){
var tableName = g_form.getTableName();
var sys_id_input = gel('sysparm_item_guid') ? gel('sysparm_item_guid').value : g_form.getUniqueValue();
if(tableName === "ni"){
saveCatAttachment(sys_id_input, 'sc_cart_item');
}else{
saveAttachment('sc_req_item', sys_id_input);
}
}
</script>
</j:jelly>
    5. Click Submit.
