ACL configuration watcher

Release version: Australia

Updated March 12, 2026

1 minute to read

The ACL configuration watcher lets you know what related ACLs exist on a table when you insert, update, or delete an ACL on the same table.

The ACL configuration watcher is an interceptor window that displays every time you make important changes on the Access Control [sys_security_acl] table. It displays a security rules summary window where you can view ACLs related to the one you are modifying. You cannot modify any ACLs from the security rules window. To make any modifications, close the watcher window and go to those ACLs.

The ACL configuration watcher does not appear in the following situations:

If you save or update an ACL record without actually making any changes.
If you make minor updates (not an insert or delete), such as updating scripts, conditions, and the admin-overrides option.
If the ACL record is not active.

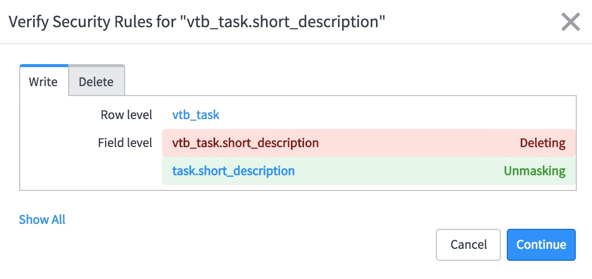

ACL Security Rules window

The configuration watcher shows the ACL execution plan. The execution plan is displayed in the security rules pop-up window. You can view this kind of information:

Table 1. ACL configuration window elements
Item	Description
red highlight	An ACL that is deleted or deactivated.
blue highlight	An ACL that is modified.
green highlight	An ACL that is added or becomes active.
Masked	An ACL that was effective until you made a change.
Unmasked	An ACL that was just made effective when you made a change.
