# Configure a CIMD client

# Configure a CIMD client {#ariaid-title1}

Release version: Brazil
Updated September 10, 2026
![](https://www.servicenow.com/docs/portal-asset/ico-clock) 4 minutes to read
Register a Client ID Metadata Document (CIMD) client so that the instance accepts inbound OAuth requests from a client identified by a metadata document URL. You can fetch the client's configuration from its metadata URL or
enter the details manually.

## Before you begin

Role required: <kbd class="ph userinput">oauth_admin</kbd>

To fetch the configuration automatically, you need the client's CIMD metadata document
URL.

## About this task

You can register a CIMD client in two ways:

Fetch the configuration from the metadata URL
:   The instance retrieves the client's metadata document and populates the client fields for you. Use this method when the client publishes a CIMD metadata document.

Enter the configuration details manually
:   Provide the client fields yourself. Use this method when you need to enter or adjust the details by hand.

Each CIMD client also has a metadata sync mode that controls how the instance keeps the
client's configuration current:

Live (Dynamic)
:   For fully trusted clients. The ServiceNow AI Platform refreshes the client configuration dynamically from the Client ID metadata. The metadata is cached and re-fetched when the cache expires (default 1 hour), not on every use.

Static (Manual)
:   For pre-approved clients. The ServiceNow AI Platform uses the initial configuration captured during onboarding. No automatic updates are made afterward.

## Procedure

1. Navigate to AllSystem OAuthCIMD Clients.
2. Select New.
3. On the What kind of OAuth application? page, select Configure a Client ID Metadata Document (CIMD) client.
   The Add a CIMD OAuth Client dialog opens.

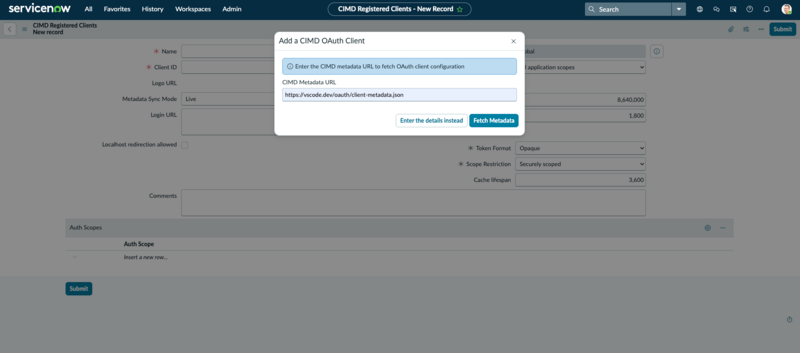

   Figure 1. Add a CIMD OAuth Client
4. Provide the client configuration using one of the following methods:
   * Fetch from the metadata URL (a common approach): In CIMD Metadata URL, enter the client's metadata document URL --- for example, `https://vscode.dev/oauth/client-metadata.json` and select Fetch Metadata. The instance retrieves the document and populates the Client Name, Redirect URIs, Response Types, Client URI, and Logo URL fields.
   * Enter the details manually: Select Enter the details instead, and enter the client's Name, Client ID (the CIMD metadata document URL), and the remaining fields.
5. Select the Metadata Sync Mode:
   * Live: The instance fetches the latest configuration from the Client ID metadata each time the client is used. You don't maintain the Client Name, Redirect URIs, Response Types, Client URI, or Logo URI values manually.
   * Static: The instance stores the configuration captured during onboarding and makes no automatic updates. Provide the Client Name, Redirect URIs, Response Types, Client URI, or Logo URI values, because the instance doesn't refresh them automatically.

   {#configure-cimd-client__choices_i1y_1nr_rjc}
   Note:
   The registration dialog uses spec-style labels for some of these fields --- Client ID (CIMD URL), Client Name, Redirect URIs, and Logo URI --- while the saved record uses the labels in this table (Client ID, Name, Redirect URL, and Logo URL). These are the same fields.

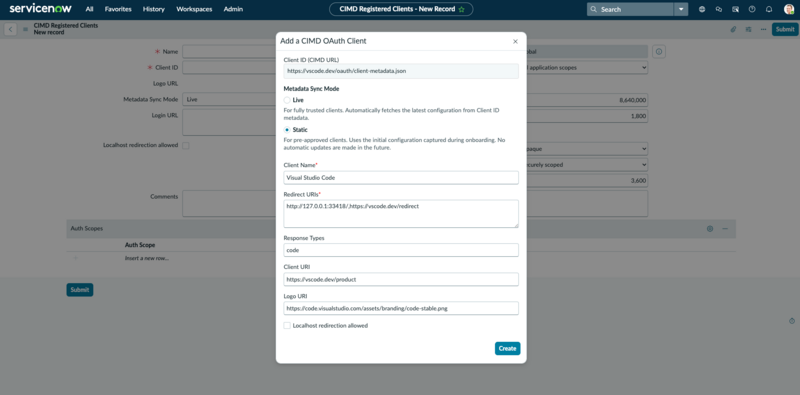

   Figure 2. Add a CIMD OAuth Client
6. **Optional:** If the client uses localhost redirect URIs, select Localhost redirection allowed.
7. Review and complete the remaining fields, using the following descriptions.
   Note:
   * The Mode column in the following table indicates whether a field applies to both metadata sync modes or only to a specific mode.
   * Fields marked Static are entered manually; in Live mode, the instance fetches those values from the CIMD endpoint during the authorization code flow.
   {#configure-cimd-client__configure-cimd-steps__entry__4}

   | Field | Required | Mode | Notes |
   |-|-|-|-|
   | Name | Yes | Both | Display name for the client. |
   | Client ID | Yes | Both | The HTTPS CIMD metadata URL, set automatically from the URL entered at registration. This URL is the client identifier used in the OAuth flow. |
   | Client URI | No | Static | Client home page. |
   | Redirect URL | Yes | Static | Where the authorization code is returned. In Live mode, it's fetched from the CIMD endpoint during the authorization code flow. Multiple redirect URLs are supported. |
   | Logo URL | No | Both | Logo shown on the consent screen. |
   | Metadata Sync Mode | No | Both | Live (default) fetches from the CIMD endpoint. Static pins the manually entered values. |
   | Localhost redirection allowed | No | Both | Turn on to allow localhost redirection when the redirect URL is localhost or a loopback address. |
   | Active | --- | Both | On by default. |
   | Refresh Token Lifespan | Yes | Both | Seconds; default <kbd class="ph userinput">8,640,000</kbd>. |
   | Access Token Lifespan | Yes | Both | Seconds; default <kbd class="ph userinput">1,800</kbd>. |
   | Response Types | No | Static | Supports code only; authorization code with PKCE only. |
   | Public Client | --- | Both | Always on for CIMD clients (PKCE); read-only. |
   | Token Format | Yes | Both | * Opaque (default) * JWT |
   | Scope Restriction | Yes | Both | * Securely scoped (default) * Broadly scoped Note: For ServiceNow MCP server use cases, use Broadly Scoped. |
   | Cache lifespan | No | Both | Metadata cache in seconds; default <kbd class="ph userinput">3,600</kbd>. |
   | Auth Scopes (related list) | --- | Both | Scopes granted to the client. To know more about Auth Scopes, see [REST API Auth Scope](https://www.servicenow.com/docs/pPbeOyOCQb9sTRIRSzJsjg "Use the REST API Auth Scope to provide access to a specific REST API"). |
   | Generic fields ||||
   | Login URL | No | Both | Optional login URL. |
   | Application | --- | Both | Global (read-only). |
   | Accessible from | --- | Both | All application scopes (default). |
   | Comments | No | Both | Free text. |
   [ ]

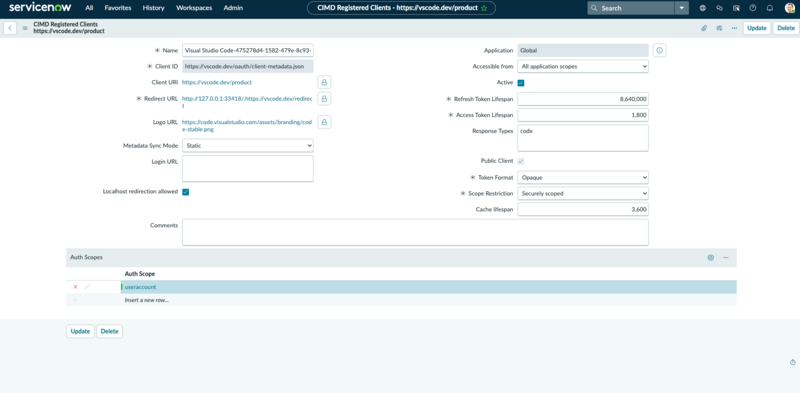

   Figure 3. CIMD Registration
8. Register the client:
   * If you fetched the metadata in the dialog, select Create.
   * If you entered the details on the form, select Submit or Update to complete the registration.
{#configure-cimd-client__configure-cimd-steps}

## Result

The CIMD client is registered and appears in the CIMD Registered Clients list. The instance accepts inbound OAuth requests from the client, validating the request against the client's metadata each time the
client initiates a flow.
