Configure a template for OAuth JWT Bearer grant type

Release version: Australia

Updated March 12, 2026

3 minutes to read

Summarize

Summarized using AI

Summary of Configure a template for OAuth JWT Bearer grant type

This document outlines the configuration for setting up Credential and Connection records using the OAuth JWT Bearer grant type to authenticate requests to Docusign. It provides a template that includes the necessary fields and post-processing scripts for efficient integration.

Show full answer Show less

Key Features

Default Data Template: Creates Credential and Connection records along with optional records in a custom table.
Dynamic Data Schema: Defines user input fields, allowing customization for Connection and Credential aliases.
Post Processing Script: Maps user input to the sndocusignspokeaccounts table, ensuring data integrity and accuracy.

Key Outcomes

By following this configuration, ServiceNow customers can:

Establish secure connections to Docusign using OAuth JWT Bearer authentication, enhancing security and compliance.
Easily manage user inputs and customize connection settings through a user-friendly interface.
Automatically process and store user data in the appropriate tables, streamlining account management.

This example configuration template sets up Credential and Connection records using the JWT Bearer grant type to authenticate requests to Docusign.

Default data template

Each top-level item in the default data template creates an associated record. The template includes these sections:

Credential: Creates a record in the Credentials table.
Connection: Creates a record in the Connections [sys_connection] table and any associated connection records.
Additional: Optionally creates records in a custom table. The post processing script tells the system what to do with these records.

The following example creates the records required for OAuth JWT Bearer grant type authentication.

{
  "credential": {
    "oauth_entity": {
      "oauth_entity_profile": [
        {
          "grant_type": "urn:ietf:params:oauth:grant-type:jwt-bearer",
          "name": "Docusign Profile",
          "default": true,
          "oauth_entity_profile_scope": [
            "users:read.email"
          ]
        }
      ],
      "code_challenge_method": "S256",
      "type": "consumer",
      "oauth_entity_scope": [
        {
          "oauth_entity_scope": "users:read.email",
          "name": "email"
        }
      ],
      "client_id": "<provider-client-id>",
      "use_mutual_auth": false,
      "revoke_token_url": "https://<provider-domain-name>.com/oauth2/revoke",
      "default_grant_type": "urn:ietf:params:oauth:grant-type:jwt-bearer",
      "public_client": false,
      "oauth_api_script": "3e3a3a11c333210016194ffe5bba8f70",
      "name": "Docusign Spoke OAuth",
      "client_secret": "<provider-client-secret>",
      "auth_url": "https://<provider-domain-name>.com/oauth2/auth",
      "token_url": "https://<provider-domain-name>.com/oauth2/token",
      "redirect_url": "https://<instance-name>.service-now.com/oauth_redirect.do"
    },
    "jwt_provider": {
      "jwt_keystore_aliases": {
        "kid": "<provider-key-id>",
        "name": "Docusign Spoke JWT Key",
        "signing_keystore": "<signing-keystore-sys-id>",
        "signing_algorithm": "rsa_256",
        "signing_key_password": "password"
      },
      "jwt_claim_validation" : [ {
        "name" : "iss",
        "is_standard" : true,
        "data_type" : "string",
        "value":"<docusign-iss-claim>"
      }, {
        "name" : "sub",
        "is_standard" : true,
        "data_type" : "string",
        "value":"<docusign-sub-claim>"
      }, {
        "name" : "aud",
        "is_standard" : true,
        "data_type" : "string",
        "value":"<docusign-aud-claim>"
      }, {
        "name" : "scope",
        "is_standard" : false,
        "data_type" : "string",
        "value" : "signature impersonation"
      } ],
      "name": "Docusign Spoke JWT Provider",
      "jwt_api_script": "9ef6af86ff10330001d3cd6bd53bf144"
    },
    "name": "Docusign Spoke Credential",
    "table": "oauth_2_0_credentials"
  },
  "connection": {
    "use_mid": false,
    "connection_url": "https://<provider-domain-name>.com",
    "name": "Docusign Spoke Connection",
    "table": "http_connection"
  },
"additional":{
    "docusign_account_name": "<docusign-account-name>",
    "docusign_account_email": "<docusign-account-email>"
}
}

Dynamic data schema

The dynamic data schema defines what the user sees when they create a Connection & Credential alias and collects their input. Use dot-walking syntax to map user input to fields created in the default data template. For example, connection_fields maps user input to the connection_url field in the connection object created by the default data template.

{
  "connection_fields": [
    {
      "name": "connection.connection_url",
      "label": "Connection URL",
      "type": "text",
      "defaultValue": "https://demo.docusign.net",
      "hint": "Connection URL for Docusign"
    }],
"additional_fields":[
    {
      "name": "additional.docusign_account_id",
      "label": "Docusign Account Number",
      "type": "text",
      "hint": "Docusign Account Number"
    },
    {
      "name": "additional.docusign_account_name",
      "label": "Docusign Account Name",
      "type": "text",
      "hint": "Name to identify the Docusign account"
    },
    {
      "name": "additional.docusign_account_email",
      "label": "Docusign Account Email",
      "type": "text",
      "hint": "Docusign Account Email"
    }
  ],
  "credential_fields": [
    {
      "name": "credential.oauth_entity.client_id",
      "label": "OAuth Client ID",
      "type": "text",
      "hint": "Client ID for Docusign"
    },
    {
      "name": "credential.oauth_entity.redirect_url",
      "label": "OAuth Redirect URL",
      "type": "text",
      "defaultValue": "https://<instance-name>.service-now.com/oauth_redirect.do",
      "hint": "Callback URL for Docusign"
    },
 {
      "name": "credential.jwt_provider.jwt_claim_validation[0].value",
      "label": "Issuer (iss) Claim value",
      "type": "text",
      "hint": "The integrator key (also known as client ID) of the application"
    },
 {
      "name": "credential.jwt_provider.jwt_claim_validation[1].value",
      "label": "Subject (sub) Claim value",
      "type": "text",
      "hint": "The user ID of the user to be impersonated"
    },
 {
      "name": "credential.jwt_provider.jwt_claim_validation[2].value",
      "label": "Audience (aud) Claim value",
      "type": "text",
      "defaultValue": "account-d.docusign.com",
      "hint": "The URI of the authentication service instance to be used e.g. account.docusign.com"
    },
    {
      "name": "credential.jwt_provider.jwt_keystore_aliases.kid",
      "label": "Key ID (kid)",
      "type": "text",
      "hint": "Indicates which key was used to secure the JWS"
    },
    {
      "name": "credential.jwt_provider.jwt_keystore_aliases.signing_keystore",
      "label": "Key Store",
      "type": "file"
    }
  ]
}

Post processing script

The following post processing script maps user input to fields in the sn_docusign_spoke_accounts table.

(function execute(aliasId, connectionSysId, jsonDefaultData, jsonDynamicData) {
	var jsonDynamicDataP = JSON.parse(jsonDynamicData);
	var accountGR = new GlideRecord("sn_docusign_spoke_accounts");
    accountGR.setValue("account_name", jsonDynamicDataP["additional.docusign_account_name"]);
    accountGR.setValue("alias", aliasId);
    accountGR.setValue("email", jsonDynamicDataP["additional.docusign_account_email"]);
    accountGR.setValue("id", jsonDynamicDataP["additional.docusign_account_id"]);
    accountGR.insert();
})(aliasId, connectionSysId, jsonDefaultData, jsonDynamicData);

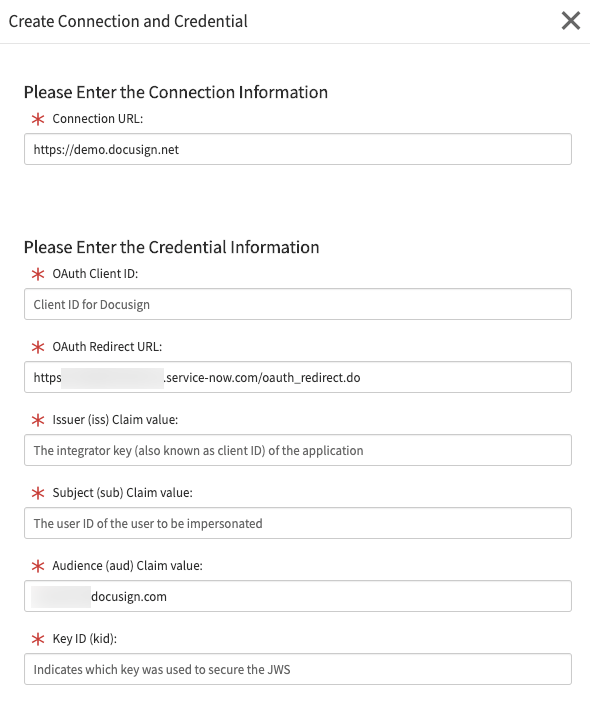

Resulting Docusign Connection and Credential configuration form

When the user navigates to the associated Docusign Connection & Credential Alias and selects Create New Connection & Credential, the following dialog appears.

Docusign form requiring user input.
