Attribute Mapping references
Summarize
Summary of Attribute Mapping References
Attribute Mapping allows ServiceNow users to define relationships between SCIM attributes and ServiceNow table fields, streamlining resource management. This functionality is crucial for ensuring accurate data synchronization between different systems.
Show less
Key Features
- Attribute and Sub-Attribute: Define attributes like userName and complex types like name.familyName, with sub-attributes being optional for complex types.
- Filter Condition: Specify conditions for multi-valued attributes using options derived from SCIM Provider schemas, e.g., filtering phoneNumbers by type (mobile or work).
- Database Field Name: Map SCIM attributes directly to ServiceNow fields, allowing for dot-walking through nested structures to ensure data is correctly aligned.
- Default Value: Set default values for fields that return null or use hard-coded values when necessary.
- Script: Implement scripts to fetch attribute values, ensuring the output is formatted as a string or a JSON string, particularly for multi-valued attributes.
Key Outcomes
By utilizing Attribute Mapping, ServiceNow customers can enhance data integrity, enable efficient resource management, and customize data synchronization processes to meet specific organizational needs. This results in improved system interoperability and user experience across integrated platforms.
The attribute mappings enables you to use the attributes as a single source of resource to the ServiceNow table fields.
Attribute

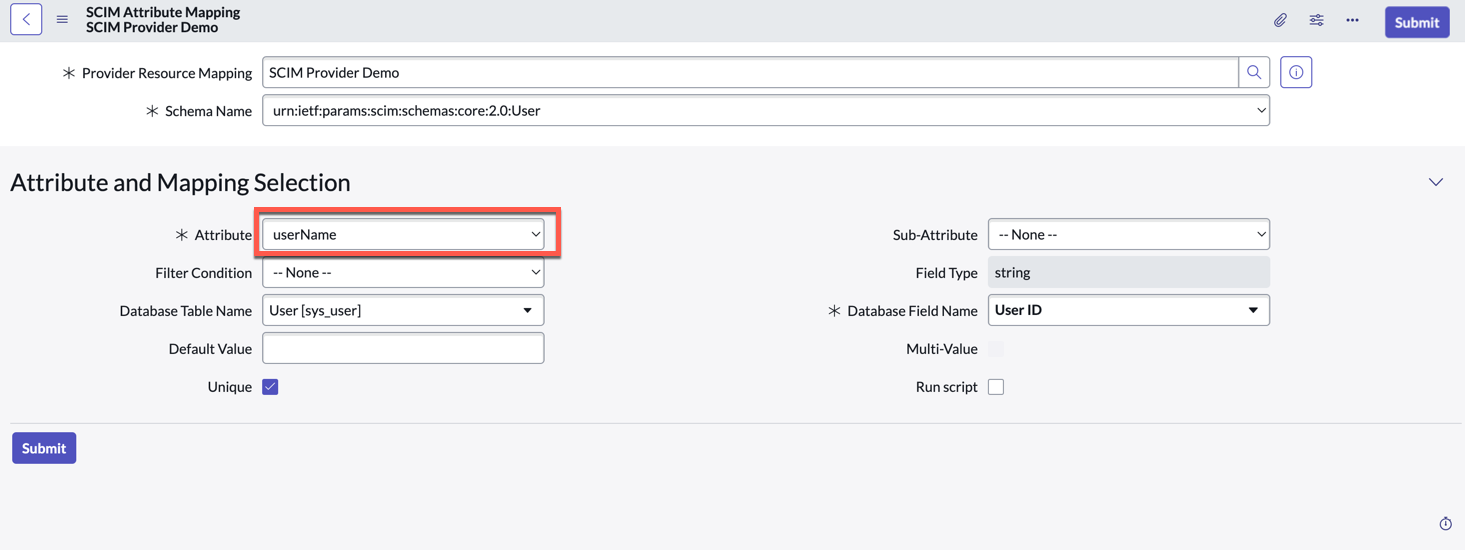

The attribute for which mapping needs to be defined. For example, userName.
Sub-Attribute
Select the sub-attribute, if any, for which a mapping needs to be defined.

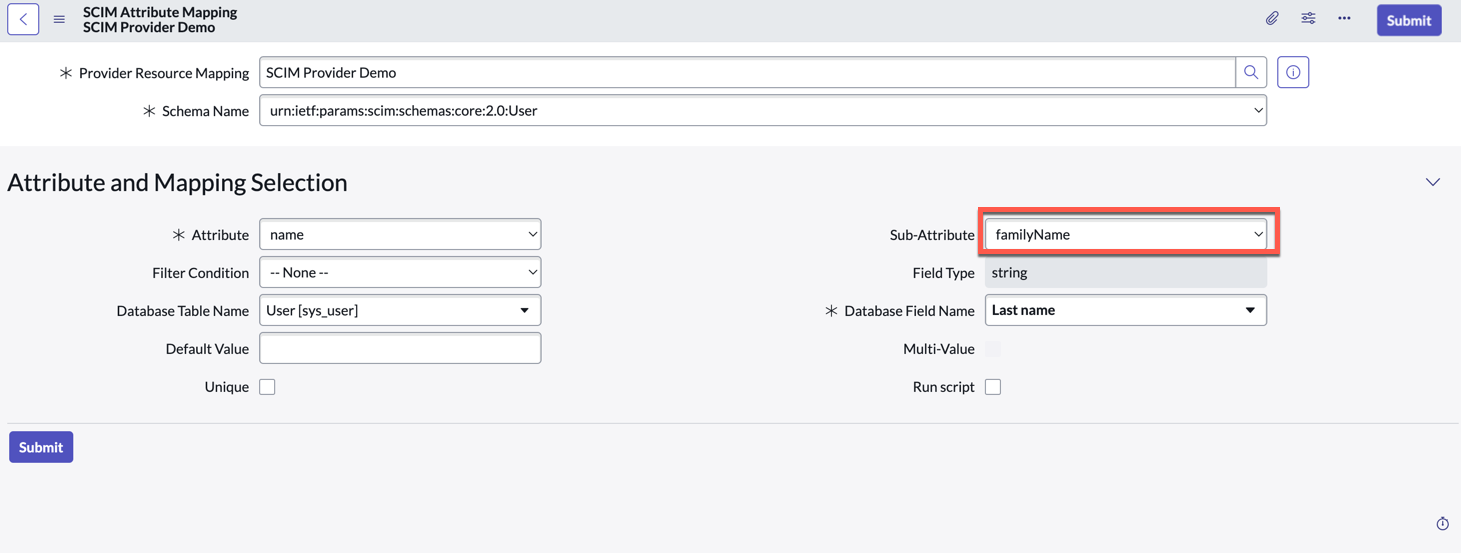

For example, if there is a complex type attribute like name.familyName, then the attribute is name and the sub-attribute is familyName.
For simple attributes like user name, the Sub-Attribute value would be None.
Filter Condition
A multi-valued attribute can have additional information that can be specified by using a Filter Condition. The choices for the filter condition are populated using the schemas defined by the SCIM Provider.
For example, the phoneNumbers attribute has multiple types like work, mobile, home, and so on.

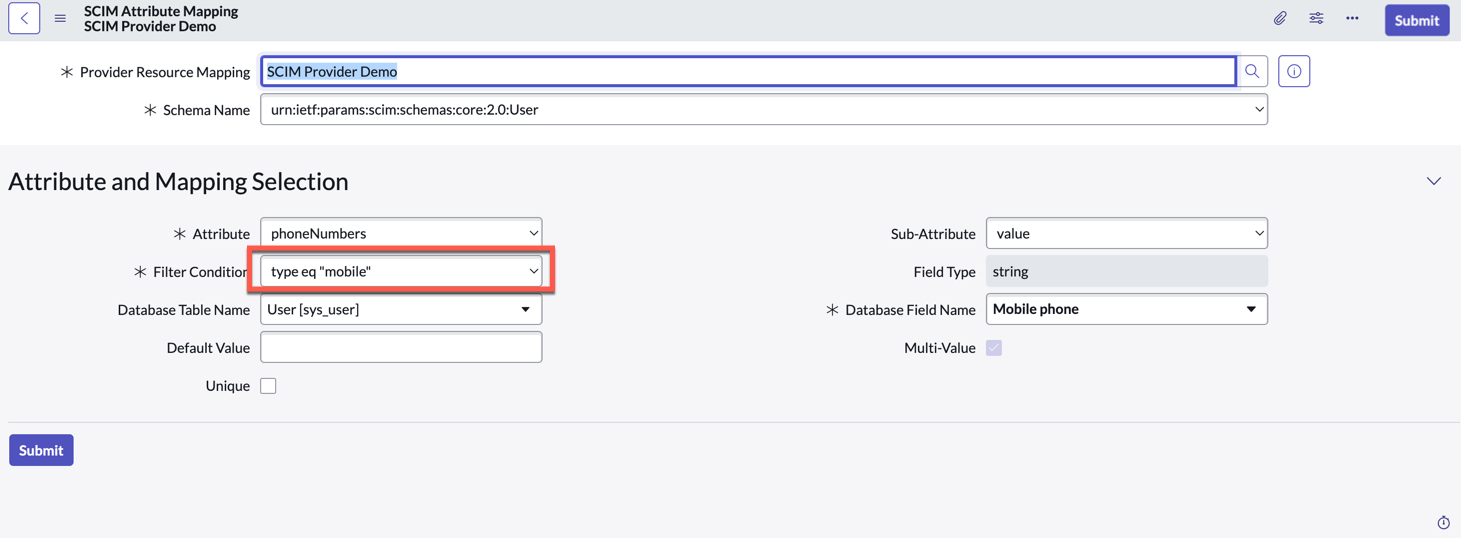

You can specify a Filter Condition from a set of possible values. For example, the phoneNumber attribute can have the Filter Condition as type eq "mobile".

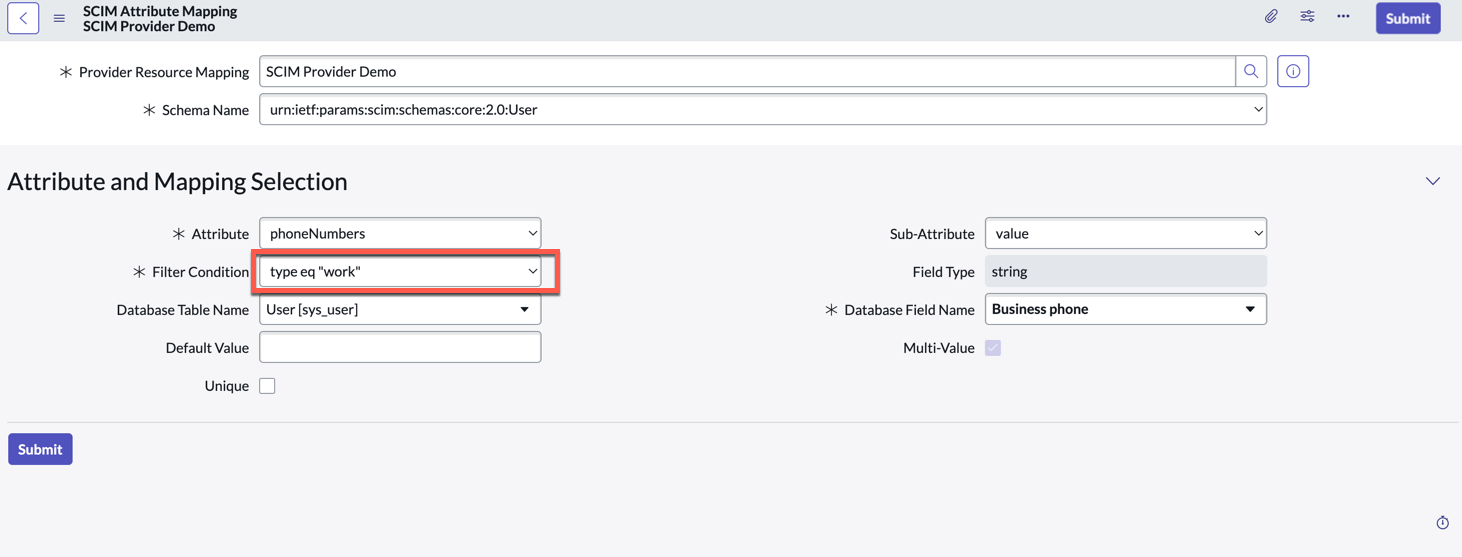

The phoneNumber attribute can instead have a Filter Condition as type eq "work".
Database Field Name
If the direct attribute mapping option is chosen, then this attribute needs to be defined. The Database Field Name field represents the ServiceNow field name that is mapped with the SCIM Attribute.

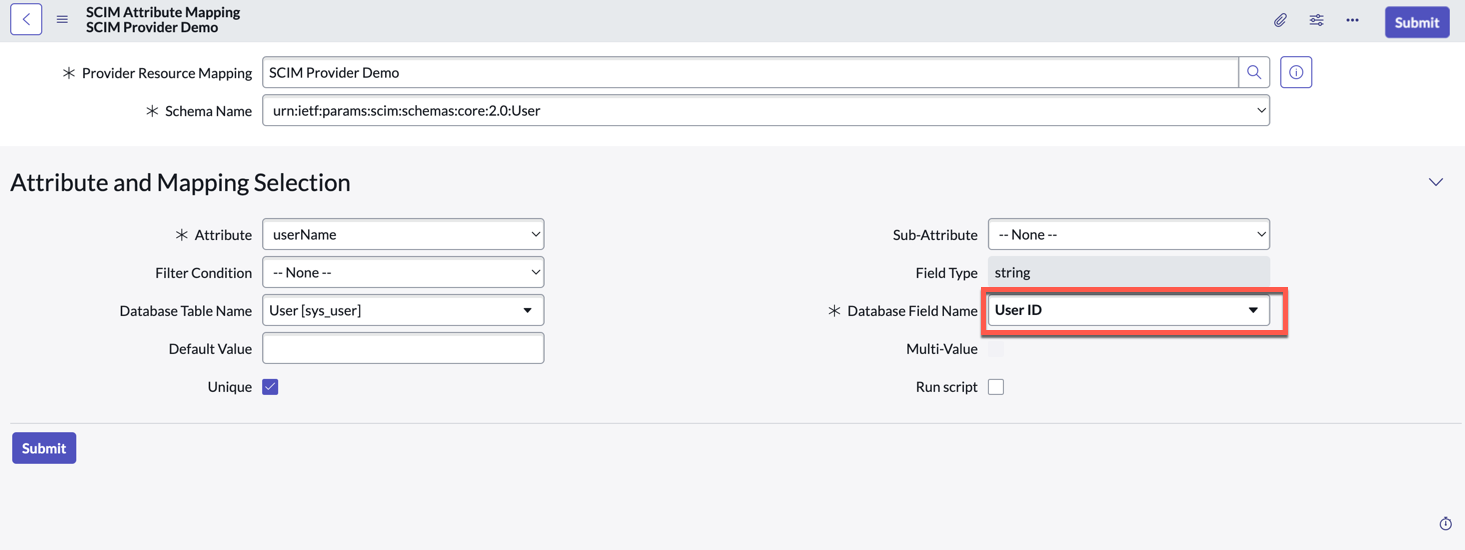

For example, the username SCIM Attribute can be mapped to a user as the Database Table Name field, and to the user ID field as the Database Field Name field.

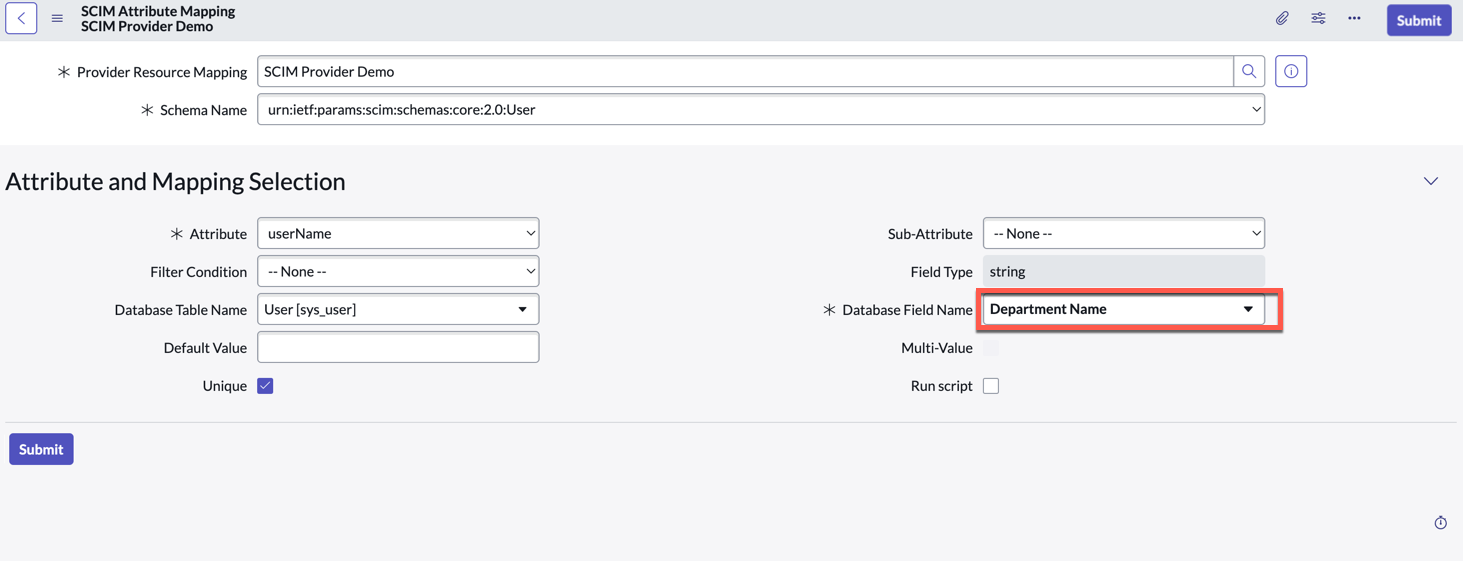

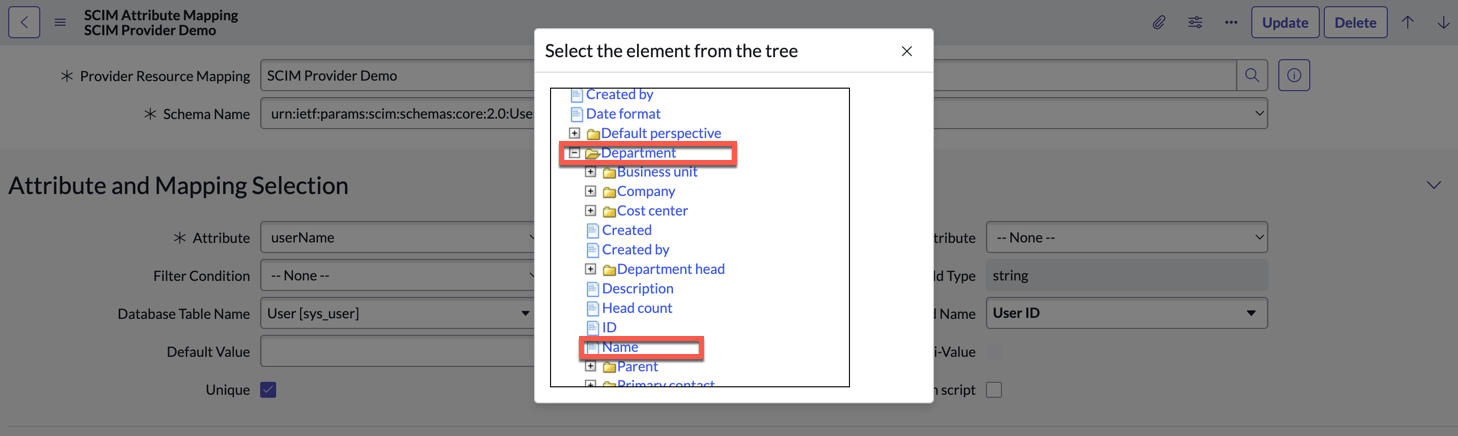

You can also dot-walk using the Database Field Name. For example, the department SCIM Attribute can be mapped to the Department Name field.
Here the Database Table is User and the Database field Name is Department Name.
Default Value
The default value is passed to the SCIM Provider if direct attribute mapping of that field returns null. The default value can also be used to return a hard-coded value.
In the case of a hard-coded value, the database table name and field name should be None.

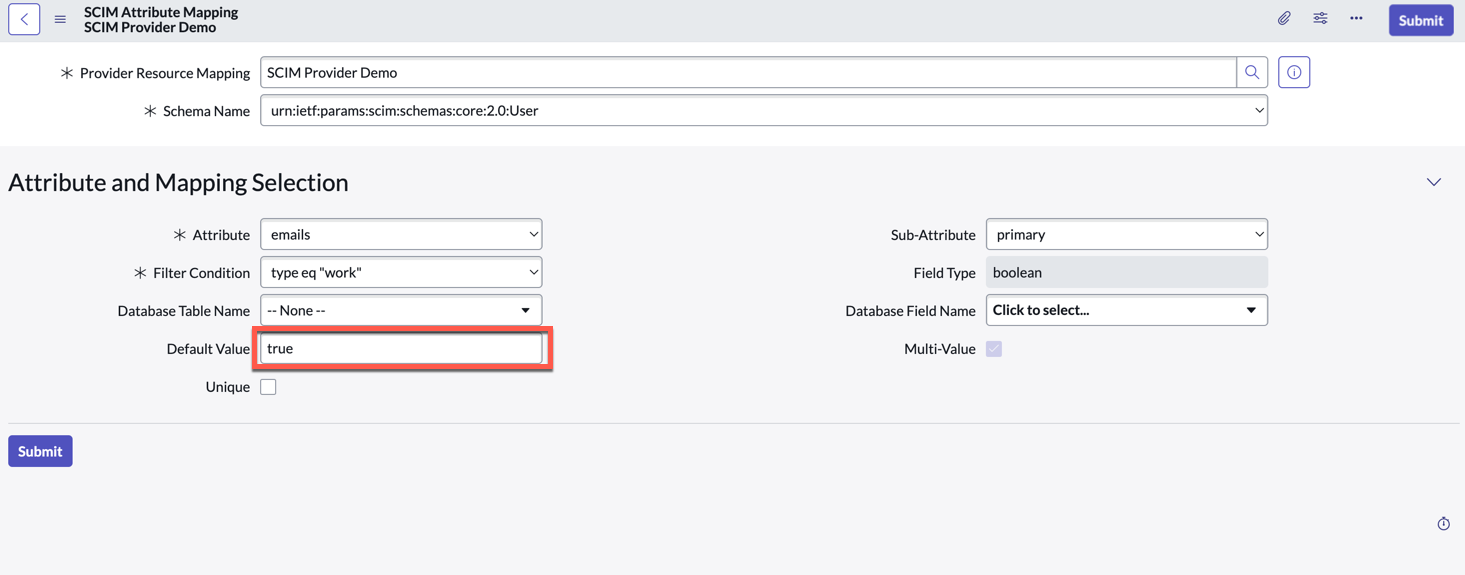

For example, the primary sub-attribute value of work email can be hard coded as true.
Script
The script is used to fetch the attribute value. The return type of the script should be always a string, or a JSON converted as a string. The output of the script should be in the proper format as expected by the provider for that attribute.

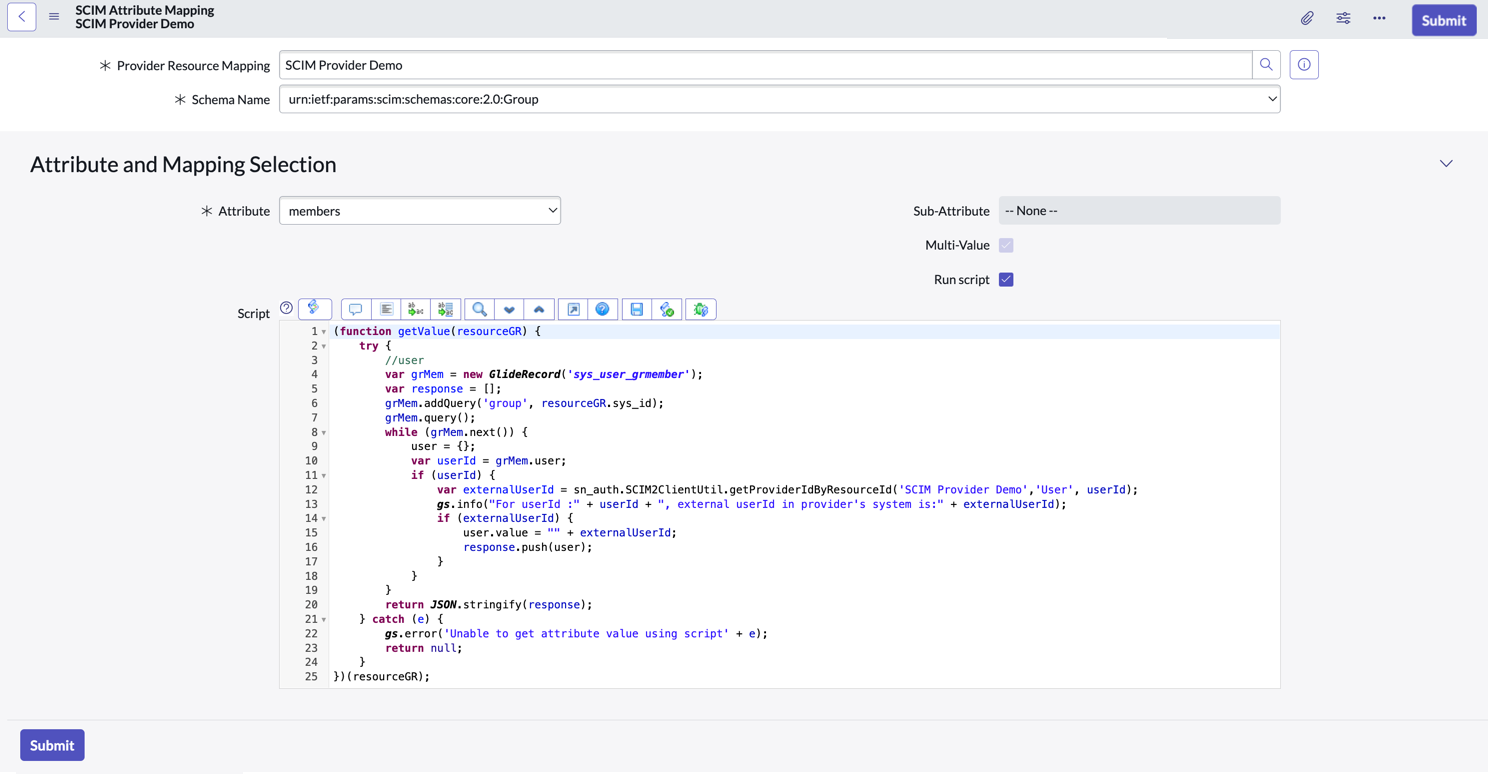

The following is a sample script for a multi-valued attribute.
The output of the script should have a stringified JSON Array.

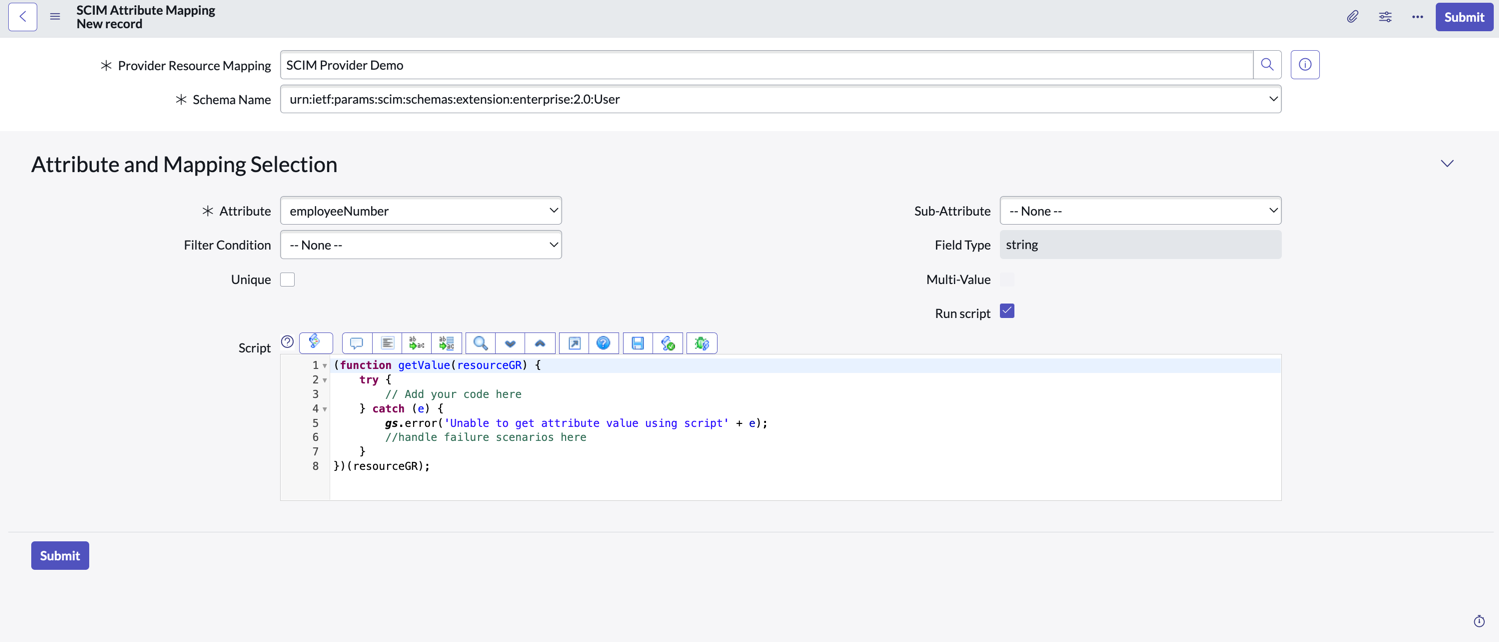

The following is a sample Script of a simple-valued Attribute.
The output of the script should be a string.
