Exploring Federated ID

The ServiceNow® Identity system deduplicates users across multiple instances using their User ID and email, and assigns each resolved user a unique Federated ID for consistent identification.

With Federated ID, you can accurately calculate the number of unique users across instances, which is useful for licensing and user management. For more information, see Federated ID.

Note:

User name is required for generating Federated IDs.

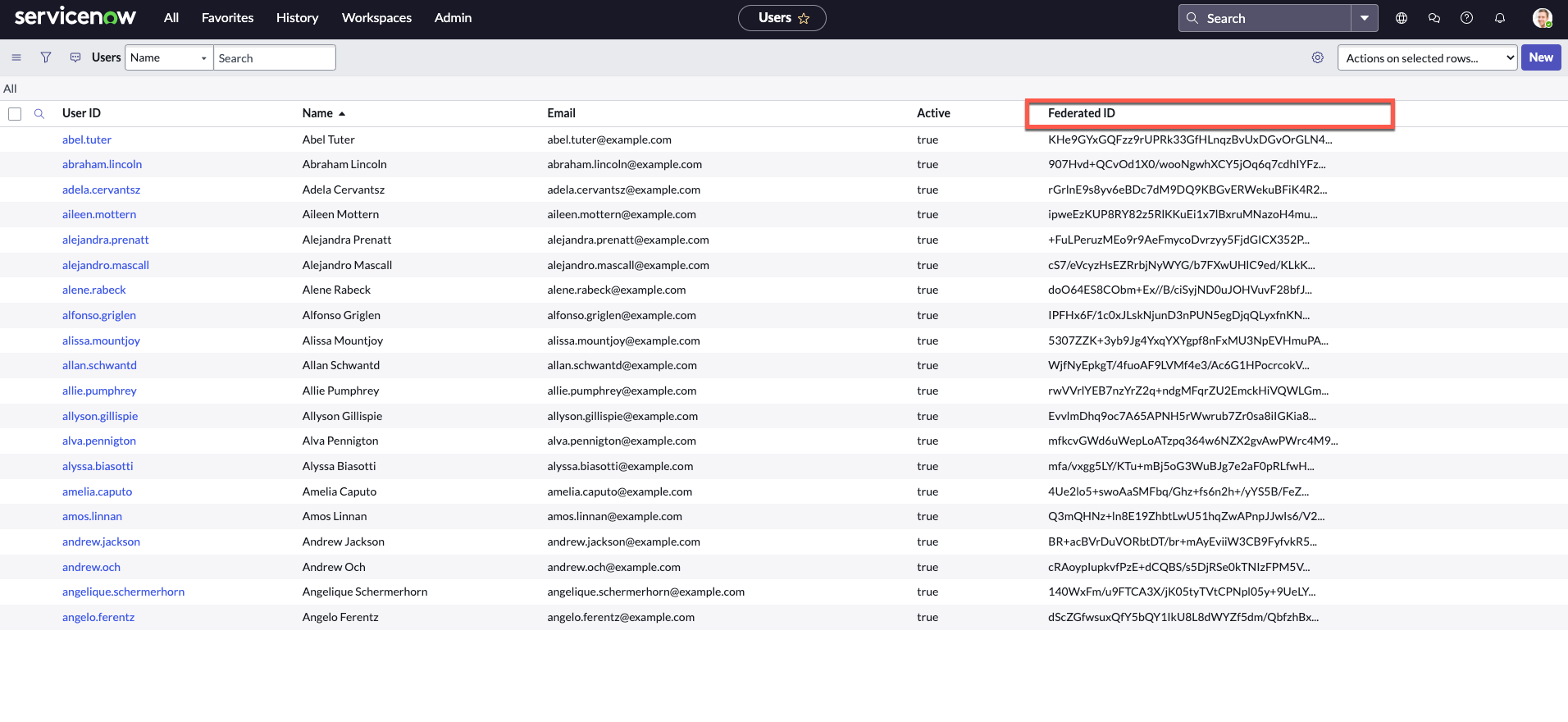

With the user’s User ID and Email (default setting) to identify and match users across instances, ServiceNow® generates a Federated ID unique identifier with a hashing function and stores it in the sys_user table.

Note:

• User ID is required for generating Federated IDs. If the user name is null or empty, then the Federated ID is null.
• User ID and Email are used to generate Federated IDs by default. To configure the fields used for generating Federated IDs based on your requirements, see Updating ID fields. TheIamsync_admin role is required to update the configuration.
• If multiple users share the same username and email, the system generates a Federated ID for only one of the users.

After upgrading to the Australia release, the Federated ID Generation (com.glide.identity.globalid) plugin is auto-installed on all instances. Once the plugin is installed, the schema changes are as follows:

• A column federated_id in the sys_user table is created.
• A table - iamsync_type is auto populated with the default configuration for the sys_user table.

Federated ID is only supported for the sys_user table and all the tables that extend the sys_user table.
