# By SDLC Component view

# By SDLC Component view {#ariaid-title1}

* Versão de lançamento: Australia
*
* Atualizado 12 de mar. de 2026
*
* ![](https://www.servicenow.com/docs/portal-asset/ico-clock) 1 min. de leitura

The By SDLC Component view displays the  SDLC ComponentsApplication ServicesHardware Models and  Software Models  structure in a succession. Also, the business applications are shown with the
same indentation level of application services in the Business Application section.

With this view, you can view all the SDLC components along with the associated application
services and business applications. You can also view the underlying software and hardware
models that are associated to the application services. When you expand the software and
hardware models, you can view their sources. The By SDLC Component view is available when ServiceNow®
Common Service Data Model v4.0 is implemented.

The SDLC component is a configuration item that represents a unique code development effort.
The purpose of the SDLC component is to represent the parts of a larger business application
or digital product broken down into its individually developed components. An SDLC component
is a software part or element of a larger whole for an application or technology.

There are two SDLC component types, Application and Infrastructure. Examples for type
"Application" could be micro services and examples for type "Infrastructure" could be database
configurations and security configurations. A deployed instance of an SDLC component of type
"Application" would be an Application Service. A deployed instance of an SDLC component of
type "Infrastructure" would be any infrastructure CI for which the SDLC component represents
that snapshot of its configuration details.

A CMDB relationship between a business application,
application service, and SDLC component can be created using the CI relationship \[cmdb_rel_ci\]
table. To create a CMDB relationship with the compliance
of CSDM v4.0, a relationship between an application service and an SDLC
component and then between the SDLC component and the business application must be created.
The advantage of the By SDLC Component view is that you can directly view all the application services and business applications that are related to an SDLC component. For information on how to create a CMDB relationship, see [Relate business application to application service using CI relationship editor](https://www.servicenow.com/docs/sBBskSpCCSlUe5gkWoa3GA "Business applications can have multiple instances. Application instances are nothing but application services. Relate business applications to instances by relating business applications to application services. Business application and application service are two different configuration items which must be related through a CI relationship.").
Nota:
With this view, you can only view the application services that have at least one SDLC component associated.

With the By SDLC Component view, you can perform the following search:

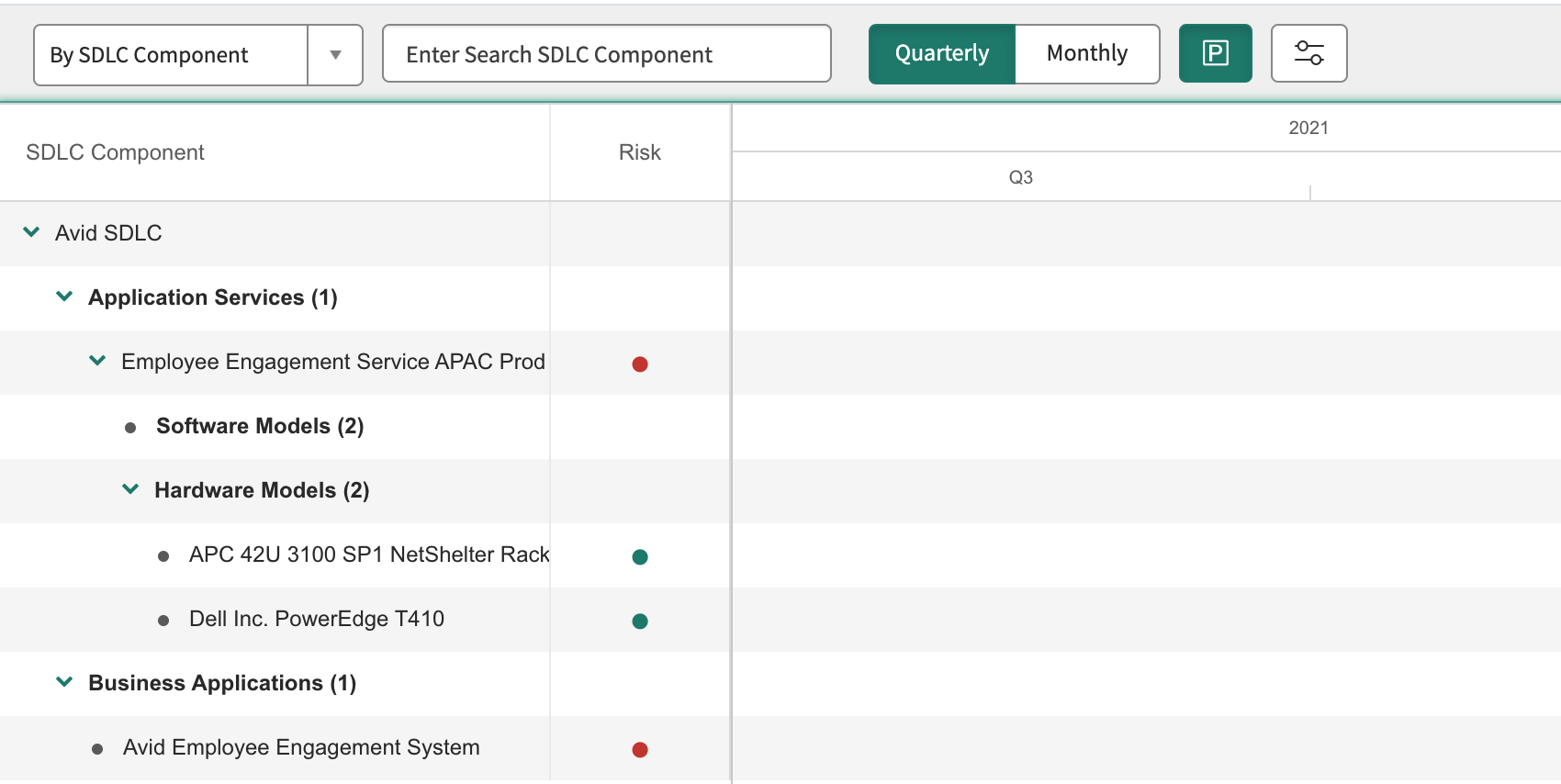

Figura 1. By SDLC Component view

Use the Enter Search SDLC Component field to enter the name and search
an SDLC component from the list in the SDLC Component column.
