# Delete an architectural artifact version

# Delete an architectural artifact version {#ariaid-title1}

* Versão de lançamento: Australia
*
* Atualizado 12 de mar. de 2026
*
* ![](https://www.servicenow.com/docs/portal-asset/ico-clock) 1 min. de leitura

Delete an architectural artifact version that is in Draft state from the Enterprise Architecture Workspace.

## Antes de Iniciar

Role required: sn_apm.apm_user

## Procedimento

1. Navigate to WorkspaceEnterprise Architecture Workspace.
2. Open the Portfolio List view by selecting the Portfolio icon ![Portfolio icon]().
3. Select the expand row icon (![Expand Row icon]()) next to Information Portfolio.
4. Select Architectural Artifacts.
5. Open the architectural artifact for which you want to delete an architectural artifact version.
6. Delete the architectural artifact version.
   * For architectural artifacts of type URL and Attachment:
     1. Select Artifact versions.
     2. Select the check box next to the architectural artifact version that you want to delete. You can only delete versions that are in Draft state.
     3. Select Delete.

        A confirmation pop-up appears.
     4. Select Delete.
     {#eaw-delete-an-architectural-artifact-version__ol_kyg_n2t_bfc}
   * For architectural artifacts of type **Architectural Decision Record** :

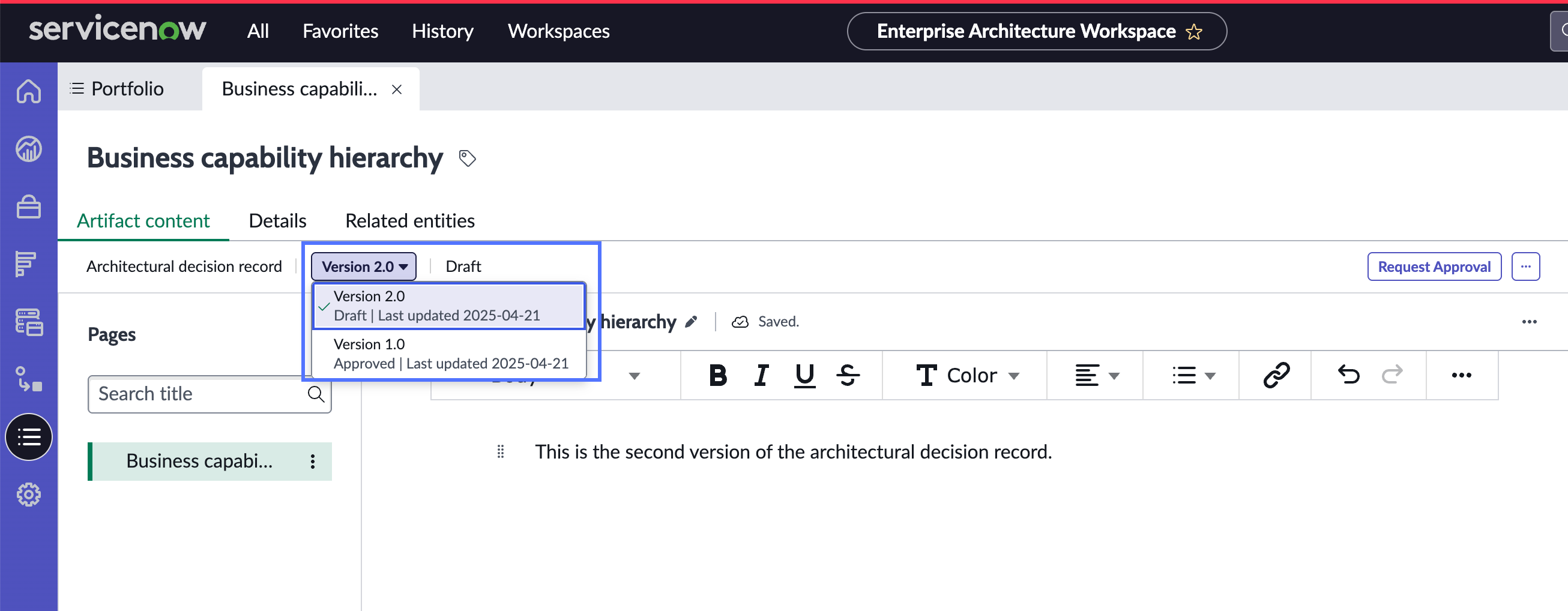

     1. Select the version of ADR that you want to delete and that has status Draft.

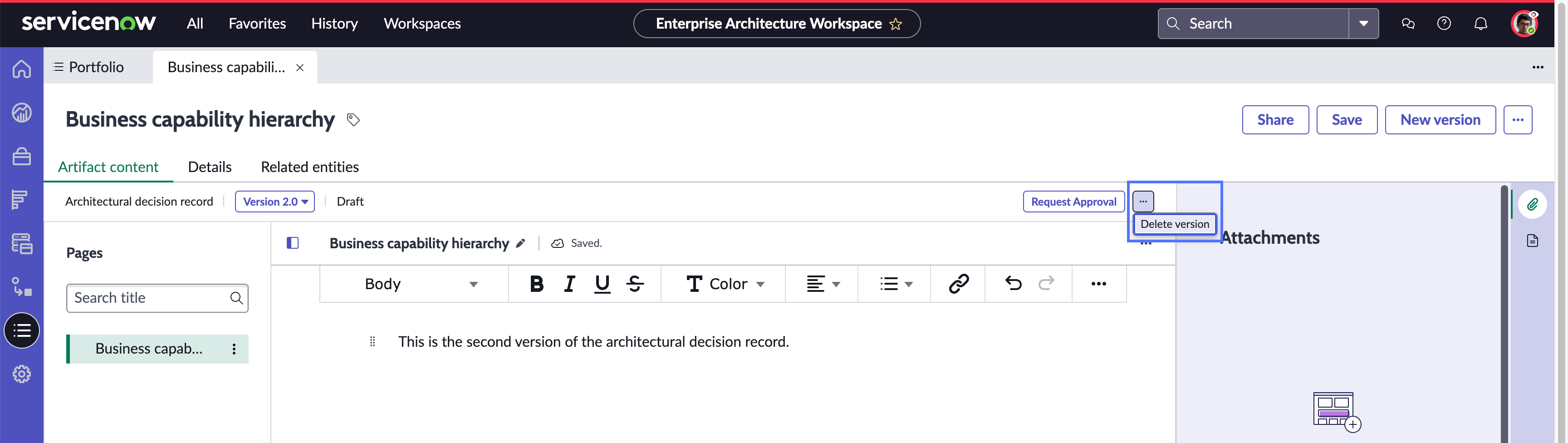

     2. Select the delete version icon (![]()) and then select Delete version.

        A confirmation pop-up appears.
     3. Select Delete.
     {#eaw-delete-an-architectural-artifact-version__ol_ptg_x2t_bfc}
   {#eaw-delete-an-architectural-artifact-version__ul_jqg_h2t_bfc}

## Resultado

The record version is deleted. On deleting a particular version of an architectural artifact, the details of the previous version of the architectural artifact are displayed by default.
