# Redirect WSD RSV MOA OAuth registry

# Redirect WSD RSV MOA OAuth registry {#ariaid-title1}

* Versão de lançamento: Australia
*
* Atualizado 12 de mar. de 2026
*
* ![](https://www.servicenow.com/docs/portal-asset/ico-clock) 1 min. de leitura

Redirect MOA Outh access (moa_login) for Microsoft Outlook Add-in version 1.12.2 or earlier to WSD RSV MOA OAuth registry (rsv_moa_login) registry.

## Antes de Iniciar

Workplace users using Microsoft Outlook Add-in version 1.12.2 or earlier versions, can migrate to Workplace Reservation Management 3.0.2. After migrating, redirect the MOA OAuth registry (moa_login) to WSD RSV MOA OAuth registry (rsv_moa_login).

Workplace Reservation Management 3.0.2 Microsoft Outlook Add-in capabilities provide enhanced reservation experience for employees. For more information, see [Manage Workplace Reservations for Microsoft Outlook Add-in](https://www.servicenow.com/docs/nWPj9QixTws1CJSXlMwkog "Employees can create reservations using the Microsoft Outlook Add-in. They can calendar events or meetings to the Workplace Reservation Management 3.0.2 manifest add-in file.").

Role required: admin

## Procedimento

1. Navigate to AllServices PortalPage Route Map.
2. Select WSD Microsoft Outlook Add-in.

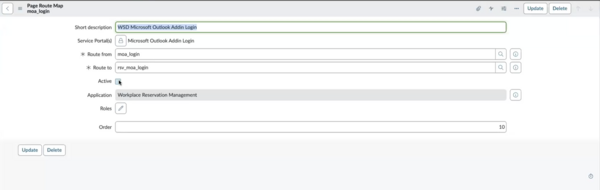

   The Page Route Map form opens. By default, all field values are preloaded in the Page Route Map form. Select the edit option to edit the form.

   {#route-outlook-add-in__table_hmh_mq5_3hc__entry__2}

   | Field | Description |
   |-|-|
   | Short Description | Optional short description to describe the redirect. |
   | Service Portal(s) | Portals that apply the redirect. If you don't select a portal, the redirect applies to all portals in the instance. |
   | Route from | Original page you're redirecting from. For example, moa_login. |
   | Route to | Page you're redirecting to. For example, rsv_moa_login. |
   | Active | Page Route Map record is active or inactive. The redirect from moa_login to rsv_moa_login happens when the record is active. |
   | Roles | Roles to which the page route map applies. Employees that don't have any of the roles specified in this field aren't redirected to the new page. If no roles are specified, the page route map is applicable to all users. |
   | Order | Priority of the Page Route Map record. If more than one active record has the same value in the Route from field, the record with the lowest order applies. The system evaluates records from lowest to highest. If multiple records have a matching order, the system prioritizes the oldest record. |
   [Tabela 1. Page Route Maps form]

   {#route-outlook-add-in__table_hmh_mq5_3hc}
3. Select or clear the Active check box.
   The Active check box is selected by default.
   When the Active check box is selected, MOA OAuth registry (moa_login) is redirected to WSD RSV MOA OAuth registry (rsv_moa_login) in Workplace Reservation Management 3.0.2 version.
   Nota:
   If you don't want to redirect and update to rsv_moa_login and opt to use Microsoft Outlook Add-in 1.12.2 or earlier versions MOA OAuth registry (moa_login), clear the Active check box.
4. Select Update to save the changes you made to the Page Route Maps form.
   All references in the Route from field redirect to the page in the Route to field.
