Exploring MetricBase

Collect, retain, analyze, and act on time-series data using MetricBase.

MetricBase overview

MetricBase helps you work with large amounts of data by using a smaller summary of that data that is stored in the MetricBase database.

• Integrate MetricBase seamlessly with ServiceNow IoT-based applications that monitor or act on large amounts of machine-generated data.
• Trigger flows in Workflow Studio based on time-series data in MetricBase.
  • Generate an email if the average CPU usage is more than 85% in the last 5 minutes.
  • Generate an email if MetricBase detects a gap in data submitted for 10 minutes or more.
  • Generate an alert if the average of the collected data is less than 10 or greater than 500 in the last 5 minutes.
  • Generate an alert if memory usage is likely to exceed 90% in the next 10 minutes.
• Visualize MetricBase data using time-series charts.
• Use the Reporting application to graph the time-series data that is stored in MetricBase.
• Detect anomalies by training a machine language model and execute a Workflow Studio trigger when an anomaly is detected.

MetricBase works with:

• An instance that stores machine-generated data
• A server that has the MetricBase application and database

MetricBase users

Table 1. Users

User	Description
Administrator	An administrator collects, retains, analyzes, and acts on time-series data using MetricBase.

MetricBase workflow

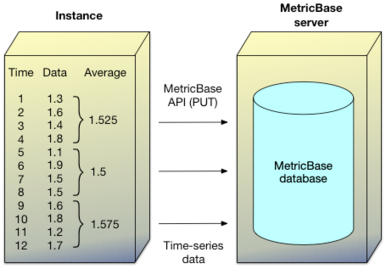

The following figure shows that machine-generated data is sampled every 4 seconds. You send the average of the values in each sampling period to the MetricBase database, which stores the data until its expiration date.

Figure 1. Storing time series data

1. The administrator specifies a metric to store and how often to collect it by creating a time-series definition in MetricBase.
2. The administrator sends data from the instance to the MetricBase server using the MetricBase REST or JavaScript APIs.
3. The administrator configures trigger definitions that execute flows based on time-series data in MetricBase.
4. The administrator configures and trains predictive models in MetricBase to detect anomalies and execute flows when new data is significantly different than the trained data.
5. The administrator monitors collected data using time-series charts in MetricBase. Time-series data remains in the MetricBase database for a prescribed amount of time, after which MetricBase deletes the data.

MetricBase benefits

Table 2. MetricBase benefits

Benefit	Feature	Users
Store time series summary of a large collection of data	Create a time-series definition in MetricBase	Administrator
Insert and retrieve time-series data from the MetricBase database	Developer resources	Administrator
Access and visualize time-series data in the MetricBase database	Accessing MetricBase data	Administrator
Trigger flows when new data is significantly different than the trained data	Detecting anomalies in MetricBase data using predictive models	Administrator
Trigger flows that can log incidents, send emails, and create other alerts	Triggering flows using MetricBase data	Administrator

What to explore next

To learn more about configuring and using MetricBase, see:

• Configuring MetricBase
• Defining and collecting MetricBase data
• Triggering flows using MetricBase data
• Managing MetricBase
• MetricBase reference
