# Install and uninstall Nmap on a MID Server

# Install and uninstall Nmap on a MID Server {#ariaid-title1}

* Release version: Australia
*
* Updated March 12, 2026
*
* ![](https://www.servicenow.com/docs/portal-asset/ico-clock) 9 minutes to read

If you decide to use credential-less Discovery in your network, you must install Nmap
on each Windows MID Server that you want to use for this purpose. Self-hosted customers
whose network security does not permit downloads from
install.service-now.com must use a specific manual process to
install and configure Nmap.

## Before you begin

Role required: agent_admin

|-|
|   |
[ ]

{#install-nmap-on-mid-server__table_tqp_ws4_nhb}

* Assign MID Server IP ranges to all deployed MID Servers. The quickest and most reliable way to do this is with the [Using MID Server IP range auto-assignment](https://www.servicenow.com/docs/LrMYetmpbqrWM6gLp2eNZw#mid-servers-auto-assignment "Discovery Quick Start can automatically assign ranges of IP addresses, called subnets, to qualified MID Servers. This subnet auto-assignment requires SNMP credentials for read-only access to routers Discovery uses. The Automation Status Set form shows summary details of subnet Discoveries and the IP range assignments for associated MID Servers.") feature available in the [Discovery
  Quick Start](https://www.servicenow.com/docs/access?context=discovery-quick-start&version=australia&pubname=australia-it-operations-management&ft:locale=en-US) wizard. This method ensures that the set of MID Servers configured to access an IP address range is comprehensive.
* Identify the IP ranges you want to explore with credential-less Discovery. Ensure that these ranges can only be accessed by MID Servers with Nmap installed, running on supported Windows hosts.
* Use the All option for selecting IP ranges and observe these requirements:
  * Restrict the use of this feature to Windows MID Servers only.
  * Ensure that Nmap is installed on each of these MID Servers.
  * Ensure that the MID Servers can access the entire customer network.
  {#install-nmap-on-mid-server__ul_n54_ych_nbb}
* When you create a Discovery schedule with Nmap enabled, observe these requirements for the MID Server selection options:
  * Specific MID Cluster: Verify that Nmap is installed on all MID Servers in the cluster, where each MID Server in the cluster is configured to access the same set of IP ranges.
  * Auto-Select Mid Server: When running horizontal Discovery, verify that Nmap is installed on at least one of the MID Servers that can access the Discovery schedule's configured MID Server IP ranges.
  * Specific MID Server: Verify that Nmap is installed on each MID Server that can access the schedule's configured MID Server IP Ranges.
    Note:
    To use credential-less Discovery for Service Mapping, install Nmap on all MID Servers that can access the Discovery schedule's configured MID Server IP ranges.
  {#install-nmap-on-mid-server__ul_dsz_lbn_nbb}

{#install-nmap-on-mid-server__ul_djy_mbh_nbb}

Role required: agent_admin

## About this task

The Discovery - IP Based \[com.snc.discovery.ip_based\] plugin provides connection to
the installer for Nmap and the programming elements that allow a Windows MID Server
to run approved scripts on target CIs for credential-less Discovery. MID Servers on
which Nmap is installed can execute an Nmap command configured to perform reverse
DNS name resolution, discover MAC addresses, or gather OS information on target CIs
without using credentials. The Discovery - IP Based plugin is activated
automatically when the Discovery \[com.snc.discovery\] or Event Management and Service
Mapping Core \[com.snc.service-watch\] plugins are activated.

Service Mapping and Nmap
:   Service Mapping does not check for the presence of the Nmap capability and selects the MID Server based on the IP address only. To ensure that Service Mapping does not select a MID Server without the Nmap capability, install Nmap on all MID Servers assigned to the IP address ranges for which you want credential-less Discovery to be available. If Service Mapping selects a MID Server for credential-less Discovery that does not have Nmap capabilities, this error message appears in the map at the site of the CI being discovered: `Nmap is not installed on MID Server. Verify all MIDs configured to
    handle selected IP Address have Nmap Capability. Nmap root directory path does not
    exist: <path>`

Amazon Web Service AWS
:   Running Nmap scans to or from any resource within the Amazon Web Service AWS environment is tightly regulated and requires the permission of AWS through the [AWS Vulnerability/Penetration Testing Request](https://aws.amazon.com/security/penetration-testing/) form. AWS only permits testing of EC2 and RDS instances that you own. Tests against any other AWS services or AWS-owned resources are prohibited. In addition, any Nmap scan of a permitted instance must be performed within an approved time window. For these reasons, credential-less Discovery within an AWS environment is not appropriate, and if a violation of their policy occurs, could result in expulsion from the service.

Supported operating systems
:   Nmap is supported on all editions of these operating systems, including
    virtual machines and 64 bit systems:

    * Windows 2012
    * Windows 2016
    {#install-nmap-on-mid-server__ul_wmf_2kh_bfb}

MID Server requirements
:   Nmap can be installed on MID Servers that meet these requirements:

    * Status is Up.
    * MID Server is validated.
    * MID Server does not already have the Nmap [capability](https://www.servicenow.com/docs/x~RDTvFK9KmX3HMvsdIboQ "MID Server capabilities define the specific functions of a MID Server within an IP address range.").
    * MID Server must be logged in as a local admin if Nmap is not already installed. Administrative privleges are only necessary for the installation process. Once Nmap is installed, non-admin users can use and run credential-less discovery.
      Note:
      If there are multiple MID Servers installed on the same host machine and one of them has already installed Nmap using an admin user, the other MID Servers can enable credential-less discovery using a non-admin user.

    {#install-nmap-on-mid-server__ul_q2z_hkh_bfb}
    Warning:
    The MID Server installation path must not contain the following characters:

    * ( )
    * { }
    * \[ \]

    {#install-nmap-on-mid-server__ul_r2z_hkh_bfb} The Nmap installer replaces these characters with spaces. This prevents the installer from finding the correct path, and the installation fails. An example of a path that will fail is C:\\MIDServers\\MID(1)\\agent.

## Procedure

1. Navigate to AllMID ServerServers.
2. Open the desired MID Server record.

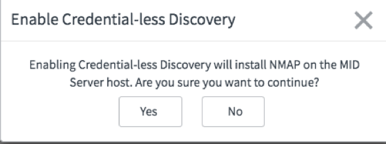

3. Under Related Links, select Enable Credential-less Discovery.
   A confirmation dialog box appears.
4. Click Yes to continue with the installation.
   The instance runs the Nmap installer from https://install.service-now.com, a site within a ServiceNow datacenter that contains installers for the platform. This progress notice appears during installation:

   The Logs tab in the MID Server record shows the
   message: Running system command: installNmap.

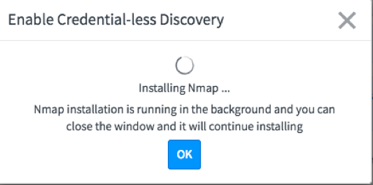

5. Click OK if you want to hide the dialog box while the installer continues to run in the background.
   Installing Nmap also installs Npcap on the host, if it is not already installed. Npcap is Nmap's packet capture library for Windows that allows Nmap to perform port scans quickly and to identify the family of the operating system running on the target. Npcap is installed once on the host and can be used by any other application that requires it, such as Wireshark.
   Note:
   If a more recent version of Npcap is already installed on the Windows MID Server host, Nmap is installed without Npcap. If an older version of Npcap is installed on the host, the Nmap installer upgrades it to the newer version.
   The installation process has either of these outcomes:
   * Success: These conditions indicate a successful installation:
     * The version of Nmap that is installed appears in the Nmap version field in the MID Server record
     * The Related Link changes to Disable Credential-less Discovery.
     * The Nmap capability is assigned to the MID Server and appears in the Capabilities tab of the MID Server record.
     {#install-nmap-on-mid-server__ul_rnx_2nn_3bb}
   * Failure: If the installation fails, an error message is logged to the [MID Server Issue \[ecc_agent_issue\]](z484jI6RPJK~HmoLBMuApQ "The ServiceNow instance has a dedicated table that publishes active issues with MID Servers and alerts administrators when a MID Server is in danger of exceeding its resources.") table. If you run the installer again with success, the issue is marked as Resolved.
   {#install-nmap-on-mid-server__ul_qxs_zpd_fbb}
6. To uninstall Nmap for a selected MID Server, select Disable Credential-less Discovery under Related Links in the MID Server record.
   This dialog appears during the uninstallation process:
   ![Credential-less Discovery uninstallation notice]()
   The Logs tab in the MID Server record shows the message: Running system command: uninstallNmap.
   Important:
   Because Npcap can be used by other applications, uninstalling Nmap does not automatically uninstall Npcap. You must uninstall Npcap manually, after determining that no other dependencies exist.
**Related topics**

* [Credential-less Discovery](https://www.servicenow.com/docs/access?context=nmap-credential-less-discovery&version=australia&pubname=australia-it-operations-management&ft:locale=en-US)

## Install Nmap on a self-hosted system {#ariaid-title2}

Use this procedure to install Nmap on MID Server host machines in a self-hosted
environment that does not allow network access to the ServiceNow®
install.service-now.com download site.

### Before you begin

Role required: admin, maint

### About this task

You must install Nmap manually on each MID Server host and then configure the instance to execute credential-less Discovery.
Note:
This procedure does not apply to self-hosted customers whose MID Server hosts can access install.service-now.com from within their network.

### Procedure

1. Navigate to AllMID ServerProperties (MID Server Property \[ecc_agent_property\] table) and open the record for the mid.nmap.version property.
   This property contains the version of Nmap that you must install. Record the version number.
2. Download the correct installer executable from one of these URLs:
   * <https://nmap.org/dist/>: If the Nmap version in the property is 7.98, the executable you need is https://nmap.org/dist/nmap-7.98-setup.exe.
   * https://install.service-now.com/glide/distribution/builds/package/thirdparty/nmap/nmap-setup-xxx-windows.exe. If the Nmap version in the property is 7.98, the executable you need is https://install.service-now.com/glide/distribution/builds/package/thirdparty/nmap/nmap-setup-7.98-windows.exe
   {#install-nmap-self-hosted__ul_sfz_cfp_ndb}

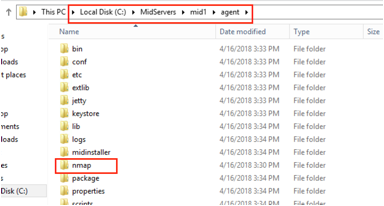

3. Create a folder called nmap in the MID Server agent folder of every MID Server you want to use for credential-less Discovery.

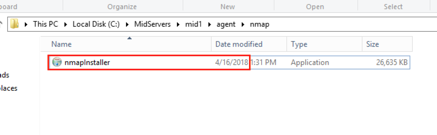

4. Copy the Nmap installer file that you downloaded to the nmap folder and rename it to nmapInstaller.exe.

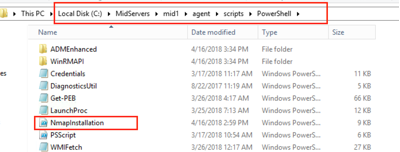

5. Run the agent\\scripts\\PowerShell\\NmapInstallation.ps1 script and pass it the following parameters in the order in which they appear.
   This script runs the nmapInstaller.exe file.
   1. $operation: Task that NmapInstallations.ps1 will process. To install Nmap, the task is install.
   2. $nmap_root_path: Complete path for the nmap folder that you create in step 4.
   3. $nmap_self_installer: Complete path for nmapInstaller.exe file that you copied in step 5.
   4. $nmap_command: Complete path for the Nmap install command. The NmapInstallations.ps1 script installs Nmap in the nmap folder created in step 4. This parameter is $nmap_root_path\\nmap.exe.
   5. $nmap_uninstall_command: Complete path for the Nmap uninstall command. This command is $nmap_root_path\\Uninstall.exe.
   6. $nmap_npcap_version: The Npcap version installed with Nmap. This value must be the same as the value of the mid.nmap.npcap.version property in the MID Server Property \[ecc_agent_property\] table.
   7. $nmap_safe_scripts: List of safe scripts that Nmap uses. You can retrieve this list from the mid.nmap.safe.scripts property in the MID Server Property \[ecc_agent_property\] table.
   {#install-nmap-self-hosted__ol_dlr_lmp_ndb}
6. Set up the parameters in the NmapInstallation.ps1 script in this order:
   ./NmapInstallations.ps1 $operation $nmap_root_path $nmap_self_installer $nmap_command $nmap_uninstall_command $nmap_npcap_version $nmap_safe_scripts
   For example, the script might look like this:

       PS C:\MidServers\mid1\agent\scripts\PowerShell> .\NmapInstallation.ps1 "install"
       "C:\MidServers\mid1\agent\nmap" "C:\MidServers\mid1\agent\nmap\nmapInstaller.exe"
       "C:\MidServers\mid1\agent\nmap\nmap.exe"
       "C:\MidServers\mid1\agent\nmap\Uninstall.exe" "0.91"
       "allseeingeye-info.nse,amqp-info.nse,db2-das-info.nse,drda-info.nse,freelancer-info.nse,
       ike-version.nse,mcafee-epo-agent.nse,mqtt-subscribe.nse,openlookup-info.nse,oracle-tns-version.nse,
       quake1-info.nse,quake3-info.nse,rfc868-time.nse,rpcinfo.nse,snmp-info.nse,ventrilo-info.nse,
       weblogic-t3-info.nse,xmpp-info.nse"

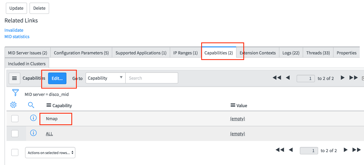

7. After installation is complete, add the Nmap capability to each MID Server you want to use for credential-less Discovery.
   Important:
   Only a maint user can add the Nmap capability to a MID Server. Contact Customer Service and Support to request temporary maint access to your instance.
   1. On the instance, open the MID Server record.
   2. Select the Capabilities related list.
   3. Click Edit.
   4. Select Nmap from the list of available capabilities and click Save.
   {#install-nmap-self-hosted__substeps_qnz_fqp_ndb}

## Uninstall Nmap on a self-hosted system {#ariaid-title3}

Use this procedure to uninstall Nmap in a self-hosted environment that does not allow
network access to the ServiceNow install.service-now.com download
site.

### Before you begin

Role required: admin, maint

### About this task

Nmap must be manually uninstalled from each MID Server host machine and then disabled on the ServiceNow instance.

### Procedure

1. Run Uninstall.exe in the nmap folder on each MID Server host configured for credential-less Discovery.
2. After uninstallation is complete, delete the nmap folder from the agent folder.
3. Remove the Nmap capability from each MID Server record.
   Warning:
   Only a maint user can remove the Nmap capability from a MID Server. Contact Customer Service and Support to request temporary maint access to your instance.
   1. On the instance, open the MID Server record.
   2. Select the Capabilities related list.
   3. Click Edit.
   4. Remove Nmap from the active capabilities list and click Save.
   {#uninstall-nmap-self-hosted__substeps_ocp_1hv_ndb}
