Customizing the content in your Network Inventory Workspace widgets

The Network Inventory Workspace is delivered in the base system with a standard set of information in each landing page widget. You can easily customize this content to include other Telecommunications Network Inventory data.

Standard CMDB groups and naming conventions for Network Inventory Workspace widget data

The data collection process for the Network Inventory Workspace landing page uses a standard CMDB group structure to retrieve data that appears in its widgets, including:

• Network sites overview
• Network entities by category
• Network equipment by manufacturer
• Network equipment by states

For example, the following shows a listing of some of the CMDB groups that are used for the Network Inventory Workspace data collection:

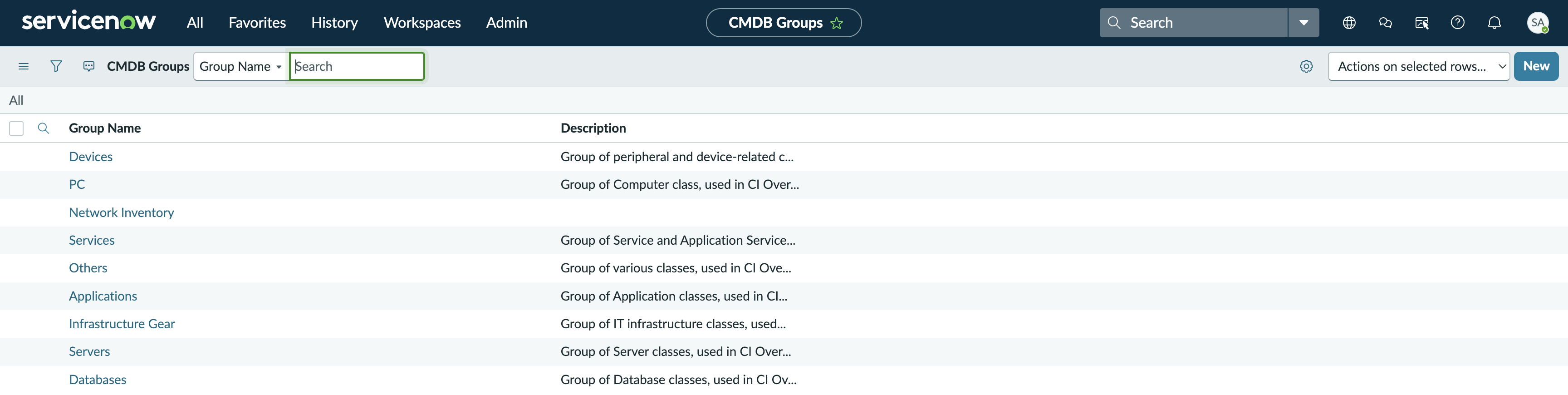

Figure 1. Standard CMDB groups for the Network Inventory Workspace

Note:

To learn how the data collection process operates, see Data collection and refresh for the Network Inventory Workspace widgets.

These CMDB groups follow the following standard naming convention:

1. The first segment represents the assigned domain for the network sites and entities. You use the Network domain selector in the Network Inventory Workspace to filter the data that appears by selecting one of the following types of network domains:

   Core

   Network domain for the core telecom equipment.

   Mobility

   Network domain for the mobile telecom equipment.

   Telco

   Network domain for the telecom equipment in general.

   All

   All equipment network domains that are combined into a single one for reporting purposes.

2. The remaining segments represent a specific type of field data. For example:

   Available Status Equipment

   Reports the Available status for the equipment.

   Pending Repair Status Equipment

   Reports the Pending Repair status for the equipment.

   Ericsson Manufacturer Equipment

   Reports the percentage of the total equipment that is supplied by Ericsson.

   Nokia Manufacturer Equipment

   Reports the percentage of the total equipment that is supplied by Nokia.

The following examples show how the name segments are combined in the CMDB groups to report the data that appears in the widgets in the Network Inventory Workspace:

All Available Status Equipment

CMDB group data that is used in the Network equipment by states widget to report the percentage of equipment that is in the Available status in all network domains.

Core Available Status Equipment

CMDB group data used in the Network equipment by states widget to report the percentage of equipment that is in an Available status in the Core network domain.

Mobility Pending Repair Status Equipment

CMDB group data used in the Network equipment by states widget to report the percentage of equipment that is in a Pending Repair status in the Mobility network domain.

All Ericsson Manufacturer Equipment

CMDB group data that is used in the Network equipment by manufacturer widget to report the total piece count for the equipment that is supplied by Ericsson in all network domains.

Telecom Nokia Manufacturer Equipment

CMDB group data that is used in the Network equipment by manufacturer widget to report the total piece count for the equipment that is supplied by Nokia in the Telecom network domain.

Modifying the Network equipment by manufacturer widget

This widget contains a pie chart with a standard set of the five most recognizable telecommunications equipment manufacturers.

Figure 2. Network equipment by manufacturer widget

A pre-defined CMDB group structure supports retrieval of the data that appears in the widget pie chart. The following example shows the standard CMDB groups that are used to retrieve the manufacturer data for the Network Inventory Workspace.

Figure 3. Standard CMDB groups used for the Network equipment by manufacturer widget

To add or change the data in a widget, use the CMDB Groups function to create CMDB group codes or modify the accompanying query conditions for existing ones. To update any of the existing CMDB groups, you must follow the standard CMDB group naming convention used for the Network Inventory Workspace widgets.

Note:

To learn more about creating, updating, or naming CMDB groups, see CMDB groups.

For example, let's say that you want to add another equipment manufacturer to the widget. To accomplish this task, you can use existing CMDB groups for a manufacturer, for each of the network domains, as the base for the new manufacturer. In this example, you use the existing CMDB groups for Ericsson as the base for the CMDB groups that you create for the new manufacturer.

This table shows what the existing CMDB group codes look like for Ericsson, and what they look like when you create the CMDB group codes for Dell.

Table 1. CMDB group example

Existing CMDB Group	Existing CMDB Group
All Ericsson Manufacturer Equipment	All Dell Manufacturer Equipment
Core Ericsson Manufacturer Equipment	Core Dell Manufacturer Equipment
Mobility Ericsson Manufacturer Equipment	Mobility Dell Manufacturer Equipment
Telco Ericsson Manufacturer Equipment	Telco Dell Manufacturer Equipment

• Update CMDB groups for use in the data collection process
  Add or change the data that you see in a Network Inventory Workspace widget by using the CMDB Groups function. You create CMDB group codes as needed or modify the query conditions for existing ones. By changing the CMDB groups, you affect what data the collection process retrieves for the widgets on the Network Inventory Workspace landing page.
