Set up a bi-directional webhook

  • Release version: Washingtondc
  • Updated February 1, 2024
  • 1 minute to read

    • Configure the webhook in your Docusign account to enable Docusign to send data to ServiceNow when a recipient signs a document.

    Before you begin

    Role required: admin

    Procedure

    1. Connect a custom configuration to enable your Docusign application to share events and data with your ServiceNow instance.
      1. Log in to your Docusign account as an admin.
      2. In the admin dashboard, navigate to Integrations > Connect.
      3. Click Add Configuration.
        A list of the configuration types is displayed.
      4. Select Custom.
      5. On the form, fill these values.
        Field Description
        Name Name to identify the custom configuration.
        URL to Publish Add your ServiceNow instance URL in this format:
        • Under Event Settings, if you select Data Format as Legacy, enter https://{instance-name}.service-now.com/api/sn_docusign_spoke/docusign_webhook
        • Under Event Settings, if you select Data Format as REST v2.1, enter, https://{instance-name}.service-now.com/api/sn_docusign_spoke/docusign_webhook_rest
        Data Format Select either Legacy or REST v2.1.
        Note:
        Ensure that this selection matches is accordance with the URL you provided in URL to Publish.

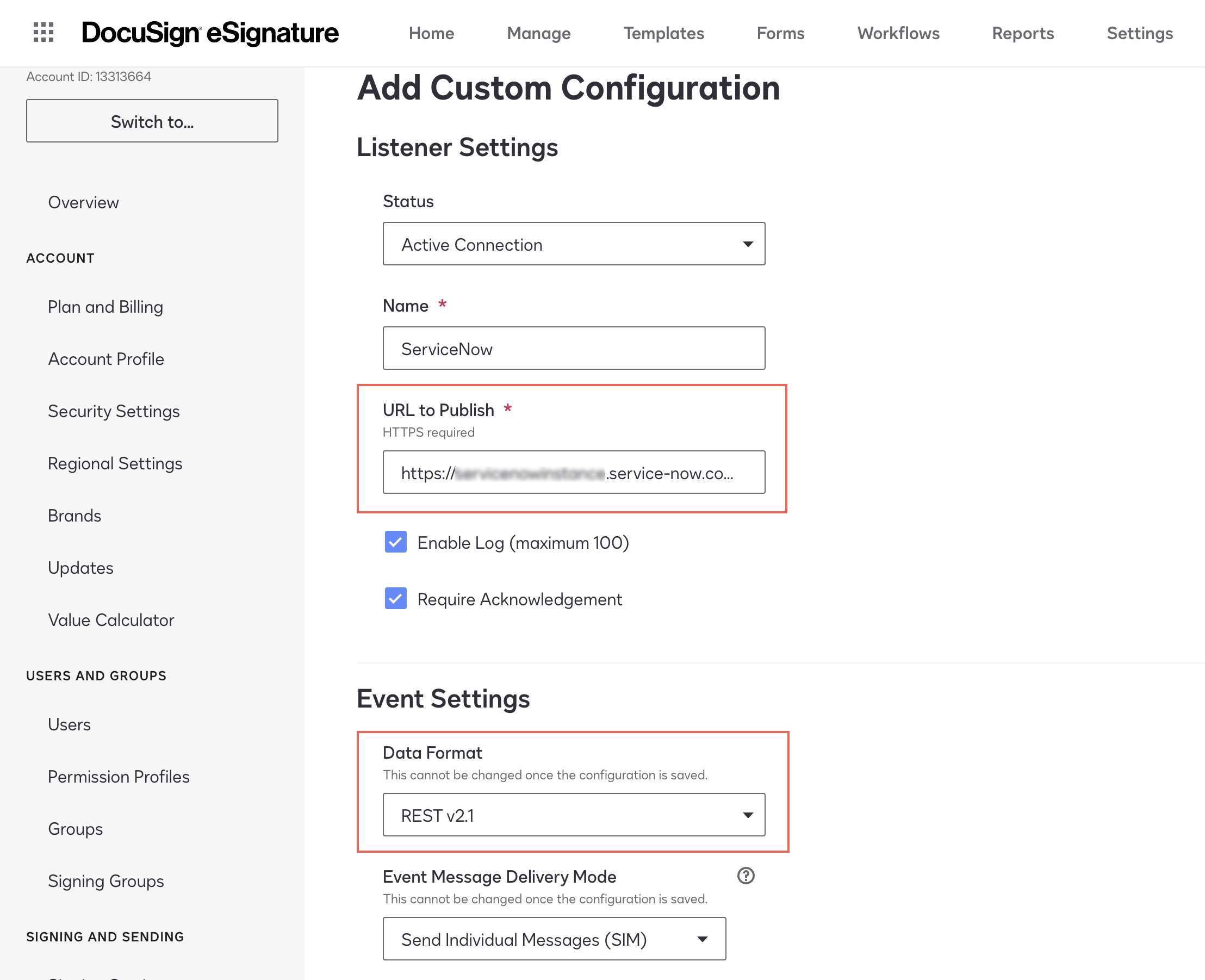

        Select the Events settings and enter URL to publish.

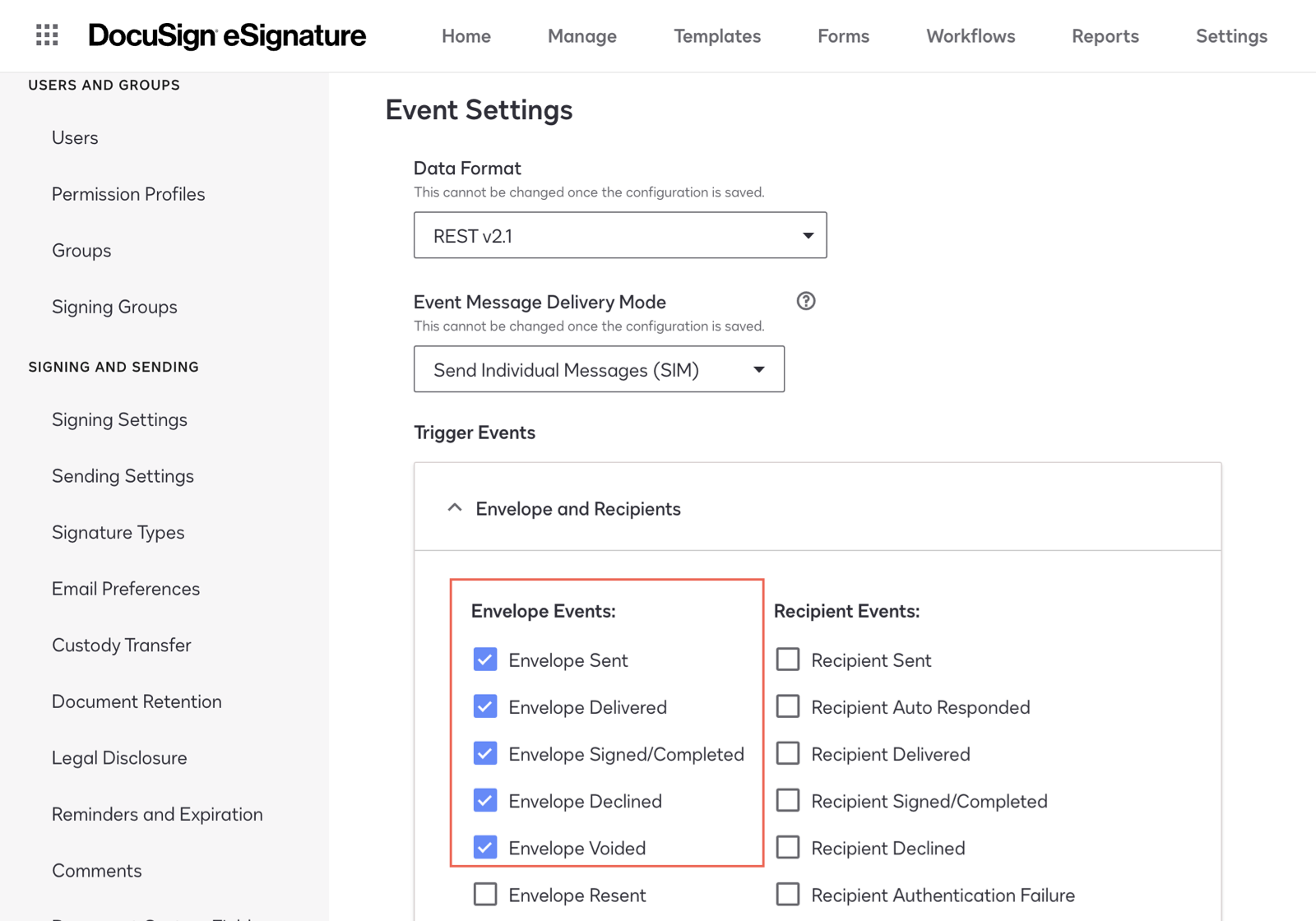

    2. Under Trigger Events, enable Docusign to share envelope events with ServiceNow by selecting these events:
      • Envelope Sent
      • Envelope Delivered
      • Envelope Signed/Completed
      • Envelope Declined
      • Envelope Voided
      Select the required envelope events.

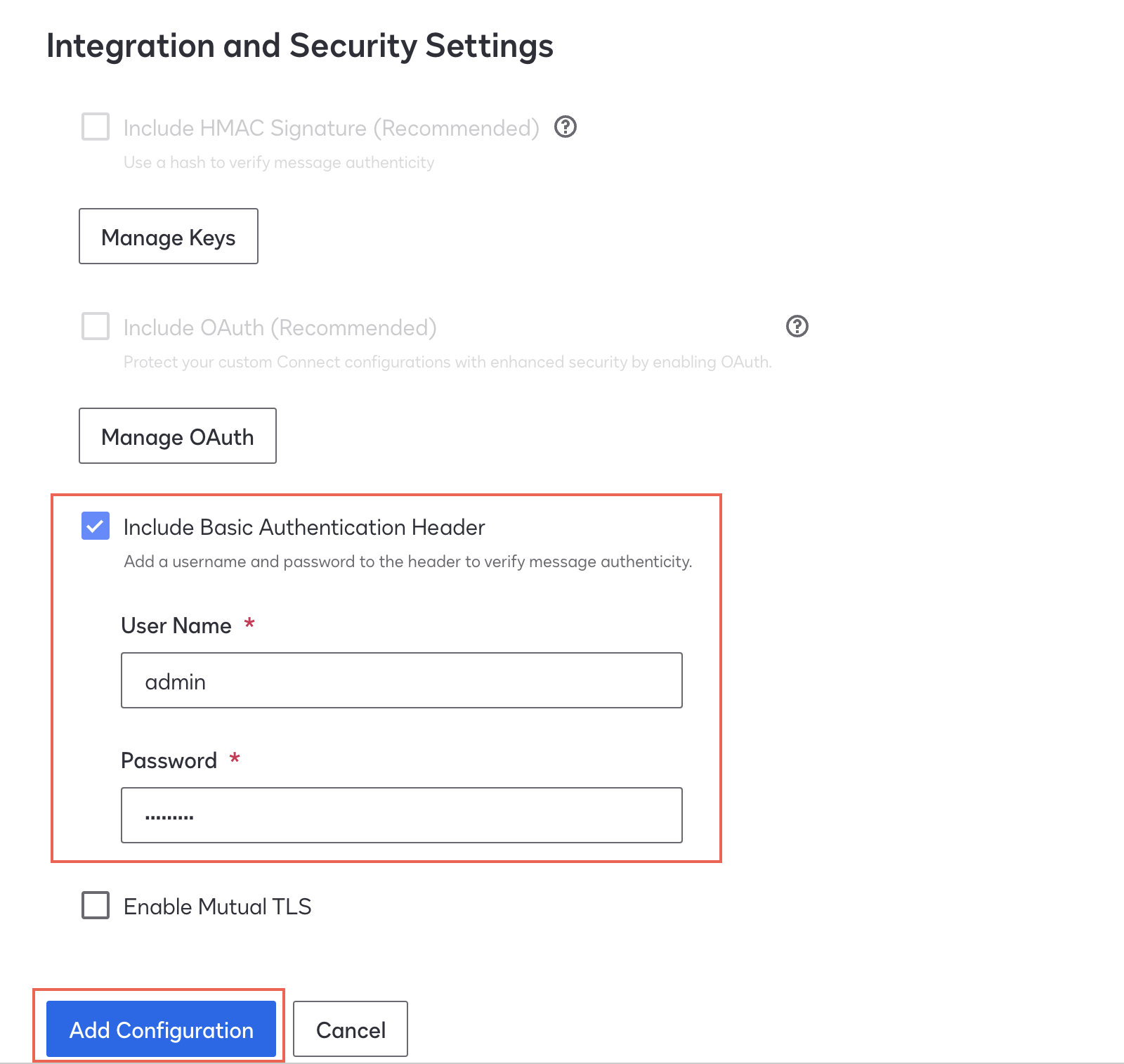

    3. Select the Include basic authorization option in the header and provide your ServiceNow instance credentials.
      Option to include basic authentiocation header.
    4. Click Add Configuration.
