Web service import sets security requirements
Release version: Washingtondc
Updated February 1, 2024
2 minutes to read
Summarize
Summarized using AI
This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.
Summary of Web Service Import Sets Security Requirements
Web Service Import Sets in ServiceNow utilize the same security protocols as SOAP Web Services.This setup necessitates that a Web Service user authenticate with a valid username and password.Additionally, users must adhere to the access control rules associated with the queried table, and in environments with high-security settings, the user may require the SOAP role.
Show full answerShow less
Key Features
Authentication: Basic authentication is required for users.
Access Control: Users must meet access control requirements for the queried table.
Related Links: Users can access Import Sets, Transform Maps, Transform History, and options to edit the web service.
SOAP Integration: The document includes examples of the WSDL, SOAP envelope, and response to illustrate the integration process.
Key Outcomes
By implementing Web Service Import Sets, ServiceNow customers can effectively integrate external applications, ensuring secure data imports into their incident table. They can expect streamlined communication with external systems and the ability to track any transformation history related to imported data.
Web Service Import Sets use the same security mechanisms as SOAP Web
Services.
Basic authentication requires a Web Service user provide a valid user name and
password.
Contextual security requires a Web Service user meet the access control rule of the queried
table.
If your instance uses high security settings, the Web Service user may also need the
soap role.
Web service import sets related links
When displaying a mapped web service table, you have the following related links.
Import Sets — The import sets related to this web service import set.
Transform Maps — A list of transform maps related to this web service.
Transform History — The transformation history.
Edit Web Service — Edit the web service.

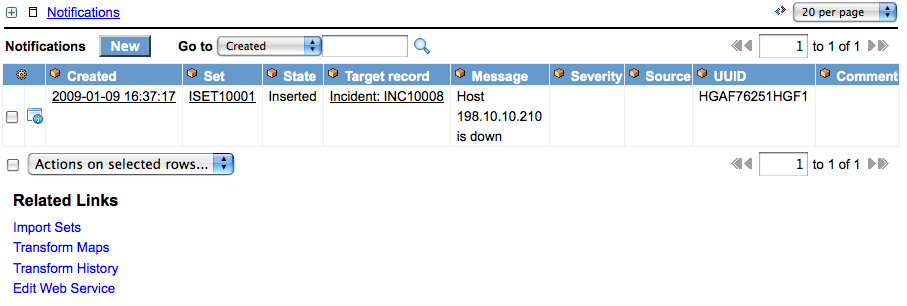

The following image shows a record that was inserted into the web service import set
Notification. The target record is the resulting creation or modification to the Incident table
record as a result of the transform.Figure 1. Soap Notification
Web service import sets example
This example demonstrates the WSDL, SOAP envelope and response, Perl invocation, and result of
a SOAP web service import.
<?xmlversion="1.0"encoding="UTF-8"?><SOAP-ENV:Envelope SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"><SOAP-ENV:Body><insertResponse><sys_id>b54aafbfc0a8006f0058db95daa5b88d</sys_id><table>incident</table><display_name>number</display_name><display_value>INC10008</display_value><status>ignored</status><status_message>No field values changed</status_message></insertResponse></SOAP-ENV:Body></SOAP-ENV:Envelope>
Example Invocation using Perl
The following example script uses the Notification web service to create an
Incident as the itil user. It uses the Perl language
and the SOAP::Lite
package.
#!/usr/bin/perl -w
#use SOAP::Lite ( +trace => all, maptype => {} );use SOAP::Lite;
sub SOAP::Transport::HTTP::Client::get_basic_credentials{return'itil'=>'itil';// set basic auth credentials for the itil user
}
my$soap= SOAP::Lite->proxy('http://localhost:8080/glide/imp_notification.do?SOAP');
my$method= SOAP::Data->name('insert')->;attr({xmlns =>'http://www.service-now.com/'});
# insert into the web servicemy@params=( SOAP::Data->name(message =>'problem detected for database DB12DG'));push(@params, SOAP::Data->name(source =>'DB12DG'));push(@params, SOAP::Data->name(uuid =>'HGAF76251HGF2'));
my$result=$soap->call($method=>@params);
print_fault($result);//print any SOAP faults
print_result($result);//print any results
sub print_result {my($result)=@_;if($result->body&&$result->body->{'insertResponse'}){my%keyHash=%{$result->body->{'insertResponse'}};foreachmy$k(keys%keyHash){print"name=$k value=$keyHash{$k}\n";}}}
sub print_fault {my($result)=@_;if($result->fault){print"faultcode=".$result->fault->{'faultcode'}."\n";print"faultstring=".$result->fault->{'faultstring'}."\n";print"detail=".$result->fault->{'detail'}."\n";}}
The following is the result printed by the Perl script on the
console.
