WebLogic application server discovery

Release version: Washingtondc

Updated February 1, 2024

2 minutes to read

Summarize

Summarized using AI

Summary of WebLogic Application Server Discovery

WebLogic application server discovery enables the identification and management of Oracle or BEA WebLogic application servers within the ServiceNow Configuration Management Database (CMDB). This process occurs automatically when an instance of the server is detected on Windows or Linux systems.

Show full answer Show less

Requirements

For effective discovery, certain prerequisites must be met:

Windows: PowerShell must be enabled on the MID Server. The WebLogic Administration Server must start with the parameter -Dweblogic.RootDirectory=, and the Windows credential must have read permissions on the config.xml file.
Linux: The discovery process requires Bourne shell commands and similar parameters set as in Windows. The sudorers file must allow specific sudo privileges. The command /bin/sh /tmp/snc--findcat.sh must be executable.

Credentials

Different types of credentials are required, including applicative, Windows, and SSH credentials to facilitate discovery.

Data Collection

Discovery collects various data points for both Windows and Linux platforms, including:

Windows: Data such as server name, version, domain, TCP ports, and web application details are gathered from config.xml and web.xml.
Linux: Similar data points are collected, including server name, TCP ports, and application context paths, primarily from the config.xml file.

Key Outcomes

By successfully configuring WebLogic application server discovery, customers can:

Automatically create or update CMDB records for WebLogic instances.
Ensure accurate inventory and dependency mapping of application servers and their associated web applications.
Improve visibility and management of IT operations related to WebLogic environments.

Customers should also ensure that the appropriate patterns and probes are utilized for optimal discovery performance.

Discovery creates or updates a CMDB record when it detects an instance of an Oracle or BEA Weblogic application server running on a Windows or Linux system.

Requirements

For Windows

PowerShell must be enabled on the MID Server.
The WebLogic Administration Server instances that start via WebLogic NodeManager must have the -Dweblogic.RootDirectory=<path> parameter defined upon server startup. The Windows credential must also have read permissions on the config.xml file.

For Linux

Discovery requires the use of these Bourne shell commands:
- find
- cat
- dirname
WebLogic administration server instances started via NodeManager must have the -Dweblogic.RootDirectory=<path> parameter defined and visible through the Linux ps process stat command (for each AdminServer) for the rest of the Linux WebLogic application server and web application information to be populated in the CMDB.
The following configuration must be set on the sudorers file:
User ALL=(root) NOPASSWD: /bin/sh *

User is the user name on the SSH credential that you create for this discovery.
This command must be able to be run:
/bin/sh /tmp/snc-*-findcat.sh * *"

Do not make any changes to findcat.sh.
If you are using probes, not patterns, for Weblogic discovery, the Linux - Weblogic - Find config.xml probe must specify this parameter and value: must_sudo = true

Note:

For information on Probe to Pattern migration see the knowledge article KB0694477.

Credentials

Classifier, pattern, and probes


Classifier	Trigger probes	Pattern
Weblogic Server	Horizontal Pattern: launches patterns Windows - Weblogic - Get web.xml* Windows - Weblogic - Find config.xml* Linux - Weblogic - Find config.xml*	WebLogic

*For new instances, these probes are inactive on the classifier. Discovery uses patterns for discovery.

To use patterns, verify that the correct pattern is specified in the horizontal pattern probe on the classifier. See Add the Horizontal Pattern probe to a classifier for instructions.

Data collected on Windows


Label	Table Name	Field Name	Source
Name	cmdb_ci_app_server_weblogic	name	running process
Version	cmdb_ci_app_server_weblogic	version	config.xml
Weblogic domain	cmdb_ci_app_server_weblogic	weblogic_domain	config.xml
TCP port(s)	cmdb_ci_app_server_weblogic	tcp_port	web.xml and running process
Name	cmdb_ci_web_application	name	config.xml
Document base	cmdb_ci_web_application	document_base	config.xml
Description	cmdb_ci_web_application	description	web.xml
Servlet class	cmdb_ci_web_application	servlet_class	web.xml
Servlet name	cmdb_ci_web_application	servlet_name	web.xml
App server	cmdb_ci_web_application	app_server	config.xml
TCP port(s)	cmdb_ci_web_application	tcp_port	web.xml

Data collected on Linux


Table	Field	Source
cmdb_ci_app_server_weblogic	Name (name)	running process
cmdb_ci_app_server_weblogic	TCP port (tcp_port)	running process
cmdb_ci_app_server_weblogic	Version (version)	config.xml
cmdb_ci_app_server_weblogic	Weblogic domain (weblogic_domain)	config.xml
cmdb_ci_web_application	Name (name)	config.xml
cmdb_ci_web_application	Context path (context_path)	config.xml
cmdb_ci_web_application	App server (app_server)	config.xml

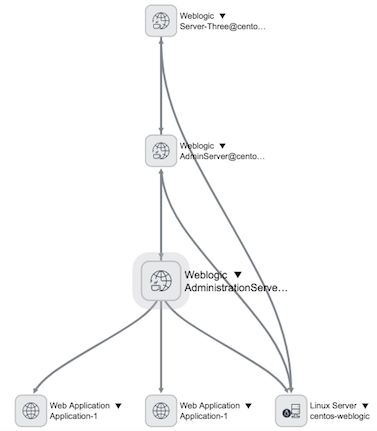

Relationship


Parent class	Relationship type	Child class
cmdb_ci_app_server_weblogic	Runs on::Runs	cmdb_ci_windows_server or cmdb_ci_linux_server
cmdb_ci_app_server_weblogic	Contains::Contained by	cmdb_ci_web_application
cmdb_ci_app_server_weblogic	Depends on::Used by	cmdb_ci_app_server_weblogic This relationship is made between an AdminServer and any managed servers it encapsulates.
