State progression for normal, standard, and emergency changes

  • Release version: Washingtondc
  • Updated February 1, 2024
  • 1 minute to read

    • Each change request model progresses through a number of state values in a specific order.

    Table 1. Normal change state progression
    State Can be canceled? Diagram
    1. New Yes

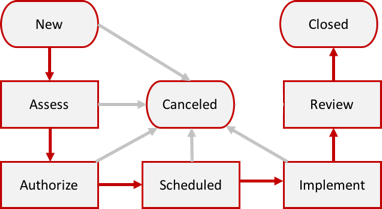

    Figure 1. Normal change state model
    Normal change state model
    2. Assess Yes
    3. Authorize Yes
    4. Scheduled Yes
    5. Implement Yes
    6. Review No
    7. Closed No
    Table 2. Standard change state progression
    State Can be canceled? Diagram
    1. New Yes

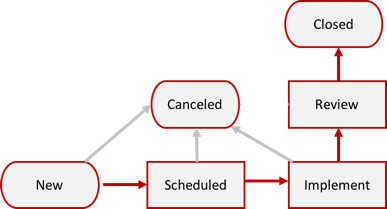

    Figure 2. Standard change state model
    Standard change state model
    2. Scheduled Yes
    3. Implement Yes
    4. Review No
    5. Closed No
    Table 3. Emergency change state progression
    State Can be canceled? Diagram
    1. New Yes

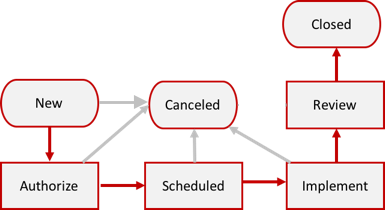

    Figure 3. Emergency change state model
    Emergency change state model
    2. Authorize Yes
    3. Scheduled Yes
    4. Implement Yes
    5. Review No
    6. Closed No
