Continual Improvements dashboard

The Continual Improvements dashboard enables an Improvement Process Coordinator or Manager to determine which process to start next, how many initiatives they have underway at a given time, and what the employee participation is.

This dashboard is included in the Continual Improvements Management plugin.

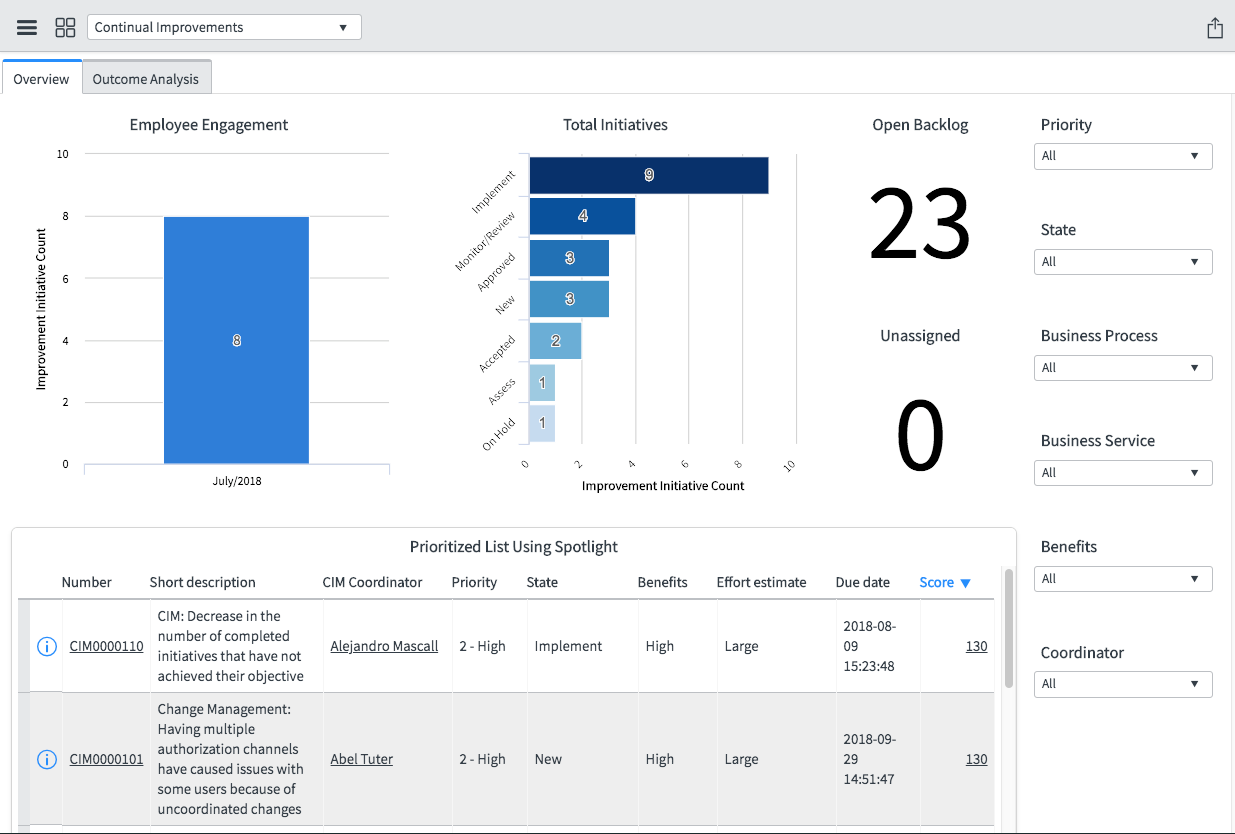

Figure 1. Continual Improvements dashboard, Overview tab

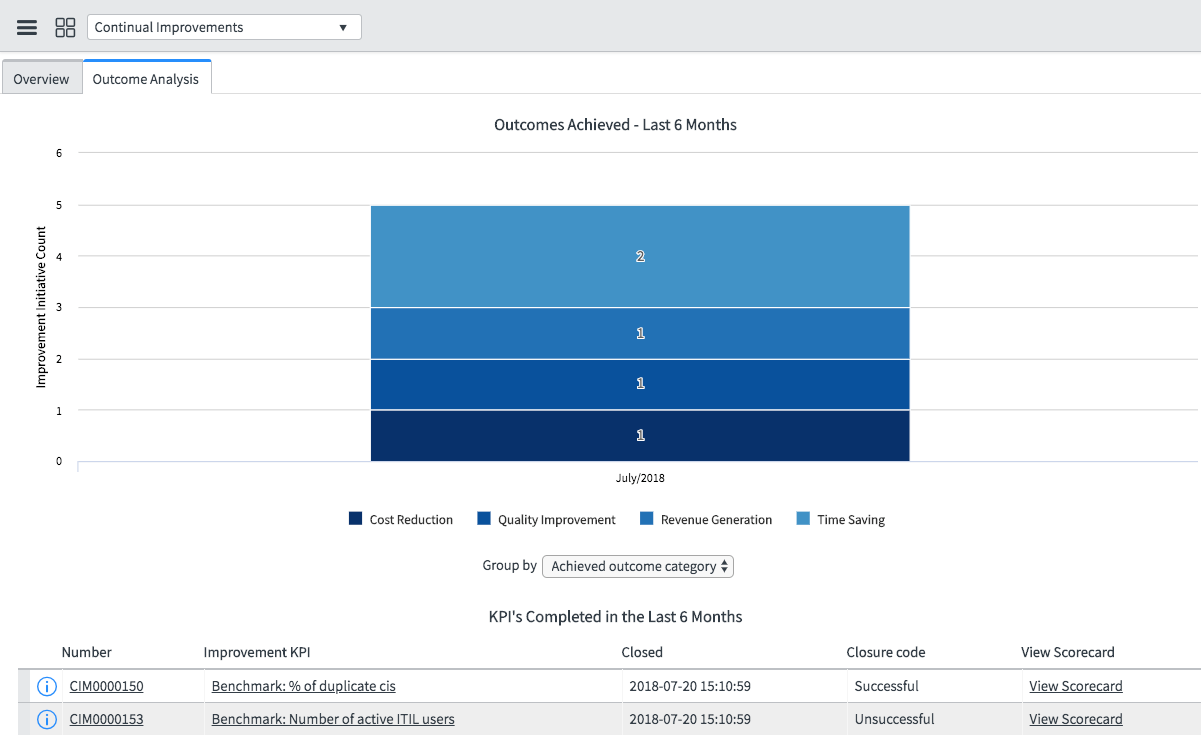

Figure 2. Continual Improvements dashboard - Outcome Analysis tab

End users and roles

End user	Required role
Improvement Process Coordinator: Needs to verify the status of their initiatives.	sn_cim.improvement_coordinator
Improvement Process Manager: Must be able to see the state of all improvement processes and assign employees where they are needed.	sn_cim.improvement_manager

Data visualizations

The Continual Improvements dashboard includes the following visualizations:

Report Title	Type	Description
Employee Engagement	Column	State is not Closed or Cancelled Trended by Created
Total Initiatives	Horizontal Bar	State is not Closed or Cancelled Grouped by State
Open Backlog	Single Score	State is not Closed or Cancelled
Unassigned	Single Score	CIM Coordinator is empty and State is n ot Closed or Cancelled
Prioritized List Using Spotlight	List	Name: Benefit High Query: benefit=high Weight: 50
		Name: Benefit Low Query: benefit=low Weight: 30
		Name: Benefit Medium Query: benefit=medium Weight: 40
		Name: Effort Estimate Extra Large Query: cim_estimate=4 Weight: 50
		Name: Effort Estimate Large Query: cim_estimate=3 Weight: 40
		Name: Effort Estimate Medium Query: cim_estimate=2 Weight: 30
		Name: Effort Estimate Small Query: cim_estimate=1 Weight: 20
		Name: Priority 1 Query: priority=1 Weight: 50
		Name: Priority 2 Query: priority=2 Weight: 40
		Name: Priority 3 Query: priority=3 Weight: 30
		Name: Priority 4 Query: priority=4 Weight: 20
		Name: Priority 5 Query: priority=5 Weight: 10
