Add test results to change requests using test API

Add test results to DevOps change requests using the test capability of the DevOps - POST /devops/tool/{capability} API. The API is available for all test types for various tools connected to DevOps Change Velocity.

For more information about the API, see DevOps - POST /devops/tool/{capability}. To use the API in Azure DevOps, GitHub, and Jenkins, you must use the format mentioned in the respective sections below.

Prerequisites

Role required: sn_devops.admin

You must make sure that the test type you want to use in the API is available as a test type in DevOps Change Velocity and that it is mapped with the respective orchestration tool.

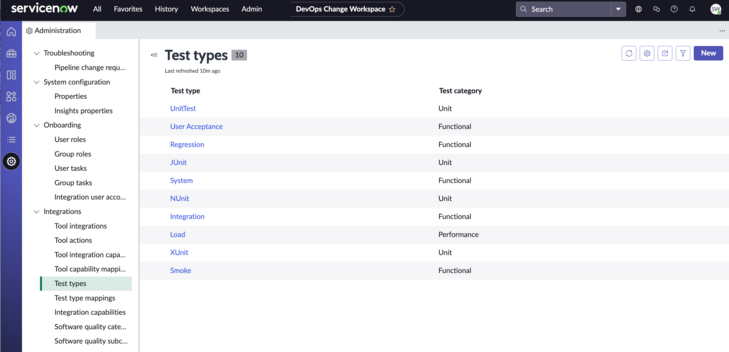

1. Navigate to DevOps Change Workspace > Administration > Integrations > Test types.

   You can also use the classic UI navigation DevOps > Integrations > Test Types.

2. Verify if the test type is available in the Test types table.



3. For custom test types, select New and add the test type to the list.
   1. In the Test type field, enter a name for your test type.
   2. From the Test category list, select the category of your test type.
   3. Select Save.

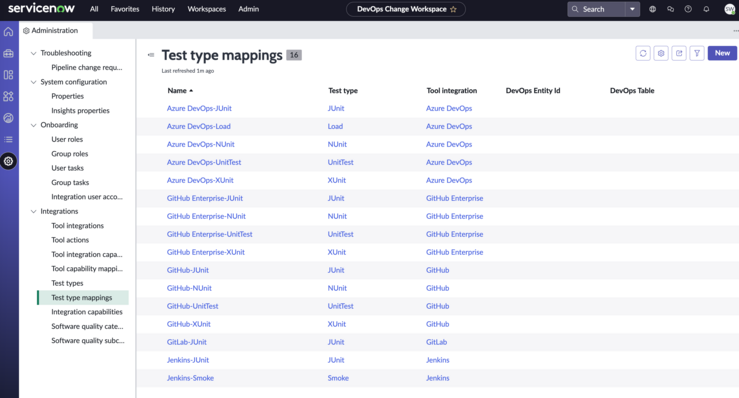

4. Navigate to DevOps Change Workspace > Administration > Integrations > Test type mappings.

   You can also use the classic UI navigation DevOps > Integrations > Test Type Mappings.

5. Verify if the test type is mapped to your orchestration tool.



6. If the mapping is not available, then select New and create the mapping.
   1. From the Test type list, select the test type that you want to map.
   2. From the Tool integration list, select your orchestration tool.
   3. Select Save.

Azure DevOps

For Azure DevOps pipelines, use the format given here to add test results to change requests for various test types.

Format for URL suffix and parameters:

/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>

• The parameter toolId must be a valid Tool Id from a connected and configured tool in DevOps Change Velocity.
• The parameter testType should have a test type mapping in DevOps Change Velocity.

Within the Body, you must pass the parameters based on the test type.

Note:

For the generic connection, use the following:

• username: devops.integration.user
• password: <devops.integration.user password>

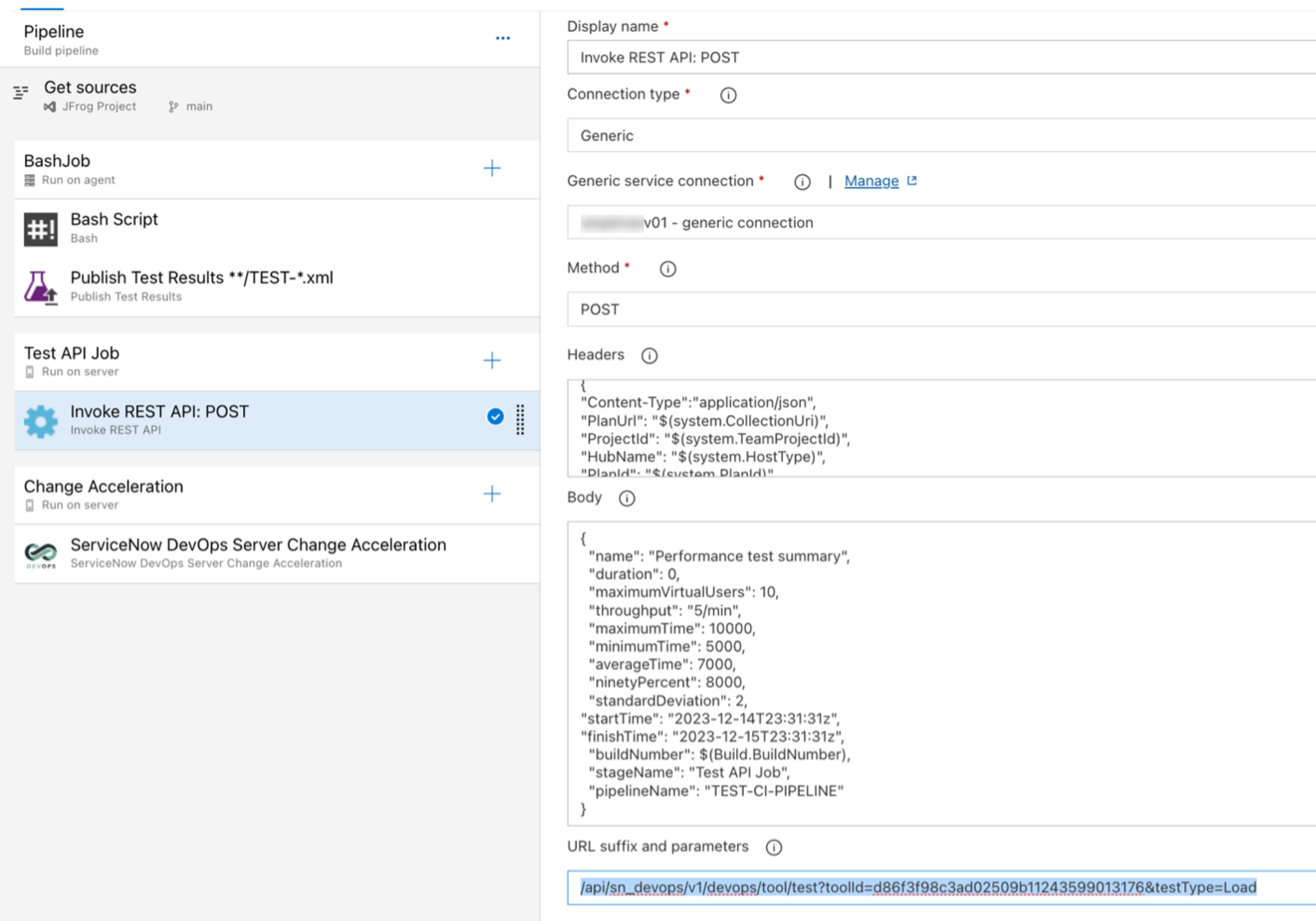

Pipeline configuration for performance tests

Sample parameters for the body:

{
  "name": "Perf. tests DEMO5",
  "duration": 0,
  "maximumVirtualUsers": 10,
  "throughput": "5/min",
  "maximumTime": 10000,
  "minimumTime": 5000,
  "averageTime": 7000,
  "ninetyPercent": 8000,
  "standardDeviation": 2,
"startTime": "2023-12-14T23:31:31z",
  "finishTime": "2023-12-14T23:40:32z",
  "buildNumber": $(Build.BuildNumber),
  "stageName": "Test API Job",
  "pipelineName": "TEST-CI-PIPELINE"
}

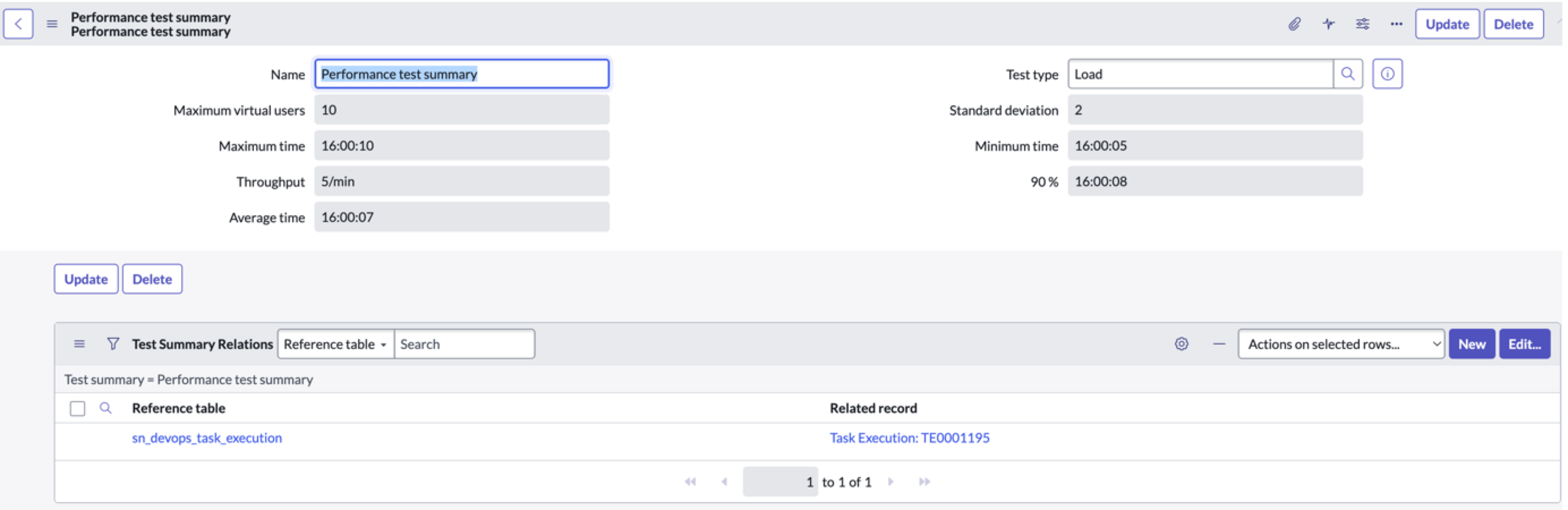

Performance test summary in your Now instance:

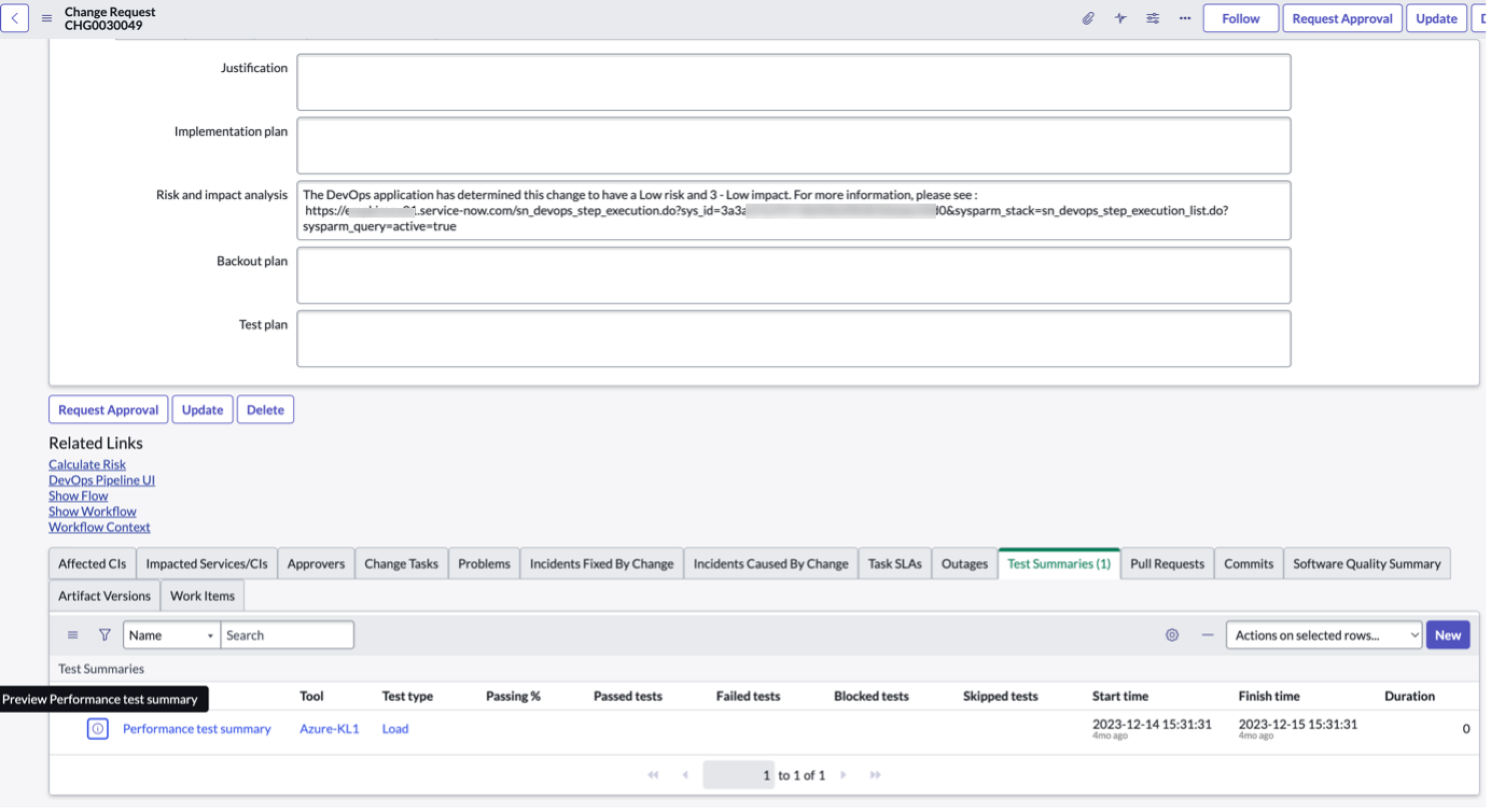

Test summary attached to your DevOps change request:

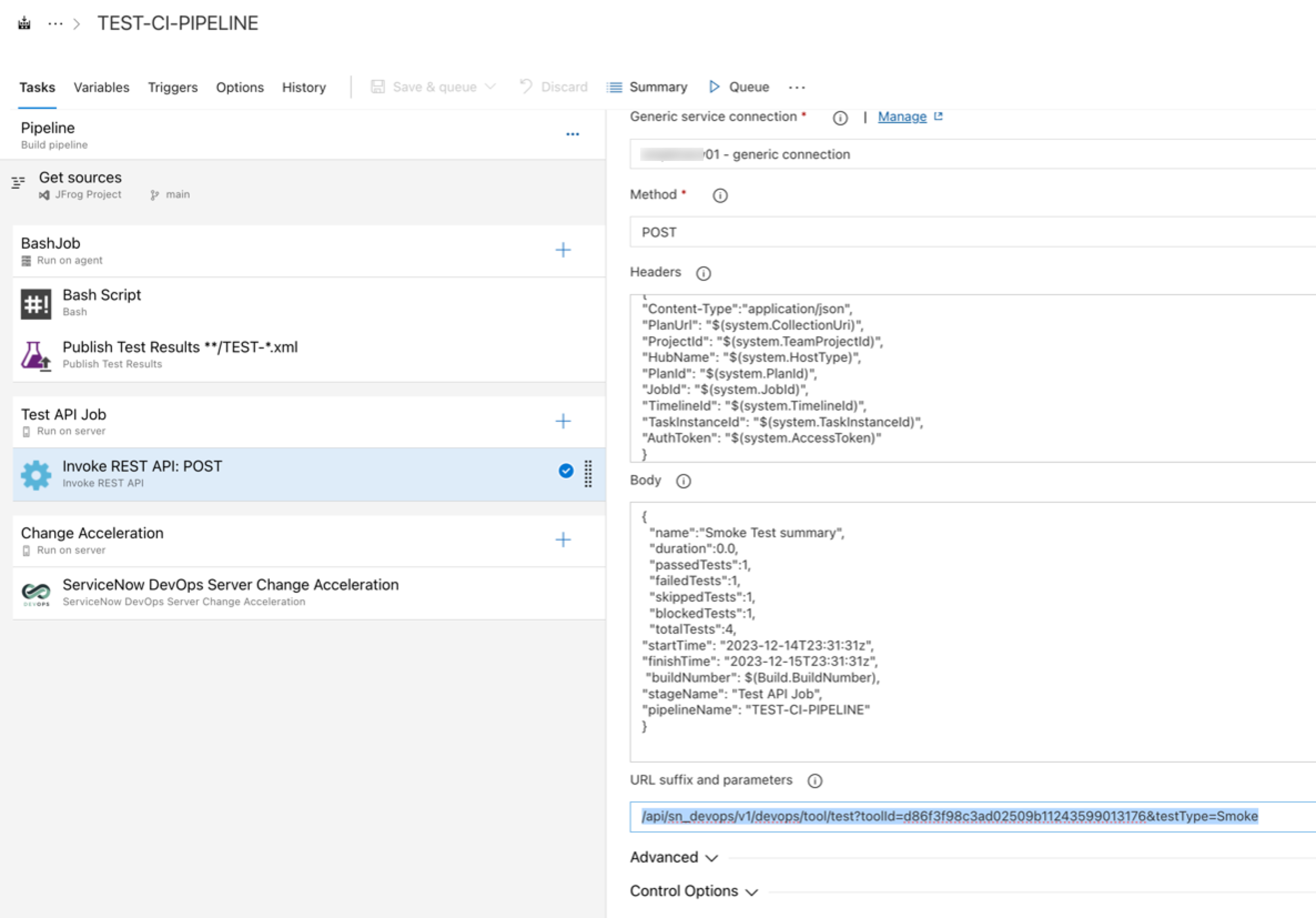

Pipeline configuration for other functional and unit tests

Sample parameters for the body:

{
  "name":" Smoke Test summary",
   "duration":0.0,
   "passedTests":1,
   "failedTests":1,
   "skippedTests":1,
   "blockedTests":1,
   "totalTests":4,
  "startTime": "2023-12-14T23:31:31z",
  "finishTime": "2023-12-15T23:31:31z",
  "buildNumber": $(Build. BuildNumber),
 "stageName": "Test API Job",
  "pipelineName": "TEST-CI-PIPELINE"
}

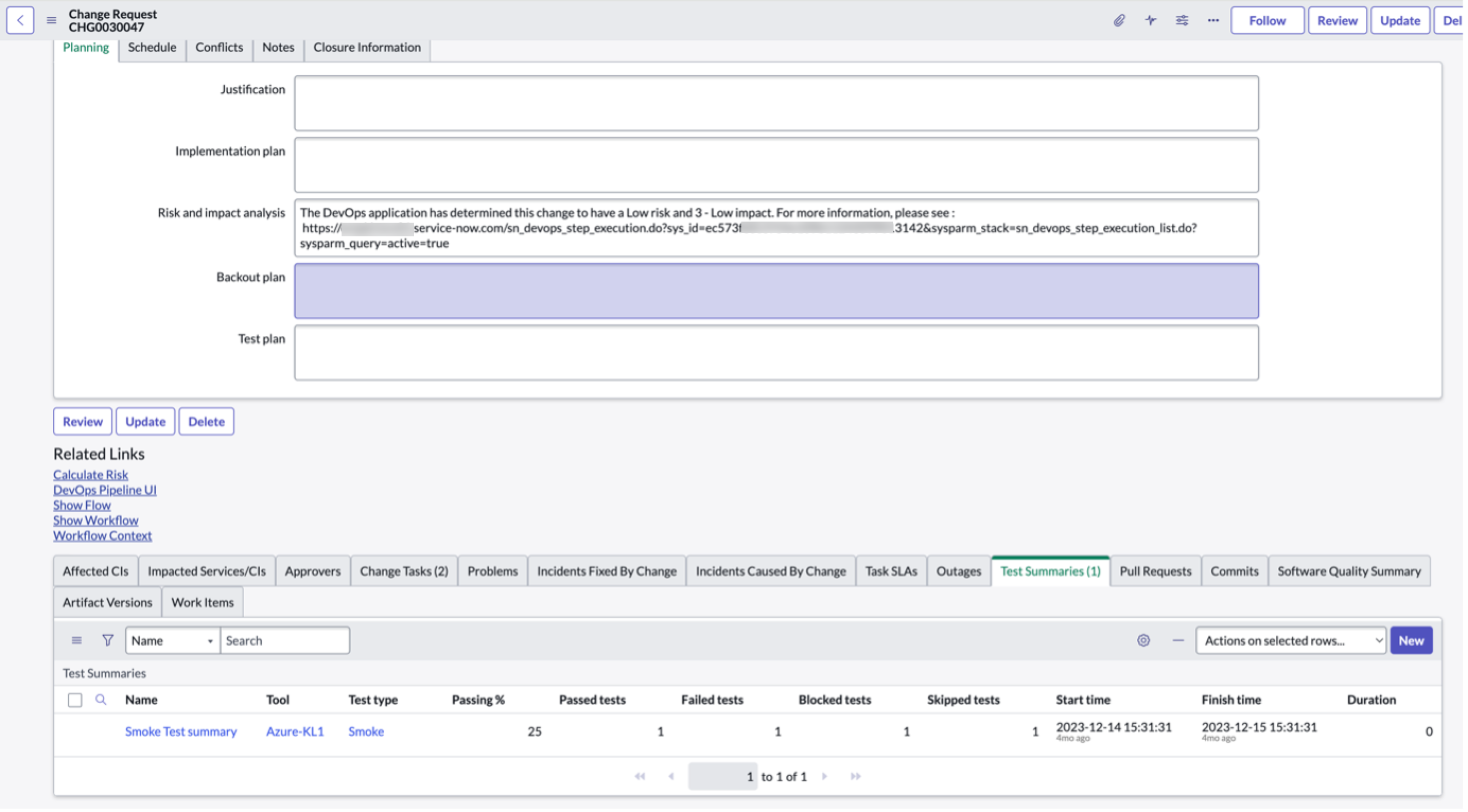

Test summary attached to your DevOps change request:

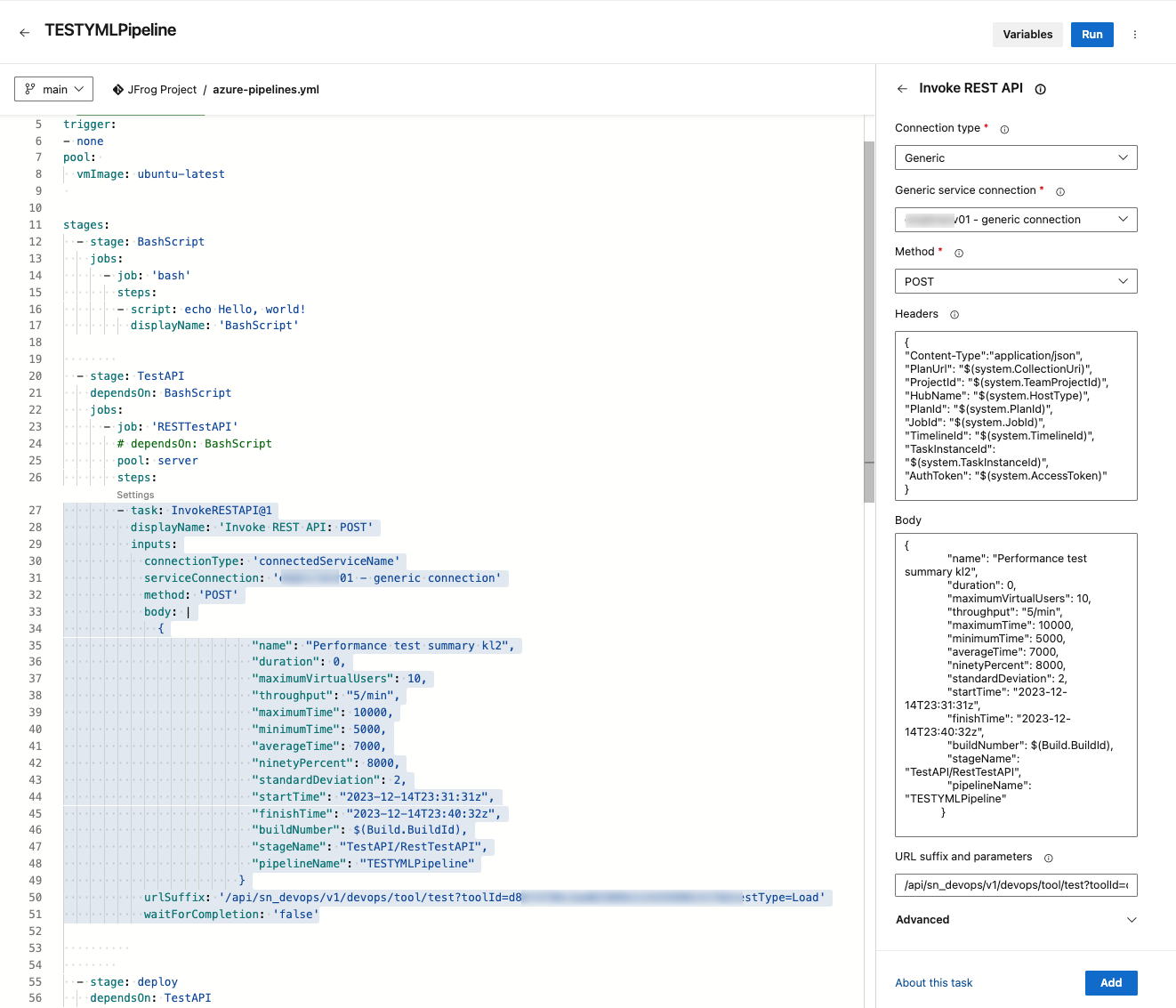

Azure DevOps YAML pipeline

Sample pipeline:

stages:
  - stage: BashScript
    jobs:
      - job: 'bash'
        steps:
        - script: echo Hello, world!
          displayName: 'BashScript'


  - stage: TestAPI
    dependsOn: BashScript
    jobs:
      - job: 'RESTTestAPI'
        # dependsOn: BashScript
        pool: server
        steps:
        - task: InvokeRESTAPI@1
          displayName: 'Invoke REST API: POST'
          inputs:
            connectionType: 'connectedServiceName'
            serviceConnection: 'v01 - generic connection'
            method: 'POST'
            body: |
              {
                            "name": "Performance test summary kl2",
                            "duration": 0,
                            "maximumVirtualUsers": 10,
                            "throughput": "5/min",
                            "maximumTime": 10000,
                            "minimumTime": 5000,
                            "averageTime": 7000,
                            "ninetyPercent": 8000,
                            "standardDeviation": 2,
                            "startTime": "2023-12-14T23:31:31z",
                            "finishTime": "2023-12-14T23:40:32z",
                            "buildNumber": $(Build.BuildId),
                            "stageName": "TestAPI/RestTestAPI",
                            "pipelineName": "TESTYMLPipeline"
                          }
            urlSuffix: '/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>'
            waitForCompletion: 'false'

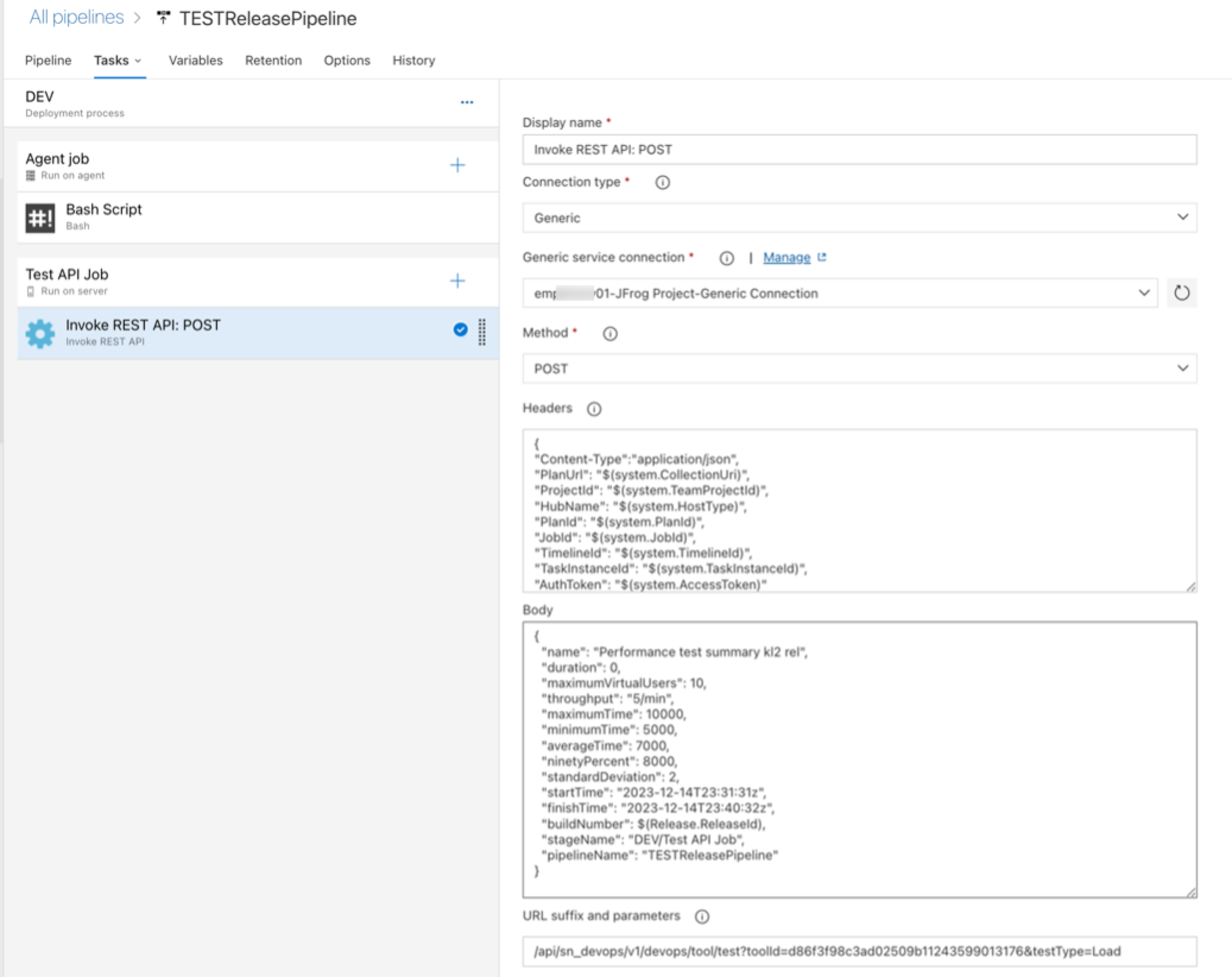

Release pipeline

GitHub

For GitHub pipelines, use the format given here to add test results to change requests for various test types.

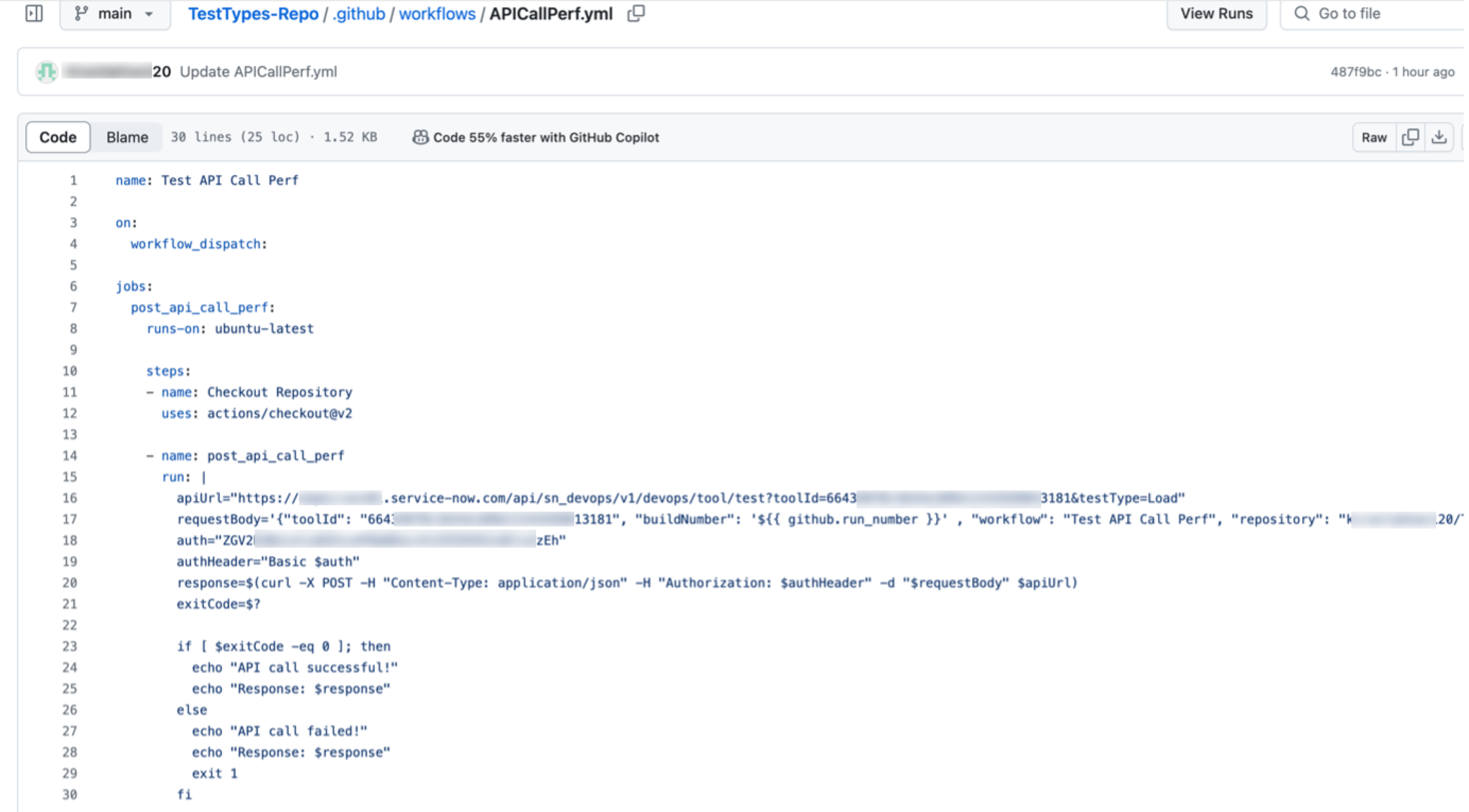

Pipeline configuration for performance tests

Sample pipeline:

name: Test API Call Perf

on:
  workflow_dispatch:

jobs:
  post_api_call_perf:
    runs-on: ubuntu-latest

    steps:
    - name: Checkout Repository
      uses: actions/checkout@v2

    - name: post_api_call_perf
      run: |
        apiUrl="https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolId>&testType=<performance_test_type>"
        requestBody='{"toolId": "<devops_ToolId>", "buildNumber": '${{ github.run_number }}' , "workflow": "Test API Call Perf", "repository": "<your_GitHub_repository>", "stageName":"post_api_call_perf","pipelineName":"Test API Call Perf", "testType": "Load", "buildNumber": '${{ github.run_number }}', "buildId": '${{ github.run_id }}' , "attemptNumber" : '${{ github.run_attempt }}', "name": "GitHub Test Summary - Performance 1.0","duration": 0.0,"maximumVirtualUsers": 10,"throughput": "5/min","maximumTime": 1000,"minimumTime": 5000,"averageTime": 7000,"startTime": "2023-12-14T23:31:31z","finishTime": "2023-12-14T23:31:31z","ninetyPercent": 8000, "standardDeviation": 2.0 }'
        auth="devops.integration.user:<password> in base64 encoded"
        authHeader="Basic $auth"
        response=$(curl -X POST -H "Content-Type: application/json" -H "Authorization: $authHeader" -d "$requestBody" $apiUrl)
        exitCode=$?

        if [ $exitCode -eq 0 ]; then
          echo "API call successful!"
          echo "Response: $response"
        else
          echo "API call failed!"
          echo "Response: $response"
          exit 1
        fi

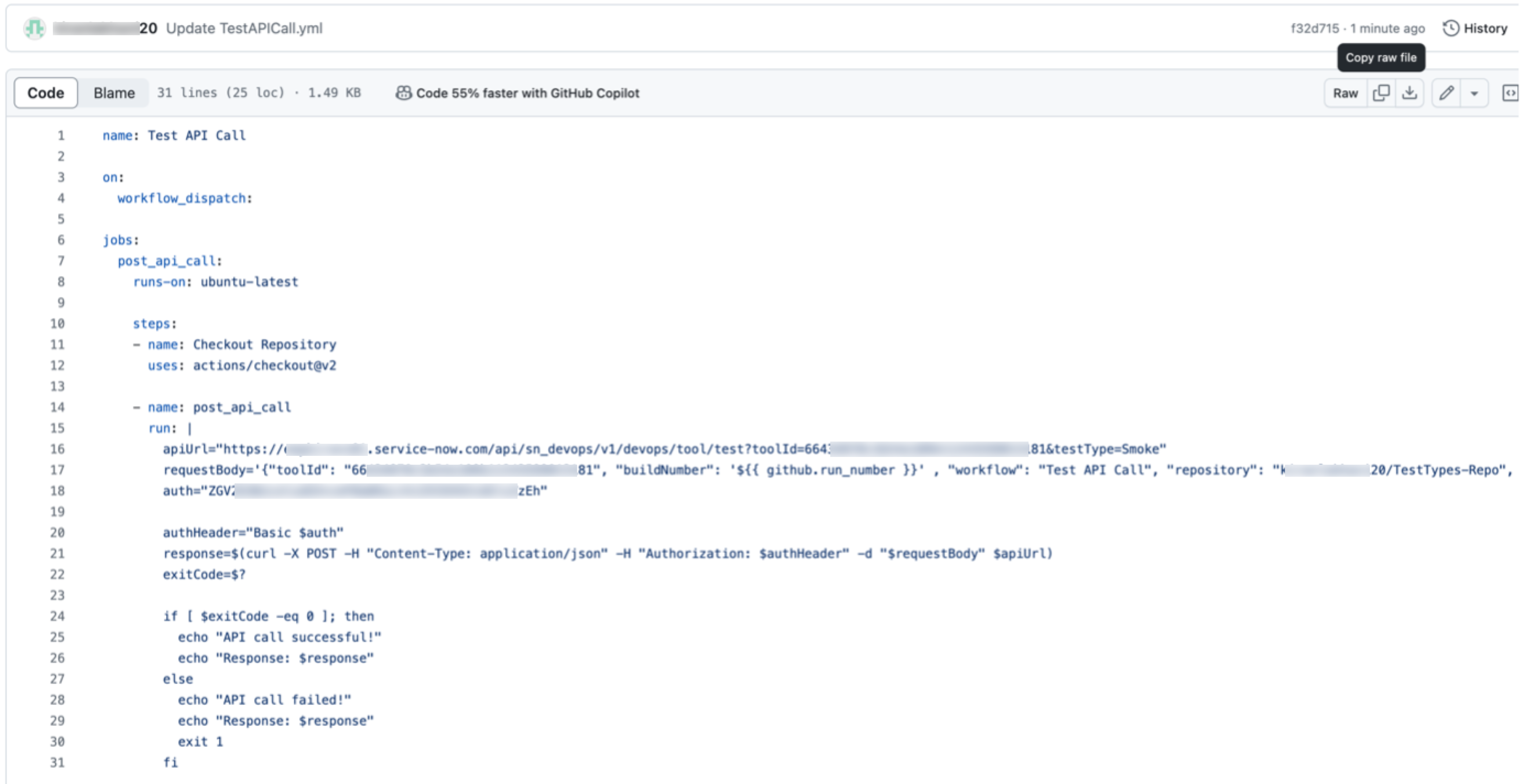

Pipeline configuration for other functional and unit tests

Sample pipeline:

name: Test API Call

on:
  workflow_dispatch:

jobs:
  post_api_call:
    runs-on: ubuntu-latest

    steps:
    - name: Checkout Repository
      uses: actions/checkout@v2

    - name: post_api_call
      run: |
        apiUrl="https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>"
        requestBody='{"toolId": "<devops_ToolID>", "buildNumber": '${{ github.run_number }}' , "workflow": "Test API Call", "repository": "<your_GitHub_repository>", "stageName":"post_api_call","pipelineName":"TestAPICall", "testType": "Smoke", "buildNumber": '${{ github.run_number }}', "buildId": '${{ github.run_id }}' , "attemptNumber" : '${{ github.run_attempt }}', "testSummaries": [{"name": "GitHub Test Summary - smoke","passedTests": 1,"failedTests": 1,"skippedTests": 1,"ignoredTests": 0,"blockedTests": 1,"totalTests": 4,"startTime": "2023-12-14T23:31:31z","endTime": "2023-12-14T23:31:31z","duration": 0.0,"testType": "Smoke", "suites": []}] }'
        auth="devops.integration.user:<password> in base64 encoded"

        authHeader="Basic $auth"
        response=$(curl -X POST -H "Content-Type: application/json" -H "Authorization: $authHeader" -d "$requestBody" $apiUrl)
        exitCode=$?

        if [ $exitCode -eq 0 ]; then
          echo "API call successful!"
          echo "Response: $response"
        else
          echo "API call failed!"
          echo "Response: $response"
          exit 1
        fi

Jenkins

For Jenkins pipelines, use the format given here to add test results to change requests for various test types.

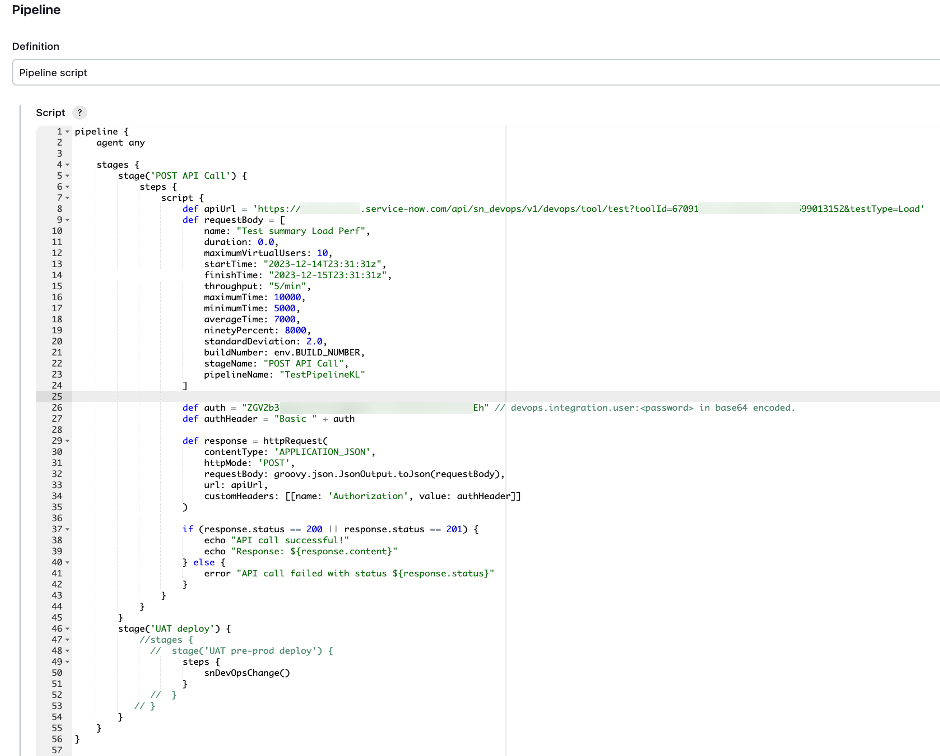

Pipeline configuration for performance tests

Sample pipeline:

pipeline {
    agent any
    stages {
        stage('POST API Call') {
            steps {
                script {
                    def apiUrl = 'https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<performance_test_type>'
                    def requestBody = [
                        name: "Performance Load tests jenkins",
                        duration: 0.0,
                        maximumVirtualUsers: 10,
                        throughput: "6/min",
                        maximumTime: 1000,
                        minimumTime: 300,
                        averageTime: 700,
                        ninetyPercent: 600,
                        standardDeviation: 2.0,
                        startTime: "2023-12-14T23:31:31z",
                        finishTime: "2023-12-14T23:40:32z",
                        buildNumber: env.BUILD_NUMBER,
                        stageName: "POST API Call",
                        pipelineName: "KLPerformanceTestPipeline"
                    ]
                    def auth = "<password>" // devops.integration.user:<password> in base64 encoded.
                    def authHeader = "Basic " + auth
                    def response = httpRequest(
                        contentType: 'APPLICATION_JSON',
                        httpMode: 'POST',
                        requestBody: groovy.json.JsonOutput.toJson(requestBody),
                        url: apiUrl,
                        customHeaders: [[name: 'Authorization', value: authHeader]]
                    )

                    if (response.status == 200 || response.status == 201) {
                        echo "API call successful!"
                        echo "Response: ${response.content}"
                    } else {
                        error "API call failed with status ${response.status}"
                    }
                }
            }
        }
    }
}

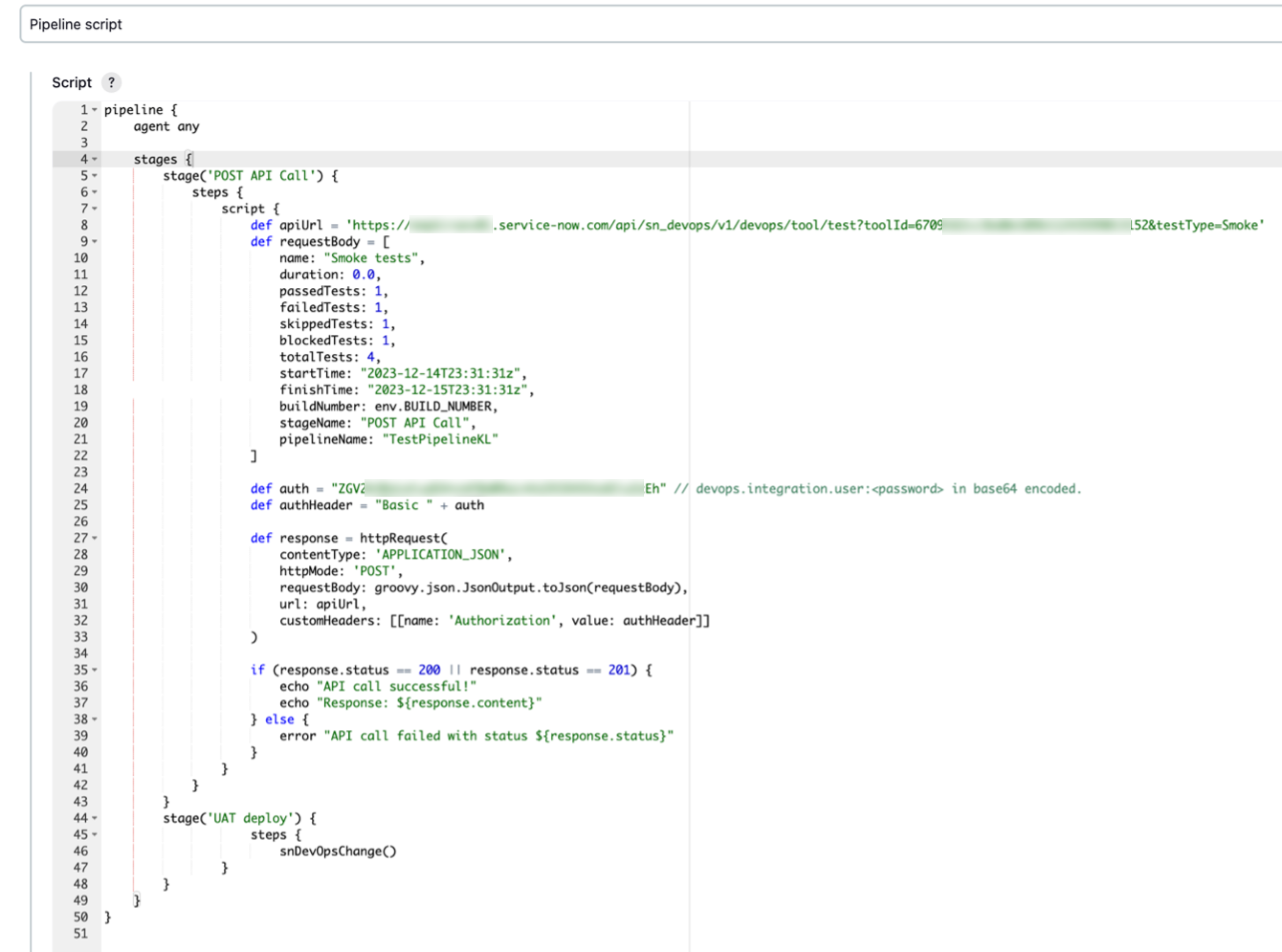

Pipeline configuration for other functional and unit tests

Sample pipeline:

pipeline {
    agent any

    stages {
        stage('POST API Call') {
            steps {
                script {
                    def apiUrl = 'https://<your_instance>.service-now.com/api/sn_devops/v1/devops/tool/test?toolId=<devops_ToolID>&testType=<test_type>'
                    def requestBody = [
                        name: "Smoke tests",
                        duration: 0.0,
                        passedTests: 1,
                        failedTests: 1,
                        skippedTests: 1,
                        blockedTests: 1,
                        totalTests: 4,
                        startTime: "2023-12-14T23:31:31z",
	                    finishTime: "2023-12-15T23:31:31z",
                        buildNumber: env.BUILD_NUMBER,
                        stageName: "POST API Call",
                        pipelineName: "TestPipelineKL"
                    ]

                    def auth = "<password>" // devops.integration.user:<password> in base64 encoded.
                    def authHeader = "Basic " + auth

                    def response = httpRequest(
                        contentType: 'APPLICATION_JSON',
                        httpMode: 'POST',
                        requestBody: groovy.json.JsonOutput.toJson(requestBody),
                        url: apiUrl,
                        customHeaders: [[name: 'Authorization', value: authHeader]]
                    )

                    if (response.status == 200 || response.status == 201) {
                        echo "API call successful!"
                        echo "Response: ${response.content}"
                    } else {
                        error "API call failed with status ${response.status}"
                    }
                }
            }
        }
    }
}

Limitations of the test API

• Waiting logic will not be taken care of.
• Re-run scenarios cannot be handled.
