Users — Network

  • Release version: Washingtondc
  • Updated February 1, 2024
  • 1 minute to read

    • Get insights into multiple facets of user's network configuration. It displays crucial information such as the network server, WiFi details, wired connection details, and application network hops.

    Network

    The network details overview displays information about the user's network connection, including the connection status, WiFi signal strength, WiFi protocol, and WiFi BSSID (Basic Service Set Identifier). Under WiFi details, you can find metric names and corresponding values, providing a comprehensive overview of their WiFi performance. Similarly, the wired connection details section presents metric names and values related to the user's wired network connection.

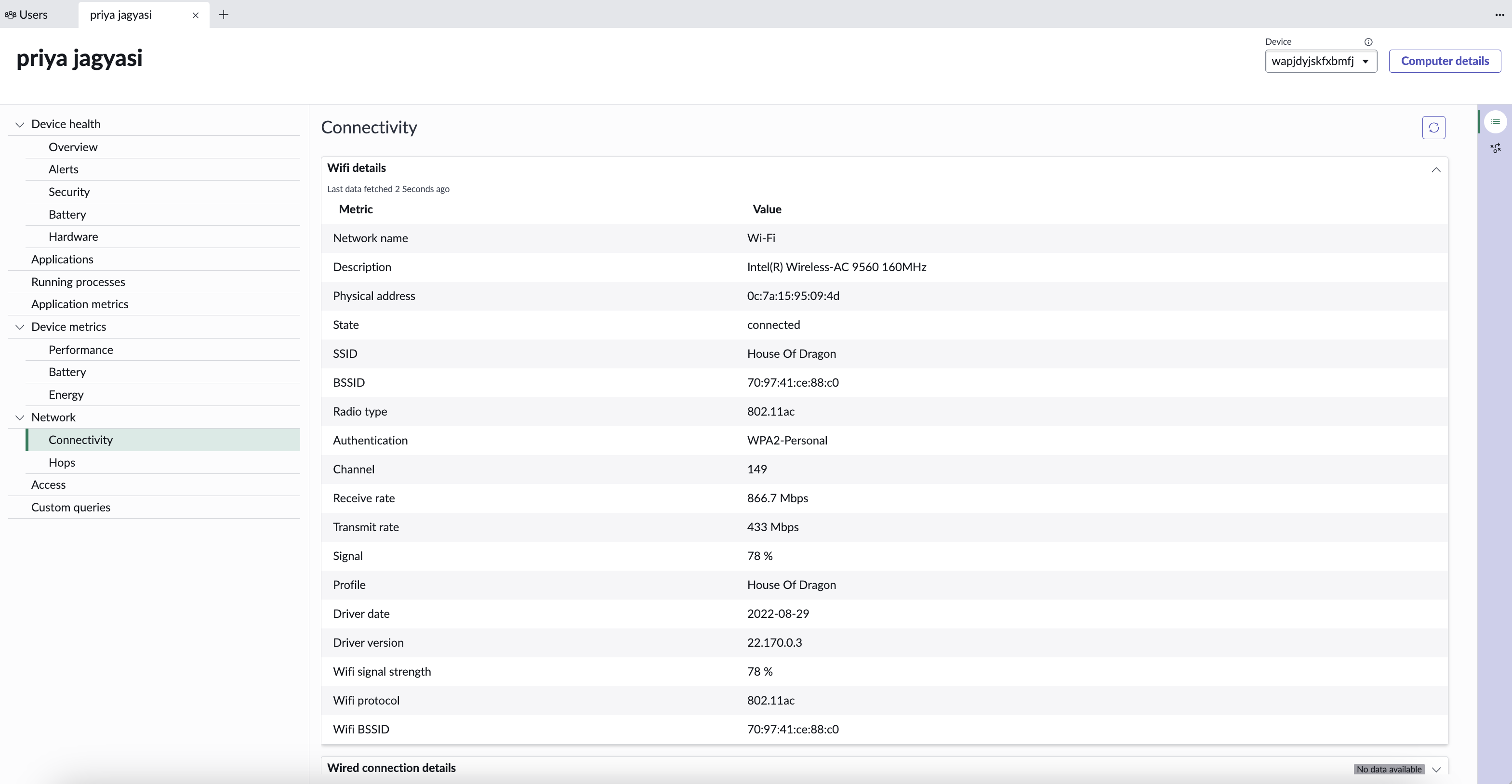

    Figure 1. Network section
    Insights into crucial network information including network server, WiFi details, and wired connection details in the Network section.

    Hops

    In the Hops section, use the Applications drop-down to select the desired application and view its hop information. To get the latest information, select Run. This section showcases the applications/destination drop-down menu, each hop's domain name and address, as well as the round-trip times (RTT1, RTT2, RTT3). This information assists in understanding and optimizing their network configurations for optimal performance.

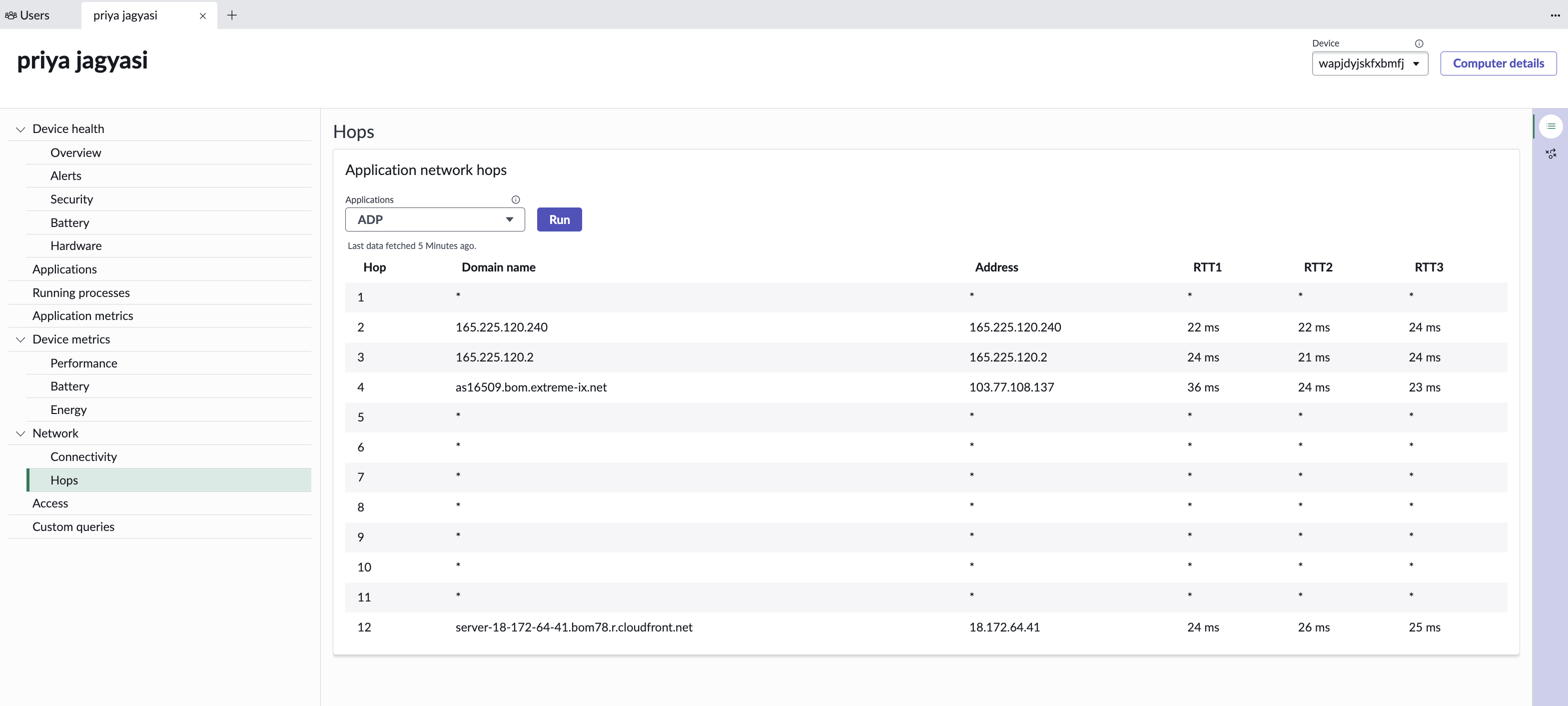

    Figure 2. Hops section
    View hop details like domain name, address, and round-trip times for comprehensive insights.
    For more information on the network card, see Network page.
