Monitoring Instance Data Replication

You can monitor the status of active producer and consumer replication sets, scheduled jobs, seeding requests, and license or usage details through the Instance Data Replication (IDR) Monitoring Dashboard.

Accessing the IDR Monitoring dashboard

Users with the admin or idr_admin role can access the dashboard.

Access the IDR Monitoring dashboard in the following way:

• Navigate to Instance Data Replication > Monitoring Dashboard.
• Choose either: IDR Overall Monitoring or IDR License and Usage Details dashboard.

IDR Overall Monitoring dashboard

The IDR Overall Monitoring dashboard monitors the following:

• Active Producer Replication Sets
• Active Consumer Replications Sets
• Suite of IDR Scheduled Jobs
• Producer Seeding Requests Within Last 7 Days
• Consumer Seeding Requests Within Last 7 Days

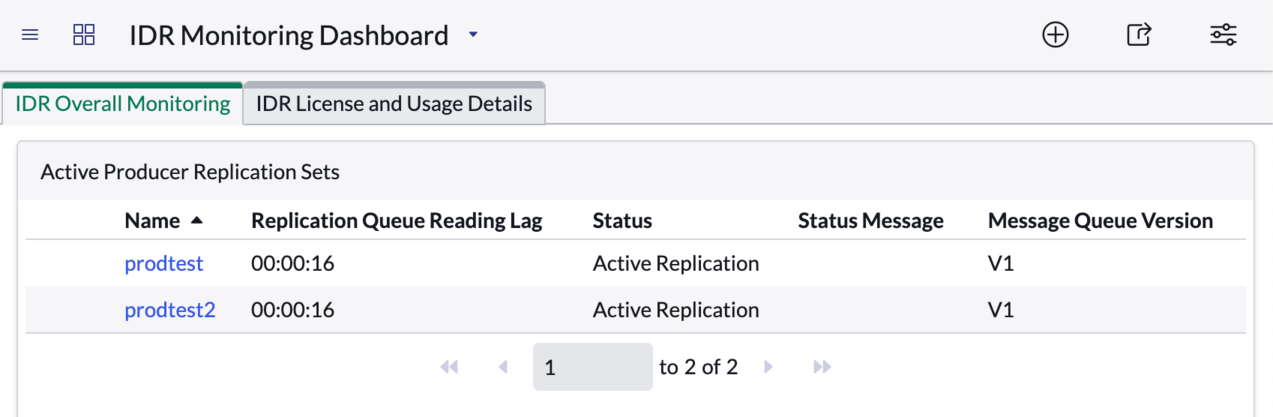

Figure 1. IDR overall monitoring dashboard

Active Producer Replication Sets

The Active Producer Replication Sets monitors your producer replication set status and reports the data lag time between your instance and the replication queue.

Field	Description
Name	Name of the producer replication set
Replication Queue Reading Lag	Time between a record change on the producer instance and the moment that it’s sent over the outbound replication queue
Status	Status of a replication set, either active or in error
Status Message	Message that describes the error status
Message Queue Version	Version of the Message Queue. Either V1 (Legacy) or V2 (Hermes)

Active Consumer Replication Sets

Active Consumer Replication Sets monitors your consumer replication set status, reports the network lag time, and reports the data lag time between the producer instance and consumer instance.

Field	Description
Name	Name of the consumer replication set.
Data Lag	Time between a record change on the producer instance and the moment that it’s recorded in the consumer instance.
Network Lag	Time between a record change log in the outbound replication queue and the moment that it’s recorded in the consumer instance.
Status	Status of a replication set, either active or in error.
Status Message	Message that describes the error status.
Message Queue Version	Version of the Message Queue. Either V1 (Legacy) or V2 (Hermes)

Suite of IDR Scheduled Jobs

The suite of IDR scheduled jobs poll for data changes, requests, and check the health of your producer and consumer instances. You can monitor the following jobs:

Jobs	Description
Hermes Metrics Collection	Collects metrics related to the Hermes Messaging Service.
Hermes Periodic Purge	Cleans obsolete cached data in the Hermes API.
Hermes Topics Util	Synchronizes topics across Hermes clusters. Initially, topics are created in a single Hermes cluster. This job detects new topics and creates the same topics in the remaining Hermes clusters.
IDRConsumerJob	Polls for record changes and seeding requests on the consumer instance in 15-second intervals.
IDRDeltaConsumerJob	Beginning in the San Diego release, when a consumer instance subscribes to a producer instance that is outside the local datacenter, the IDRDeltaConsumerJob job is created on the producer instance. The function is the same as the IDRConsumerJob. The three-letter code denotes the datacenter location.
IDRHermesDeltaConsumer	Polls for consumer record changes from the Hermes delta topic in 15-second intervals.
IDRHeartBeatJob	Updates information about the health of every active producer or consumer set.
IDRMetadataConsumerJob	Polls for metadata record changes on the consumer instance in 15-second intervals.
IDRProducerJob	Polls for new, updated, or deleted records in the data replication queue for a producer instance in 15-second intervals.
IDRSeedingProducerJob	Checks for new seeding requests coming from consumer instances.

Note:

You can set when your IDR scheduled jobs run and configure a periodic trigger that specifies how often the job runs.

Table 1. IDR Scheduled Jobs field types

Field	Description
Name	Scheduled job name.
Next Action	Date and time when the job next runs.
Trigger type	Job that you can configure to run daily, weekly, monthly, periodically, once, on-demand, or business calendar start or end date. The trigger can repeat daily, hourly, by minute, or by second.
Job ID	ID of the scheduled job.
State	State of the job, for example, ready.

Producer Seeding Request Within Last 7 Days

You can monitor the status of a producer seeding request within the last seven days.

Field	Description
Replication Set	Producer set and the consumer set.
Status	Status of the seeding request. The status can be completed, in progress, or failed.
Start Time	Time that the seeding begins.
End Time	Time that the seeding ends.
Percent Complete	Percentage of the seeding request job that is complete.

Consumer Seeding Request Within Last 7 Days

You can monitor the status of a consumer seeding request within the last seven days.

Field	Description
Replication Set	Corresponding consumer set.
Status	Status of the seeding request. The status can be completed, in progress, or failed.
Start Time	Time that the seeding begins.
End Time	Time that the seeding ends.
Percent Complete	Percentage of the seeding request job that is complete.

IDR dashboard properties

You can access the IDR dashboard properties by navigating to Instance Data Replication > Properties.

You can change the following properties on your dashboard:

Property field	Description
Minutes of lag before the Data Lag field are highlighted in red on the IDR Monitoring Dashboard	Data Lag field that is part of the Active Consumer Replication set. If the actual lag time is greater than the time threshold that you set, the system highlights the field. The default is 15 minutes.
Minutes of lag before the Network Lag field is highlighted in red on the IDR Monitoring Dashboard	Network Lag field that is part of the Active Consumer Replication set. If the actual lag time is greater than the time threshold that you set, the system highlights the field. The default is 15 minutes.
Minutes of lag before the system highlights the Replication Queue Reading Lag field in red on the IDR Monitoring Dashboard	Replication Queue Reading Lag field that is part of the Active Consumer Replication set. If the actual lag time is greater than the time threshold that you set, the system highlights the field. The default is 15 minutes.

Note:

You can set the colors on the fields through the personalize list columns (v_idr_dashboard_list.do).

IDR License and Usage Details dashboard

The IDR License and Usage Details dashboard monitors the following:

• Subscriber Sent Messages
• Subscriber Received Messages
• IDR License Details
• IDR Messages Sent
• IDR Messages Received

Subscriber Sent Messages

The number of messages each subscriber instance sent, by month.

Figure 2. Subscriber messages sent

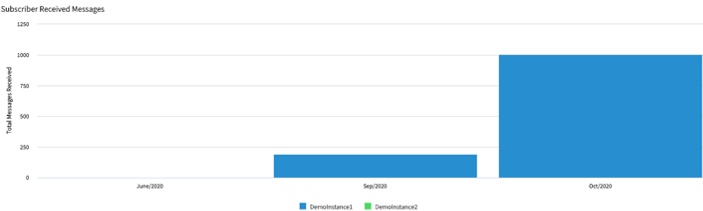

Subscriber Received Messages

The number of messages each subscriber instance received, by month.

Figure 3. Subscriber messages received

IDR License Details

You can monitor the status of a consumer seeding request within the last seven days.

Field	Description
Name	Name of the IDR license.
Type	Type of subscription: Per-User for user subscriptions, Capacity for data driven subscriptions, or Unrestricted User for subscriptions capped by the maximum user count.
Category	License category: ServiceNow license or Store App license.
Start date	Start of the licensing period.
End date	End of the licensing period.
Display only	Does not support resource allocation or monitoring.
Purchased	Number of purchased licenses.
Allocated	Number of allocated licenses.

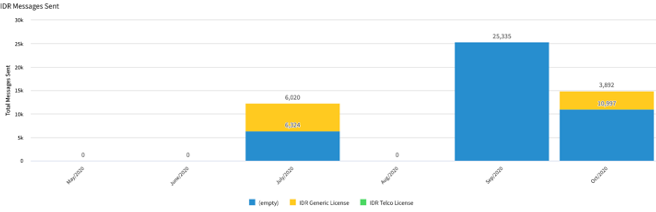

IDR Messages Sent

The number of messages sent, per license, monthly.

Figure 4. IDR messages sent

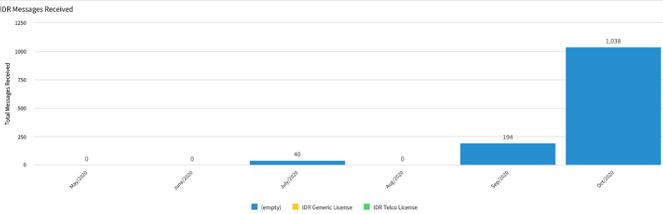

IDR Messages Received

The number of messages received, per license, monthly.

Figure 5. IDR messages received
