Create a MetricBase gap trigger

Create a MetricBase gap trigger to alert you when MetricBase stops receiving data.

Before you begin

Role required: admin

About this task

Gap triggers execute when MetricBase stops receiving data for a specified period.

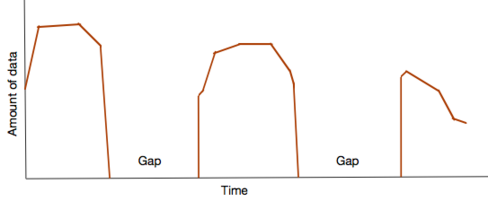

Figure 1. Gap trigger executes on missing data

You can define multiple trigger levels to indicate different severities. For example, you can set a gap of 10 minutes as level 1, a gap of 20 minutes as level 2, and so on. Each level should trigger a different Workflow Studio flow. The difference between gap durations on different levels must be at least 10 minutes. For example, if you set level 1 to a gap of 10 minutes, you must set level 2 to a gap of 20 minutes or more.

Note:

If you make the gap durations between levels less than 10 minutes, MetricBase displays an error message and deletes the level that you added.

Polling frequency is calculated using the difference between gap durations on different levels and dividing by 2 (rounded down). For example, given the following:

• Level 1 triggers after 5 minutes of missing data
• Level 2 triggers after 30 minutes of missing data

The polling frequency is 12 minutes, because Floor((30-5)/2) = 12 minutes.

The maximum polling frequency is every 5 minutes, and the minimum frequency is every 30 minutes. If a trigger has only one level, the polling frequency is 30 minutes.

MetricBase searches through the data that is stored in the MetricBase database, not through incoming data. Therefore, a gap trigger might execute after the gap when data is missing. For example, if MetricBase polls every 10 minutes and the gap is 30 minutes of missing data, the trigger might execute as late as 40 minutes after the data was last received.

Procedure

1. Navigate to All > MetricBase > Workflow Studio > Trigger Definitions.
2. Select New.
3. On the MetricBase Trigger Creation form, select the Gap Trigger option.
4. On the form, fill in the fields.
   The trigger levels are not initially visible on this form. You configure the levels later.

   Table 1. MetricBase Gap Trigger form

   Field	Description
   Name	Name of the trigger.
   Table name	Table in the MetricBase database that contains the metric that you want to monitor. The only tables that appear when you click the search icon are the tables that you specified in the time-series metrics. If you select a metric before you select a table, only tables that have that metric appear in the Table name dialog box.
   Active	Option to activate the trigger.
   Metric	Table metric that you want to monitor that is specified by the Table name. The only metrics that appear when you click the search icon are the metrics in that table. If you select a metric before you specify a Table name, the metrics in all your time-series metrics appear. After you select a metric, only the tables that contain that metric appear when you click the search icon that is next to the Table name.
   Description	Description of the trigger.

5. Select Save.
   A new record is created.
6. In the MetricBase Gap Trigger Levels area on the record you just created, double-click each cell to add values that specify trigger parameters.

   Field	Description
   Level	Numbers that indicate increasing severity. For example, you might define level 1 to be no data for 10 minutes. Level 2 might be no data for 20 minutes. Each level should trigger a different flow. Level is often used in Condition Scripts. See Execute triggers conditionally.
   Function	Function, Greater than or is, which means that this trigger executes when the gap in received data is greater than the value that you specify in the Window field. There is only one option for the function, and it cannot be left empty or MetricBase displays an error message.
   Window	Length of time that no data has been received that executes the trigger. The format is hours:minutes:seconds. For example, 00:20:00 means that this trigger executes after 20 minutes of missing data.

7. Optional: Add rows to the table to create multi-layered triggering behavior.
   Typically, each additional row (level) indicates a more severe condition. The Workflow Studio flow associated with the level should warn with increasing severity.
8. Select Update.
9. Optional: Add a triggering condition that determines whether a trigger executes a Workflow Studio flow.
   See Execute triggers conditionally.

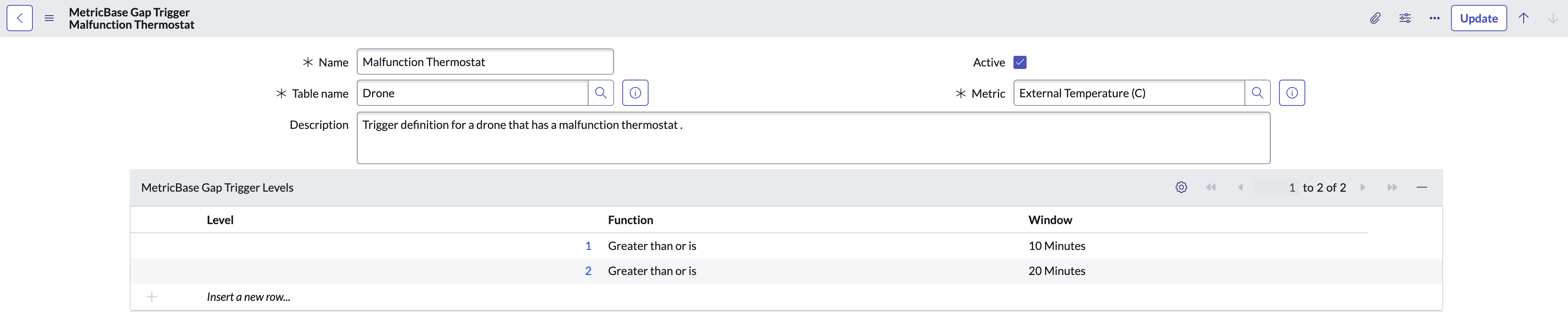

Gap Trigger form

What to do next

Associate this trigger with a Workflow Studio flow. For more information, see Assign a trigger to a flow.
