Create Data relationships

Create the data relationships in the Template Configurations module, which helps you to navigate from a record in the template configuration to any table. When you create these paths, you can fetch the necessary data from each of these records in the Operational Resilience report template.

Before you begin

Role required: sn_oper_res.admin

Procedure

1. Navigate to All > Digital resilience incident reporting > Template Configurations.
2. In the Template Configurations module, open the template configuration that you created.
3. Select New in the Data relationships related list.

   The Data relationship new record is displayed.

4. Add the source and target relationships.

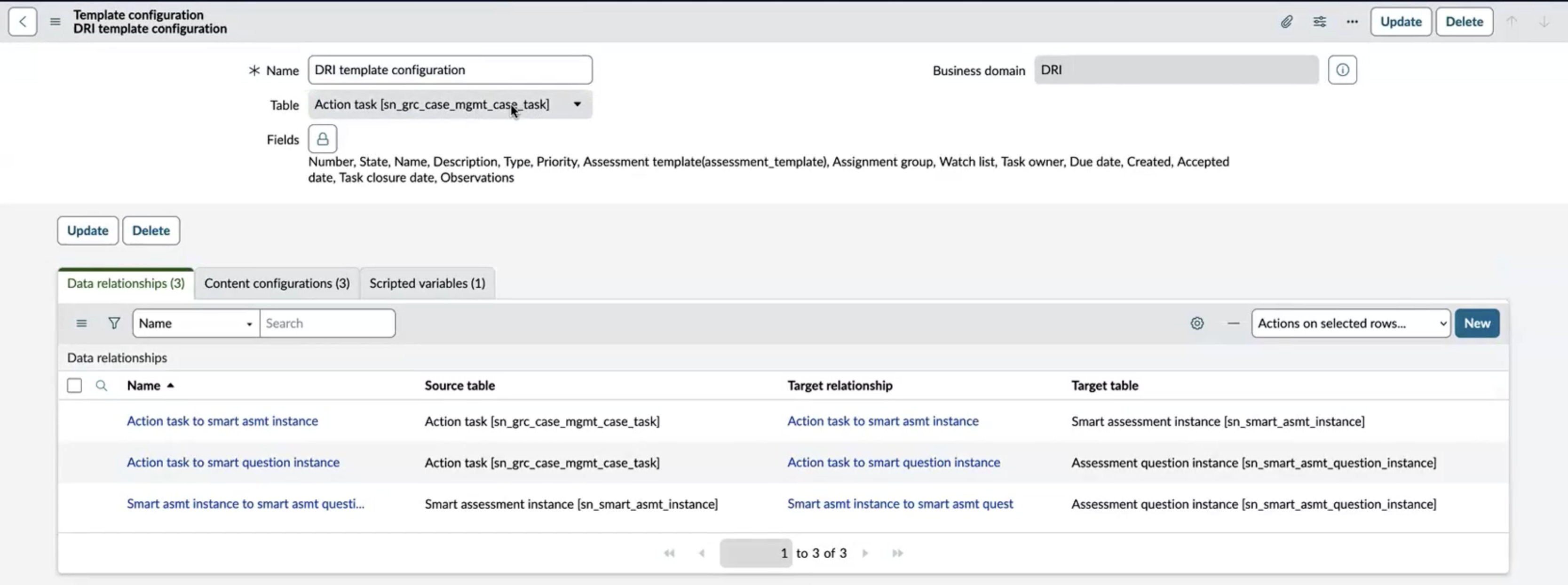

   A sample record is shown for reference.


5. On the form, fill in the fields.

   Table 1. Data relationship form

   Field	Description
   Name	Level that you want to go to. For example, you can specify Plan to Documentation.
   Source
   Parent relationship	Parent of the data relationship.
   Source table	Source table used for the data relationship created. This field is automatically set.
   Target
   Target relationship	Target relationship. You can select an existing relationship or create a relationship. For example, you can select Plan to Asset dependencies. Note: For more information, refer to Setting up the 360º views. You can register only existing relationships between the types of data you want to view.
   Relationship type	Type of the relationship such as many to many or one to many. This field is automatically populated based on the selection made in the Target relationship field.
   Target table	Table from which the data is obtained. This field is automatically populated.

6. Select Submit.

   Based on the selections, the data is shown in the template.

What to do next

Create content configurations to specify the type of data you want to fetch on the report. For more information, see Set up the content configurations.
